(How-to) - Yet Another s10 Swap

Discussion in 'The Hokey Ass Message Board' started by Abomination, Aug 1, 2008.

  1. bigtumtum
    Joined: Jul 2, 2008
    Posts: 654

    bigtumtum
    Member

    Jason maybe you can help me..

    i want to make a drawing from the bracket for the bed but in need to know of i understand it correct..

    ---------------------------------------------------------------------------------

    Quote:
    <TABLE cellSpacing=0 cellPadding=6 width="100%" border=0><TBODY><TR><TD class=alt2 style="BORDER-RIGHT: 1px inset; BORDER-TOP: 1px inset; BORDER-LEFT: 1px inset; BORDER-BOTTOM: 1px inset">Originally Posted by jeffs51chevy [​IMG]
    Yes and no. Yes, the section of 3" tubing is 14" overall, and yes, the distance above the frame rail is 8 1/2", but that is to the top if the tubing capped off with a 3 x 3 piece of 3/16 steel plate. The stock AD bed crossmember rests on the top of the tubing. The 8 1/2" measurement is not from the frame to the bottom of the bed, but to the bottom of the bed crossmember.

    </TD></TR></TBODY></TABLE>

    Damm.. i wish it was easy i have to read it and read it back...

    but to be honest too dificult to understand that you have a 3x3 3/16 on top of the tube i still understand...

    please check the drawing..


  2. Abomination
    Joined: Oct 5, 2006
    Posts: 6,702

    Abomination
    Member

    Jeff, is that drawing correct?

    ~Jason

  3. bigtumtum
    Joined: Jul 2, 2008
    Posts: 654

    bigtumtum
    Member

    this would be my wish list.. make a own Conversion kit

    :D so if some one has a e-zchassisswaps kit or somphing like that please share the info..


    Front Bumper Mounts (Adjustable)

    Front Frame Bulkhead (Mounts the radiator support & bumper brackets)

    Universal Radiator Support (Mount Bolts onto factory support)

    Front Cab & Running Board Mounts (Integrated for easier installation)

    Rear Cab & Running Board Mounts (Integrated for easier installation)

    Rear Cab Support (adapts factory cab mounting holes to new mounts)

    Front & Rear Box Mounts (Located by factory S-10 frame holes and are adjustable)

    Box Floor Supports (2) (Replaces factory center box supports)

    Wheel Base Correctors (Re-locates differential for 116" wheel base)

    Box Skirt Extensions (for 2" body drop kit only)

    Motor mounts (Chevy Small Block or 4.3 V-6, or '58-'62 "Stovebolt" 6-cyl)

    Transmission mount (700R4 or Std. A.T., or TH 400)

    Firewall Insert (for mounting S-10 brakes, steering column, throttle linkage, & fuse
    block)

    Upper & Lower Steering Column mounting brackets (mounts S-10 column)

    Gas Pedal Mount Bracket (Mounts stock S-10 gas pedal assembly)

    A.T. Linkage Bracket (Mounts stock S-10 shift linkage)

    Battery Mount Bracket (Frame-mounted, under the box & behind the cab)

    All Hardware & Rubber Mounts are Pre-Assembled on Prospective Mounts.

  4. Abomination
    Joined: Oct 5, 2006
    Posts: 6,702

    Abomination
    Member

    This is a great idea - if people could contribute measurements and plans, perhaps we could do an "open source" set of drawings and put them online for all to freely use.

    Wouldn't it be interesting if some of these brackets had slotted holes in the top where the cab mounted, to allow for all kinds of different cabs to be mounted?

    Or, if that's not safe, the tops of the brackets for the beds or cab, etc could be left undrilled. You'd have to do that yourself per your own application?

    After putting this online as a virtual kit, how much time would pass before others jumped on the bandwagon and started submitting drawings of their own, for specific applications (like Fords, or Mopars, etc)? :)

    Wouldn't it be nice to have a list of parts from these kits, so that we could make our own, but different enough so we wouldn't be sued?

    And I use the term "open source" to the fullest of it's meaning...

    ~Jason

  5. bigtumtum
    Joined: Jul 2, 2008
    Posts: 654

    bigtumtum
    Member




    Yeah or on top make it open but also with holes so people ca make a plate for it for example plaatje.jpg en the bolt it on top so the can make there own personal bracket... :D

  6. Abomination
    Joined: Oct 5, 2006
    Posts: 6,702

    Abomination
    Member

    Genius!

    That would allow them to make a bracket on a workbench, then just bolt it on!

    You rock, man!

    ~Jason



  7. bigtumtum
    Joined: Jul 2, 2008
    Posts: 654

    bigtumtum
    Member

    a Workbench.... i realy not hope sooo..:D:D:D

    but it is a idea.. i was too weeks ag in a Lowe's in Hamilton Jersey because i needed bolts i was never in suchs a big shop.... they realy have everyting needed and it was soo cheap.. :) it was my first time in the usa.. but we are already planning for may 2009 3weeks california :D

    Last edited: Aug 28, 2008
  8. bigtumtum
    Joined: Jul 2, 2008
    Posts: 654

    bigtumtum
    Member

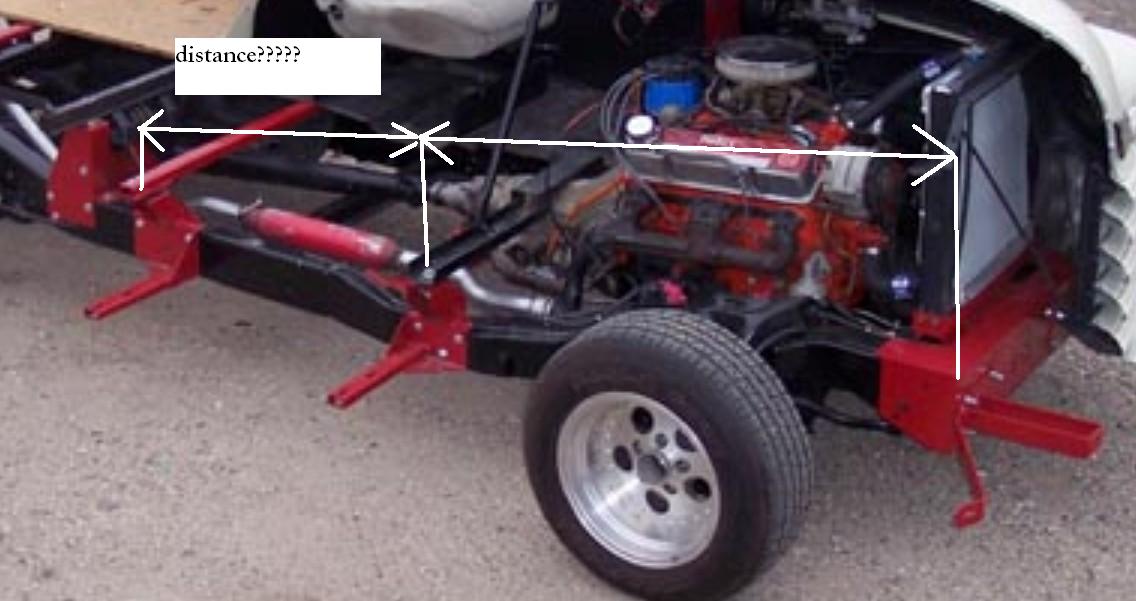

    People!! this is verry importent please tell me the distance


    i need to know the distance from the front of the rail until the first bracket

    and then the distance to the second bracket...:(

  9. Abomination
    Joined: Oct 5, 2006
    Posts: 6,702

    Abomination
    Member

    Bump - anybody?


  10. bigtumtum
    Joined: Jul 2, 2008
    Posts: 654

    bigtumtum
    Member

    Hey jason,

    here is the drawing we are still changing it..

    if you have any other drawing please let me know so we can look s we can make more and and more drawing :D


  11. bigtumtum
    Joined: Jul 2, 2008
    Posts: 654

    bigtumtum
    Member

    does anyone has more info about the EZ-chassis

    i want to make a good drawing from the Front Bumper Mounts (Adjustable)


  12. daddio211
    Joined: Aug 26, 2008
    Posts: 6,002

    daddio211
    Member

    Sorry I'm so late getting back to this post. There's way more information here than the 4 page article I have, but I will post it anyway. It just may help someone, someday.


    Attached Files:

  13. bigtumtum
    Joined: Jul 2, 2008
    Posts: 654

    bigtumtum
    Member

    Great info thanx man...

  14. daddio211
    Joined: Aug 26, 2008
    Posts: 6,002

    daddio211
    Member

    Hmmm... a little difficult to read. If you want me to forward the full-size scans just shoot me a PM with your email address. I'll be happy to send the pics to ya!

  15. Abomination
    Joined: Oct 5, 2006
    Posts: 6,702

    Abomination
    Member

    Hey, anything helps!

    Sorry I haven't been in this post a while...

    ~Jason


  16. bigtumtum
    Joined: Jul 2, 2008
    Posts: 654

    bigtumtum
    Member

    maybe a stupid question but who has bumper brackets of th rear...

    looks like this.. i want to make them my self... from stainless steel but need to know the measerments

    [​IMG]

  17. Abomination
    Joined: Oct 5, 2006
    Posts: 6,702

    Abomination
    Member

    You may email http://www.lmctruck.com on that one...

    ~Jason


  18. dragrcr50
    Joined: Jul 25, 2005
    Posts: 3,865

    dragrcr50
    Member

    sa habla nascar.............

  19. koolkemp
    Joined: May 7, 2004
    Posts: 6,006

    koolkemp
    Member


    Would love to see these at full size scans??

    Steve

  20. Abomination
    Joined: Oct 5, 2006
    Posts: 6,702

    Abomination
    Member

    Click on the attachment, then click the picture a second time after the screen goes dark, and it'll open up in a new window at full-size. Click it again in that window to magnify. :)

    ~Jason


  21. koolkemp
    Joined: May 7, 2004
    Posts: 6,006

    koolkemp
    Member

    I already did..they are just lo-res scans...I have decided to go the full chassis swap with the 47 more door Ford I just dragged home...going to look at a chassis next weekend that will come home with me if its not too rusty:D!!

  22. Abomination
    Joined: Oct 5, 2006
    Posts: 6,702

    Abomination
    Member

    Don't forget to check out this post:
    http://www.jalopyjournal.com/forum/showthread.php?t=274702

    Or this link: http://www.gmupfitter.com/publicat/pdf/LD/LD_ST_Truck/LD_ST_Truck_pgs.pdf

    It looks like a cheat sheet for folks that build purpose-built trucks on top of GM truck chassis... and it's got lots of pretty pictures with measurements!

    Scroll down to page 51 of the .PDF linked to above and smile! :D

    ~Jason


  23. jbs10
    Joined: Oct 22, 2008
    Posts: 31

    jbs10
    Member
    from newport ky

    love the thread.just got a 51 chevy w/91 s10 frame.all a part. no scour whir to start truing to build it on the low. this is a big help.thanks guys. are u selling any mounts.yet

  24. Abomination
    Joined: Oct 5, 2006
    Posts: 6,702

    Abomination
    Member

    Nobody's selling mounts here. :D

    We do have some freebie drawings so you can make 'em yourself, though. :)

    ~Jason


    Last edited: Oct 27, 2008
  25. bigtumtum
    Joined: Jul 2, 2008
    Posts: 654

    bigtumtum
    Member


    Hey dude.. no this is not what this thread is here for we oly thry to help people out with the swap but you can find a lot of info in this thread with a lot of pics and drawings

    :D

  26. 53 Trucker
    Joined: Oct 19, 2009
    Posts: 1

    53 Trucker
    Member
    from Denton, TX

    How far is it from the center of your front wheels to the center of front cab mount? And I was also wondering how much clearance there was from the bottom of your running boards and the bottom of your frame? Any information would be appreciated.

    Last edited: Oct 19, 2009
  27. adriancyt
    Joined: Dec 15, 2009
    Posts: 11

    adriancyt
    Member

    Hi, I am new. Do u have any pic where the hole is and where the front cab mount is.

  28. 454navyss
    Joined: Oct 11, 2009
    Posts: 351

    454navyss
    Member

    im bringing this one back. is there any more info on doing this swap?

  29. adriancyt
    Joined: Dec 15, 2009
    Posts: 11

    adriancyt
    Member

    Like what?

  30. 454navyss
    Joined: Oct 11, 2009
    Posts: 351

    454navyss
    Member

    more info on the firewall insert, other brackets (bumper, steering column, pedals, etc), wheel base correctors, anything at all really. im going to do this frame swap on a 53 chevy truck and am trying to make sure i know what exactly has to be done so i can hopefully make a pretty quick project out of it


Share This Page
