Unusual engine photos

Discussion in 'The Antiquated' started by William Thompson, Sep 28, 2018.

  1. How about posting some photos of unusual old engine photos, like flathead V-12's or flathead Cadillacs.

    I'll start with an old Hemi

  2. RichFox
    Joined: Dec 3, 2006
    Posts: 10,020

    RichFox
    Member Emeritus

    Cad flathead wide V16 and Packard straight 12 38%20caddy%20v16.jpg untitled.JPG

  3. czuch
    Joined: Sep 23, 2008
    Posts: 2,688

    czuch
    Member
    from vail az

    Lovin motorporn.

    Deuces, Elcohaulic, 61Cruiser and 4 others like this.
  4. Boneyard51
    Joined: Dec 10, 2017
    Posts: 6,528

    Boneyard51
    Member

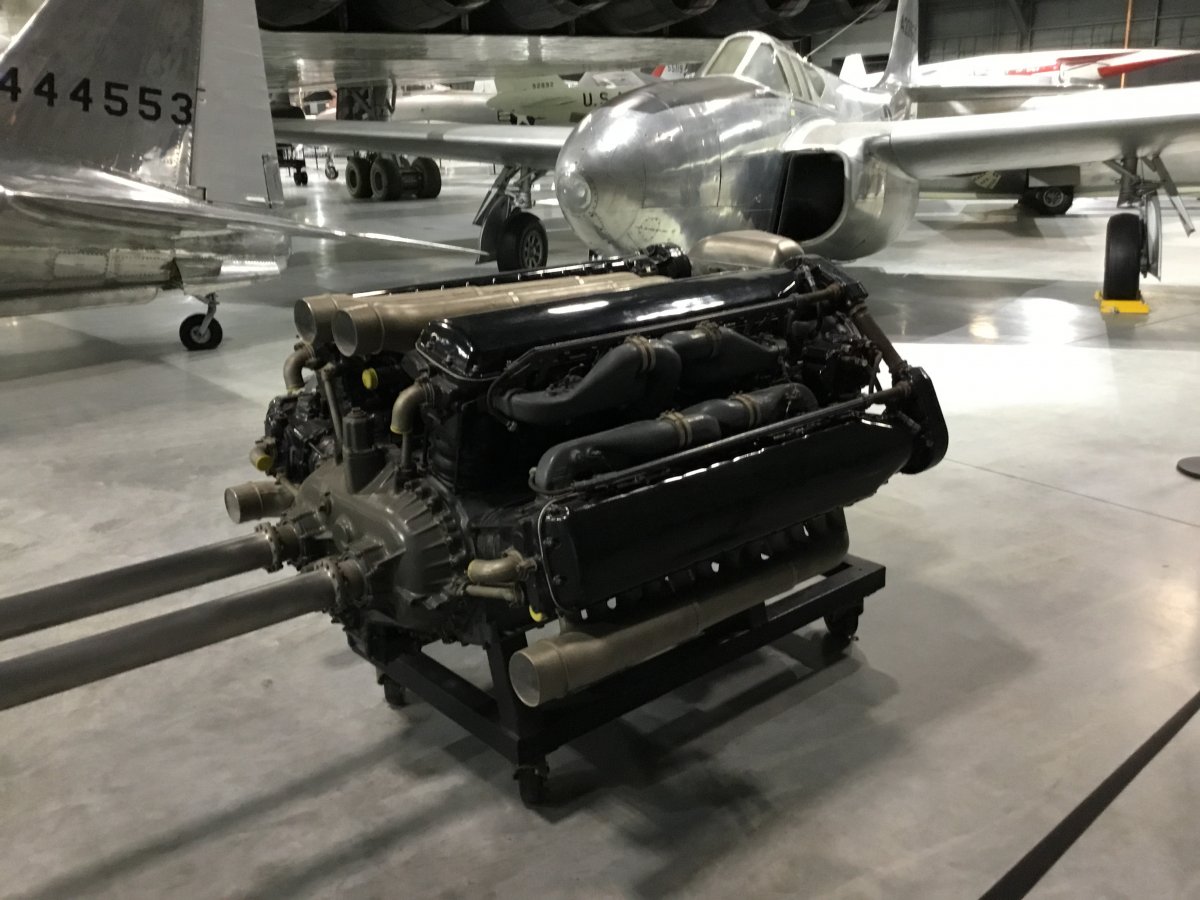

    28A54A0C-E223-4063-B80D-ACBC1A3D2294.jpeg This is twin Allisons

  5. Boneyard51
    Joined: Dec 10, 2017
    Posts: 6,528

    Boneyard51
    Member

  6. I worked in a wrecking yard about 1960 that had one of these engines laying in the dirt in front of the office. Cadillac V-12 OHV.

    orbitup, Okie Pete, wcben and 20 others like this.
  7. big duece
    Joined: Jul 28, 2008
    Posts: 6,879

    big duece
    Member
    from kansas

    Still can't get over this one... flatheadcamaro1.jpg

  8. Fordors
    Joined: Sep 22, 2016
    Posts: 5,685

    Fordors
    Member

    Harry Miller and his draftsman Leo Goossen designed this 151 marine engine for the hydroplane racers of the early 1930's. It was later made into a 200" sprint car engine and still later Harry had it enlarged for Indy where it ran at 220 cu. in. When Miller fell on hard times Fred Offenhauser bought Miller's machinery and the rights to the engine which naturally became the Offy that dominated Indianapolis for years. Scan_0104.jpg

  9. Fordors
    Joined: Sep 22, 2016
    Posts: 5,685

    Fordors
    Member

    Here is Joe Lencki's six cylinder that he designed for his Champ cars. Pretty much an Offenhauser with two extra cylinders but maybe Joe refined the design to suit his tastes. Its been said that he was very touchy about it being compared to the Offy. The first photo shows Fred O on the right with the shop crew and a number of engines in the works and finished, the Lencki 6 is in the middle. The second photo is Joe with his beloved engine, he looks to be well into his 80's here. The last images are of the Lencki 6 as restored by the new owner, top photo is the crankcase assembly and the lower is of the cylinders and integral head with the cam towers and carbs installed. Scan_0105.jpg Scan_0106.jpg Scan_0107.jpg

    I should have mentioned in my original post that Corky Coker has the patterns and tooling for the Lencki 6 and is building them for street use with starter, electronic fuel injection, etc.
    Not for the casual hot rodder, pricing starts at $100,000+

    Last edited: Sep 29, 2018
  10. DDDenny
    Joined: Feb 6, 2015
    Posts: 19,926

    DDDenny
    Member
    from oregon

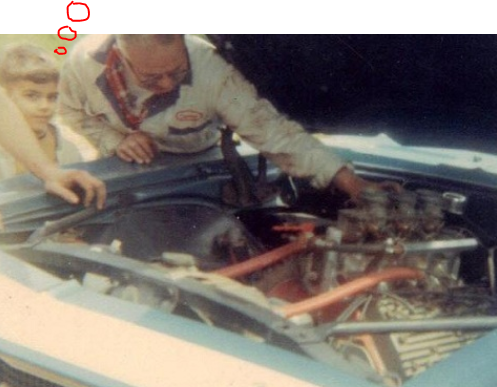

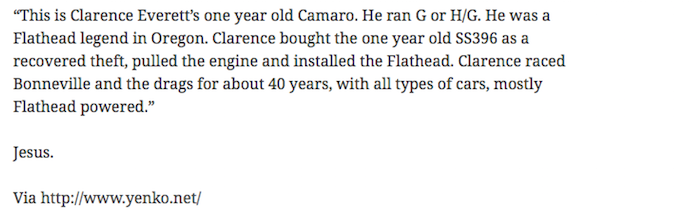

    Oregon racer and engine builder Clarence Everett.

    Okie Pete, -Brent-, jimmy six and 2 others like this.
  11. big duece
    Joined: Jul 28, 2008
    Posts: 6,879

    big duece
    Member
    from kansas

    I love the Camaro picture, I had a '67 in high school. Its just ironic to see it, usually it's a sbc in a early Ford.

  12. Fordors
    Joined: Sep 22, 2016
    Posts: 5,685

    Fordors
    Member

    Elto outboard boat motor adapted to a midget, this was a popular conversion in the 1930's-'40's. Scan_0108.jpg

    Toms Dogs, 63fdsnr, tommyd and 14 others like this.
  13. Fordors
    Joined: Sep 22, 2016
    Posts: 5,685

    Fordors
    Member

    How about Joe Schubeck's Eagle? Capable of 900 cu. in, DOHC, 4 valves per cylinder. A few were adapted to exotic sports type cars and run with EFI but I think most were put into boats. Joe was a racer, built dragster chassis and was the first guy to have blow proof bellhousings hydro formed. He eventually sold Lakewood Industries to Mr. Gasket. Oh, Joe also drove the Hurst Hairy Oldsmobile. scan0182.jpg

  14. loudbang
    Joined: Jul 23, 2013
    Posts: 40,323

    loudbang
    Member

    Prototype never made it into production

    hemi olds.jpg


    MT hemi ford 8.JPG


    Ball stud hemi k.JPG

    Ball stud hemi a.jpg

  15. RichFox
    Joined: Dec 3, 2006
    Posts: 10,020

    RichFox
    Member Emeritus

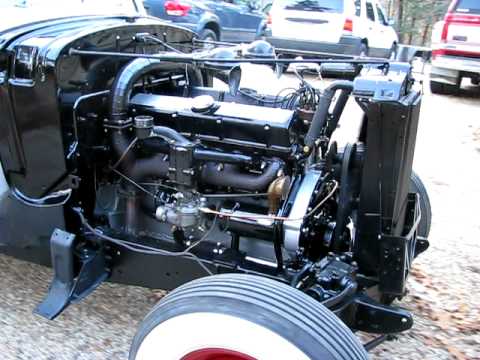

    four-cylinders.jpg Maybe a Plymouth banger with a Y block head. Whoever would do such a thing must be sick. DSCN8159.JPG

  16. Fordors
    Joined: Sep 22, 2016
    Posts: 5,685

    Fordors
    Member

    White Motor Company built this horizontally opposed 12 cylinder. They were mounted under the floor of buses and permitted maximum passenger space. scan0057.jpg

  17. Anyone hot rodding a tank? Five Chrysler L-heads in one.... Picture 574.jpg

    SuperKONR, Okie Pete, loner2 and 14 others like this.
  18. Bandit Billy
    Joined: Sep 16, 2014
    Posts: 13,622

    Bandit Billy
    ALLIANCE MEMBER

    Yeah, it's got a Hemi!

    Toms Dogs, zggum, tommyd and 8 others like this.
  19. Looks more like a flathead Ford v8....

  20. Fordors
    Joined: Sep 22, 2016
    Posts: 5,685

    Fordors
    Member

    Gifted race mechanic Takeo Hirashima with the Art Sparks six cylinder. Tak's career lasted from the '30's into the late 1970's, and his boss, Art, was also the founder of Forged-True Pistons. Scan_0109.jpg

  21. SR100
    Joined: Nov 26, 2013
    Posts: 1,176

    SR100
    Member

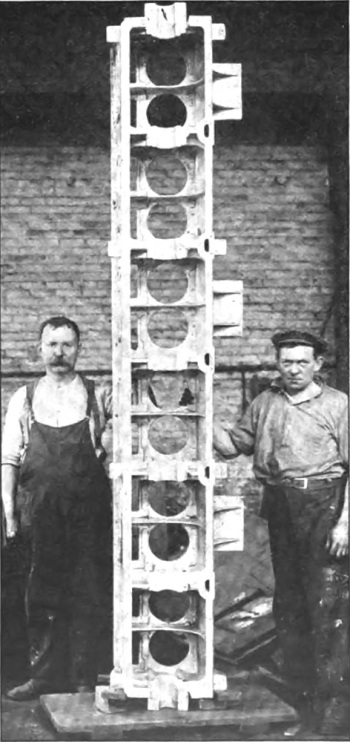

    Duesenberg inline 12s in Disturber IV, 1914.

    Dues inline 12, early manifold design

    Crankcase

  22. BJR
    Joined: Mar 11, 2005
    Posts: 10,400

    BJR
    Member

    It's a fake photo, the drivers side radiator hose goes over the top tank, and to the core support.

    lostdutchman and Old wolf like this.
  23. landseaandair
    Joined: Feb 23, 2009
    Posts: 4,485

    landseaandair
    Member
    from phoenix

    Search Clarence Everett. What looks like the corner of the radiator where the hose passes over may be the top of a Harman & Collins magneto?

    BigO likes this.
  24. j hansen
    Joined: Dec 22, 2012
    Posts: 8,224

    j hansen
    Member

    Skärmavbild 2018-09-30 kl. 09.00.19.png

  25. One my grandson and I spotted on a road trip. ;) 1243.jpg

  26. BJR
    Joined: Mar 11, 2005
    Posts: 10,400

    BJR
    Member

    Blow up the photo and look at the drivers side radiator hose. It does not go to the radiator, it sits on top of the top tank.

  27. greybeard360
    Joined: Feb 28, 2008
    Posts: 2,094

    greybeard360
    Member

    That is not the tank it goes over the top of... it's the magneto. That hose is going to the radiator.

    Hnstray likes this.
  28. j hansen
    Joined: Dec 22, 2012
    Posts: 8,224

    j hansen
    Member

    Looks like the radiator too me. Skärmavbild 2018-09-30 kl. 16.53.11.png

    Elcohaulic, loner2, Old wolf and 5 others like this.
  29. weps
    Joined: Aug 1, 2008
    Posts: 548

    weps
    Member
    from auburn,IN

    American La France V12. Side valve (horizontal) enlarged version of the Auburn 12
    My 12 side view.jpg

  30. belair
    Joined: Jul 10, 2006
    Posts: 9,020

    belair
    Member

    Fun thread. Thanks all, for the pics.

    klleetrucking likes this.
