Art & Inspiration The History and Art of Engine Turned Material - Lets See Yours

Discussion in 'The Hokey Ass Message Board' started by Speed~On, May 17, 2017.

  1. David Gersic
    Joined: Feb 15, 2015
    Posts: 2,303

    David Gersic
    Member
    from DeKalb, IL

  2. David Gersic
    Joined: Feb 15, 2015
    Posts: 2,303

    David Gersic
    Member
    from DeKalb, IL

    [​IMG]

    First attempt, got sanded down over the weekend, prepping it for second attempt.

    For the Cratex stick, a piece of brass tubing is a perfect fit for the 3/8” stick, and the drill press chuck keeps it from slipping.

    [​IMG]

    I found that 1/4” of stick out was about perfect.


    Sent from my iPad using The H.A.M.B. mobile app

    kidcampbell71 and Speed~On like this.
  3. 51farmtruck
    Joined: Jul 23, 2007
    Posts: 872

    51farmtruck
    Member

    I did these for my 32 sedan. Dash and kick panels. I prefer 50% overlap horizontal and vertical. 1" cratex

    If you want to spend the entire day on the drill press,with most of that cross-eyed, nothing looks quite as beautiful.

    Here's an action video.
    https://www.instagram.com/p/Bnup-e2HyHZ/


    2.jpg 3.jpg 4.jpg 5.jpg 6.jpg 7.jpg 8.jpg 9.jpg 10.jpg

  4. David Gersic
    Joined: Feb 15, 2015
    Posts: 2,303

    David Gersic
    Member
    from DeKalb, IL

    Turn your piece first, then cut your holes. The edges are hard on the Cratex stick.



    Sent from my iPad using The H.A.M.B. mobile app

    j-jock likes this.
  5. The car I learned to drive in. '63 Impala SS w/ 327, power glide. Absolutely gorgeous car and covered inside and out with factory engine turnings.
    Impala 1.jpg

    Ron Funkhouser and kidcampbell71 like this.
  6. Mab
    Maybe Able was 'turning his vegetable wheelbarrow and Cain got jealous and knocked him off?

  7. David Gersic
    Joined: Feb 15, 2015
    Posts: 2,303

    David Gersic
    Member
    from DeKalb, IL

  8. Speed~On
    Joined: Apr 28, 2011
    Posts: 1,283

    Speed~On
    Member

    You guys are doing great! Thanks for sharing your projects.

    A few of my recent projects.





  9. Black_Sheep
    Joined: May 22, 2010
    Posts: 1,223

    Black_Sheep
    Member

    There is "engine turned" vinyl wrap in a variety of colors and pattern sizes, I used some on my truck instrument cluster. It simulates the look but in no way approaches the beauty of examples shared in this thread.


    Attached Files:

  10. MeanGene427
    Joined: Dec 15, 2010
    Posts: 1,492

    MeanGene427
    Member
    from Napa

    I can see where the old Bridgeport would come in quite handy when lining up and carrying straight rows. My gramps old 30/06 deer rifle is a sporterized WWI P-17 Enfield, had the big "ears" machined off the receiver, custom barrel and stock, and the round bolt is engine turned- yeah, it's purty

    kidcampbell71, loudbang and Speed~On like this.
  11. hotrodjack33
    Joined: Aug 19, 2019
    Posts: 1,426

    hotrodjack33
    ALLIANCE MEMBER

    REDNECK ENGINEERING

    Piece of aluminum roof flashing laminated (conact cement) on a piece of 3/8" lexan. Built jig board for the drill press marked every 1/2" (top & sides). used a 1/2" dowel with a piece of 0-0 steel wool on the end, held on with a small hose clamp. Cheap and easy:D dash.jpg

  12. LM14
    Joined: Dec 18, 2009
    Posts: 1,936

    LM14
    Member
    from Iowa

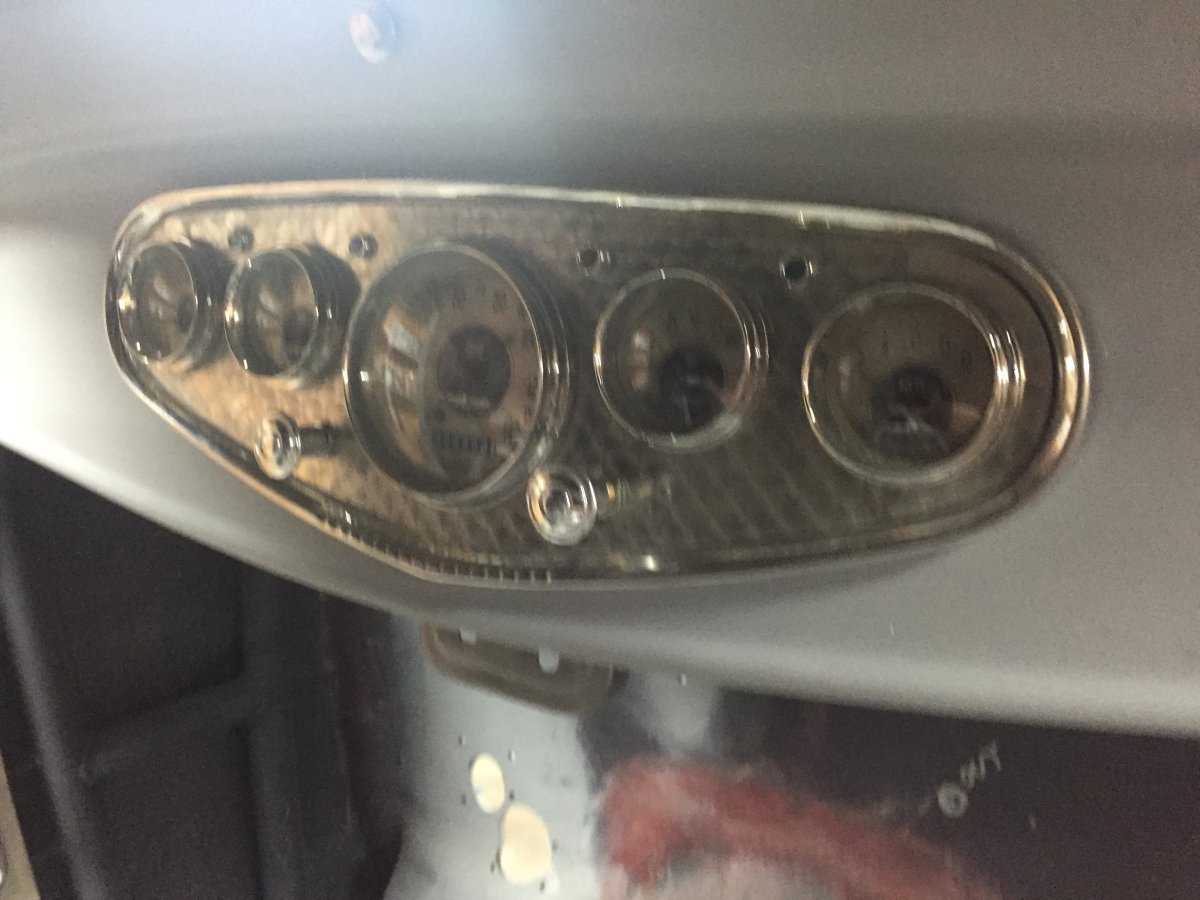

    Dash insert in my '62 Ford unibody:

    2020-26a.jpg 2020-26b.jpg 2020-26c.jpg


    Insert in my '32 5 window:
    dash6.jpg dash7.jpg dash8.jpg assembly3e.jpg assembly3f.jpg

    Both are 1/2" diameter swirls. Always liked the look of engine turned parts.

    SPark

  13. GordonC
    Joined: Mar 6, 2006
    Posts: 2,248

    GordonC
    ALLIANCE MEMBER

    This is a stainless drink bottle that I decided to use as an overflow tank for my roadster. I peeled off the plastic wrap that was on it and then free handed some swirls on it. Didn't come out to badly I think.


  14. Speed~On
    Joined: Apr 28, 2011
    Posts: 1,283

    Speed~On
    Member

    Hey guys ( @GordonC @LM14 @hotrodjack33 @David Gersic @51farmtruck ) thank you for participating in this thread and sharing your work. Your stuff looks great! As you know, engine turning is a lot of fun. Yeah, it can be a little time consuming, but that is part of the fun. It's nice to be out in the garage with the radio on making something that is going to look killer when finished. Here are some other panels I have completed recently.



    I will be in the garage doing some more engine turning today as I have a few more gauge panels I want to do. I will probably sell them when they're finished.

    @MeanGene427 Yep, a Bridgeport would work great for this. I have my floor mount drill press pictured on the first page of this thread. I will take some photos of the "jig" I made. It allows me to make straight passes.

  15. David Gersic
    Joined: Feb 15, 2015
    Posts: 2,303

    David Gersic
    Member
    from DeKalb, IL

    Looks good. I have a couple more turning projects I’m slowly working on here.



    Sent from my iPad using The H.A.M.B. mobile app

    Speed~On, osage orange and loudbang like this.
  16. David Gersic
    Joined: Feb 15, 2015
    Posts: 2,303

    David Gersic
    Member
    from DeKalb, IL

    Today, it’s too cold for garage work, and snowing, so spent some time in the basement turning.

    [​IMG]

    Will go behind my rear license plate on my ‘37, which kinda hangs out in space over the tail light and fender.



    Sent from my iPad using The H.A.M.B. mobile app

  17. David Gersic
    Joined: Feb 15, 2015
    Posts: 2,303

    David Gersic
    Member
    from DeKalb, IL

    You don’t need much fancy equipment to turn. Just a drill press and some scrap wood to make a table.

    [​IMG]

    Yard stick and a couple of clamps to keep the lines straight. Pencil and ruler for measuring row offsets.

    This one was 3/4” horizontal x 3/4” vertical and a 3/8” offset on each row.



    Sent from my iPad using The H.A.M.B. mobile app

  18. Buz
    Joined: May 18, 2007
    Posts: 133

    Buz
    Member

    IMG_0834.JPG My 32 dash done in stainless with a 1/2" Cratex stick in the drill press with a yard stick as a guide and 1/4" overlap.

  19. [​IMG]
    1928 Chrysler panel I put in my Model A cabriolet

    [​IMG]
    Dodge did a different turning pattern in 1933-34 that I find attractive. I was planning to use it in my cabriolet before I found the Chrysler panel, so I used the dash panel for wood graining practice.

  20. Speed~On
    Joined: Apr 28, 2011
    Posts: 1,283

    Speed~On
    Member

    And a killer set of Stewart Warner 2 5/8", smooth bezel, crescent needle, curved glass front mount gauges. Very nice!
    That's how it's done.


  21. Osoty
    Joined: Nov 21, 2017
    Posts: 63

    Osoty
    ALLIANCE MEMBER

    This is a really cool thread. Thanks guys

    Speed~On likes this.
  22. fleetside66
    Joined: Nov 20, 2006
    Posts: 2,579

    fleetside66
    ALLIANCE MEMBER

    It must be something in the water in Wisconsin...amazing.

    Speed~On and big duece like this.
  23. vtx1800
    Joined: Oct 4, 2009
    Posts: 1,143

    vtx1800
    ALLIANCE MEMBER

    IMG_2835 (2).JPG This is "faux" engine turning but it was a factory finish. This dash is out of a Studebaker Hawk, it was quite a bit more attractive (to me) than the stock 53 Champion dash. It needs to be dusted, just got the side windows installed last week:) View attachment 4608594

  24. rusty valley
    Joined: Oct 25, 2014
    Posts: 1,949

    rusty valley
    Member

    the bottom of a 34 ford dash is not flat, so i made this little panel to fit the contour. started with a piece of stainless i had saved from scraping an early 50's greyhound bus years ago, gotta have era correct parts ya know! i did the wire brush method, with motor oil learned off a youtube video. in my experimental piece i marked off 1/2" increments, then tried two different size brushes just freehand aiming for the cross hairs. for the project i chose the smaller brush, about a 1/2" diameter when tied up, and used my bridgeport to do 1/4" travel, or half overlap. not sure, do you guys always start from the same side? i did not, i would go left to right, move down, then right to left so i did not loose my place on the mill. once i had it trimmed to size there was some remains of magic marker in spots from the layout and i could not find any chemical in the shop that would completely remove it, so be careful of that. i wish i had some nicer gauges, but overall i am happy with the project IMG_0596.JPG


    Attached Files:

  25. speedshifter
    Joined: Mar 3, 2008
    Posts: 230

    speedshifter
    Member


  26. speedshifter
    Joined: Mar 3, 2008
    Posts: 230

    speedshifter
    Member

    Speed-On You do beautiful work. I read that the engine turned cowl on Lindbergh's plane was done with a rotary wire brush on an angle head grinder. The cowl material might have been aluminum rather than stainless. Greg

    Speed~On likes this.
  27. A Boner
    Joined: Dec 25, 2004
    Posts: 5,799

    A Boner
    Member

    For a dash insert size project, what diameter stick is most appropriate? Also what grit for aluminum v/s what grit for stainless? Can I assume using the Cratex stick on stainless, it will wear down much quicker? How much quicker? The smaller the diameter, and the larger the overlap, the more tedious the project will become.....when doing a close to minimum overlap (both horizontal and vertical) will it still look good?
    Thanks, if someone answers!

  28. Special Ed
    Joined: Nov 1, 2007
    Posts: 6,270

    Special Ed
    Member

    The "Hollywood" engine-turned dash by Stewart Warner was standard factory equipment on all Muntz Jets from 1950-1953. Originally equipped with their 6 volt winged gauges, this one (not mine) has been "updated" ...
    [​IMG]

    Speed~On and kidcampbell71 like this.
  29. rusty valley
    Joined: Oct 25, 2014
    Posts: 1,949

    rusty valley
    Member

    i am no expert, but i can elaborate on my little project a bit. i chose the wire brush because i had some in stock, no waiting. i think it worked good, the brush did not seem to change pattern, so not much wear i assume. the oil keeps it from wearing but also makes a black oily puddle at the work site, so hard to see unless you keep wiping it off. i didnt wipe to check very often because i read the dial on the mill instead of free hand onto a grid pattern layout. another method on youtube the guy wiped oil all over the part, then sprinkled sand blast material evenly around the part with like a pepper shaker, then used a wooden dowel for the tool. the theory is every time you move over you are landing on a new supply of grit to keep the pattern the same. my little two gauge panel took about two hours at 1/4" moves, so i can appreciate the effort the guys put into large parts

  30. David Gersic
    Joined: Feb 15, 2015
    Posts: 2,303

    David Gersic
    Member
    from DeKalb, IL

    There’s no hard and fast rules, experiment to see what you like.

    Here’s my 37 dash insert

    [​IMG]

    1/4” row x 1/4” column spacing, 1/8” offset for each row. Using a 3/16” coarse Cratex stick, with a piece of brass tube from the hardware store to keep the tip from wandering. RPM on the drill press was 800. Lubed the panel with WD40. About 2 seconds on each pull of the handle.

    I had about 1/8” sticking out of the tube, and had to readjust it every couple of rows.

    I tried the medium Cratex first, but it didn’t make enough pattern on stainless. It’d probably be better on aluminum.

    The license plate backer I just did

    [​IMG]

    I used a 3/4” steel brush restrained by heat shrink tube, 1750 RPM, about three seconds per pull, and no lube. The brush spread a bit, I probably could have restrained it tighter, but I think it came out ok.

    Before committing to a good piece, turn some scrap. You don’t have to measure closely or even have much prep, just play around with your abrasive, speed, pressure, and time to see what makes a nice pattern.

    For the good piece, in stainless, I sanded first with a random orbit for the major smoothing, then 800 and 1000 wet by hand with a block to an almost mirror shine.



    Sent from my iPad using The H.A.M.B. mobile app
