Projects Project 29 Phaeton

Discussion in 'The Hokey Ass Message Board' started by 340HilbornDuster, Jan 29, 2013.

  1. Subscribe

    loudbang likes this.
  2. 340HilbornDuster
    Joined: Nov 14, 2011
    Posts: 1,956

    340HilbornDuster
    ALLIANCE MEMBER

    Sorry it's getting out a hand....
    Did some more research...

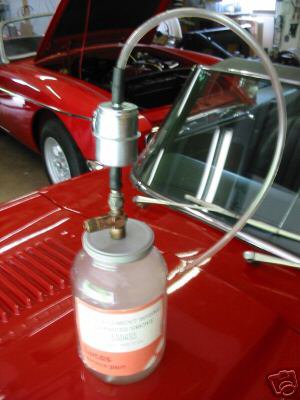

    Lucas Replacement Wiring Harness Smoke kit, P/N 530433, along with the very rare Churchill Tool 18G548BS adapter tube ...
    The IBM smoke canister may refresh my old CPU's

    One for the road...


    smokekit.jpeg 5990429717_a5a53c7da9_b.jpeg plxgtuo-55bf1ec108cf9.jpeg

    Sent from my SM-G930T using The H.A.M.B. mobile app

    VANDENPLAS, OahuEli, brEad and 2 others like this.
  3. Some times a little laughter is the best .

    OahuEli and loudbang like this.
  4. 340HilbornDuster
    Joined: Nov 14, 2011
    Posts: 1,956

    340HilbornDuster
    ALLIANCE MEMBER

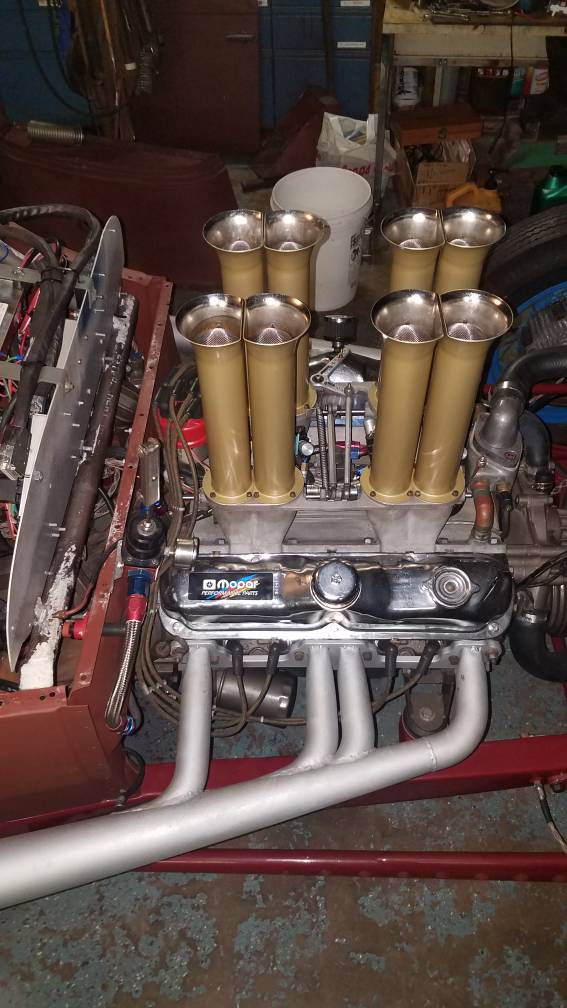

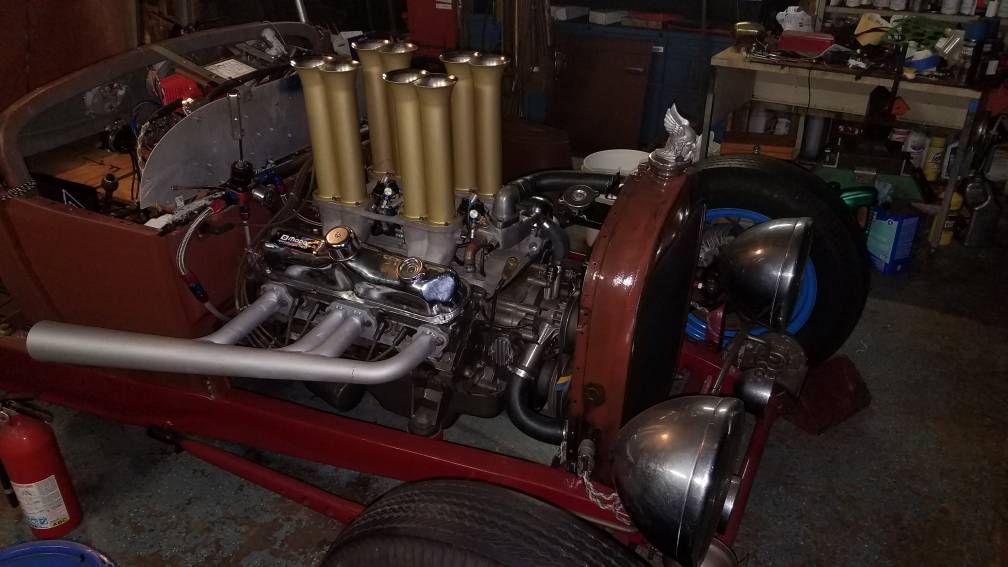

    Some Bling paint (to protect the metal) till i can afford / find a good chrome shop to have them re-chromed.
    CPU's landed today...fix up Ol' Smokey again...
    Bought Diodes @ Manfreds (Ind.Elec.) today! 20190114_190741.jpeg 20190114_190715.jpeg 20190114_190528.jpeg

    Sent from my SM-G930V using The H.A.M.B. mobile app

    OahuEli, brEad, Dannerr and 4 others like this.
  5. loudbang
    Joined: Jul 23, 2013
    Posts: 37,834

    loudbang
    Member

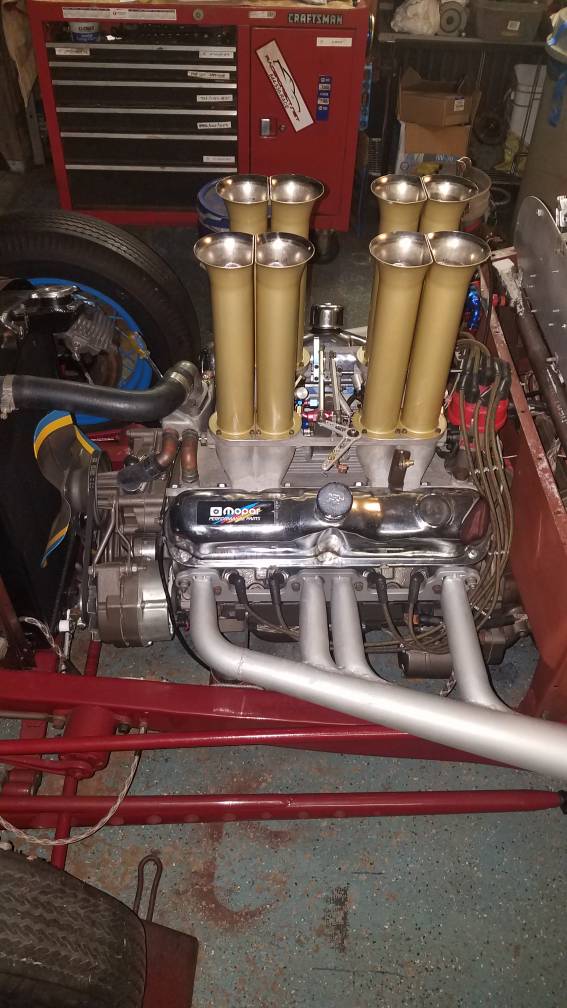

    I like the gold stacks. :)

    Stogy and 1-SHOT like this.
  6. Gold Stacks are good.

    loudbang likes this.
  7. 340HilbornDuster
    Joined: Nov 14, 2011
    Posts: 1,956

    340HilbornDuster
    ALLIANCE MEMBER

    SO, I was going "a little overboard" with the Squirt stuff!
    I was requested by admin to remove it (& I DO RESPECT THAT!!)..
    I Really Appreciate the heads up and TOTALLY AGREE!
    Thanks for keeping my Build Post up!!...
    Just a small part of my project and I'm trying hard to keep a Traditional
    appearance...


    YOU GUYS! THANKS FOR YOUR SUPPORT!
    Gives me spark when i feel like chillin' in the hammock!

    WIRING:
    With the wiring gremlins I've had...
    I decided to take the Back Board and Dash out...
    Redo / clean up all the FU'd wiring, from redoing the relays 3x.
    Get rid of those Chinese Relays.
    New fuse block! glass fuses would probably have fallen out at first pot hole.
    Upgrade with some "electric check valves".
    Looking for a military quick connector with enough pins for the dash...
    Everything's so crammed in there it would help when trouble shooting in the future!
    Move Spark away from sensitive equipment.
    etc. etc. etc.

  8. 340HilbornDuster
    Joined: Nov 14, 2011
    Posts: 1,956

    340HilbornDuster
    ALLIANCE MEMBER

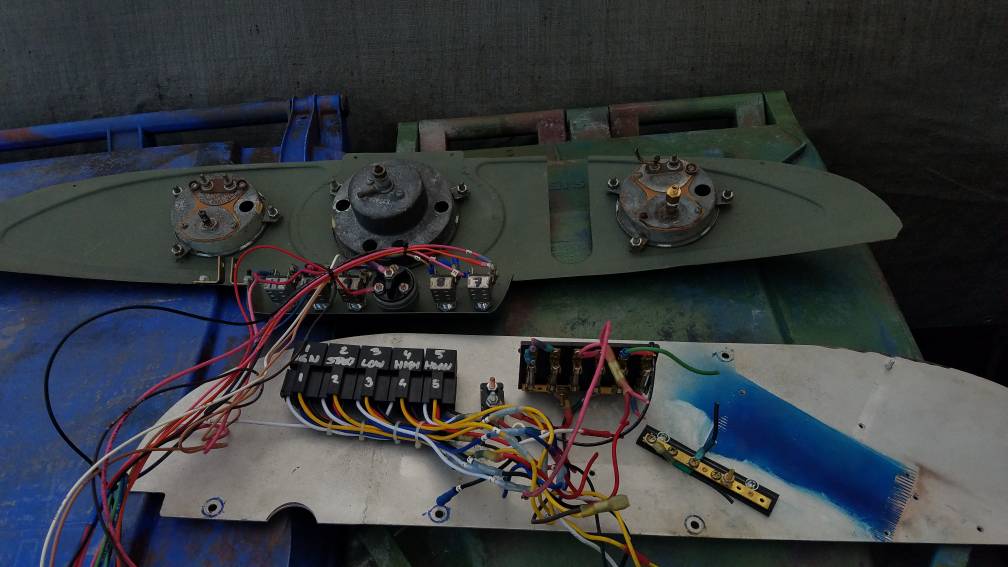

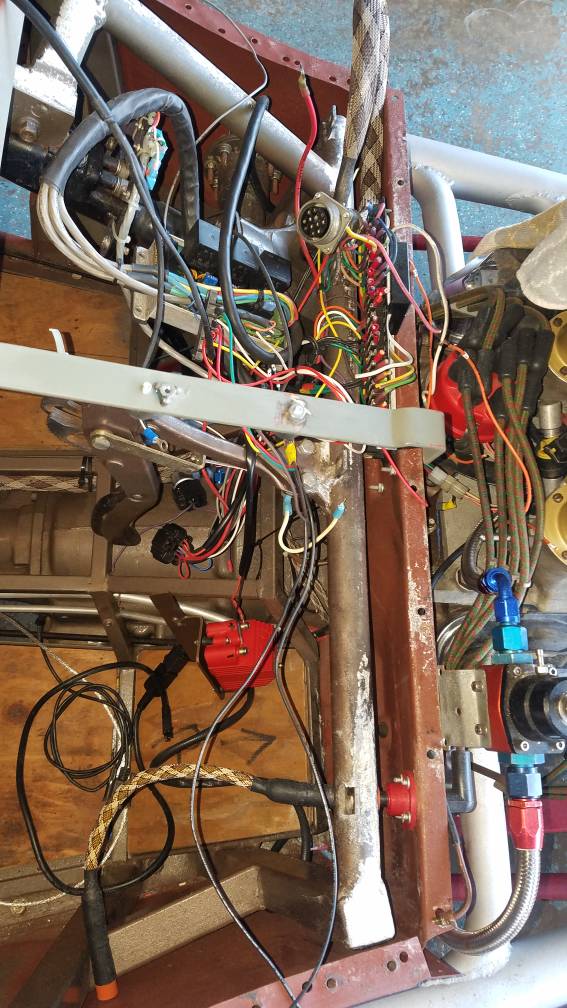

    OT?......lesson learned....
    this is what happens when you rush it
    this thing was living in there...
    Didn't need to remove the body harness connector..but it works!
    Start Fresh! 20190121_163343.jpeg 20190121_171932.jpeg 20190121_172249.jpeg

    Sent from my SM-G930T using The H.A.M.B. mobile app

  9. 340HilbornDuster
    Joined: Nov 14, 2011
    Posts: 1,956

    340HilbornDuster
    ALLIANCE MEMBER

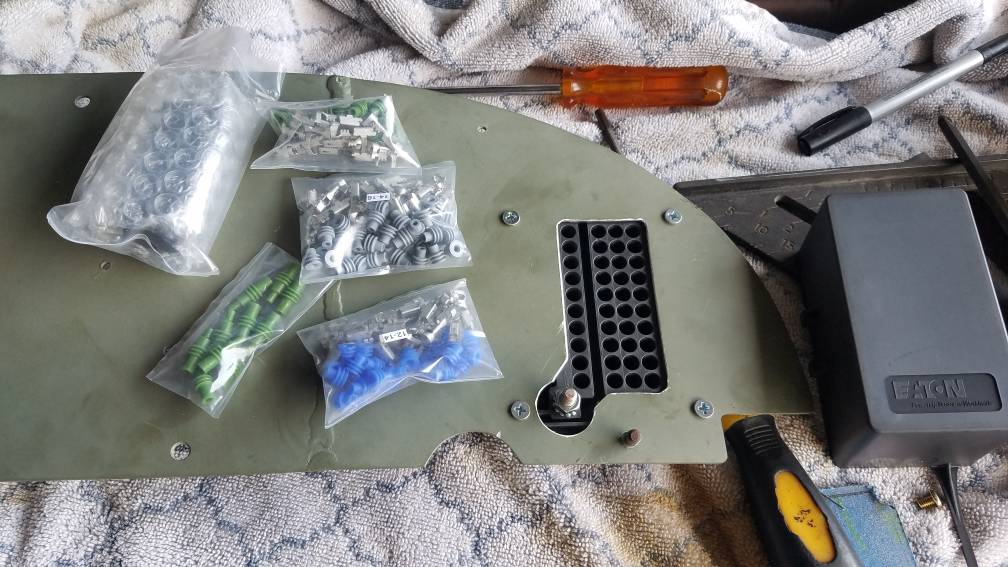

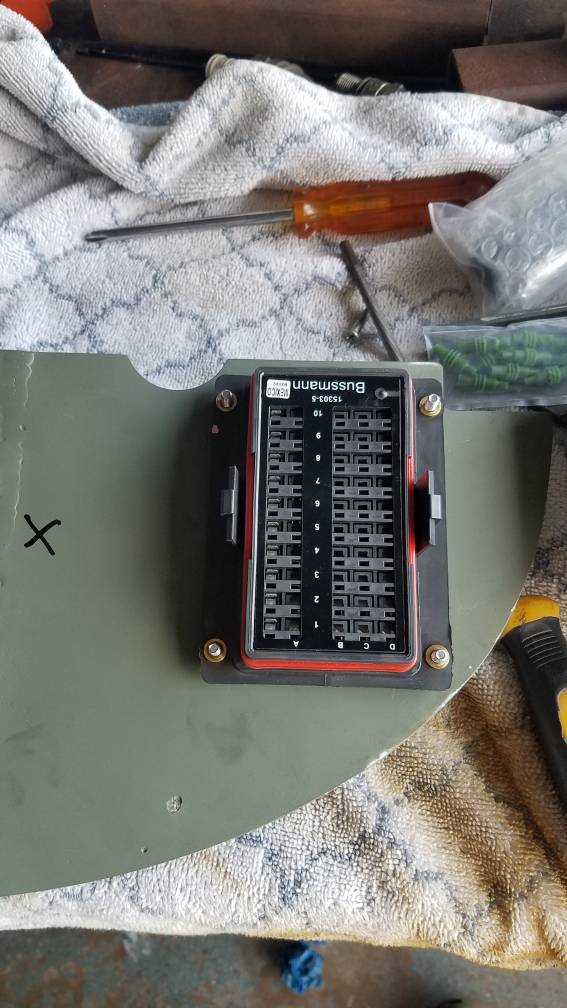

    New fuse / relay box.
    5 relays 10 fuses
    Hide some wires behind the board.
    20190202_163056.jpeg 20190202_163040.jpeg

    Sent from my SM-G930T using The H.A.M.B. mobile app

    brEad, loudbang and AndersF like this.
  10. Where did you get the fuse box ?

    loudbang likes this.
  11. 340HilbornDuster
    Joined: Nov 14, 2011
    Posts: 1,956

    340HilbornDuster
    ALLIANCE MEMBER

    E-bay...
    Search for
    Bussmann RTMR 15303-5 waterproof fuse panel.
    There's a bunch of different versions....relays....research...!

    Sent from my SM-G930T using The H.A.M.B. mobile app

    loudbang likes this.
  12. 340HilbornDuster
    Joined: Nov 14, 2011
    Posts: 1,956

    340HilbornDuster
    ALLIANCE MEMBER

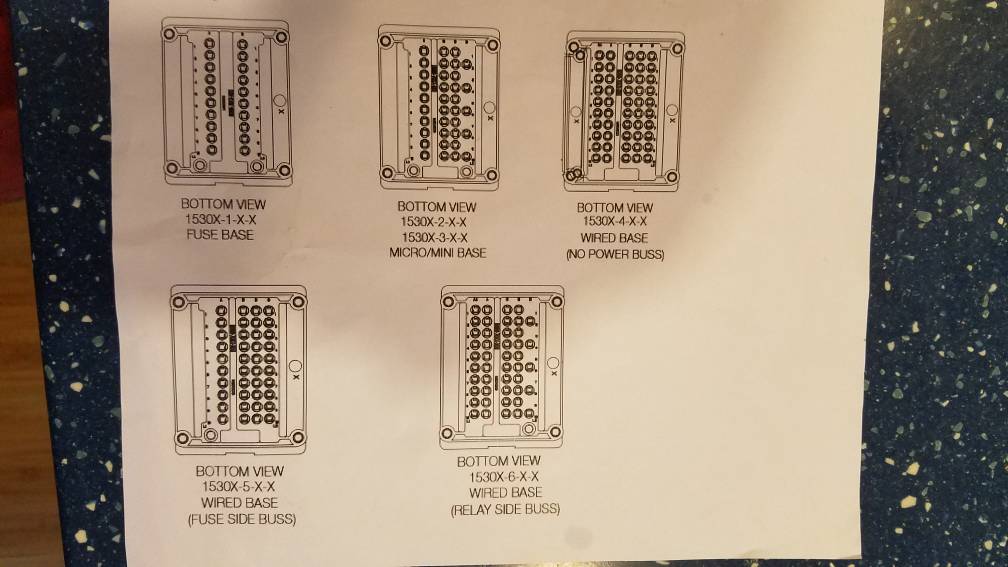

    different versions
    Up to 30 amp relays you can fit 5
    50 amp relays are fatter 20190202_175418.jpeg

    Sent from my SM-G930T using The H.A.M.B. mobile app

    loudbang likes this.
  13. Thanks, Frank

    loudbang likes this.
  14. 340HilbornDuster
    Joined: Nov 14, 2011
    Posts: 1,956

    340HilbornDuster
    ALLIANCE MEMBER

    It's a little pricey paid 90 bucks for mine with all the connectors and 5 30A relays.
    But is really compact and good quality

    Sent from my SM-G930T using The H.A.M.B. mobile app

    loudbang likes this.
  15. That's really not a bad price. Did you get Mike Sierra working?

    loudbang likes this.
  16. Looking forward to seeing more on the wiring!

    loudbang likes this.
  17. 340HilbornDuster
    Joined: Nov 14, 2011
    Posts: 1,956

    340HilbornDuster
    ALLIANCE MEMBER

    Mike Sierra got a new. Charlie Papa Uniform.
    Works great.
    Just have to fix the Gremlins in the wiring and get the coil away from the wiring harness

    Sent from my SM-G930T using The H.A.M.B. mobile app

    Stogy, OahuEli, Dannerr and 1 other person like this.
  18. loudbang
    Joined: Jul 23, 2013
    Posts: 37,834

    loudbang
    Member


    Wow so much power "what's the frequency Kenneth?" :)

    Stogy and OahuEli like this.
  19. 340HilbornDuster
    Joined: Nov 14, 2011
    Posts: 1,956

    340HilbornDuster
    ALLIANCE MEMBER

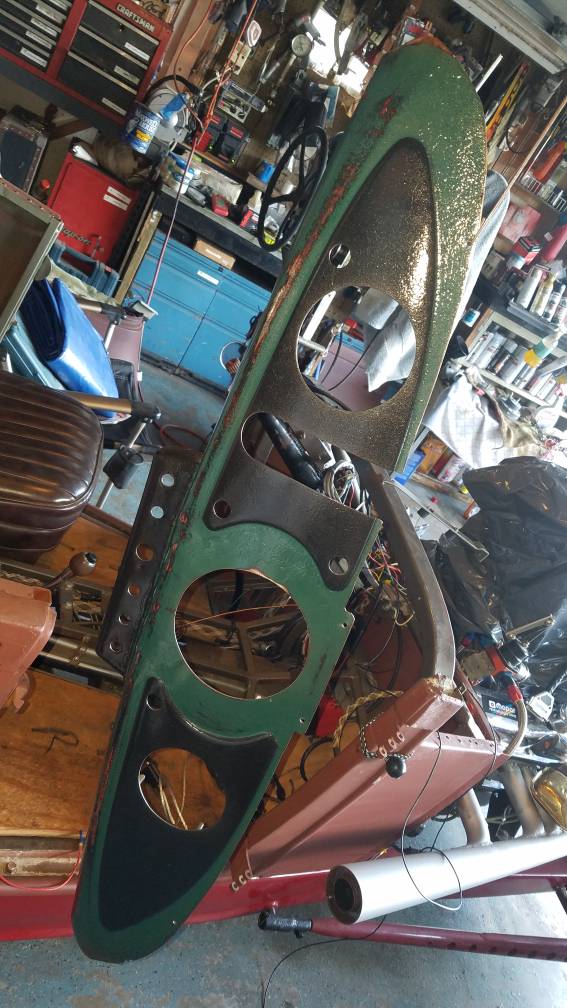

    Dash - Refresh paint.
    + Holes for indicator lights.
    Time to start wiring again. 20190209_164450.jpeg 20190209_172022.jpeg

    Sent from my SM-G930T using The H.A.M.B. mobile app

  20. OahuEli
    Joined: Dec 27, 2008
    Posts: 5,093

    OahuEli
    Member
    from Hawaii

    Man that's wiring is some scary looking stuff! At least you got the smoke kit working but is it calibrated? Trying to put smoke back into a 22 AWG wire when your settings are on 10 AWG wire can create real problems.:rolleyes::D

    loudbang and Dannerr like this.
  21. 340HilbornDuster
    Joined: Nov 14, 2011
    Posts: 1,956

    340HilbornDuster
    ALLIANCE MEMBER

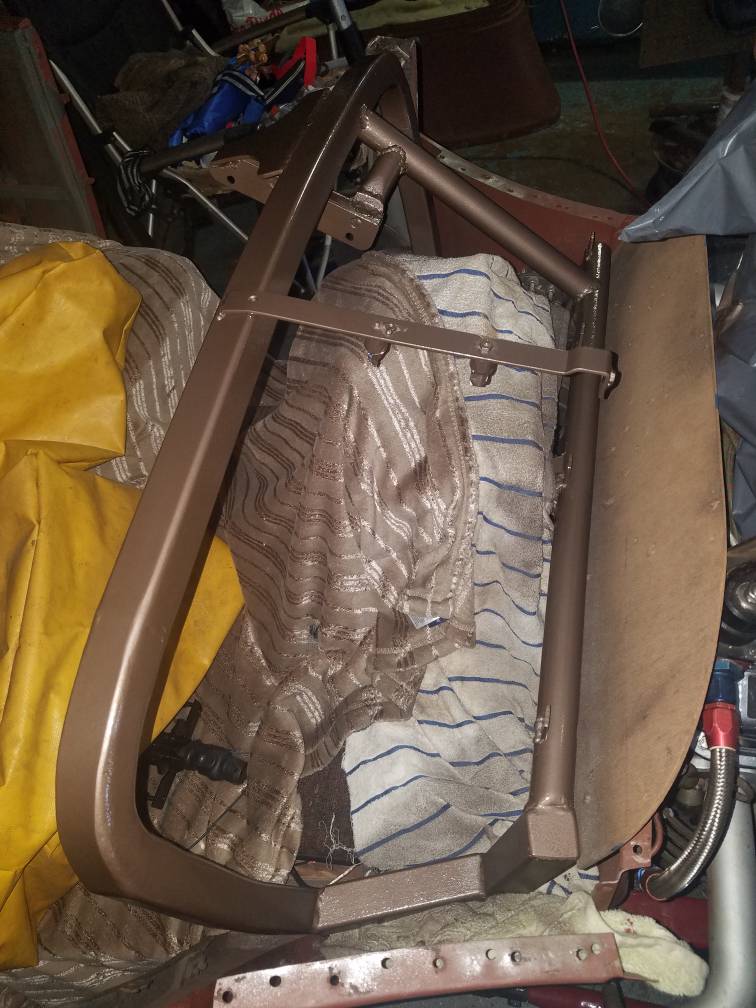

    Painted Dash / Cowl support & steering column...couldn't reach before...
    Soldered a piece of copper tubing to the horn wire...made a bushing from a screw driver handle.
    "Quick Remove Steering Wheel Horn Connector." 20190303_145154.jpeg 20190303_143858.jpeg 20190303_143933.jpeg

    Sent from my SM-G930T using The H.A.M.B. mobile app

    brEad, AndersF, loudbang and 2 others like this.
  22. 340HilbornDuster
    Joined: Nov 14, 2011
    Posts: 1,956

    340HilbornDuster
    ALLIANCE MEMBER

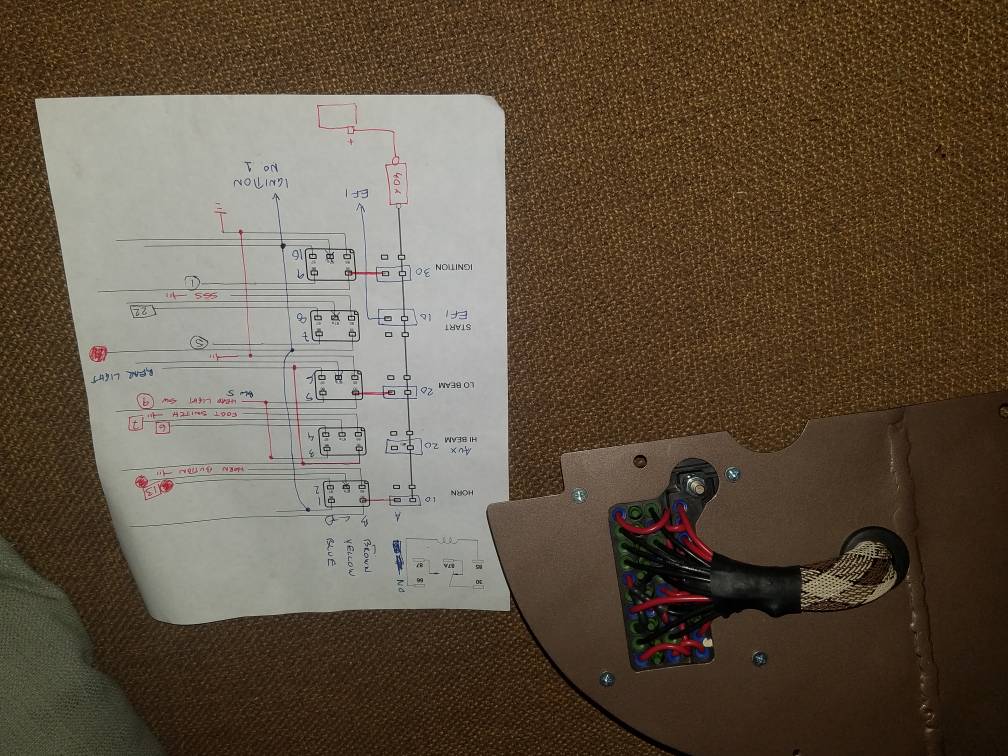

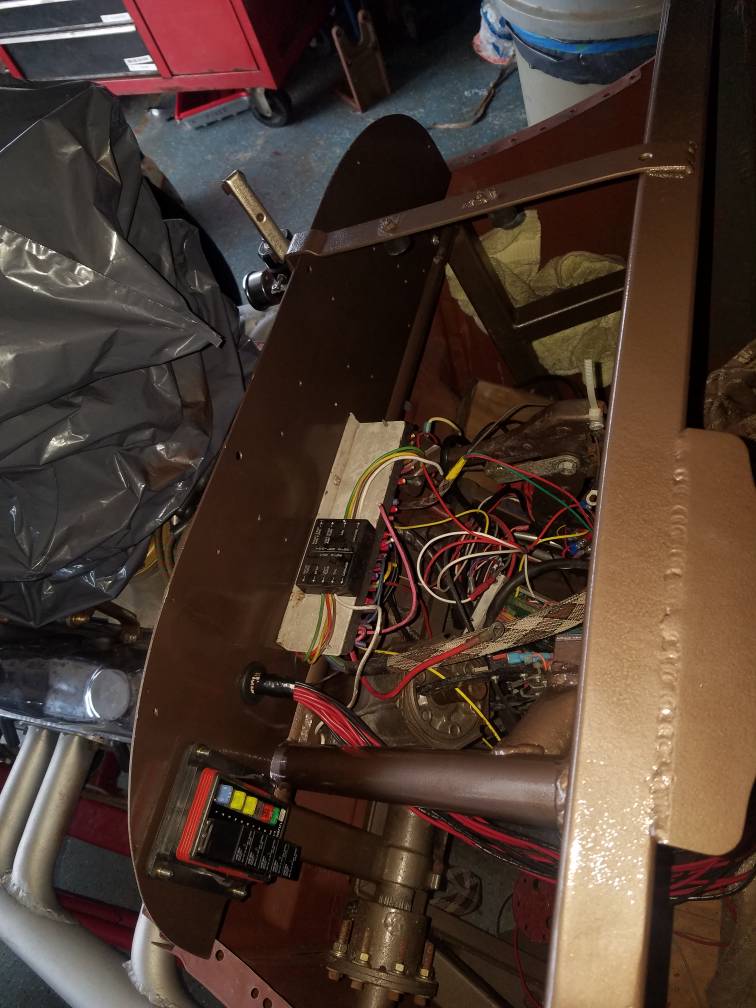

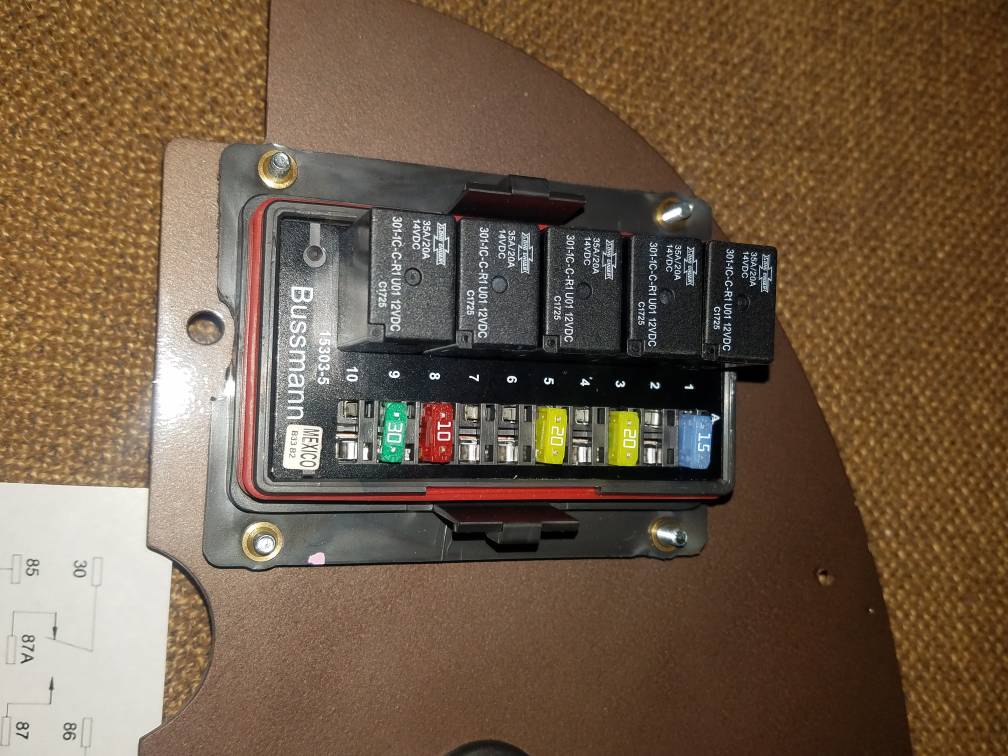

    Not period correct....but with everything crammed in there it's a Great Space Saver ..
    And those $#!+ relays are gone. 20190305_163743.jpeg 20190305_163854.jpeg 20190305_171123.jpeg

    Sent from my SM-G930T using The H.A.M.B. mobile app

  23. 340HilbornDuster
    Joined: Nov 14, 2011
    Posts: 1,956

    340HilbornDuster
    ALLIANCE MEMBER

    New fix required...
    Put the terminal strip on...
    Screws Facing DOWN!? Wasn't a problem when I attached the harness on the table
    Some moron used the bracket that was on it...PITA to terminate...upside down...!

    Sent from my SM-G930T using The H.A.M.B. mobile app

  24. Stogy
    Joined: Feb 10, 2007
    Posts: 20,794

    Stogy
    ALLIANCE MEMBER

    I know very little of these wiring dilemmas but applaud your conviction to finding the solutions on your own...this is a form of plateau in the build...I am confident you will hang glide off the end of that with your solution...;)

    loudbang likes this.
  25. 340HilbornDuster
    Joined: Nov 14, 2011
    Posts: 1,956

    340HilbornDuster
    ALLIANCE MEMBER

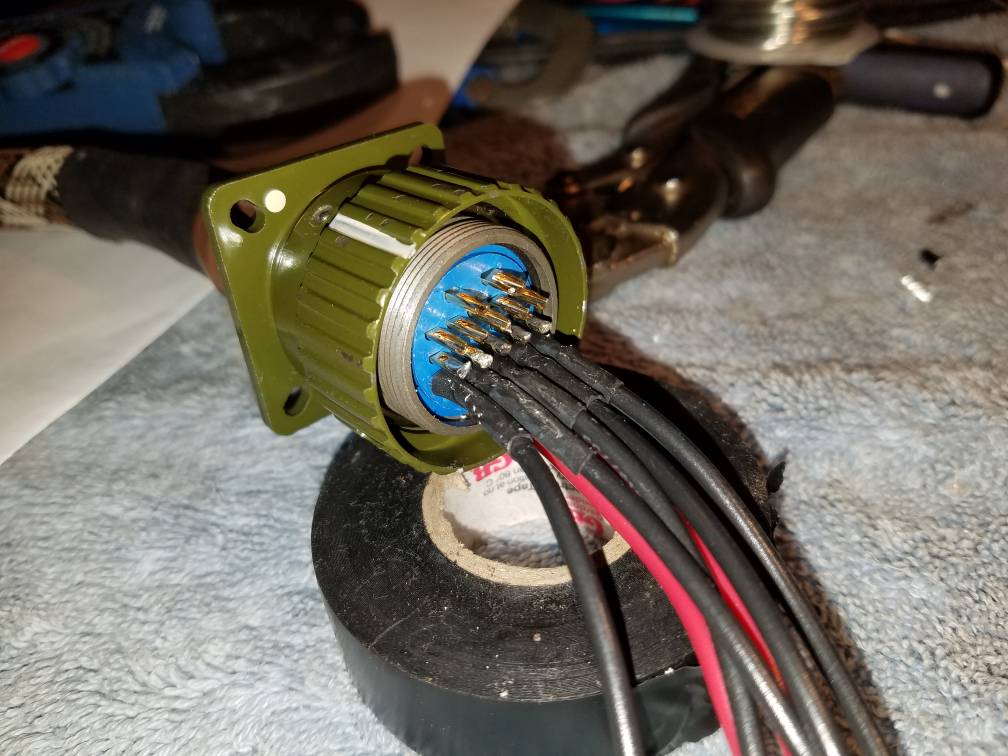

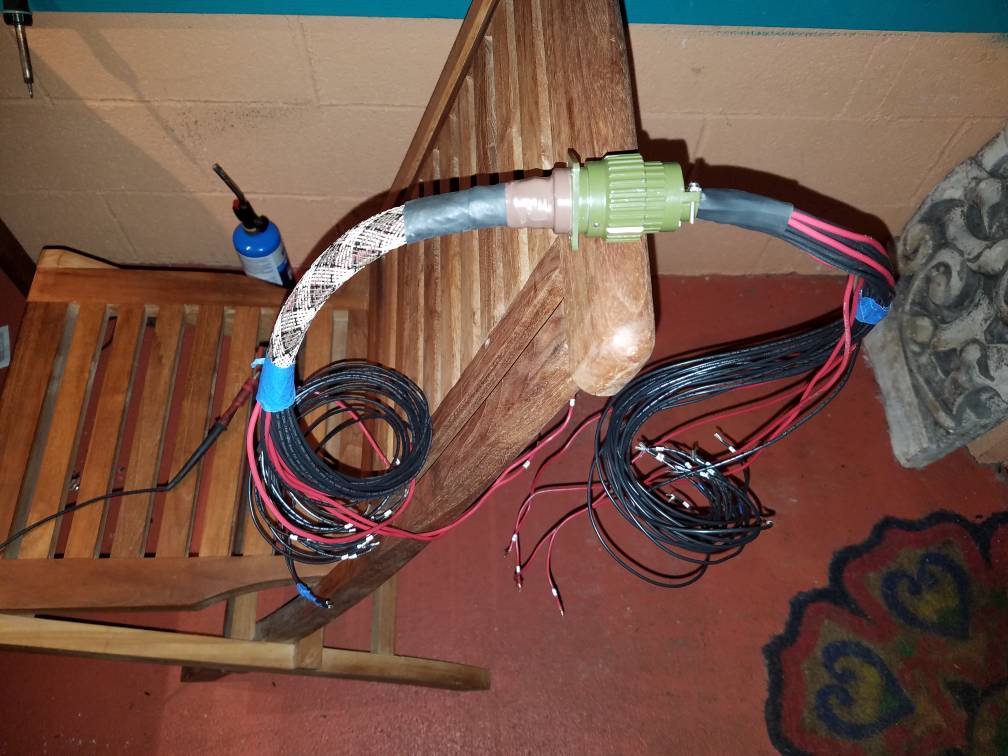

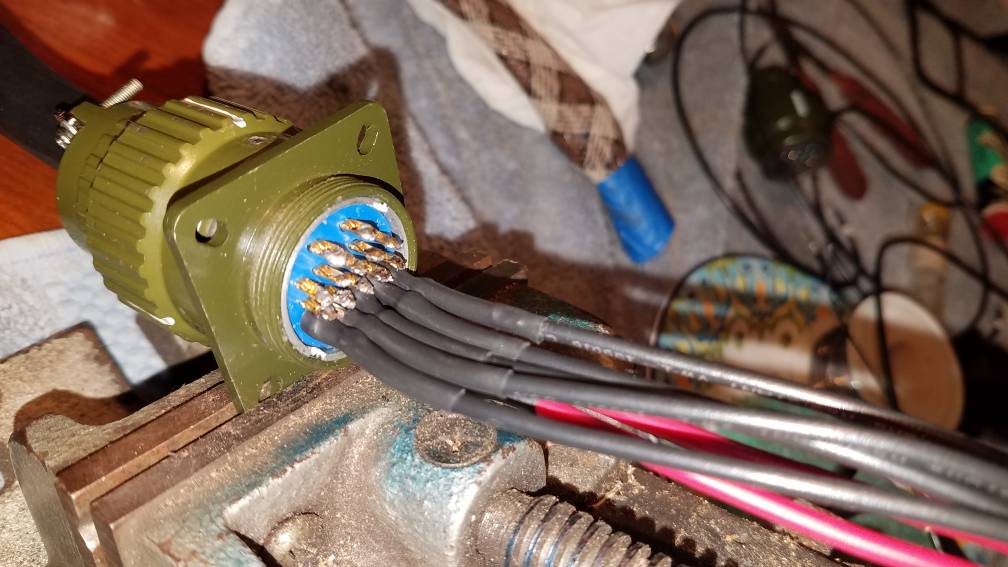

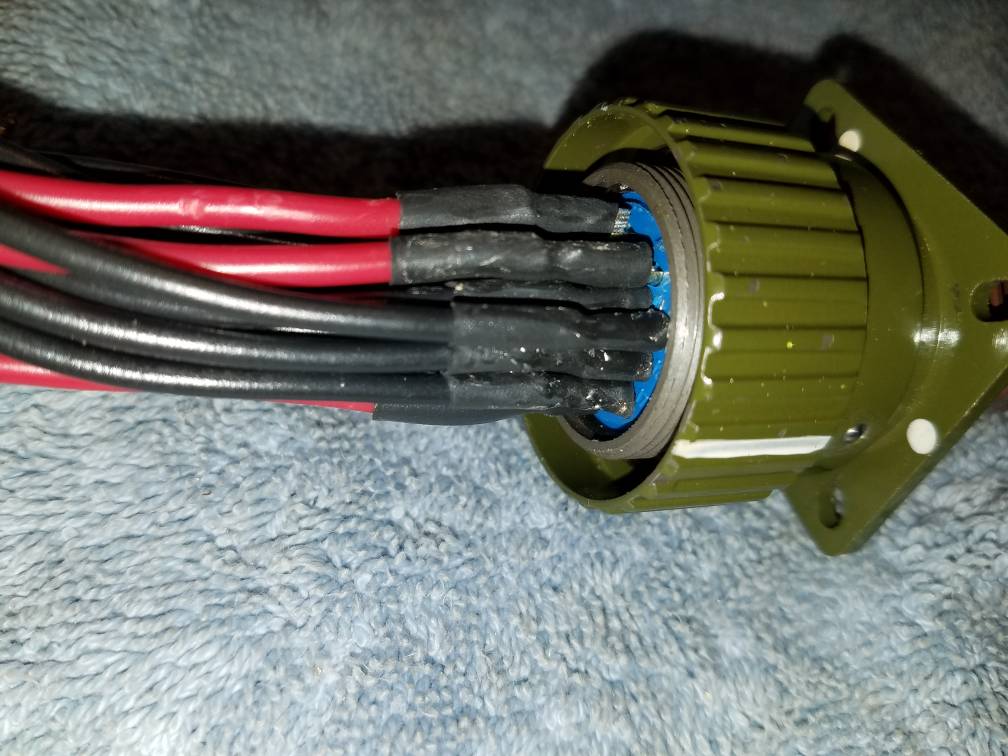

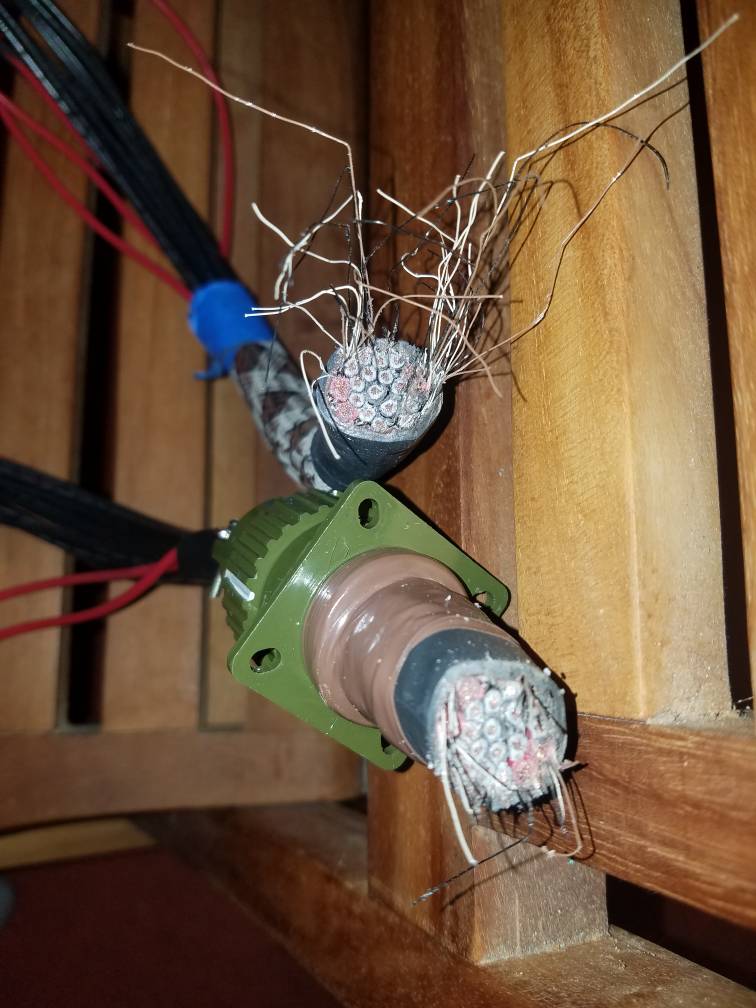

    Dash board quick connector...
    Testing the pins.
    Had to redo first connector 9-10 had some solder between 'em...argh! 20190313_185703.jpeg 20190313_201008.jpeg 20190313_203712.jpeg 20190314_180321.jpeg

    Sent from my SM-G930T using The H.A.M.B. mobile app

  26. 340HilbornDuster
    Joined: Nov 14, 2011
    Posts: 1,956

    340HilbornDuster
    ALLIANCE MEMBER

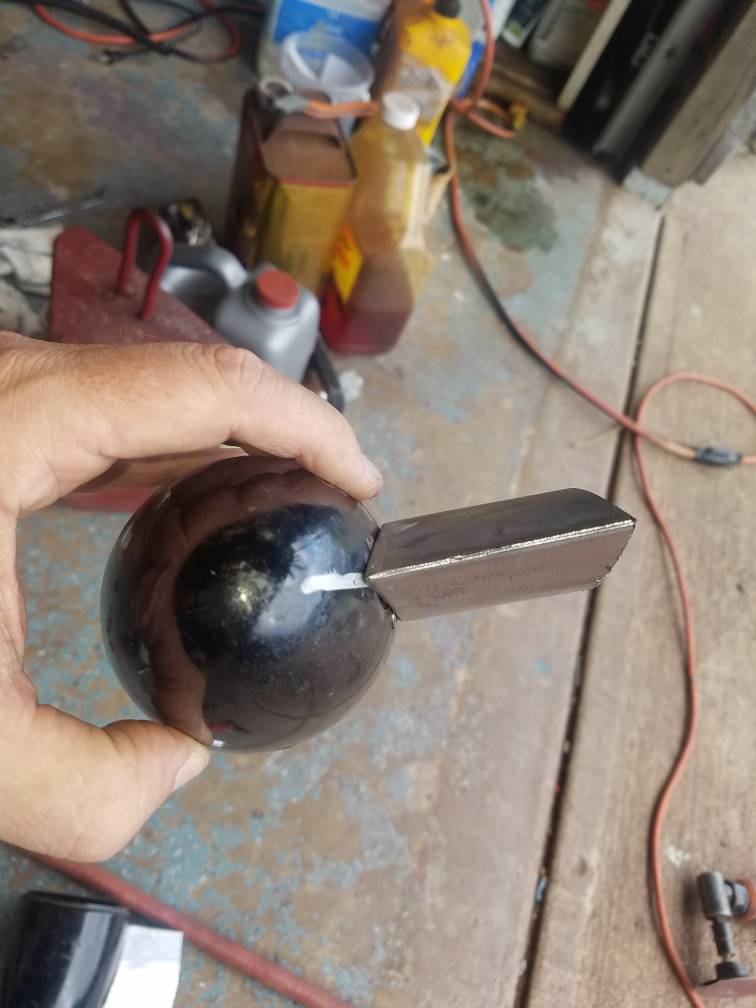

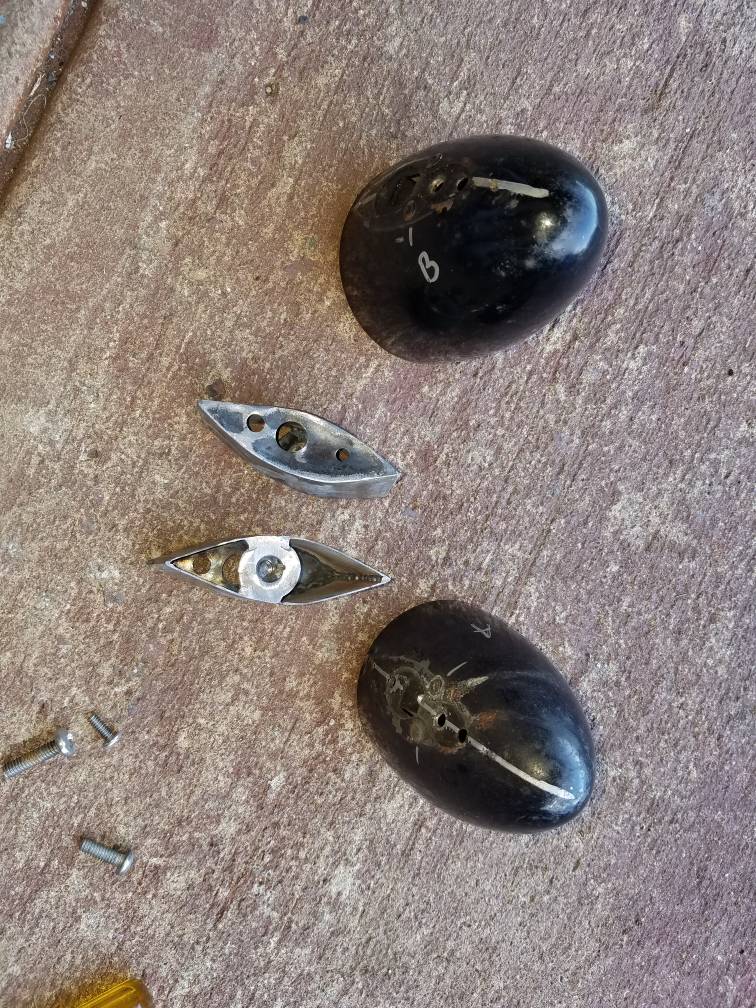

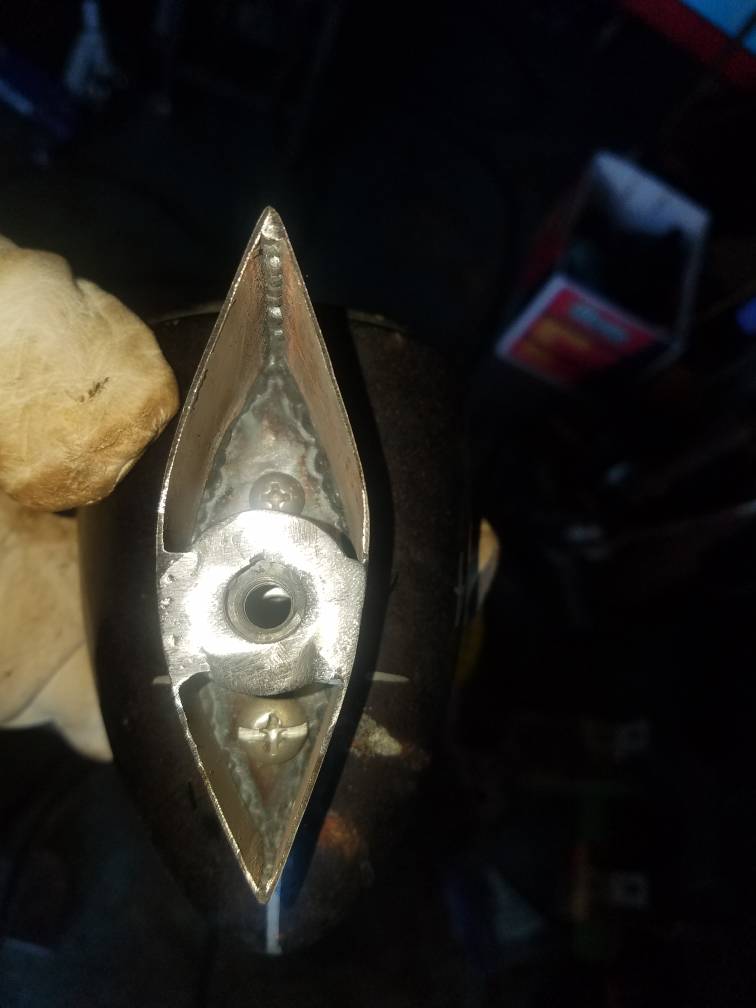

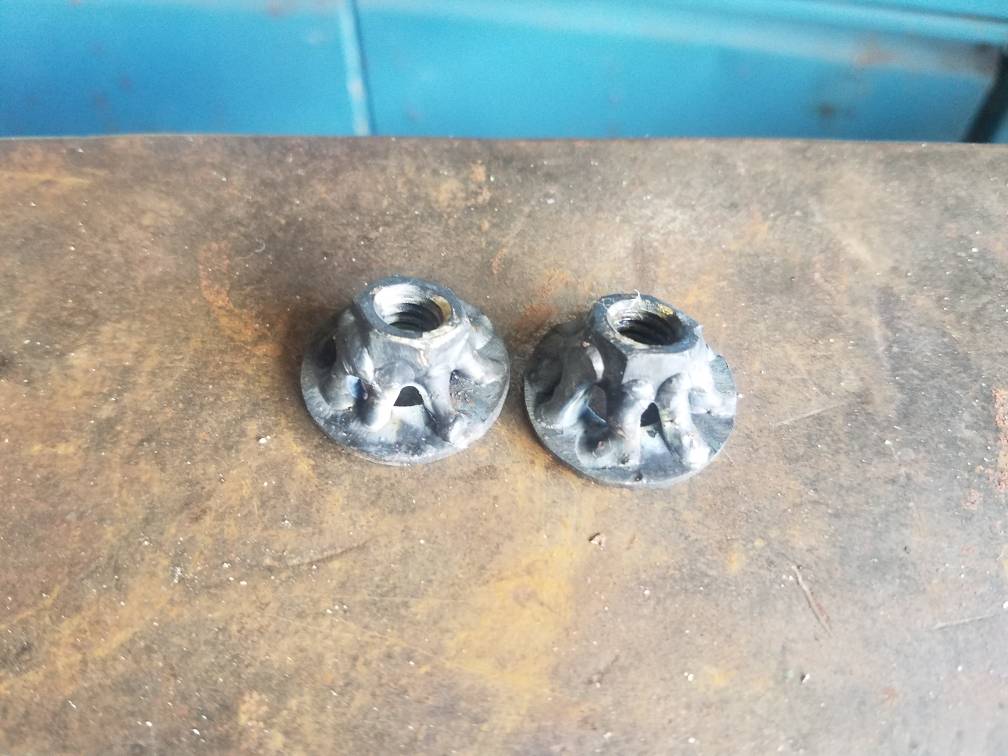

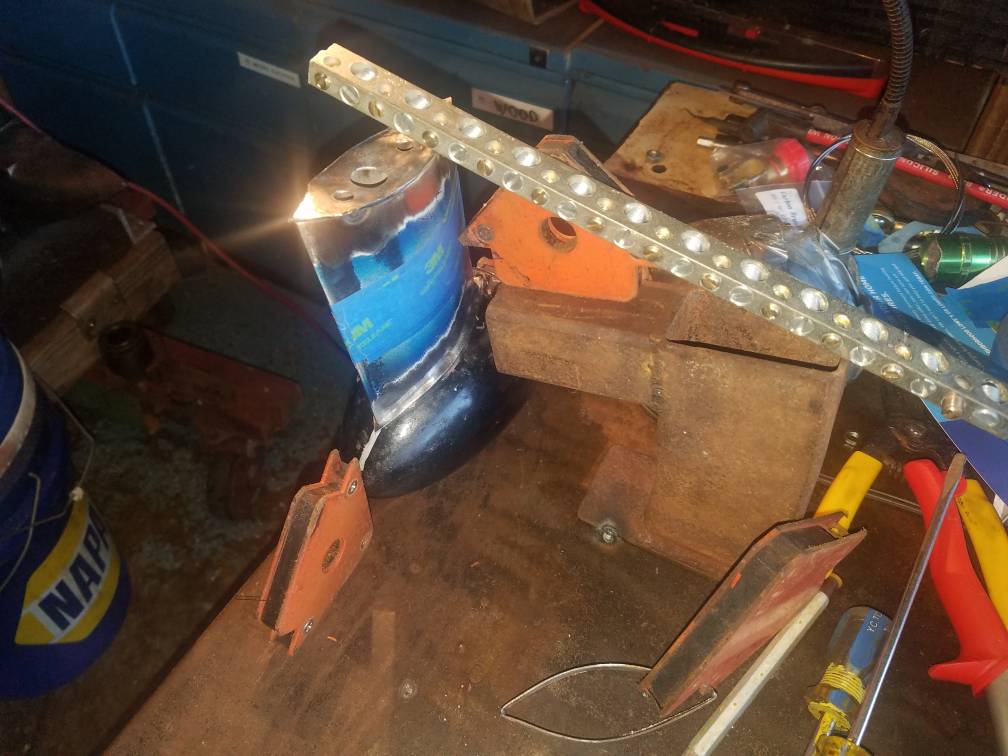

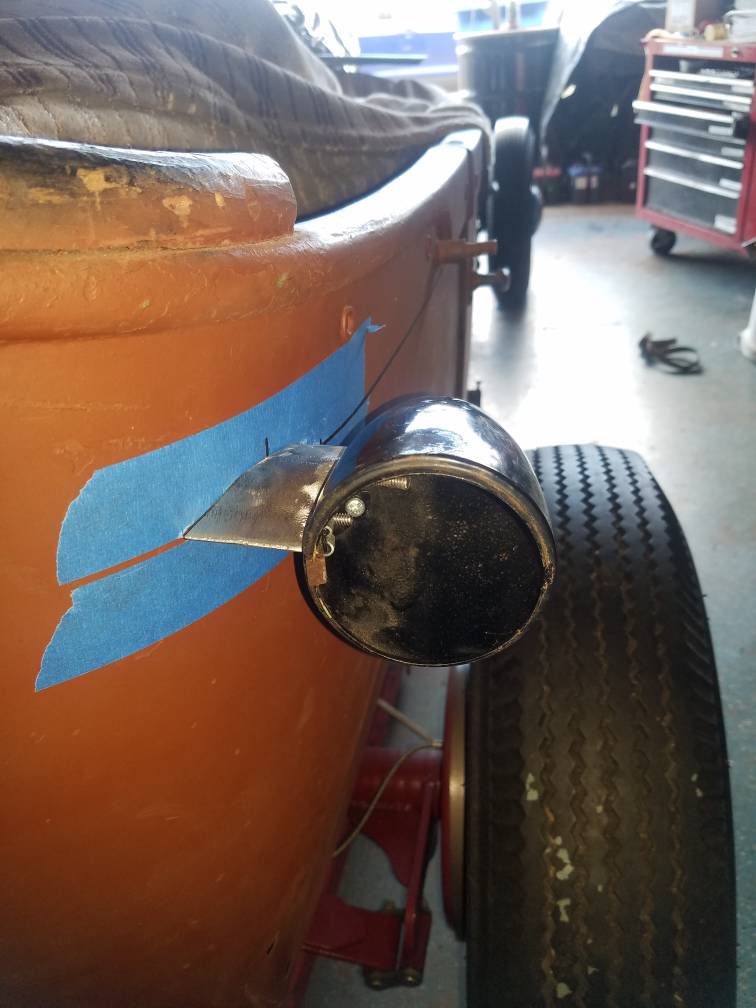

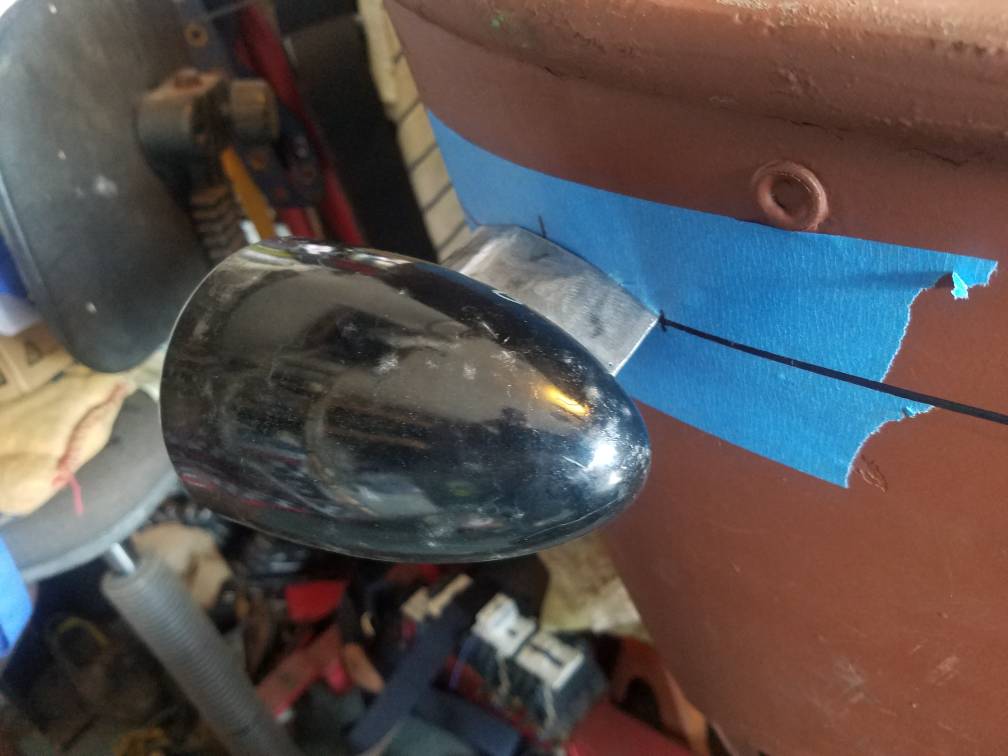

    Spent a day making these tiny little brackets... Now some paint so they don't rust...

    Kinda F1 inspired...lower radius is longer...creates down force at high speeds...................................................................................(I'm just kiddin!) 20190413_181704.jpeg 20190414_120727.jpeg 20190414_135634_002.jpeg 20190414_143733.jpeg 20190414_152315.jpeg 20190414_152331.jpeg 20190414_164151.jpeg

    Sent from my SM-G930T using The H.A.M.B. mobile app

    OahuEli, USMercUte, patmanta and 4 others like this.
  27. loudbang
    Joined: Jul 23, 2013
    Posts: 37,834

    loudbang
    Member


    If you flip them over will they help you do a wheelie :rolleyes:

    OahuEli likes this.
  28. 340HilbornDuster
    Joined: Nov 14, 2011
    Posts: 1,956

    340HilbornDuster
    ALLIANCE MEMBER

    Finished the other Dash connector last night..... Real PITA! 20190417_213054.jpeg

    Sent from my SM-G930V using The H.A.M.B. mobile app

    OahuEli, brEad, loudbang and 2 others like this.
  29. loudbang
    Joined: Jul 23, 2013
    Posts: 37,834

    loudbang
    Member

  30. 340HilbornDuster
    Joined: Nov 14, 2011
    Posts: 1,956

    340HilbornDuster
    ALLIANCE MEMBER

    That IS Plug to Plug...(only One!)
    I ŦƱƈĶȜƉ ÜƤ the first female connector trying to de-solder and re-doing it...
    (I probably don't have the right Soldering Iron for this job...
    Had to hit it with a Propane torch to melt the solder...)
    PITA!..But it's done!...Onwards and Forwards!

    nunattax and brEad like this.
