Technical Multi Carb Setups -Let's see 'em!

Discussion in 'The Hokey Ass Message Board' started by pkhammer, Apr 11, 2020.

  1. LM14
    Joined: Dec 18, 2009
    Posts: 1,934

    LM14
    Member
    from Iowa

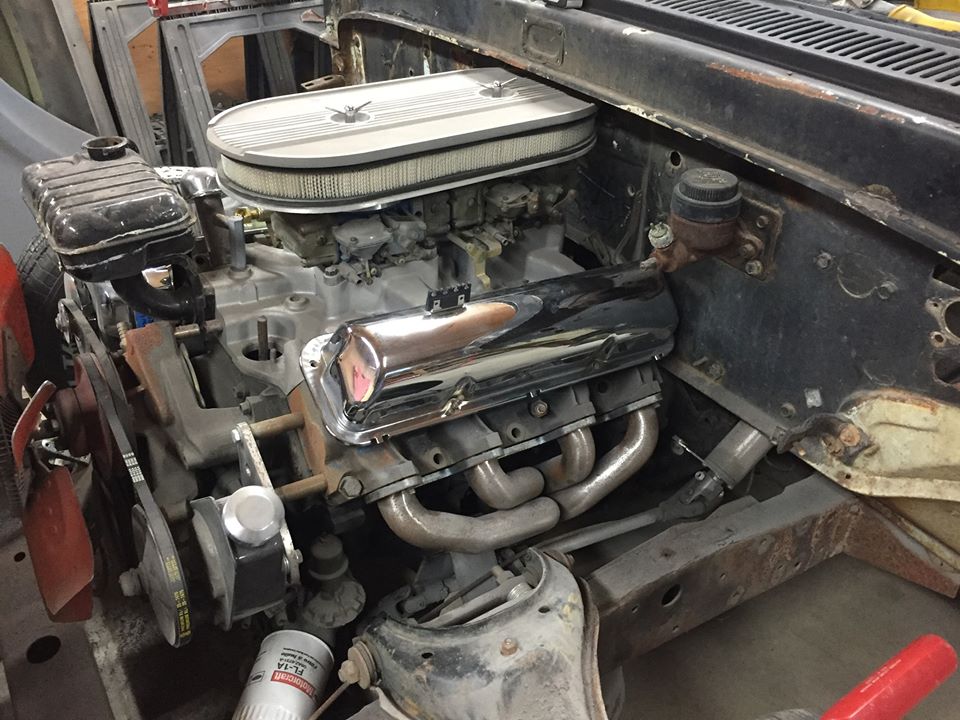

    First 6 pictures are the 1963 8V Galaxie intake for my '62 F100 short bed big window unibody 390.

    Next 6 pictures are the SBF intake and air cleaner I picked up last week. Thinking of putting it on my '32 5 window. Depends on finding a suitable set of carbs.

    The last picture is the carbs I'm looking for Holley 2881 and 2882. If I can find a decent set of these carbs it's going on the '32.

    SPark

    intake top.jpg 2020-8q.jpg 2020-8r.jpg 2020-8u.jpg 2020-8v.jpg 2020-8w.jpg 6v-3.jpg 6v-1.jpg 6v-2.jpg 6v-4.jpg 6v-5.jpg 6v-6.jpg 6v-7.jpg

    Deuces, DenverFlash, pkhammer and 9 others like this.
  2. Joe Troilo
    Joined: Oct 3, 2007
    Posts: 123

    Joe Troilo
    Member

    This is my first attempt at multiple carbs in the last 20 years. Wanted something retro and reliable. Decided on the Holley tri-power set up. After several jet changes it runs like a champ.


    Attached Files:

    Deuces, swade41, Jet96 and 7 others like this.
  3. loudbang
    Joined: Jul 23, 2013
    Posts: 30,456

    loudbang
    Member


    NICE!!! I like how most of the parts have similar "Lines"

    Deuces likes this.
  4. Sonofabob
    Joined: Jan 28, 2020
    Posts: 91

    Sonofabob
    Member

    I would love to see a side shot of the whole car!
    Sent from my SM-G975U using The H.A.M.B. mobile app

    loudbang likes this.
  5. Joe Troilo
    Joined: Oct 3, 2007
    Posts: 123

    Joe Troilo
    Member


    Thanks for the nice words. More shots coming up. Car still has some original paint.


    Attached Files:

    Deuces, Jet96, TBirdGirl26 and 3 others like this.
  6. Movinman
    Joined: Feb 20, 2005
    Posts: 970

    Movinman
    Member

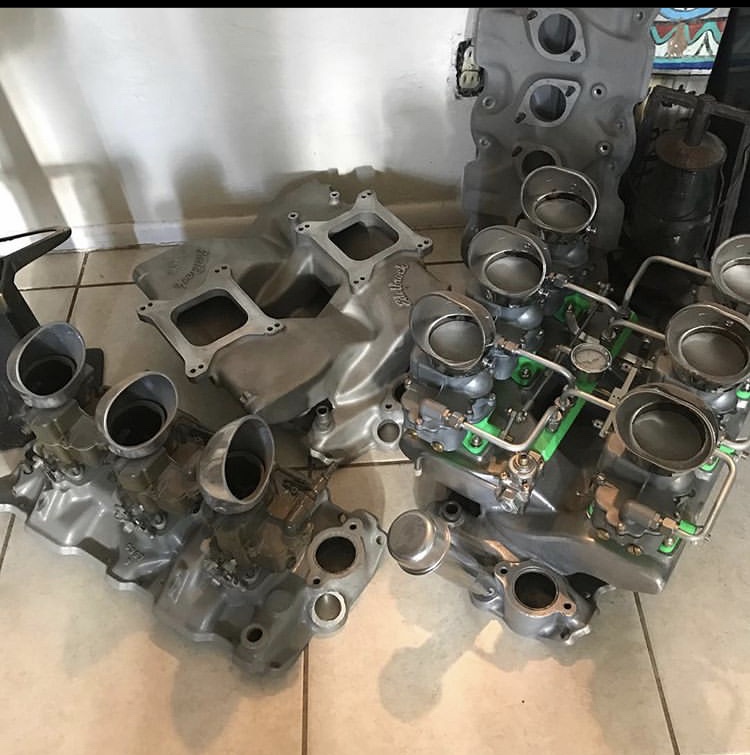

    I can’t remember the last car I had with a SBC in it, but I seem to keep collecting these. D76F54A9-2F2D-4F70-8798-41D4A863CE47.jpeg

    Deuces, swade41, TBirdGirl26 and 5 others like this.
  7. Axle34
    Joined: Feb 12, 2007
    Posts: 48

    Axle34
    Member
    from Michigan

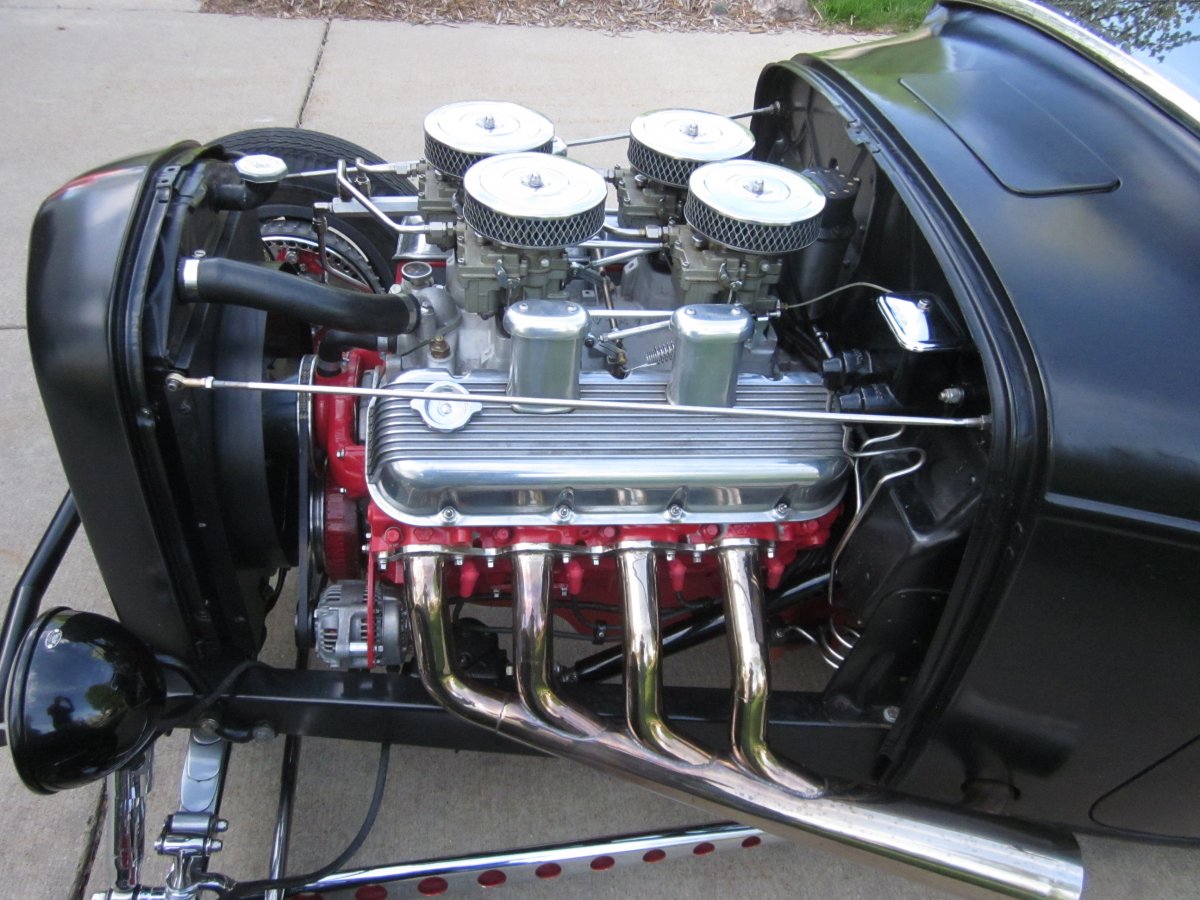

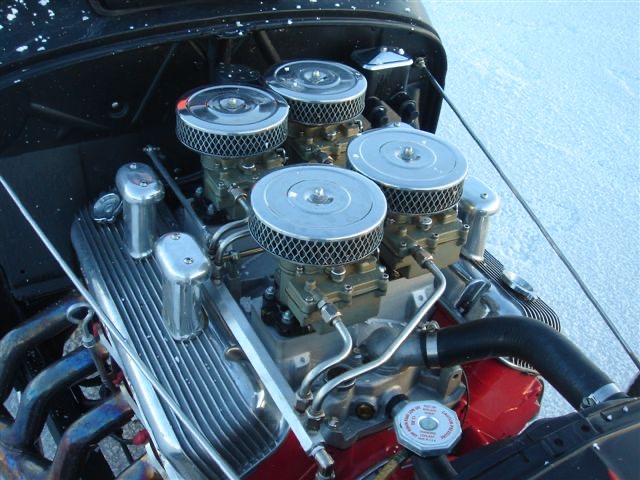

    Here are some shots of my 396 BBC Man-A-Fre. IMG_2084.jpeg dsc02728.jpeg

  8.

    Attached Files:

    Deuces, Jet96, loudbang and 1 other person like this.
  9. Dreddybear
    Joined: Mar 31, 2007
    Posts: 5,950

    Dreddybear
    Member

    4 94s on a Edelbrock intake. Back when they were still pretty and now. To be honest I put the carbs together, threw it on and it ran pretty good so I left them as is for like the last 7 years. I’m about to tear it apart to clean it all back up and I might go with strombergs.

    Tim, Deuces, pkhammer and 11 others like this.
  10. 65pacecar
    Joined: Sep 22, 2010
    Posts: 2,257

    65pacecar
    Member
    from KY, AZ



    Sent from my iPhone using H.A.M.B.

    bathcollector, Deuces, enloe and 16 others like this.
  11. 65pacecar
    Joined: Sep 22, 2010
    Posts: 2,257

    65pacecar
    Member
    from KY, AZ



    Sent from my iPhone using H.A.M.B.

    Deuces, enloe, dana barlow and 5 others like this.
  12. 65pacecar
    Joined: Sep 22, 2010
    Posts: 2,257

    65pacecar
    Member
    from KY, AZ

  13. Jacksmith
    Joined: Sep 24, 2009
    Posts: 361

    Jacksmith
    Member

    '63 327 in a '39 Ford Coupe. Been there since the late '60's... I just cleaned & IMG_0339.JPG IMG_0341.JPG dressed it up a little using a Speedway 3-deuce kit and some O.T.B. Gear aluminum parts. Starts instantly, runs like a top.

    Tim, High test 63, Deuces and 14 others like this.
  14. GordonC
    Joined: Mar 6, 2006
    Posts: 2,087

    GordonC
    ALLIANCE MEMBER

    Any of you guys have any tips or ticks for making up the fuel lines for a 3 deuce flathead set up. I have everything done on mine but that and have been hesitant to start into that with out getting some tips first. Don't know if I should run 3 individual lines, one to each carb, or one line with all three connected to each other? Some nice looking stuff here by the way!

    loudbang and 65pacecar like this.
  15. Jacksmith
    Joined: Sep 24, 2009
    Posts: 361

    Jacksmith
    Member

    I.M.O., As long as you stay away from heat sources and be sure you have no leaks, it's like an art-form... Pick out how you want it to look and go for it. I recommend a regulator to be sure your pump doesn't over power the float/needle valve. I also used fuel injection compatible "rubber" lines on mine 'cause it's a bit more rigid and less likely to sag. Let's see your set up when you get it done!

    Deuces, enloe, loudbang and 2 others like this.
  16. GordonC
    Joined: Mar 6, 2006
    Posts: 2,087

    GordonC
    ALLIANCE MEMBER

    I currently have a single 94 on the engine but plumbed it with the 3 2's in mind. I have an inline regulator in place as well as a fuel block on the firewall with a pressure gauge so I can set it for what I need. I'll post up my set up once I get it in place. Thanks!

  17. Jalopy Joker
    Joined: Sep 3, 2006
    Posts: 25,272

    Jalopy Joker
    Member

  18. Jet96
    Joined: Dec 24, 2012
    Posts: 1,174

    Jet96
    ALLIANCE MEMBER
    from WY

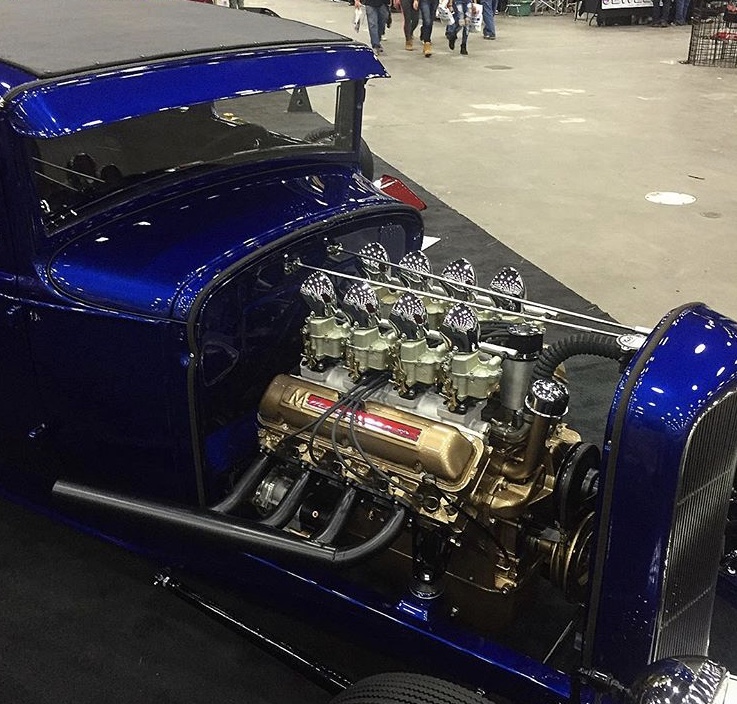

    78B91DFE-FB8E-4C38-A7BF-97A693617852.jpeg Weiand Drag Star 8x2 on my 480" MEL...

    Deuces, 40FORDPU, pkhammer and 4 others like this.
  19. Mike VV
    Joined: Sep 28, 2010
    Posts: 2,057

    Mike VV
    Member
    from SoCal

    I finally got mine done enough for pictures.

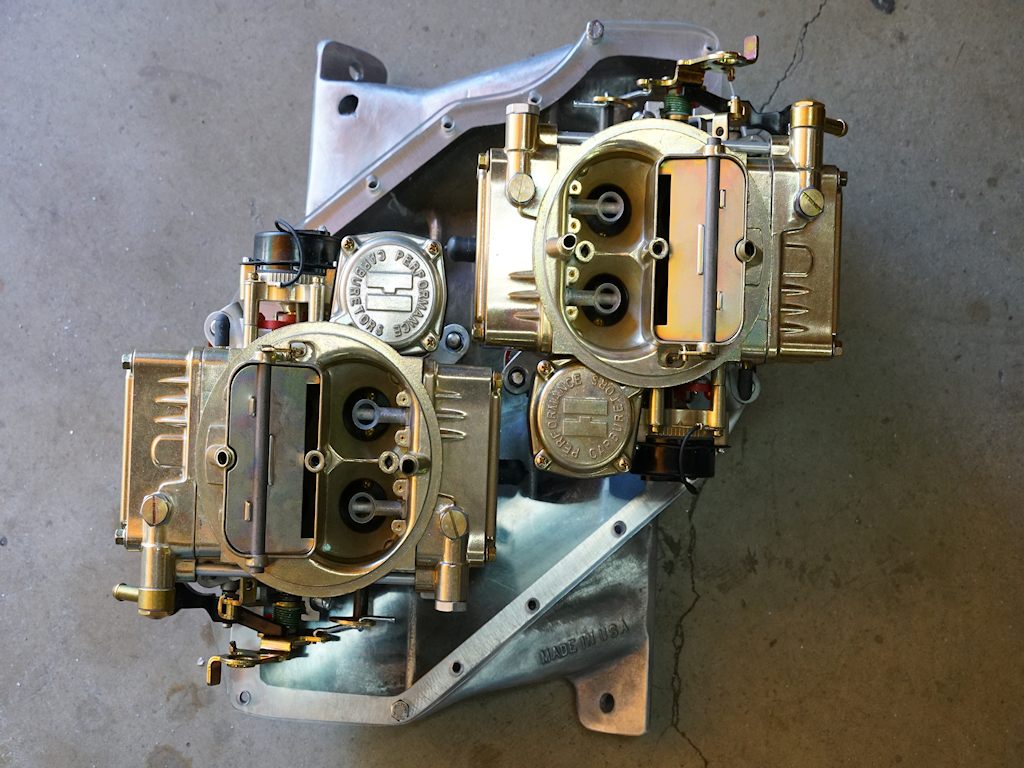

    A Corvette / Renegade manifold, heavily modified to be able to bolt onto a Studebaker, V-8, with the aid of a pair of adapters.

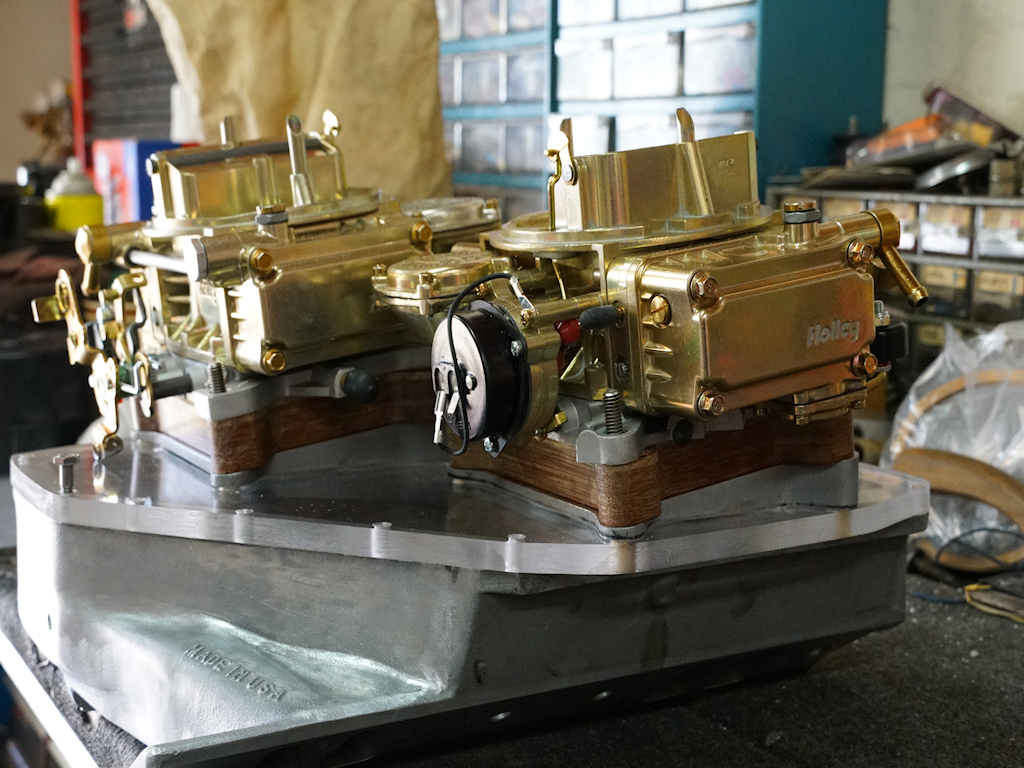

    A pair of 390cfm Holleys. The main parts of the linkage will actually be mounted to the rocker cover.
    The 3/4 view is the front of the manifold. Note the word...Renegade...used to be just above the "MADE IN USA". The hole in the back was part of the EGR system. That block/location used to go all the way to the top of the manifold.
    The Lexan top has two purposes. One, so I can hopefully see the fuel flow to further modify the interior of the plenum, and two...for the just for the hell of it.
    I have aluminum plates if this one melts, or if I go to a single four.

    DSC00583m.jpg DSC00585m.jpg

    Mike

    Last edited: Jul 19, 2020
    Tim, enloe, swade41 and 7 others like this.
  20. 65pacecar
    Joined: Sep 22, 2010
    Posts: 2,257

    65pacecar
    Member
    from KY, AZ

  21. 65pacecar
    Joined: Sep 22, 2010
    Posts: 2,257

    65pacecar
    Member
    from KY, AZ

  22. saltflats
    Joined: Aug 14, 2007
    Posts: 10,313

    saltflats
    Member
    from Missouri

    Is that a crossfire lower?

    loudbang likes this.
  23. Mike VV
    Joined: Sep 28, 2010
    Posts: 2,057

    Mike VV
    Member
    from SoCal

    Yes.
    The aftermarket (Renegade) version.
    I was torn between the Renegade and the Offenhauser crossram. I went this way because the Renegade has a smaller plenum and nicely formed port opening edges. Although, some of the casting is pretty poor in the design. It wasn't too big a deal to see the problems and reshape the port openings, it did take some time though.
    I'm looking forward to giving it a try. Unfortunately...it'll be a while.

    Mike

    saltflats likes this.
  24. Dyno Dave
    Joined: Feb 18, 2011
    Posts: 248

    Dyno Dave
    Member

    Attached Files:

    Last edited: Jul 20, 2020
  25. Jalopy Joker
    Joined: Sep 3, 2006
    Posts: 25,272

    Jalopy Joker
    Member

  26. Not mine but cool enough to share


  27. Kiwi 4d
    Joined: Sep 16, 2006
    Posts: 2,839

    Kiwi 4d
    ALLIANCE MEMBER

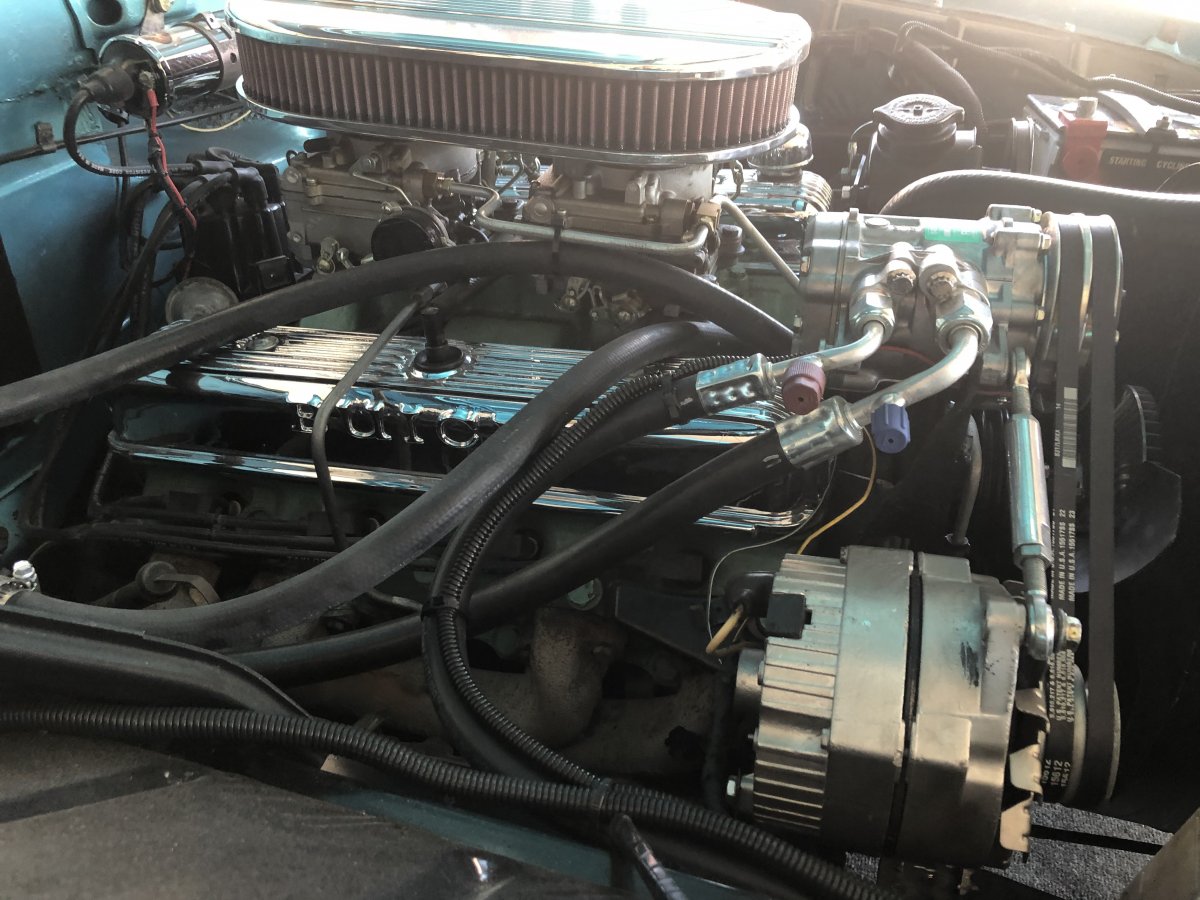

    Never ever thought i would see a hissing bag of snakes under the hood of a Very nice 61 Buick. 28E655FD-6AA6-413E-8D2E-2CF5DF445770.jpeg

  28. 150F57F6-0E8F-4EA2-84A4-F2C1948053DE.jpeg


    Attached Files:

  29. fastcar1953
    Joined: Oct 23, 2009
    Posts: 2,227

    fastcar1953
    ALLIANCE MEMBER

  30. Jalopy Joker
    Joined: Sep 3, 2006
    Posts: 25,272

    Jalopy Joker
    Member
