Hot Rods Model A body on ‘32 chassis WITH FENDERS- Help!

Discussion in 'The Hokey Ass Message Board' started by RiffRaffRoadster, Dec 24, 2018.

  1. ROADSTER1927
    Joined: Feb 14, 2009
    Posts: 2,419

    ROADSTER1927
    Member

    That's great news! I hope it all goes well for you. I wish we were close as I would be glad to help on your car. Gary

    loudbang likes this.
  2. Stogy
    Joined: Feb 10, 2007
    Posts: 9,885

    Stogy
    ALLIANCE MEMBER

    Perhaps there is still a chance down the road of some involvement with Rexrods for example the bodywork...as you poke around at things your vision on how you want to execute the project may change...

    Regardless I like the others look forward to the continued forward movement...

  3. Tim
    Joined: Mar 2, 2001
    Posts: 8,827

    Tim
    Member
    from Raytown Mo

    Not sure how we missed this option.

    Just have Keith/Rex rods make the chassis sound again. Then it’s done right, you put the car together the rest of the way and it doesn’t cost you as much as having the whole car built

    Jim Bouchard, loudbang, brEad and 6 others like this.
  4. alchemy
    Joined: Sep 27, 2002
    Posts: 13,072

    alchemy
    Member

    I like Tim's comment. Setting up the chassis for a safe and easy to drive hot rod is not for the newbie. Since the crappy driving comment was one of the main things you remember about the old car, maybe having Rex Rods do a few tweaks to improve it would be money well spent. Stuff like setting up a solid center X member, mounting the rear axle so it articulates properly/safely and making sure the front axle combo is going to steer nicely while providing a safe suspension. I'm sure you could take it from there and do cleanup and paintwork on your own. Once the fab is done to make it safe, the rest is basically "restoring".

  5. jimgoetz
    Joined: Sep 6, 2013
    Posts: 188

    jimgoetz
    Member

    Well I don't recall mentioning going to a muffler shop to have them build Riff's car anywhere but I did say a frame or body shop. I was thinking about the use of a frame rack or having them check things like condition of welds etc. I mentioned racers and off roaders not to design anything for him but because a lot of them actually build there own stuff and are competent welders etc. A good example would be assisting him in installing proper era correct modifications. Maybe even installing 42-48 X member lol.

    loudbang, RiffRaffRoadster and Stogy like this.
  6. 31Apickup
    Joined: Nov 8, 2005
    Posts: 1,717

    31Apickup
    ALLIANCE MEMBER

    I agree with Tim and Alchemy, the chassis is the important part to get right first.


    Sent from my iPhone using The H.A.M.B. mobile app

    loudbang and RiffRaffRoadster like this.
  7. RiffRaffRoadster
    Joined: Dec 24, 2018
    Posts: 297

    RiffRaffRoadster
    Member

    That is an option. The car is already apart, so there's not a lot of dismantling. Thanks.

    loudbang, Stogy and jimgoetz like this.
  8. Tim
    Joined: Mar 2, 2001
    Posts: 8,827

    Tim
    Member
    from Raytown Mo

    Yeah your st a point where your excited to get going and being overloaded with options. Just make sure to take a breath and look at all the options.

    If the guys at Rex rods aren’t into doing just the chassis I would ask if they could recommend someone local. From where I’m standing the chassis is the most thought, math, and geometry involved of the process. If you have the chassis sorted the rest of the car is easy.

    Even wiring the car with a prefab kit is super easy, just a lot of time to run it and make it nice.

    I still have 100% faith in ya.

  9. Stogy
    Joined: Feb 10, 2007
    Posts: 9,885

    Stogy
    ALLIANCE MEMBER

    52 he's already been pretty darn busy with things and he revived the upholstery and done a fair bit of wrenching, so the steps have began already.

  10. Stogy
    Joined: Feb 10, 2007
    Posts: 9,885

    Stogy
    ALLIANCE MEMBER

    Last edited: Feb 15, 2019
  11. thirtytwo
    Joined: Dec 19, 2003
    Posts: 2,483

    thirtytwo
    Member

    loudbang and Stogy like this.
  12. Stogy
    Joined: Feb 10, 2007
    Posts: 9,885

    Stogy
    ALLIANCE MEMBER

    This frame has been perhaps narrowed for its A Body and 32 fender Mods...so I know you have suggested to ditch the Pinch but couldn't the X Member in either case of these two vendors be just trimmed and fitted?

  13. thirtytwo
    Joined: Dec 19, 2003
    Posts: 2,483

    thirtytwo
    Member

    I thought the frame measured out with stock bolt holes? , it would be pretty rare for an old hotrod to have a pinched frame

  14. Stogy
    Joined: Feb 10, 2007
    Posts: 9,885

    Stogy
    ALLIANCE MEMBER

    I remember some measuring going on way back when it was being discussed...so unpinched should make that install even more straightforward...

    loudbang and RiffRaffRoadster like this.
  15. big duece
    Joined: Jul 28, 2008
    Posts: 5,268

    big duece
    Member
    from kansas

    For starters I would replace the rear crossmember with this, good chance the old rivet holes are still in the frame to line up with these. https://www.est1946.com/1932loweredrearcrossmember.aspx
    This one flattened out, should give you close to the ride height you already had. A stock '32 rear crossmember would really create space between tire and fender.

    kidcampbell71 likes this.
  16. 1949*john
    Joined: Jul 27, 2010
    Posts: 55

    1949*john
    Member

    son you have a gold mine there so why not fix whats wrong and drive it like your dad would have ? the chassis would have a henry vin number on it so that shows its a real ford chassis - if it were me I wouldn't build a new car . just my 2 cents

    cactus1 and flatford39 like this.
  17. jimgoetz
    Joined: Sep 6, 2013
    Posts: 188

    jimgoetz
    Member

    That one would be better than a 32 cross for another reason also. You would have to use a 32 spring or do some grinding. The 32's have a slight curve to them.

  18. big duece
    Joined: Jul 28, 2008
    Posts: 5,268

    big duece
    Member
    from kansas

    Though it's another different subject, one can use a FRONT spring from '40 ford in a stock '32 rear crossmember. I have not read each post lately, hard to keep up with all subscribed. Is the owner still plan to use the late 50's chevy rear end?

    jimgoetz likes this.
  19. big duece
    Joined: Jul 28, 2008
    Posts: 5,268

    big duece
    Member
    from kansas

  20. Stogy
    Joined: Feb 10, 2007
    Posts: 9,885

    Stogy
    ALLIANCE MEMBER

    Uh...I think that is more or less the plan...just a couple of minor adjustments to undo past adjustments...

    @RiffRaffRoadster are you going 3 pedal?...perhaps a stock type x-member cannot be used with the current trans...

    I'm not up on this setup...

    RiffRaffRoadster likes this.
  21. RiffRaffRoadster
    Joined: Dec 24, 2018
    Posts: 297

    RiffRaffRoadster
    Member

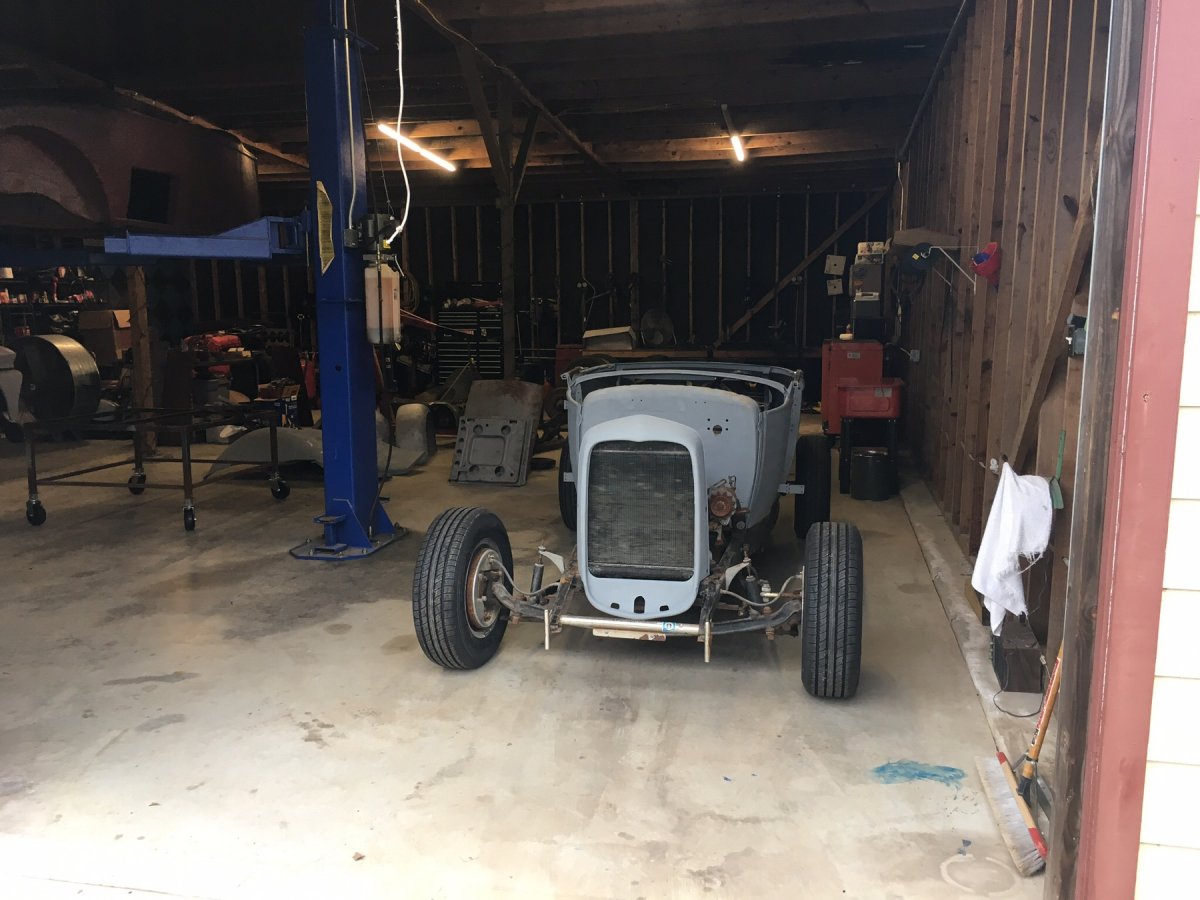

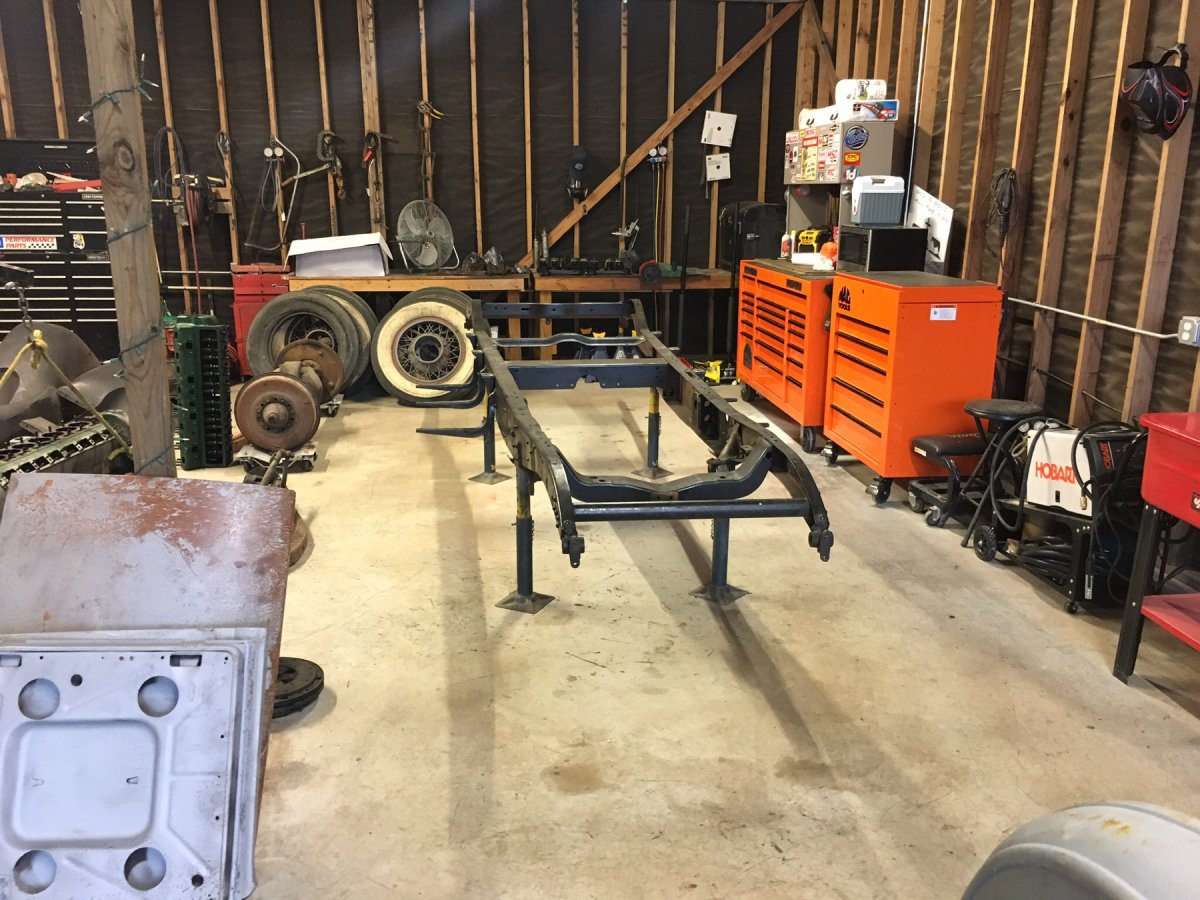

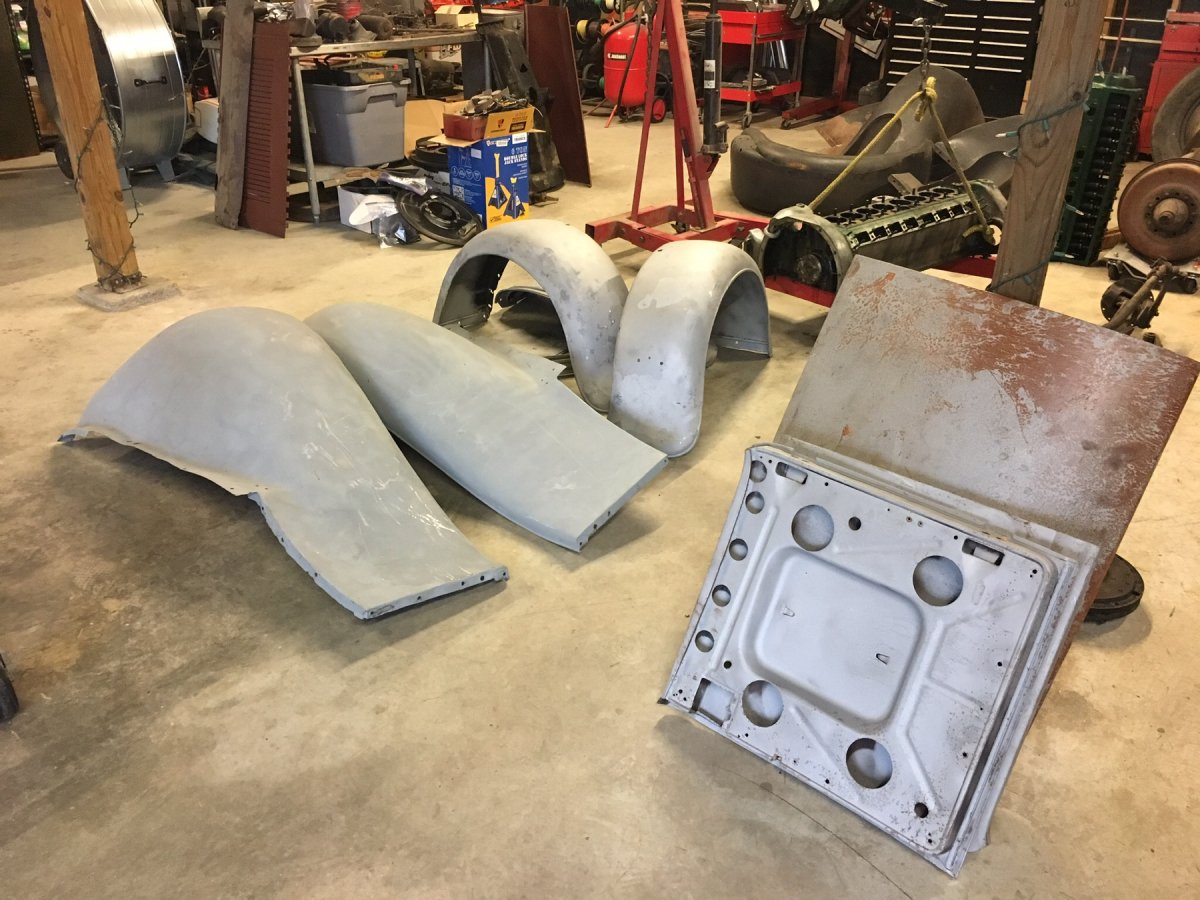

    Sorry for the delay in posting. I think we’re in business. A local builder I’ve been talking to just took the car to his shop. He ‘gets’ the plan to keep the car as original as possible and just clean it up and do some mild upgrades. He’s affordable. And he’s ok with me helping occasionally and willing to teach me basic welding. He’s done hot rods and concourse-levels builds. He’s working on one other car (1931 Packard Roadster) so he’s not buried in work. We’ll see how it goes - I’ll post updates. Thanks everyone for all the great advice and suggestions. If all goes according to plan, I hope to be driving by Fall.
    IMG_2553.JPG IMG_2554.JPG IMG_2558.JPG IMG_2560.JPG IMG_2557.JPG IMG_2559.JPG


    Sent from my iPad using The H.A.M.B. mobile app

    catdad49, brEad, scott27 and 10 others like this.
  22. RiffRaffRoadster
    Joined: Dec 24, 2018
    Posts: 297

    RiffRaffRoadster
    Member

    Yes sir-plan to change out the auto TH350 with a Muncie 3 speed. Still deciding best way to arrange pedals. Swing from top or bolt to x-member (need to find one).


    Sent from my iPad using The H.A.M.B. mobile app

    jimgoetz, loudbang and Stogy like this.
  23. big duece
    Joined: Jul 28, 2008
    Posts: 5,268

    big duece
    Member
    from kansas

    Sound like your moving in the right direction. Wish my shop was that spacious and organized. If I had more space, I would have more clutter.

  24. RiffRaffRoadster
    Joined: Dec 24, 2018
    Posts: 297

    RiffRaffRoadster
    Member

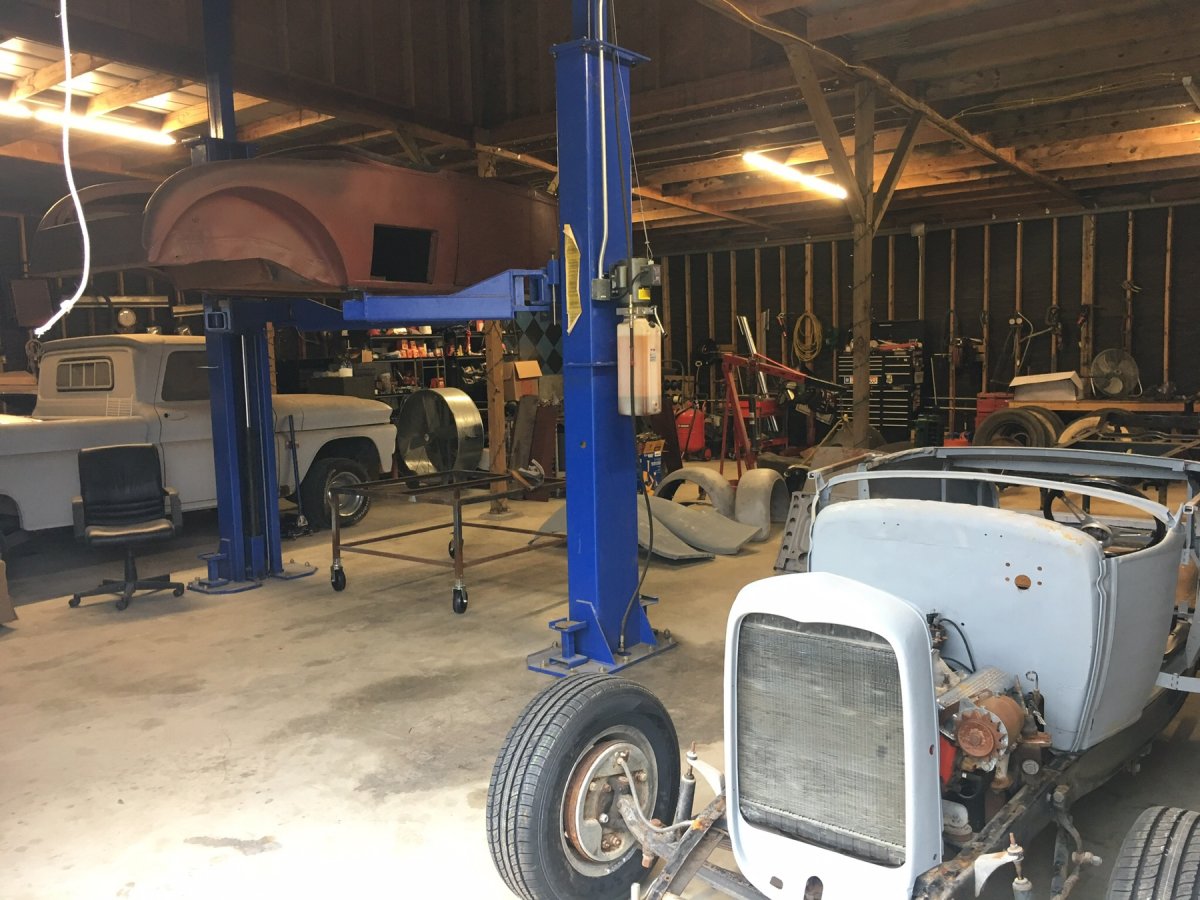

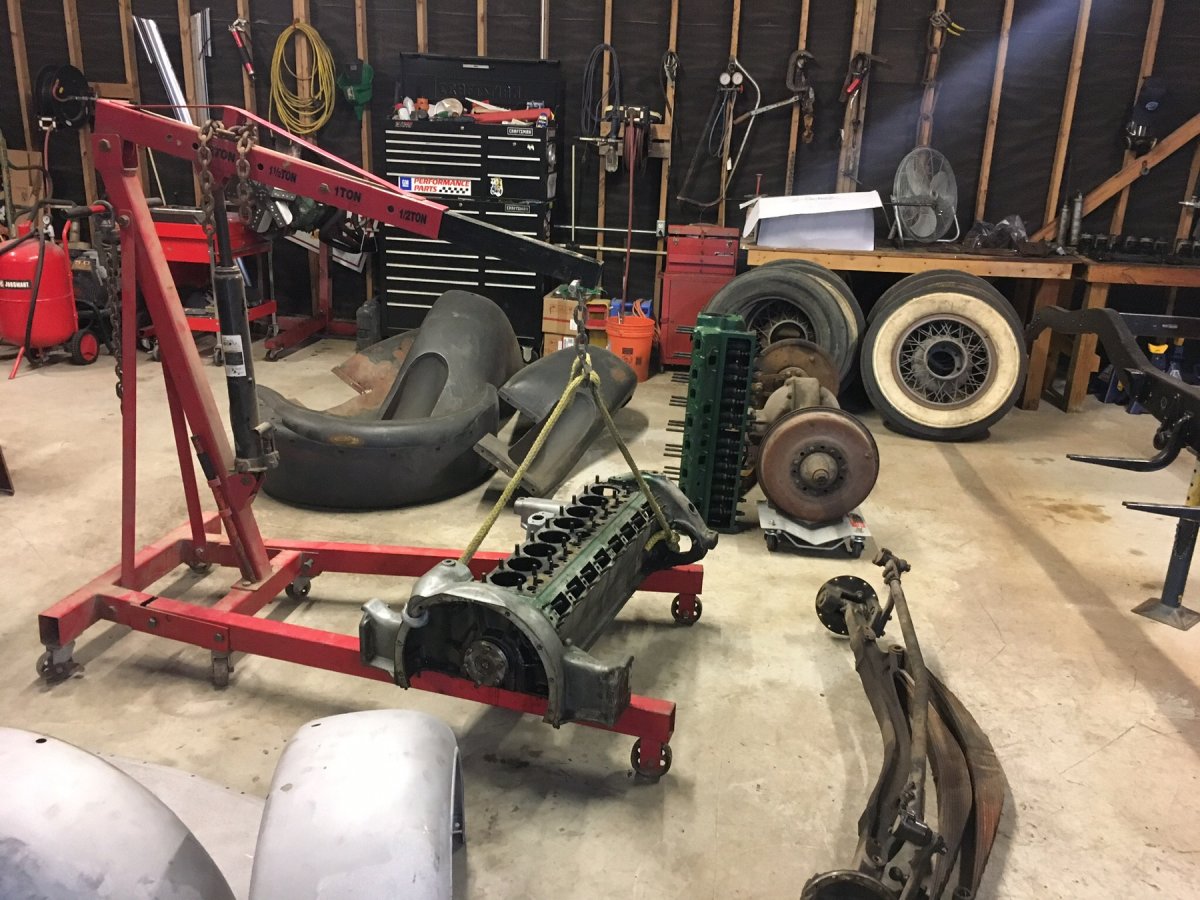

    By the way-he shares the shop with another guy, so that’s not the truck he’s working on - just the Packard. You can see the body on the lift and the chassis, fenders and straight 8 engine. That thing is a beast.


    Sent from my iPad using The H.A.M.B. mobile app

    David Gersic, loudbang and Stogy like this.
  25. RiffRaffRoadster
    Joined: Dec 24, 2018
    Posts: 297

    RiffRaffRoadster
    Member

    Same problem I have


    Sent from my iPad using The H.A.M.B. mobile app

    loudbang and Stogy like this.
  26. Dick Stevens
    Joined: Aug 7, 2012
    Posts: 2,329

    Dick Stevens
    Member

    Sounds great, hope it all works out for the best, please keep us up to date with pictures as the build goes on! :cool:

    Stogy and RiffRaffRoadster like this.
  27. Stogy
    Joined: Feb 10, 2007
    Posts: 9,885

    Stogy
    ALLIANCE MEMBER

    :rolleyes:...Pleasant turn of events...the resurrection continues...have fun and please share the journey Riff...we're all eyes and opinions...:D...oh...and of course full of advice...

    Last edited: Feb 16, 2019
    RiffRaffRoadster and loudbang like this.
  28. Do yourself a favor and put in a 5 speed. The overdrive is killer in something you want to drive regularly.

    Sent from my SM-G965U using The H.A.M.B. mobile app

  29. Stogy
    Joined: Feb 10, 2007
    Posts: 9,885

    Stogy
    ALLIANCE MEMBER


    [​IMG]

    I wish I could find a bigger version of this pic but this is circa early 60s or around there and that A looks Aces...;)


    There is no mention of this Roadster at the site were it leads but I thought it would provide some reassurance that it will look really awesome when done...

    http://wediditforlove.com/Burkholder.html


    Last edited: Feb 17, 2019
    catdad49 and RiffRaffRoadster like this.
  30. loudbang
    Joined: Jul 23, 2013
    Posts: 16,735

    loudbang
    Member
