Algon fuel injection, and accessories

Discussion in 'The Hokey Ass Message Board' started by Algon, Feb 25, 2008.

  1. THE FRENCHTOWN FLYER
    Joined: Jun 6, 2007
    Posts: 2,811

    THE FRENCHTOWN FLYER
    Member
    from FRENCHTOWN

    I had an Algon setup for a 300 Ford inline six. I sold it before I ever got around to working on it to - believe it or not - a guy who had an exotic V-12 Masseratti [or Lamborghini, I've forgotten which] who was having problems with the V-12 injection and wanted to adapt the 300 six stuff to his V-12.

    kidcampbell71 likes this.
  2. Blownolds
    Joined: Mar 31, 2001
    Posts: 2,335

    Blownolds
    Member
    from So Cal

    I once had two super rare Algon setups. One was for 455 Olds, one was for 430 Lincoln...

    Long gone to new homes.

    kidcampbell71 likes this.
  3. Little Wing
    Joined: Nov 25, 2005
    Posts: 7,496

    Little Wing
    Member
    from Northeast


    Well being this is an Algon thread, thats why I asked if ,an Algon base be rebuilt with Hilborn hardware ?

  4. BobF
    Joined: Dec 30, 2004
    Posts: 230

    BobF
    Member
    from Poway, CA

    In answer to your question YES. Al used individual nozzles same as Hilborn/Kinsler/Crower but his each had a adjustable needle in them. The control or often referred to "barrel valve" also was different, not actually a "barrel" but a needle moved in/out (I've yet to take mine apart) in a block controlled by the throttle.
    You could replace all the nozzles/hoses with Hilborn stuff, and add the Hilborn barrel valve and bypass system. The Algon also used a unique aircraft(WWII) type fuel pump which is long out of production, and I find impossible to locate parts. If you used all other Hilborn parts obviously their pump would also work.

    kidcampbell71 likes this.
  5. backwoods96
    Joined: Jun 21, 2010
    Posts: 20

    backwoods96
    Member
    from Mead, Wa.

    I have one of those pump's if anyone is interested. Frank

    kidcampbell71 likes this.
  6. Little Wing
    Joined: Nov 25, 2005
    Posts: 7,496

    Little Wing
    Member
    from Northeast


    Have a few Cherrys so good there ,,thanks

  7. Algon
    Joined: Mar 12, 2007
    Posts: 1,215

    Algon
    Member

    Actually Algon dropped the brass needle and seat valve you speak of for a more standard barrel valve but it also was adjustable. At first it was used with the adjustable nozzles but matching fixed nozzles became the standard to make the system more user friendly. There are also several different pumps besides the aircraft units and many variations of those.

    Here is a rather hard to find Algon piece, the drive extension to clear a Glimer belt along with the early brass valve and a 427 MR intake which has the fixed nozzle set and an early adjustable barrel valve.


    Attached Files:

    Deuces and kidcampbell71 like this.
  8. Tom S. in Tn.
    Joined: Jan 16, 2011
    Posts: 1,108

    Tom S. in Tn.
    Member

    [​IMG]

    I owned an Algon for a Hi-Riser FE like this one of 34 Andy's, except the fuel mgmt. parts and the name and fins in the middle had been milled away for some reason. It had been purchased out of Texas some where by Percy Dowlin for his Thunderbolt, here in Middle Tn. It used aerated nozzles but were not Hilborn.
    The control valve and distribution block, were a conventional barrel style made from a gold/gray colored anodized aluminum block. It used Jackson screw in by-pass jets that went in with a screw driver under a AN cap on top of the valve.
    Gave the manifold to a friend who wanted it and probably wound up sold for scrap. I never saw another like it. The other parts later sold and given away when I quit.
    Tom S. in Tn.

    Last edited: Feb 13, 2013
  9. kennedy
    Joined: Sep 28, 2004
    Posts: 692

    kennedy
    Member
    from TN

    I have this Algon unit for a Y-block Ford.
    Kennedy


    Attached Files:

    Deuces and kidcampbell71 like this.
  10. Boldsmobile
    Joined: Dec 30, 2009
    Posts: 53

    Boldsmobile
    Member
    from W.Mass

    I have one myself and know where 2 others are located. One of which is actively used.

    Wonder how many were made.

    Deuces likes this.
  11. Blownolds
    Joined: Mar 31, 2001
    Posts: 2,335

    Blownolds
    Member
    from So Cal

    Probably not many, and I bet that one of those is the one I had. Mine came from the guy that used to run an alcohol-fed big-inch 455 (496?) in a black Henry J on the west coast (until he replaced that with a DRCE). I later sold it to someone on the ROP forum. Too cool of a piece, I wouldn't be surprised if someone's not using it.

  12. afaulk
    Joined: Jul 20, 2011
    Posts: 1,189

    afaulk
    Member

    You can get hoses with swedged ends from dragparts.com I think they have a tool you can buy to build your own also. The hoses though are not expensive. Good luck, Allan Faulkner:D

  13. Boldsmobile
    Joined: Dec 30, 2009
    Posts: 53

    Boldsmobile
    Member
    from W.Mass

    I bought mine on ROP. I got it from a member in Mich , his name is Tom.

    One is being used on a race car. Think it's a 51 Chevy. Owners name is Greg.

    Third I know of belongs to someone from the classic olds forum who lives in Virginia, named Joe. His isn't being used.

  14. 1961A/D
    Joined: Jul 11, 2011
    Posts: 58

    1961A/D
    Member

    Taking a long shot here, any good useable Algon adustable nozzles for sale, maybe some one changed over to hilborn or kinsler fixed nozzles. PM me if you want.
    Thanks, Bobby

  15. 1961A/D
    Joined: Jul 11, 2011
    Posts: 58

    1961A/D
    Member

    Saw this algon system on a slingshot while at Bakersfield last month, sounded nice when chakl`n on nitro. Motor was like the original in the chassis, a Desoto hemi, SWEET.


    Attached Files:

    kidcampbell71 and Deuces like this.
  16. 1961A/D
    Joined: Jul 11, 2011
    Posts: 58

    1961A/D
    Member

    These Algon peices were for sale in the swap meet, the water outlets were re-pops. Scoop, $2,200, flat head unit $2,700.


    Attached Files:

    • sm1.jpg
      File size:
      323.4 KB
      Views:
      190
    • sm2.jpg
      File size:
      328.3 KB
      Views:
      189
    • sm3.jpg
      File size:
      350.3 KB
      Views:
      204
    • sm4.jpg
      File size:
      399.4 KB
      Views:
      184
    kidcampbell71 and Deuces like this.
  17. sonoramic
    Joined: Jan 24, 2007
    Posts: 73

    sonoramic
    Member
    from Maryland
    1. Maryland HAMBers

    Hello all,

    Sorry to dredge up an old thread, but I have a buddy that is looking for a ALGON front timing cover for a SBC. If anyone has one, or knows of a good place to source one, please let me know.

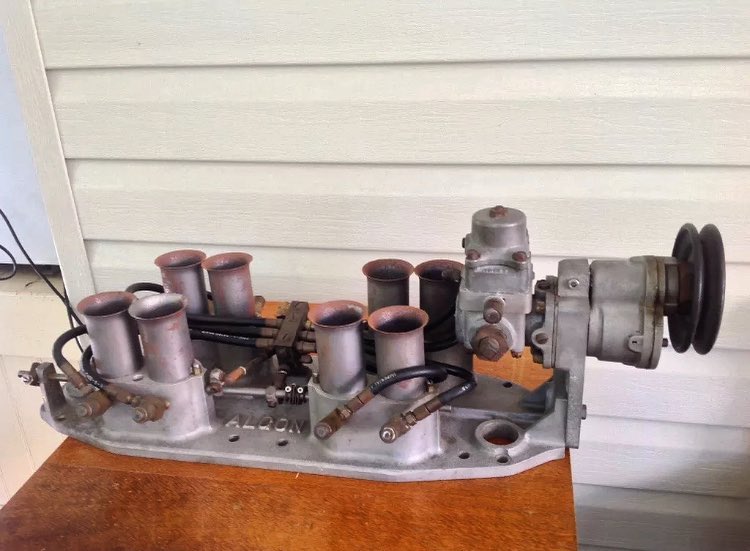

  18. My Algon Flathead unit I have just purchased algon 1.jpg

  19. Jalopy Joker
    Joined: Sep 3, 2006
    Posts: 23,975

    Jalopy Joker
    Member

  20. drtrcrV-8
    Joined: Jan 6, 2013
    Posts: 1,223

    drtrcrV-8
    Member

    JJ, Thanks for doing my advertising for me!! LOL!! Those are 2 complete units for sbc that I've had for some time, & by complete, I mean injectors, front covers, fuel & water pumps.(There is also a spare Algon water pump sitting between them as a separate piece)., AND YES, those prices are FIRM!!

    kidcampbell71 likes this.
  21. drtrcrV-8
    Joined: Jan 6, 2013
    Posts: 1,223

    drtrcrV-8
    Member

  22. drumyn29
    Joined: Feb 16, 2006
    Posts: 1,609

    drumyn29
    Member

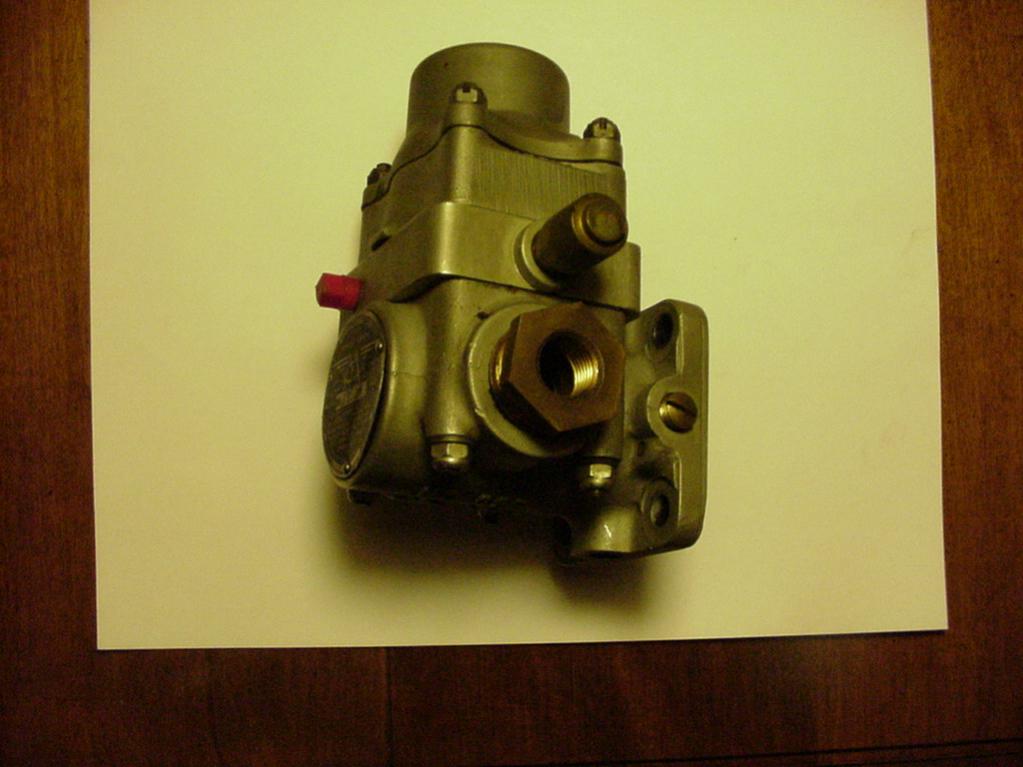

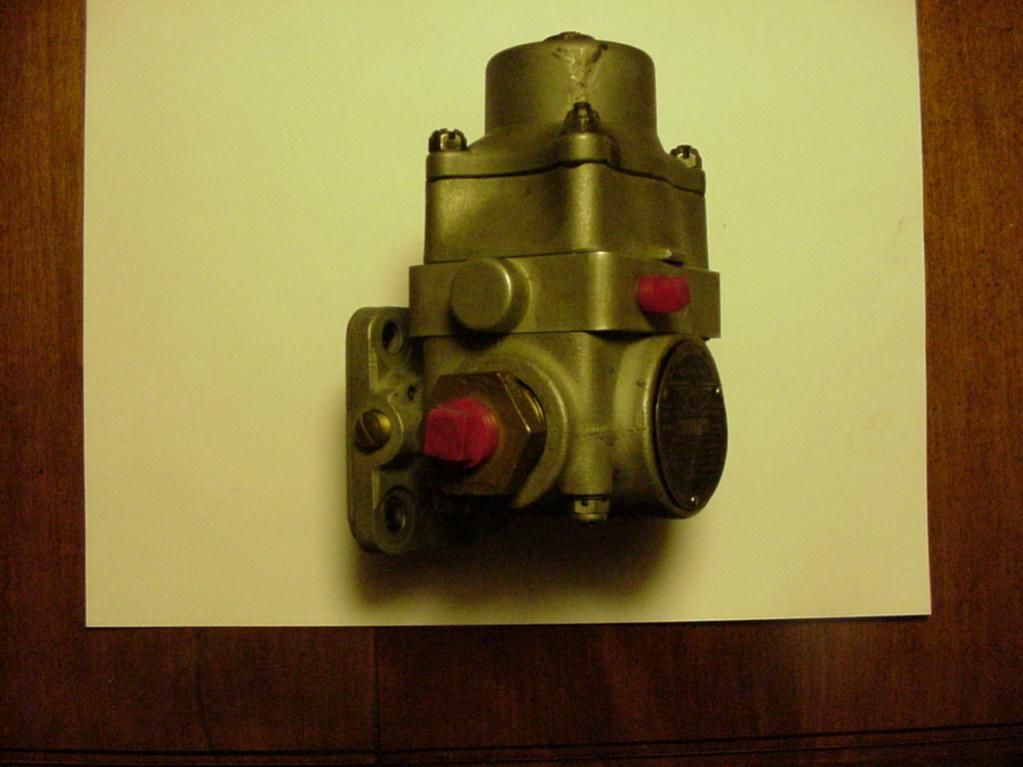

    Why are there 2 large threaded holes, one small one(red cap) and the other some kind of a bleeder. MVC-004F.jpg MVC-005F.jpg

    Deuces likes this.
  23. RichFox
    Joined: Dec 3, 2006
    Posts: 9,831

    RichFox
    ALLIANCE MEMBER

    I would guess fuel in and out and maybe a pressure gauge port

  24. jimmy six
    Joined: Mar 21, 2006
    Posts: 5,188

    jimmy six
    ALLIANCE MEMBER

    I have 2 Algon 302 GMC units. A straight and a fully cast 45* angle. The straight has larger butterflies, both have Cherry-Burrel pumps belt driven, one has the 2 to 1 gear reduction. Neither have adjustable nozzles. I showed Ken Enderle one of Al’s barrels valves and he thought it was an excellent design. The internals of a GMC make shared port mechanical injection use with gasoline a little hard to perfect, nitro/alcohol is a different story. Both units have been run at Bonneville.
