Projects A Full-Fendered Side Project

Discussion in 'Traditional Hot Rods' started by Ryan, Feb 15, 2016.

  1. Ryan
    Joined: Jan 2, 1995
    Posts: 19,242

    Ryan
    ADMINISTRATOR
    from Austin, TX
    Staff Member

    You can stop worrying about Keith. He's fine... and back on the job.


    Baron, kiwijeff, catdad49 and 3 others like this.
  2. Bader2
    Joined: May 19, 2014
    Posts: 1,143

    Bader2

    Remember kids! Safety third!

  3. Bader2
    Joined: May 19, 2014
    Posts: 1,143

    Bader2

    It's all fun and games,til someone loses an eye?

    gwhite likes this.
  4. Bader2
    Joined: May 19, 2014
    Posts: 1,143

    Bader2

    I'll keep an eye out for ya?

    gwhite likes this.
  5. Danekejt
    Joined: May 27, 2012
    Posts: 100

    Danekejt
    Member
    from Pa

    That S.O.B. is tough as nails on top of being a metal master god.

  6. rod1
    Joined: Jan 18, 2009
    Posts: 735

    rod1
    ALLIANCE MEMBER

    Been there ,done that...On the mend!

  7. AHotRod
    Joined: Jul 27, 2001
    Posts: 10,652

    AHotRod
    Member

    Sweet build !
    Love it ...

  8. Limey Kid
    Joined: Mar 5, 2006
    Posts: 1,014

    Limey Kid
    Member

    He can probably line up a chop, cut a straight line, layout wiring and brake lines, and weld better with one eye, than I will ever be able to do with both my eyes!
    Hoping it heals quickly.
    Shaved head, a day's worth of stubble, and now a patch over one eye. This is not a guy I would argue with.
    Cheers,
    Stewart.

    Tim and gwhite like this.
  9. Limey Kid
    Joined: Mar 5, 2006
    Posts: 1,014

    Limey Kid
    Member

    And I just noticed. Even his safety glasses have fins. How cool is that!

  10. Eye dunno' .... if he likes his picture taken Ryan. Lost in thoughts or a lil' pissed maybe ....

  11. Ryan
    Joined: Jan 2, 1995
    Posts: 19,242

    Ryan
    ADMINISTRATOR
    from Austin, TX
    Staff Member

    Earlier, someone asked about the details of slicing and dicing the a-pillars for fitment. Obviously, once you cut the top off, cut out the amount you wanna chop the car, and then set the top back on, you are left with a top that is a hair wider than the bottom. This is most notable at the a-pillars. If you just rough it together and call it a day, then your doors won't gap nicely and you'll be lucky if the windshield frame sits flush with the opening. In other words, the a-pillars have to be square on two planes... Here's what Keith did on the door side of that equation...

    In this shot, you can clearly see that the top of the a-pillar sits proud of the bottom:


    So, Keith made cuts along the pillar and then pried the remaining "flaps" to get them flush:


    Some pry work along with some body hammer work leaves you with a good straight line. Weld it all up and you are left with this:


    Pretty good, right?


    Repeat on the windshield side of the deal and then do the same damn thing on the other a-pillar and you are good to go...


    kiwijeff, 30tudor, Hotrodmyk and 3 others like this.
  12. Gorgeous! I might have to drop by soon and watch this thing come together. Modelo Especial, right? Whaddabout Mr. Tardel?

  13. Ryan
    Joined: Jan 2, 1995
    Posts: 19,242

    Ryan
    ADMINISTRATOR
    from Austin, TX
    Staff Member

    But what about the ass end of the operation? Typically, you see guys make four or five vertical cuts along the crown of the top - giving them the play that they need to weld everything back together again flush.

    However, at Baileigh last summer @cornfieldcustoms taught me a little trick. According to him, if you make a spring out of the crown of the top (by cutting a curly-q shape), you get the play that you need to fit everything back together again without losing the smooth factory crown. Essentially, it shrinks the area just enough to make it all work.

    Anyway, I told Keith about this and he decided to give it a try:




    It worked beautifully and Keith is now welding it all back up... I'll post some pics when done.

    Baron, kiwijeff, Drewfus and 7 others like this.
  14. Ryan
    Joined: Jan 2, 1995
    Posts: 19,242

    Ryan
    ADMINISTRATOR
    from Austin, TX
    Staff Member

    Anytime!

  15. Jungle Jalopy
    Joined: Mar 31, 2010
    Posts: 237

    Jungle Jalopy
    Member

  16. New safety program???


    Attached Files:

    66gmc, kiwijeff, missmuriel and 3 others like this.
  17. Rand Man
    Joined: Aug 23, 2004
    Posts: 3,556

    Rand Man
    Member

    Real men use paper towel bandages.

    Fly'n Kolors likes this.
  18. Ryan
    Joined: Jan 2, 1995
    Posts: 19,242

    Ryan
    ADMINISTRATOR
    from Austin, TX
    Staff Member

    So the "curly-q" method ended up being more work than expected... but on the plus side, it created a perfect crown. Almost done...





    biggeorge, kiwijeff, waxhead and 4 others like this.
  19. That spring trick is neat AF!

    Last edited: Feb 22, 2016
  20. When I chopped my first A... I noticed the A pillar problem too. I did some measuring, and the problem is that the top is wider that the bottom. So, it's like cutting 3" out of an upside down triangle... The solution was to narrow the header 5/8". If you look at most A pillars on chopped A's... they have a kink on one, or both sides.

  21. Ryan
    Joined: Jan 2, 1995
    Posts: 19,242

    Ryan
    ADMINISTRATOR
    from Austin, TX
    Staff Member

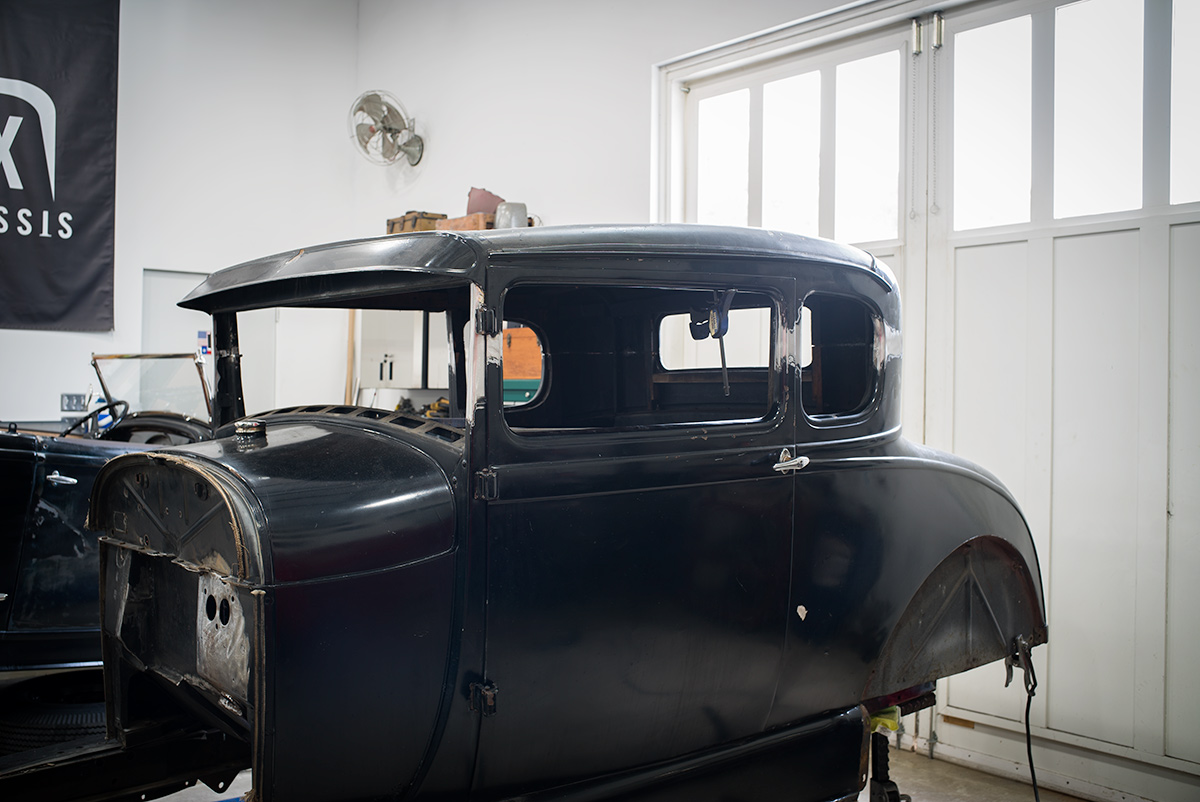

    Hey look, a door!


    Biggest update of the day? Y'all can now shut the hell up about the crate motor. 327 inbound...

  22. Hot Rod Cowboy
    Joined: Jan 2, 2010
    Posts: 231

    Hot Rod Cowboy
    ALLIANCE MEMBER
    from Dallas, TX

    Thank heavens. This thread was coming of the tracks rather quickly with everyones' opinions concerning the whole "crate motor" possibility. Now, back to your regularly scheduled program.

    And thanks for showing details on the chop!

    Last edited: Feb 23, 2016
  23. belair
    Joined: Jul 10, 2006
    Posts: 8,527

    belair
    Member

    Look up Saburo Sakai and see what he did with one eye. And how he lost it. The car looks great. Never heard of the curly cue trick. You would think all the good ways to chop coupe would be common knowledge by now.

  24. "Y'all can now shut the hell up about the crate motor. 327 inbound..."

    That's great news, Ryan! With all that talk about a crate motor, I was afraid someone would remove your thread. ;)

  25. 3wLarry
    Joined: Mar 11, 2005
    Posts: 12,804

    3wLarry
    Member Emeritus
    from Owasso, Ok

    I be happy

    kidcampbell71 likes this.
  26. theHIGHLANDER
    Joined: Jun 3, 2005
    Posts: 8,059

    theHIGHLANDER
    Member

    Damn, I hope it don't show up in a crate...:eek:

    kiwijeff likes this.
  27. so how do we shame you into a 283 crank, solid lifter cam and a pair of four barrels?

    cactus1 likes this.
  28. This^^^

  29. Ryan
    Joined: Jan 2, 1995
    Posts: 19,242

    Ryan
    ADMINISTRATOR
    from Austin, TX
    Staff Member

    Nawe... We are kind of going for a '56 look and feel for the car... It's getting three deuces...
