    Thanks! Actually that has been on my mind the whole time I’ve been keeping my eye on that! But I did forget about the driveshaft maybe not coming in and out! I’m glad Dirk mentioned something the other day except for flipping it over is not gonna work!

    chryslerfan55 and loudbang like this.
  2. Johnboy34
    Joined: Jul 12, 2011
    Posts: 1,217

    Johnboy34
    Member
    from Seattle,Wa

    Are you going to make 4 of those brackets to put the mounting bolts in double shear? And a similar but bigger bracket to box the X member where that cross member attaches? Then go to the outside rail, boxed the same where attached?

    loudbang likes this.
  3. 33Doll
    Joined: Sep 27, 2019
    Posts: 508

    33Doll

    Si! Senore! That’s the Idea or close.
    And lots of gussets! I have to repair the broken and Bent pieces on the frame rails before I get into all that, its just the beginning stages. So its pretty bare looking right now. You’ll See!

    Last edited: May 25, 2020
    chryslerfan55, Stogy, brEad and 3 others like this.
  4. 33Doll
    Joined: Sep 27, 2019
    Posts: 508

    33Doll

    Got The Tabs Made, Mocked and Tacked! Now I can Finish Weld, and Gusset the Crap out of it! Then, fix the bottom frame rails, and straighten.
    And it’s just a matter of welding the crossmember in and then boxing the rails around it. Adding some horizontal braces to the outer rail.
    IMG_9757.JPG IMG_9758.JPG IMG_9759.JPG IMG_9764.JPG IMG_9763.JPG IMG_9765.JPG Adjustments.JPG Adjustments.JPG

  5. 33Doll
    Joined: Sep 27, 2019
    Posts: 508

    33Doll

    Well I finished the crossmember!
    I jazzed it up a little bit, not to
    Snazzy-Jazzy!
    IMG_9768.JPG IMG_9770.JPG IMG_9773.JPG IMG_9771.JPG

  6. Looks good. Are you planning to add diagonal braces from the crossmember to the frame as well?

    loudbang likes this.
  7. 33Doll
    Joined: Sep 27, 2019
    Posts: 508

    33Doll

    Thanks!
    Yeah, after I box it, 3 Triangle Gussets. one top, Vertically, and 2 horizontally, attached to the square Tubing, for forward and Backward torque. All that Flathead Horse Power you Know! Ha!

    loudbang and brEad like this.
  8. 33Doll
    Joined: Sep 27, 2019
    Posts: 508

    33Doll

    Need
    Some inspiration!
    Heres Mr. Flatty.... still Patiently Waiting!
    Adjustments.JPG Adjustments.JPG

  9. Ohhh were that Flatty looks good


    The forward Torque from acceleration (Engine output x 1st gear trans x rear axle ratio) and rearward torque from braking will be at play back here. F3014875-86C1-44A5-B652-F71845429601.jpeg

    loudbang likes this.
  10. 33Doll
    Joined: Sep 27, 2019
    Posts: 508

    33Doll

    Got my gussets and extended outer rail plates all cut!
    Boxing plates were cut yesterday!
    No holes, just arched on the ends to match the curved link gussets.
    So its gonna be welded on the inside of the X-member bottom, and side,
    Then boxed, with a notch around the square tubing, then welded, to the plate there also, then the gussets, and then the outer rails welded to the plates you see there, top, and bottom. I don’t want to box the outer rails right there. Want to Keep it open for fuel lines, wiring, and electric pump.
    Not to much Jazz!
    I think its gonna function fine AND look good!
    It will be about WAY stronger than the previous setup, is all I know.
    IMG_9788.JPG Adjustments.JPG

  11. 33Doll
    Joined: Sep 27, 2019
    Posts: 508

    33Doll

    Yeah, the back is really beefy, 3/8 plates, plus the inside of the tube still has the forged solid steel core, which was not cut when I pie cut the tubes.
    Heated and slowly brought them in, then closed up the tubes. Its solid back there.

    chryslerfan55, dwollam and loudbang like this.
  12. 33Doll
    Joined: Sep 27, 2019
    Posts: 508

    33Doll

    Welp!
    33’ time is on Hold for a Month!
    Had an emergency Appendix removal last Night! (Not Fun! Really Sore today)
    So I’m Bummed!

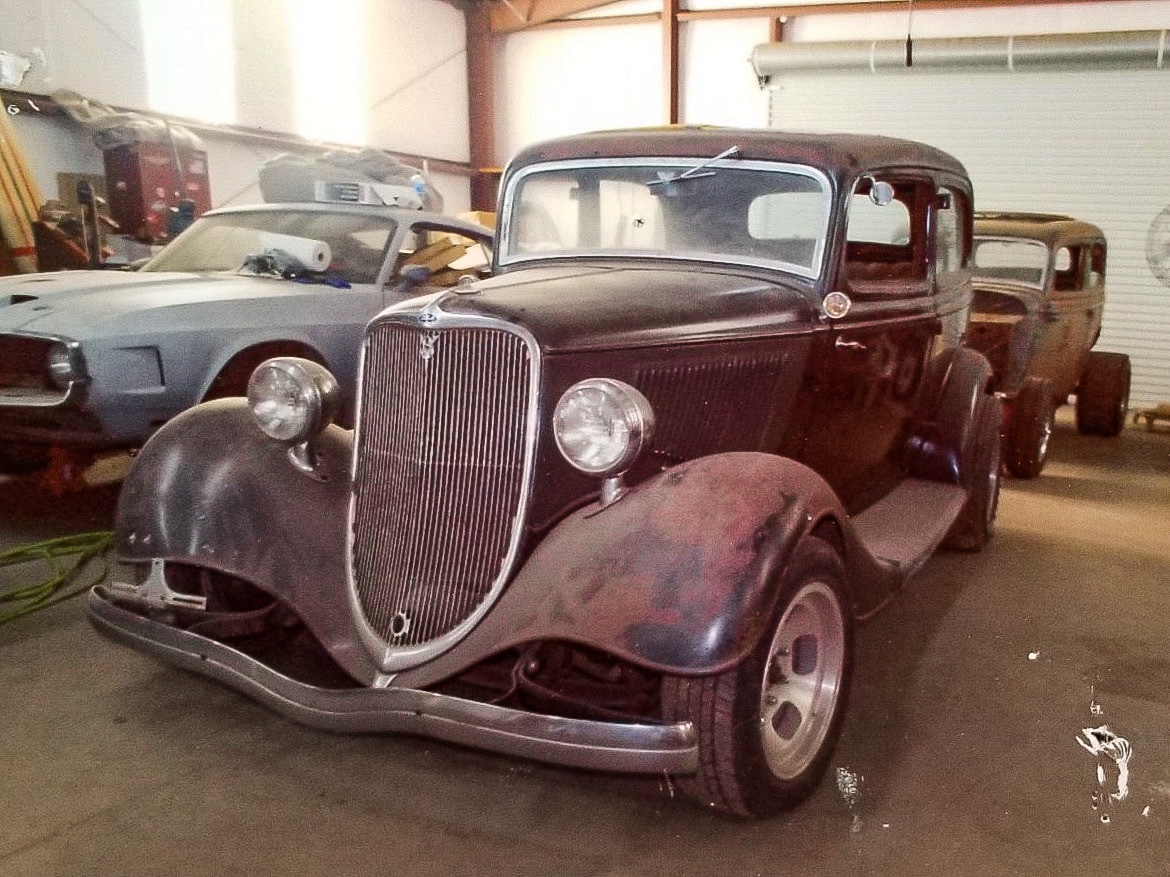

    But My Pops sent me a few pictures of the 33’ a few years ago that I didn’t have, it was still together, just sitting waiting for me!
    E5DAEAA1-A17B-4FA4-952D-207F8EE67542.jpeg 2E8924FB-7DA6-4C55-B390-516F0924F004.jpeg

  13. dumprat
    Joined: Dec 27, 2006
    Posts: 2,640

    dumprat
    Member
    from b.c.

    Looks great with aluminum slots on it!

  14. 33Doll
    Joined: Sep 27, 2019
    Posts: 508

    33Doll

    Yeah, I think those went with 34’ behind it, I got the wires.

    loudbang likes this.
  15. 33Doll
    Joined: Sep 27, 2019
    Posts: 508

    33Doll

  16. dumprat
    Joined: Dec 27, 2006
    Posts: 2,640

    dumprat
    Member
    from b.c.

    I personally am not a fan of wires. Too lowriderish.

  17. alchemy
    Joined: Sep 27, 2002
    Posts: 15,519

    alchemy
    ALLIANCE MEMBER

    Appliance wires with 50 series white letter tires. Keep them, as the 1970 era of hot rodding will be coming back into vogue any day now.

    cactus1, Tman, milwscruffy and 3 others like this.
  18. I like the look with the slots!

    Also, praying you recover quick from the surgery. Sounds like no fun.

    brEad, 33Doll and loudbang like this.
  19. Dirk35
    Joined: Mar 8, 2001
    Posts: 2,023

    Dirk35
    Member

    Looks good. Maybe you already have this planned (you might have even said so and I just missed it) , but if not, another option instead of welding it into the original frame crossmember, you can make it to where it bolts onto the crossmember similar to these pictures of removable crossmembers.

    Crossmemeber.jpg F221280555.jpg images8TPUO6CP.jpg KVB500060__31939_1566732181.jpg tko-5-speed-crossmember.jpg

    Crossmemeber.jpg F221280555.jpg images8TPUO6CP.jpg KVB500060__31939_1566732181.jpg

  20. 33Doll
    Joined: Sep 27, 2019
    Posts: 508

    33Doll

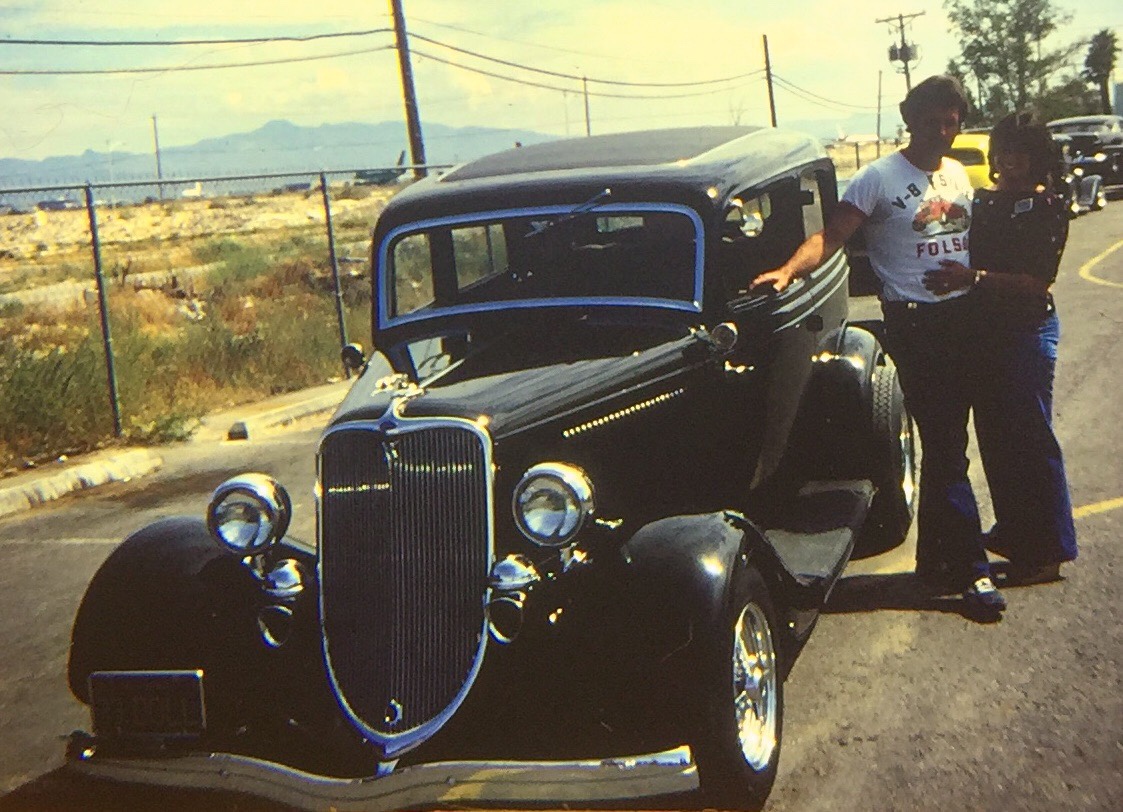

    Thats what it had on it when I was a kid-Teen thats why I wanted them even though they are out dated
