    And then the side mounts for the Rod Tops top.

    6DDD8E1F-8FBC-49D2-98B6-4E316F403AFD.jpeg C9DEC4C9-C49C-4084-B758-E82FA238E998.jpeg

    Stogy, loudbang, Tim and 4 others like this.
  5. ScooterCO
    Joined: Nov 28, 2007
    Posts: 89

    ScooterCO
    Member
    from Parker, CO

    Clean install on the overflow tank...
    Great job.

    loudbang and Blue One like this.
  6. Blue One
    Joined: Feb 6, 2010
    Posts: 9,813

    Blue One
    ALLIANCE MEMBER
    from Alberta

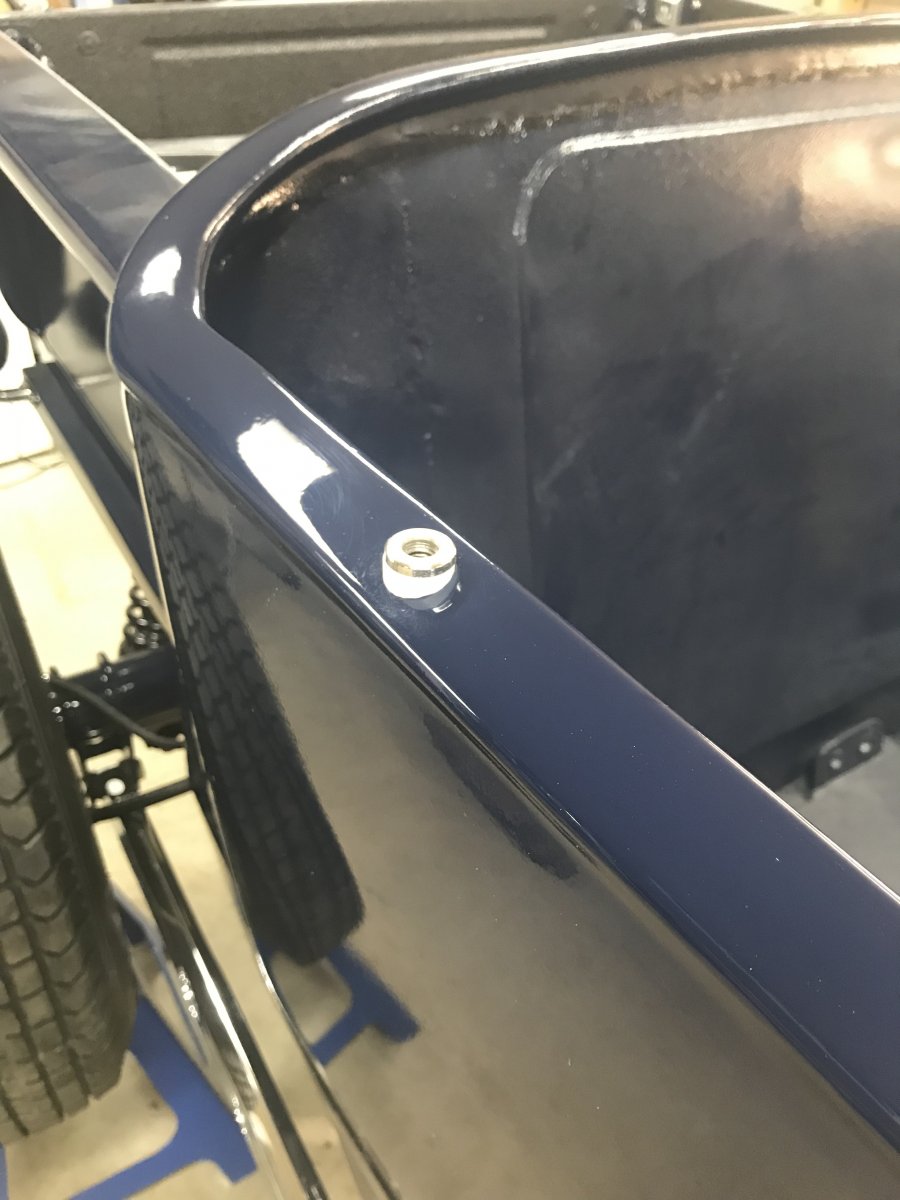

    The side mounts for the top basically clamp down on the body like a large flat top 1/2" diameter bolt with a block under the lip of the body and once in the proper orientation for the removable top attachment posts need to be really tight to avoid turning when installing or removing the top posts.

    I wasn't happy with the need to do that because of the damage that would do to the paint.
    So, another one of those time consuming little details.

    Set posts in place lightly and then drill through the inside flat metal ( I installed as part of the body support structure it's 1/8" ) that will be under the upholstery panel and into the 1/2" diameter post and then thread the post for a countersunk 10/32" machine screw to anchor the post and keep it from turning.

    Then snug the post lightly and double nut.
    In the end, when I get it done :D no paint damage and secure top mount posts....

    And guys wonder why this build takes so long :D

    Stogy, brEad, brad2v and 3 others like this.
  7. It’s easy to tell by looking at it why the time frame, it’s over the top beautiful. Details, details and more details.


    Sent from my iPhone using H.A.M.B.

    Rickybop, OFT, brEad and 3 others like this.
  8. Blue One
    Joined: Feb 6, 2010
    Posts: 9,813

    Blue One
    ALLIANCE MEMBER
    from Alberta

    Thanks,
    :D Sometimes it’s details on the details :D

    Last edited: Oct 10, 2019
    Rickybop, Stogy, loudbang and 2 others like this.
  9. Blue One
    Joined: Feb 6, 2010
    Posts: 9,813

    Blue One
    ALLIANCE MEMBER
    from Alberta

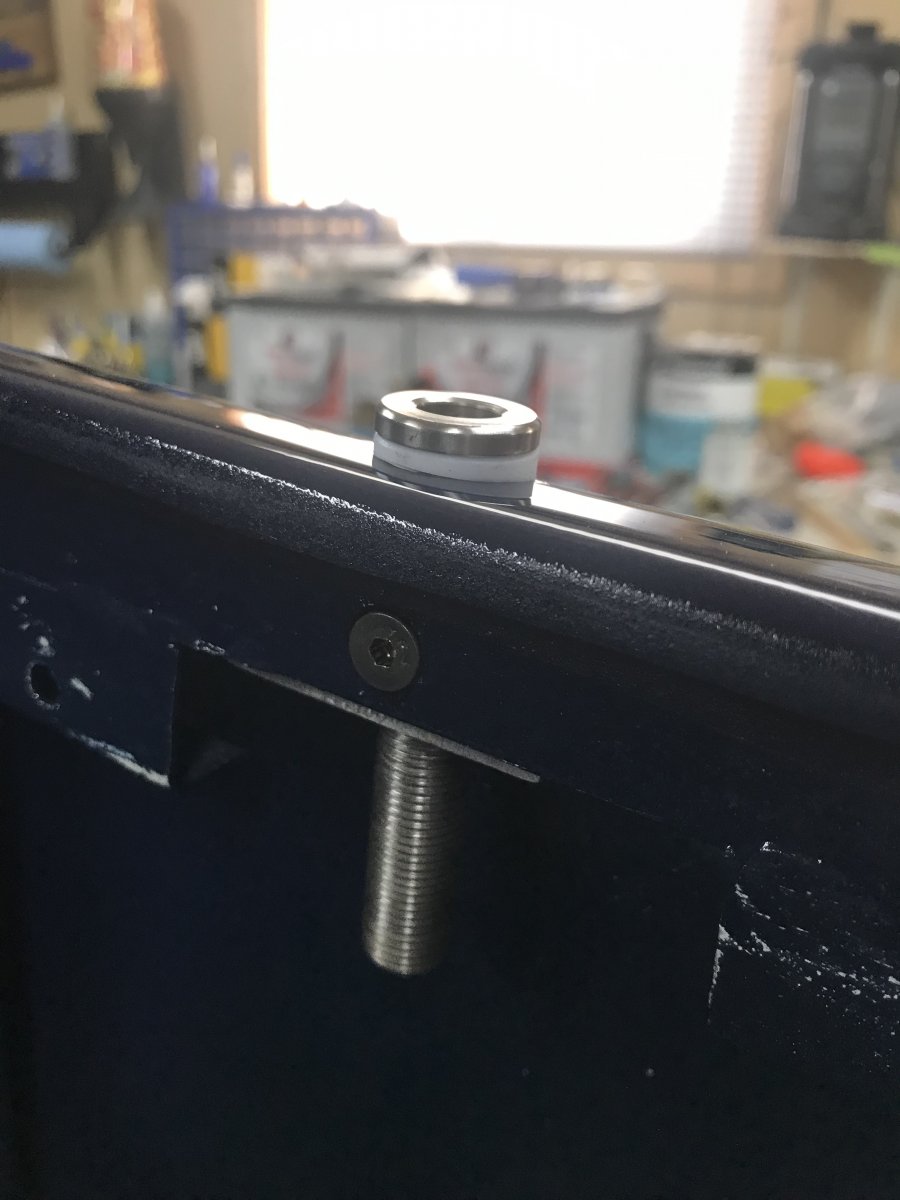

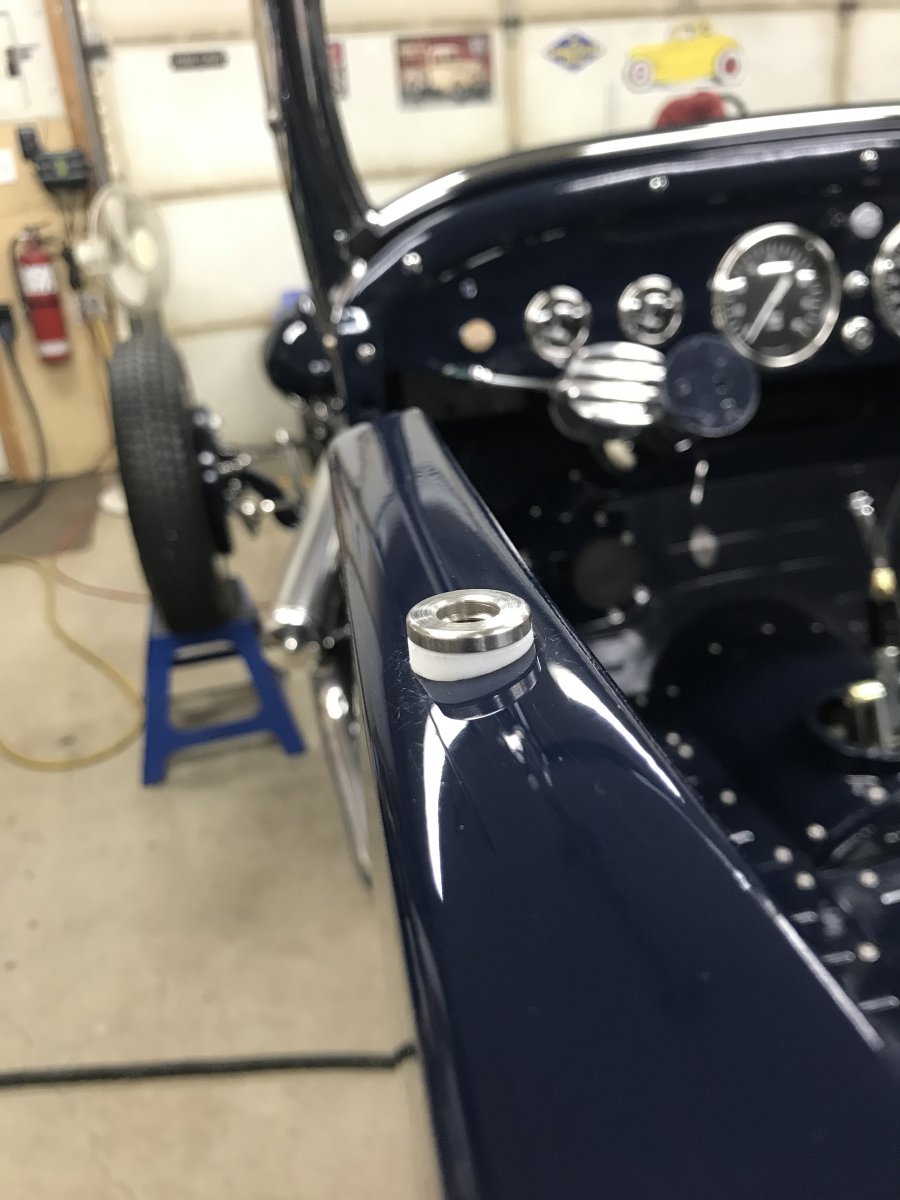

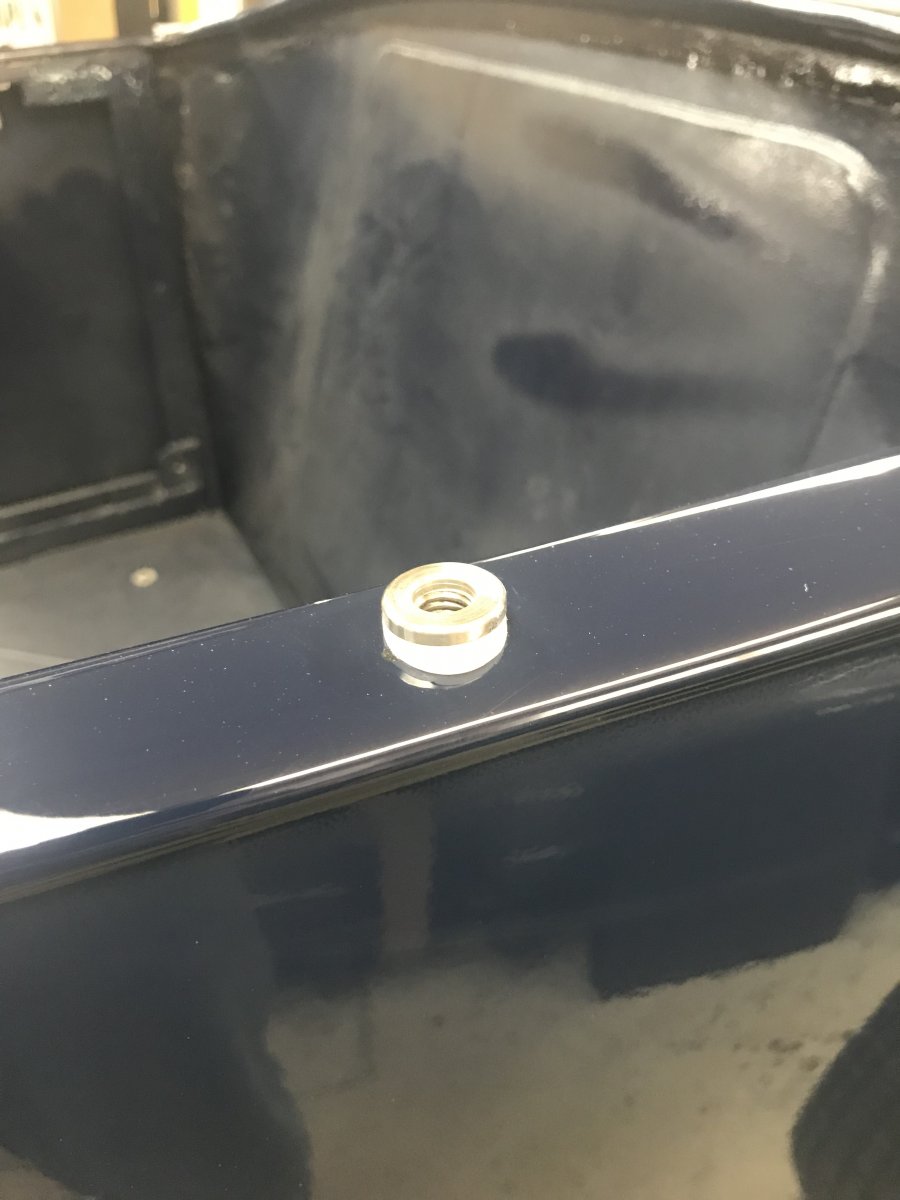

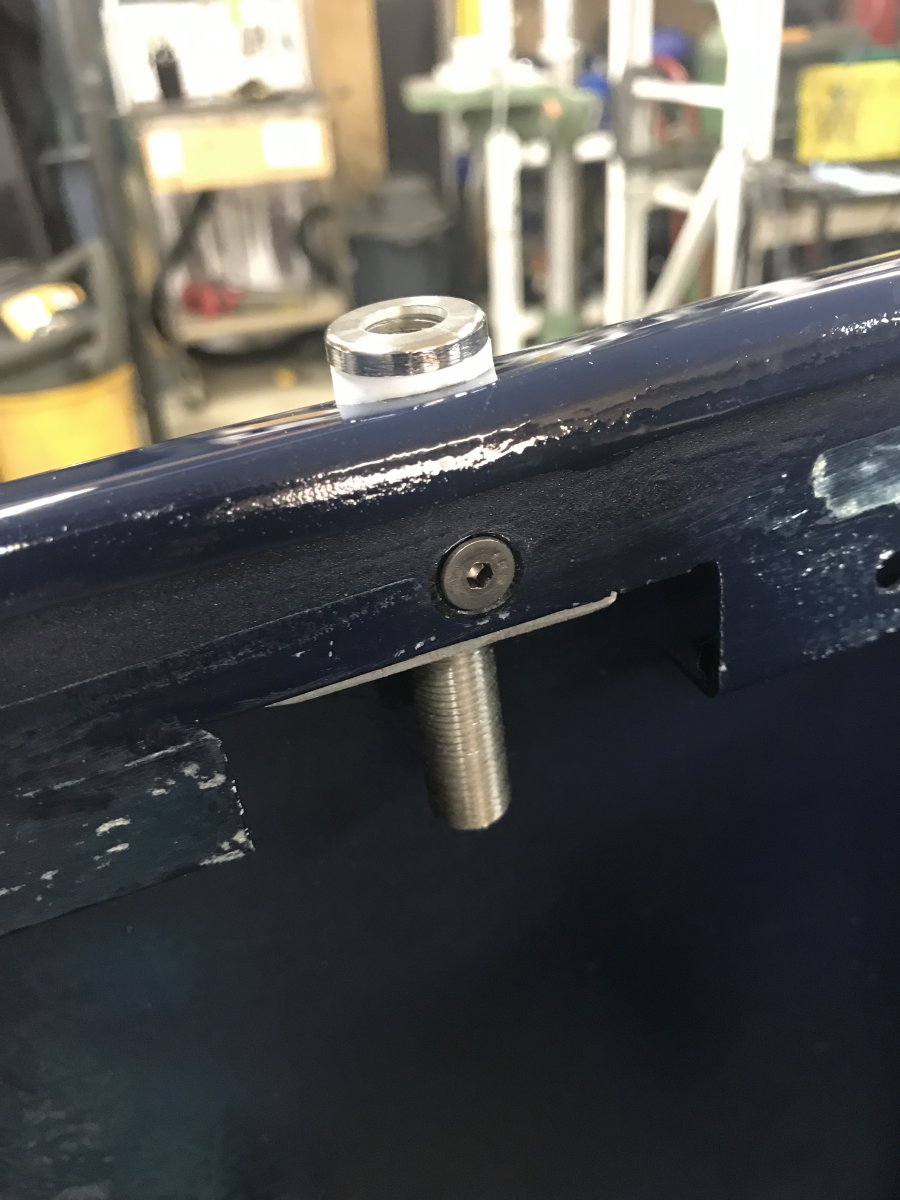

    So, originally Rod Tops had made tapered metal spacers to go under the side mount posts.

    As I mentioned previously I felt that would damage the paint.

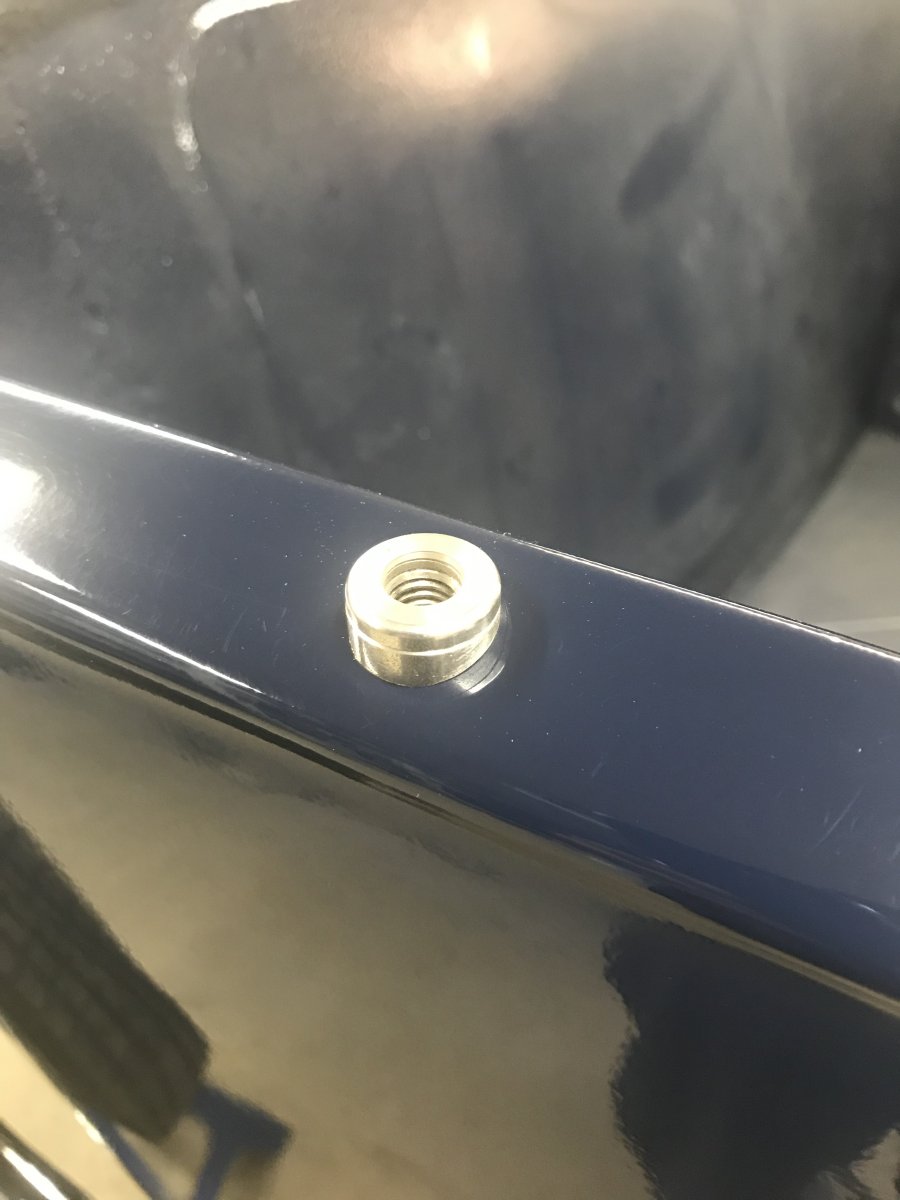

    So once I drilled and tapped the posts for the 10-32 anchoring machine screws I realized that they were now going to be solidly located enough to replace those tapered metal spacers.

    I made up a couple of Teflon plastic spacers and now all I need is a nylock nut to snug up under the spacer blocks.

    Another thing done ✅ :cool:

    08DB52F4-0BA5-406A-817E-B5ABEE42AABC.jpeg D93BFC84-F8F8-4E47-9778-0410A67C262A.jpeg DD2CEA0F-58E9-48B6-8E0F-C575B948054E.jpeg 7E8079E2-EEA9-4687-BEA3-1E56C300E400.jpeg

    And one more shot from a different angle :D


    Last edited: Oct 12, 2019
    brEad, Stogy, brad2v and 5 others like this.
  10. Blue One
    Joined: Feb 6, 2010
    Posts: 9,813

    Blue One
    ALLIANCE MEMBER
    from Alberta

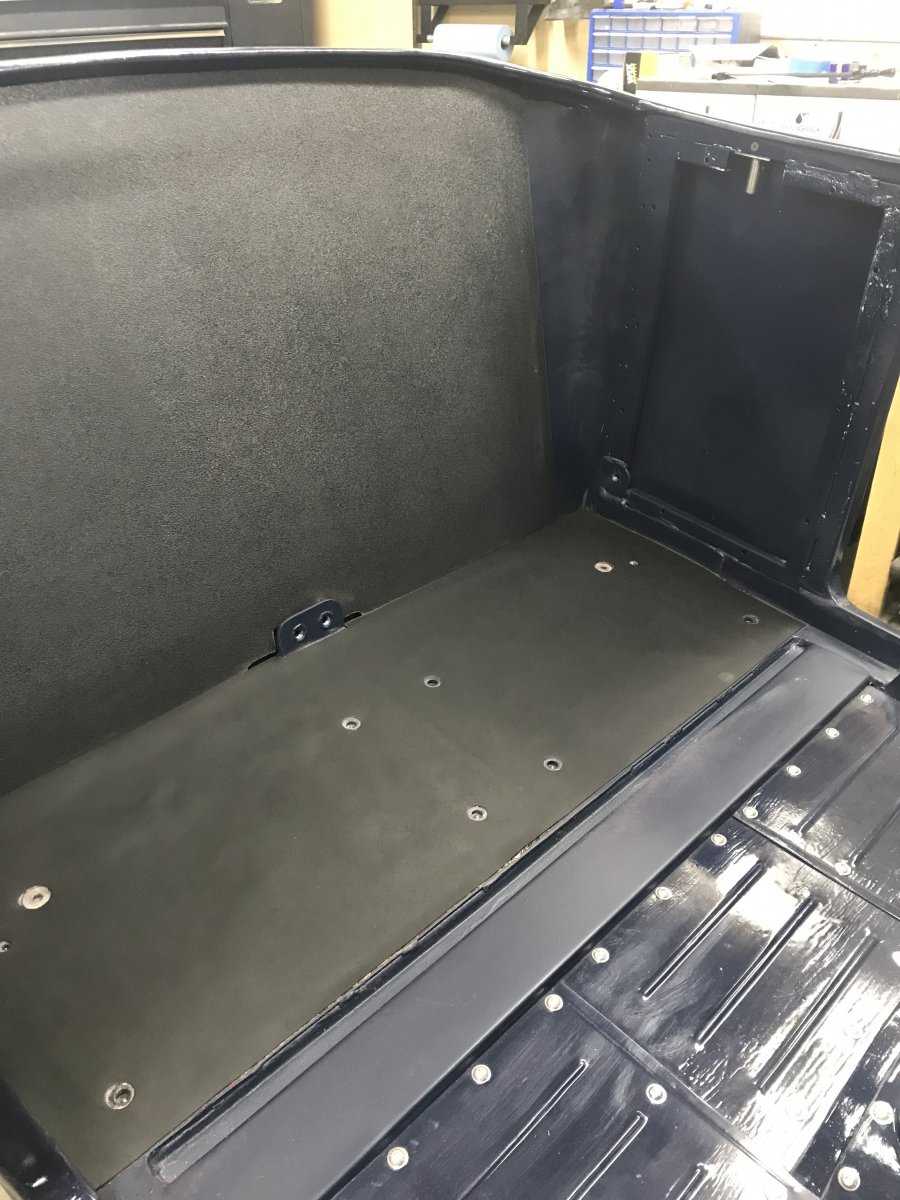

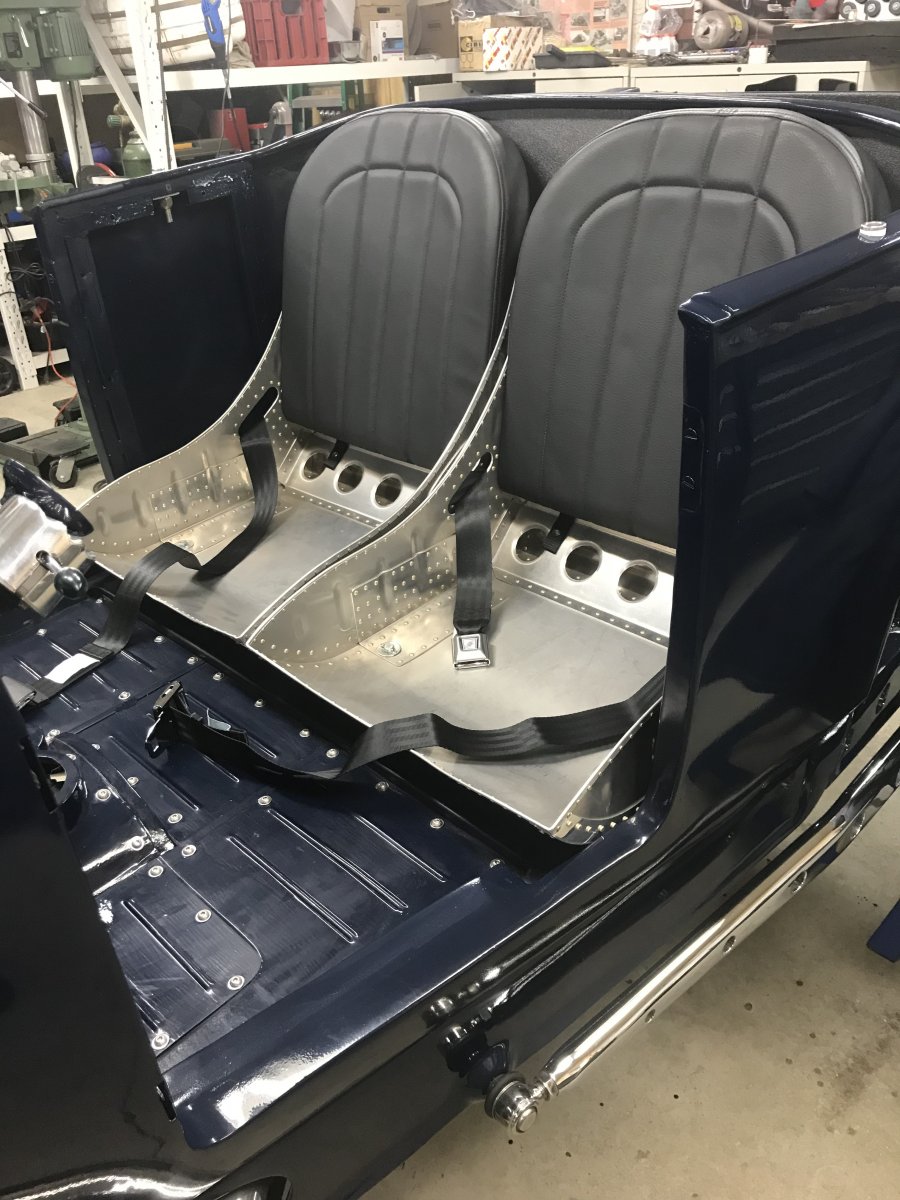

    I’m still planning to put it into the trailer to haul it out to the shop for inspection so with that in mind I installed the seats and belts which I can remove to do the rest of the interior through the winter.

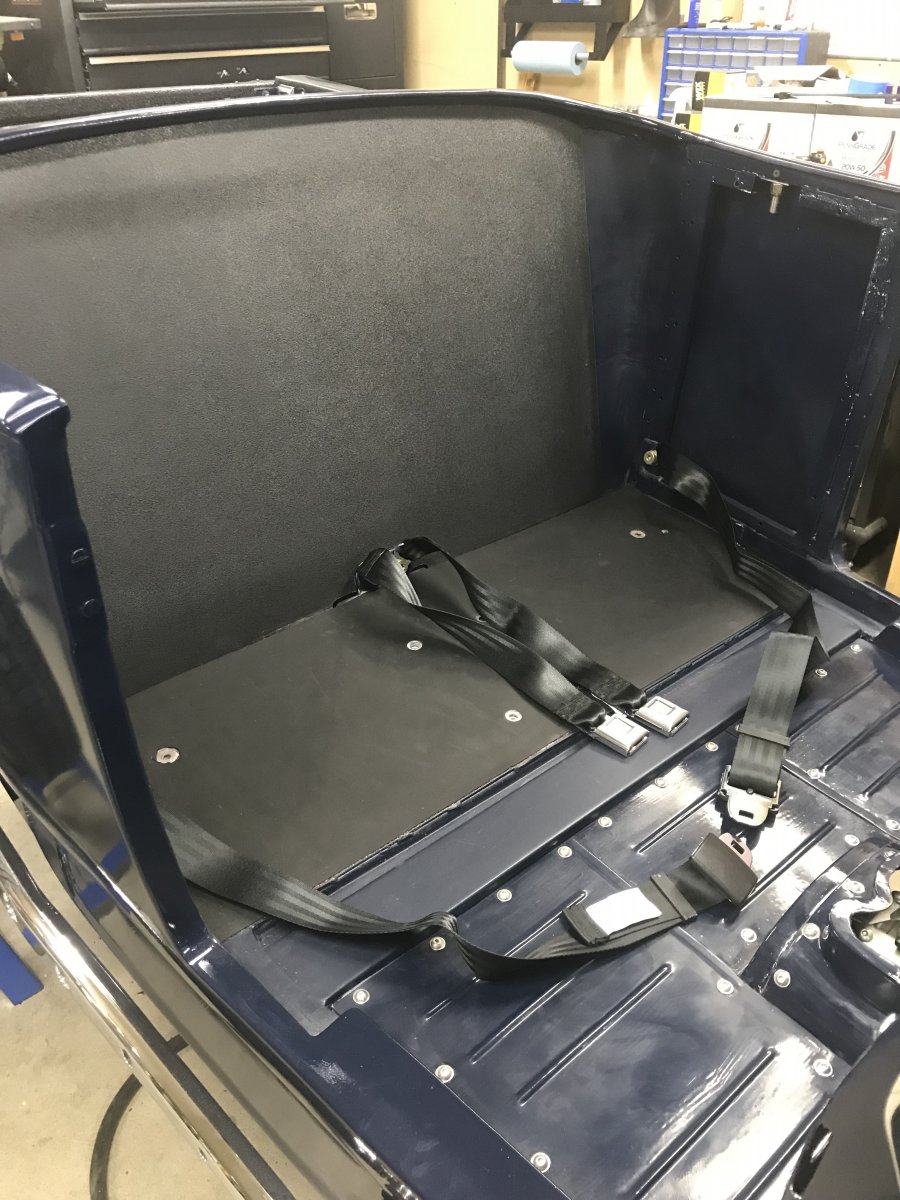

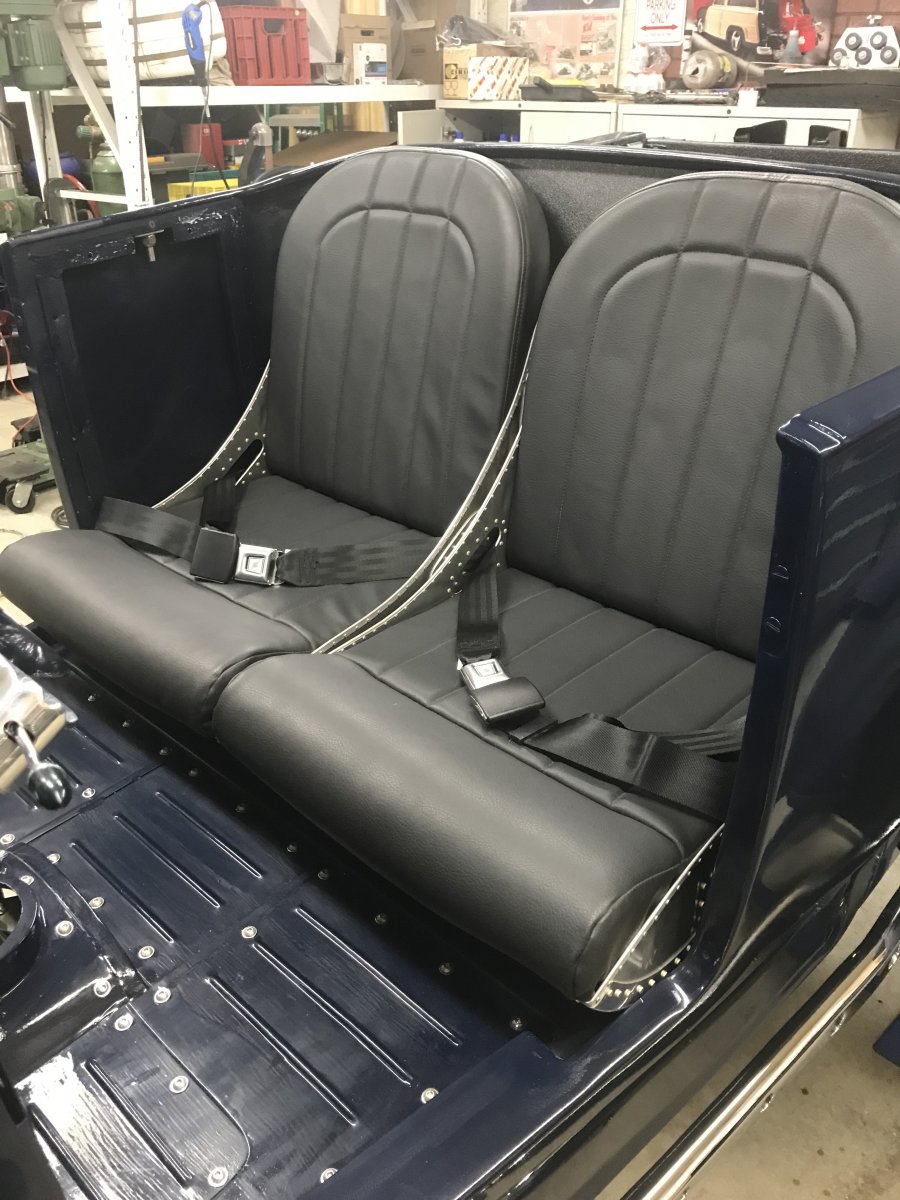

    I put down a layer of 1/16” thick rubber under them first. No room for anything else. :D

    16E0127A-5F5B-4DA3-A756-367ADF4E536C.jpeg BE9DF3A1-AD25-45D9-B0D3-1597F99CC908.jpeg 1722EE67-94B8-4721-863B-FCF5E5EBF338.jpeg B42D8320-D7F3-4614-A2D5-8021C7382818.jpeg

  11. Six Ball
    Joined: Oct 8, 2007
    Posts: 2,690

    Six Ball
    Member
    from Nevada

    I have never been able to follow such a skillful build in so much detail. Thank you for letting us see how it is done. Watching as you worked out the issues has been interesting and educational. Fun too! You are too close now.

    eddie1, loudbang, bobbytnm and 3 others like this.
  12. Blue One
    Joined: Feb 6, 2010
    Posts: 9,813

    Blue One
    ALLIANCE MEMBER
    from Alberta

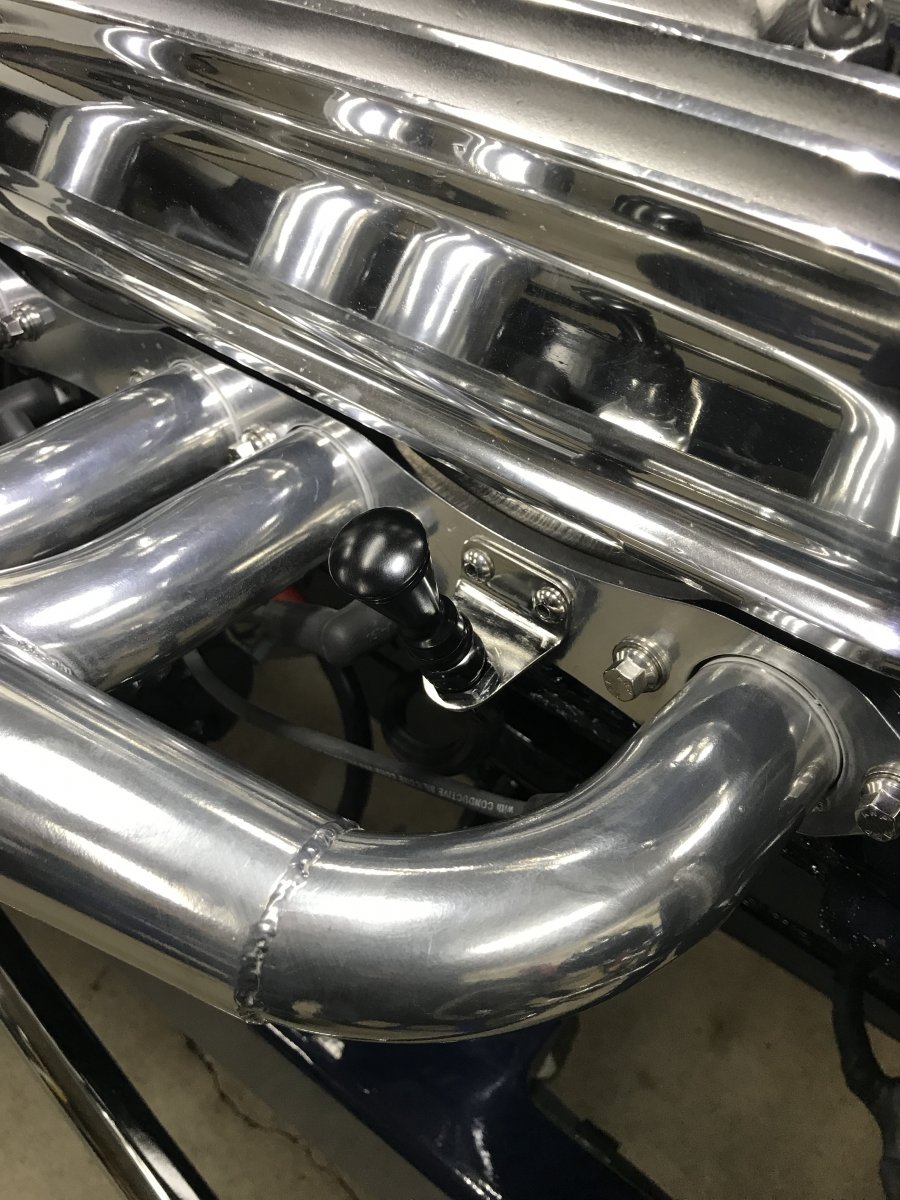

    Engine oil dipstick figured out.

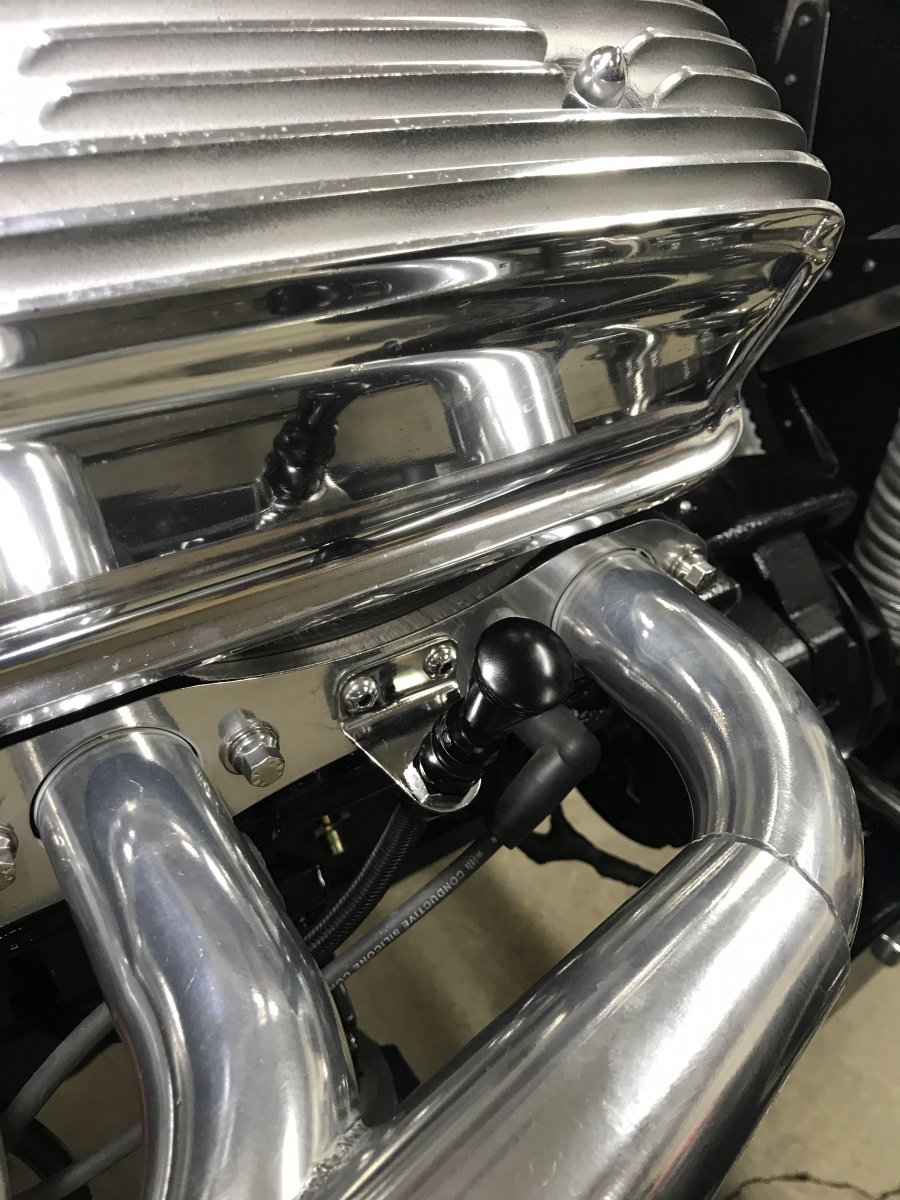

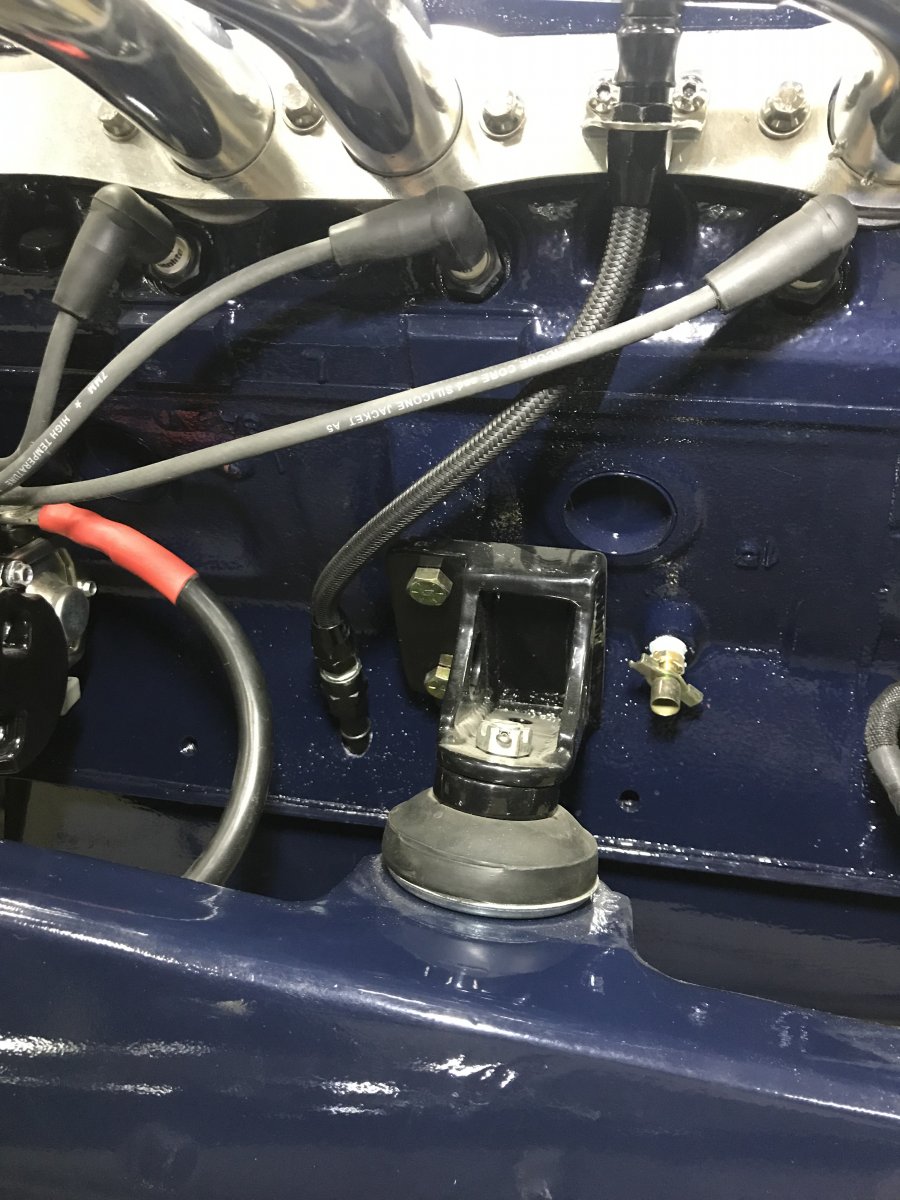

    1/4” NPT fitting on the tube in the block and a little stainless custom fabricated bracket drilled and tapped into the header flange to mount it.

    Like the transmission dipstick it’s a Lokar anchor tight locking midnight black model.

    25C682C3-DB09-429C-B484-0C5AB62D9824.jpeg 17855F70-20C8-4718-A062-66B42BA02C45.jpeg 58EFF539-D7FA-42E3-B4F7-3FCBD9CA5C85.jpeg 52502565-4E1B-4855-9268-11AD8FE63DD1.jpeg EEEB07B1-44F9-406E-AB14-FD433E72BC97.jpeg

  13. Tim
    Joined: Mar 2, 2001
    Posts: 9,901

    Tim
    Member
    from Raytown Mo

    I can dig that. How thick are your header flanges?

  14. Blue One
    Joined: Feb 6, 2010
    Posts: 9,813

    Blue One
    ALLIANCE MEMBER
    from Alberta

    They’re 3/8” thick and I drilled and tapped for the two 1/4” polished stainless button head bolts.

    Last edited: Oct 20, 2019
    rjgideon and Tim like this.
  15. Blue One
    Joined: Feb 6, 2010
    Posts: 9,813

    Blue One
    ALLIANCE MEMBER
    from Alberta

    I decided that I’m going to turn the car around so that the exhaust pipes face the shop door and I want to put it back up on the stands to put fluids in and then get it running.

    I figure that I’ll have an easier time looking underneath to see if anything leaks.

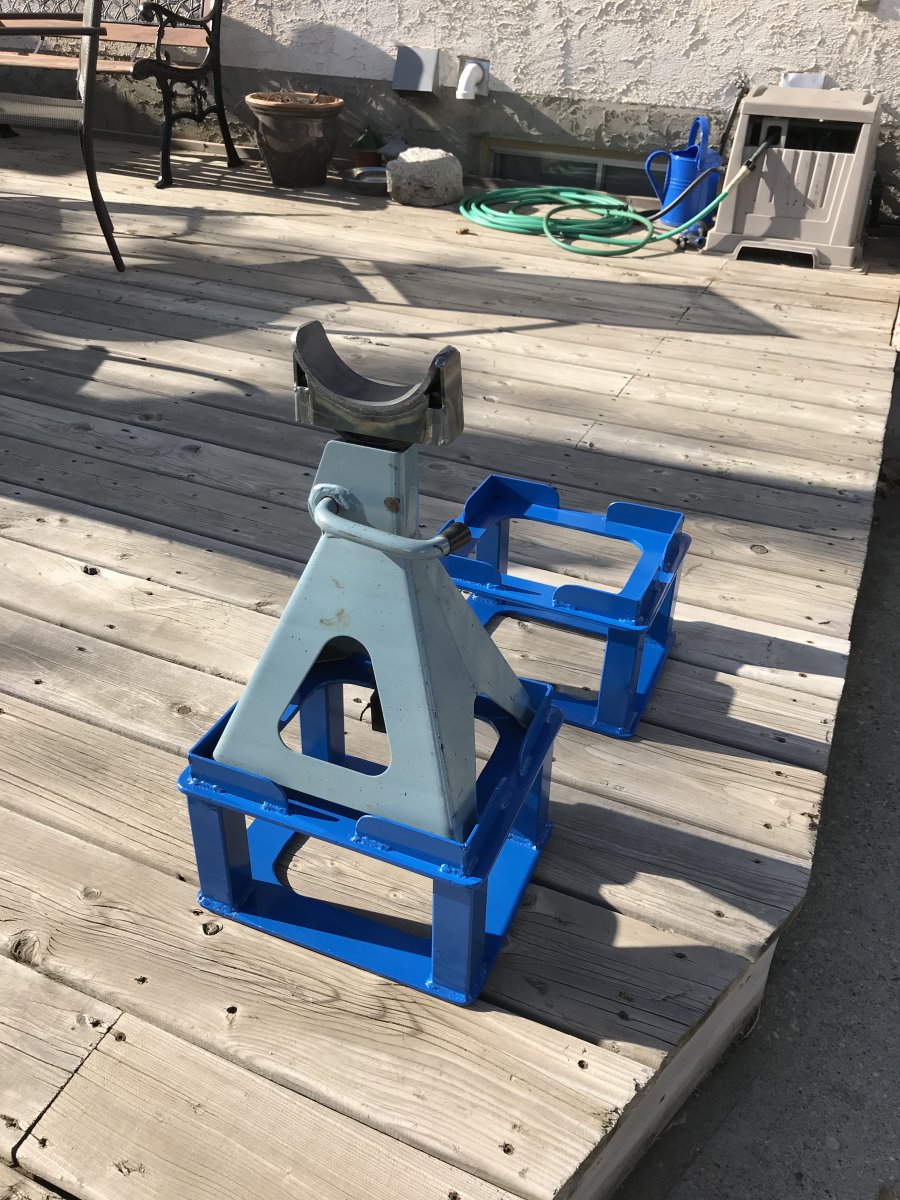

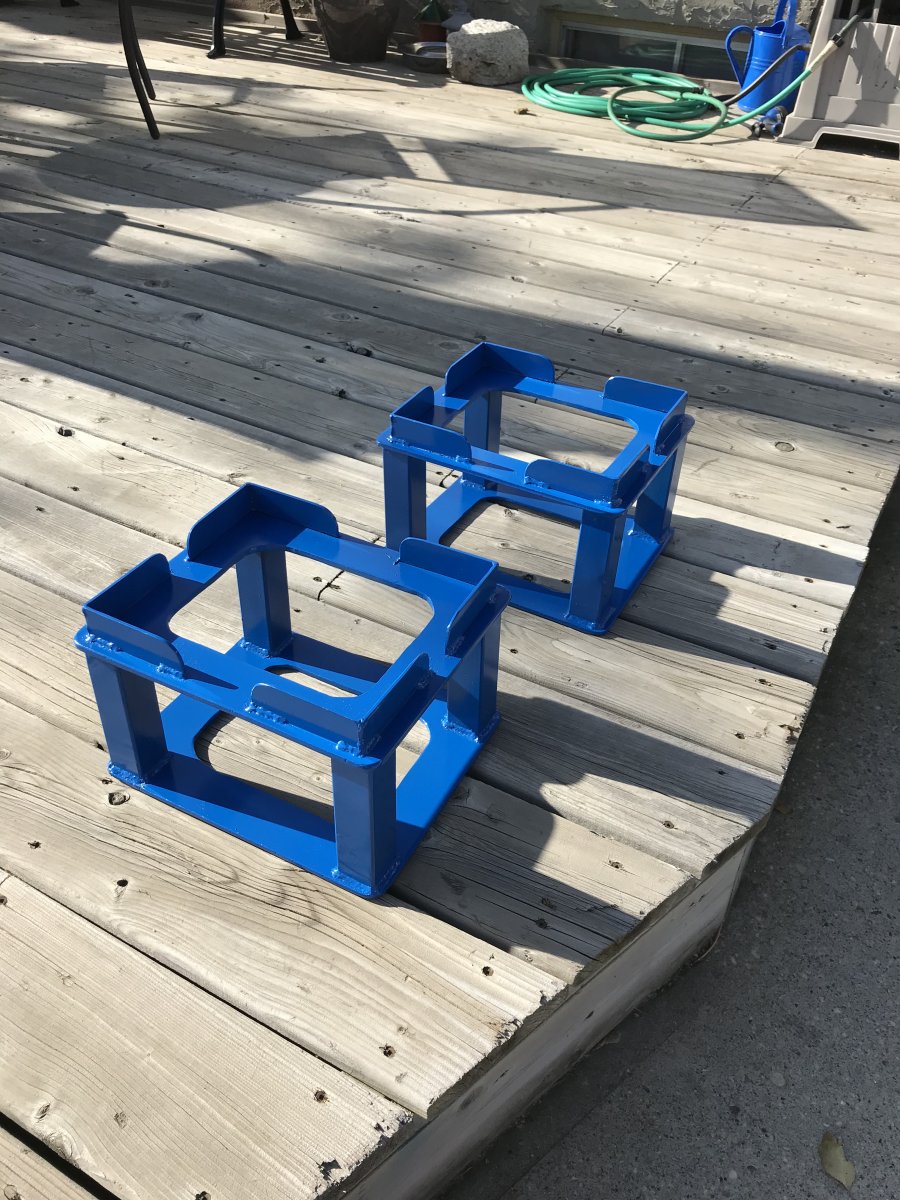

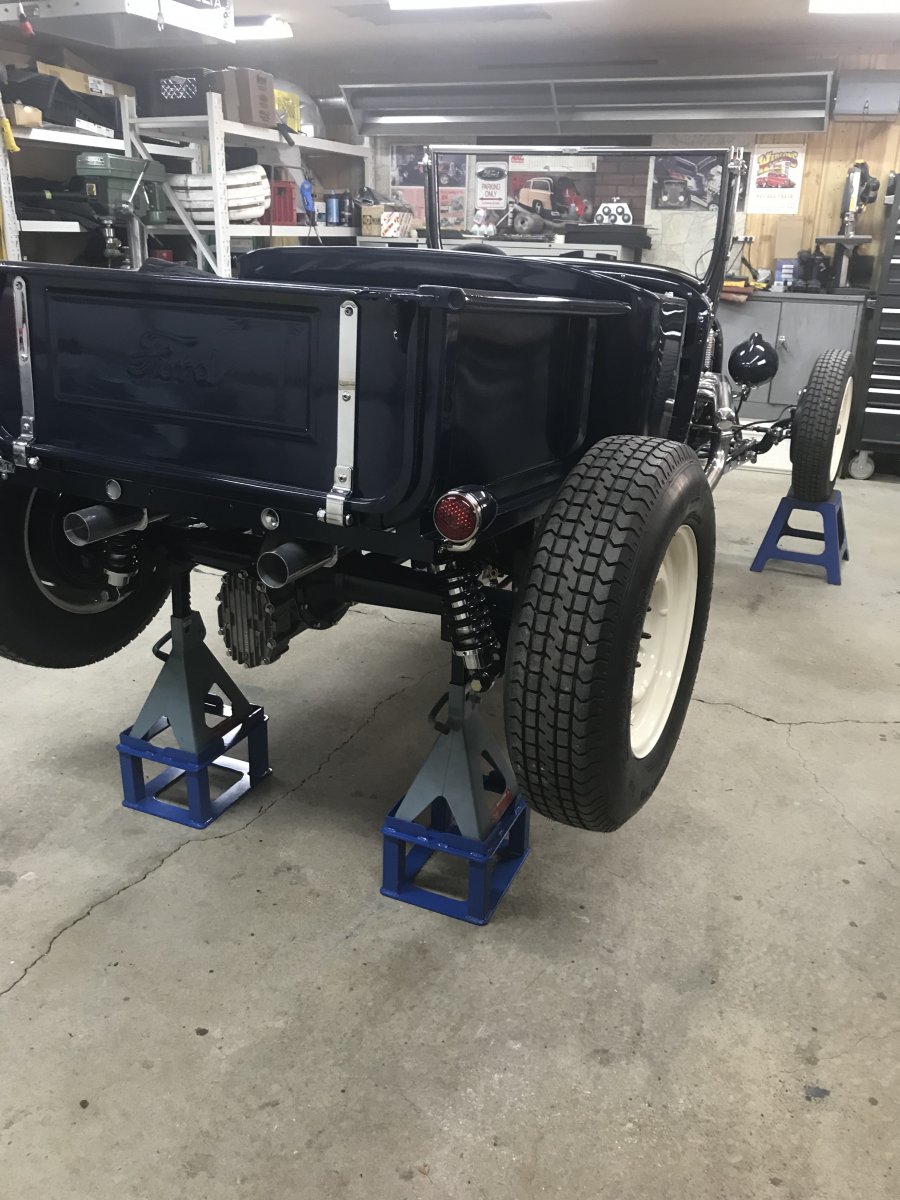

    Having the rear tires on sitting on the stands doesn’t seem like a good idea so I made a couple more stands for a pair of my Jack stands to go under the rear axle.

    That along with a couple of saddles for the top of the Jack stands which I’ll line with rubber to protect the paint on the quick change.

    B86CB438-13BF-4272-91AB-FFC74A7AC62D.jpeg 666621D5-D9A4-471A-86EC-D97CDA671226.jpeg

    Last edited: Oct 21, 2019
  16. Blues4U
    Joined: Oct 1, 2015
    Posts: 3,819

    Blues4U
    Member
    from So Cal

    What's on the back wall of the cab, behind the seats? Is that bed liner?

    loudbang likes this.
  17. Blue One
    Joined: Feb 6, 2010
    Posts: 9,813

    Blue One
    ALLIANCE MEMBER
    from Alberta

    No, that’s a 1/8” ABS plastic panel that’s the same as the rest of the panels I made for my interior earlier on in the build.

    It will be covered with upholstery vinyl like the seats when I get to stitching the rest of the interior.

    loudbang likes this.
  18. Those are pretty slick

    1952B3b23 and loudbang like this.
  19. Blue One
    Joined: Feb 6, 2010
    Posts: 9,813

    Blue One
    ALLIANCE MEMBER
    from Alberta

    Thanks, they’re light but strong so they should work well.
    1/4” plate and 1 1/2” square tubing.

    loudbang likes this.
  20. Johnboy34
    Joined: Jul 12, 2011
    Posts: 1,089

    Johnboy34
    Member
    from Seattle,Wa

    Are you going to paint the radiator cap black to match the overflow tank bracket? just thinking out loud, Cool T !
    All your stands are nice!

    Sent from my SM-G900V using The H.A.M.B. mobile app

    loudbang and Blue One like this.
  21. Tim
    Joined: Mar 2, 2001
    Posts: 9,901

    Tim
    Member
    from Raytown Mo

    Lol you can tell what a rush you’re in when you build fixtures to hold the car for what will likely be a one time event.

    Though to be fair you’re in Canada in October. Not like you’ve got 6 more months of cruising weather left.

    Looks good :)

    kidcampbell71, loudbang and Blue One like this.
  22. Blue One
    Joined: Feb 6, 2010
    Posts: 9,813

    Blue One
    ALLIANCE MEMBER
    from Alberta

    I built them because I thought it was a good idea and because I can :D

    Actually I did think about possible future use of the stands and because I don’t own a hoist I thought that I’d probably use them again at some point in the future for say rear brake maintenance or something like that. :D

    Cruising weather is at least 6 or 7 months away now so there’s no panic that’s for sure.

    I actually love my winter time shop time with the heater heating and the tunes playing. :cool:

    This winter the sewing machine will get a workout although the interior is pretty small :D

    Last edited: Oct 22, 2019
    brad2v, trollst, 1952B3b23 and 2 others like this.
  23. Six Ball
    Joined: Oct 8, 2007
    Posts: 2,690

    Six Ball
    Member
    from Nevada

    I was under a car once that slid off of a stack of wood blocks. I can appreciate the safety aspect of your stands. Usually you don't get a second chance at these things.

  24. Blue One
    Joined: Feb 6, 2010
    Posts: 9,813

    Blue One
    ALLIANCE MEMBER
    from Alberta

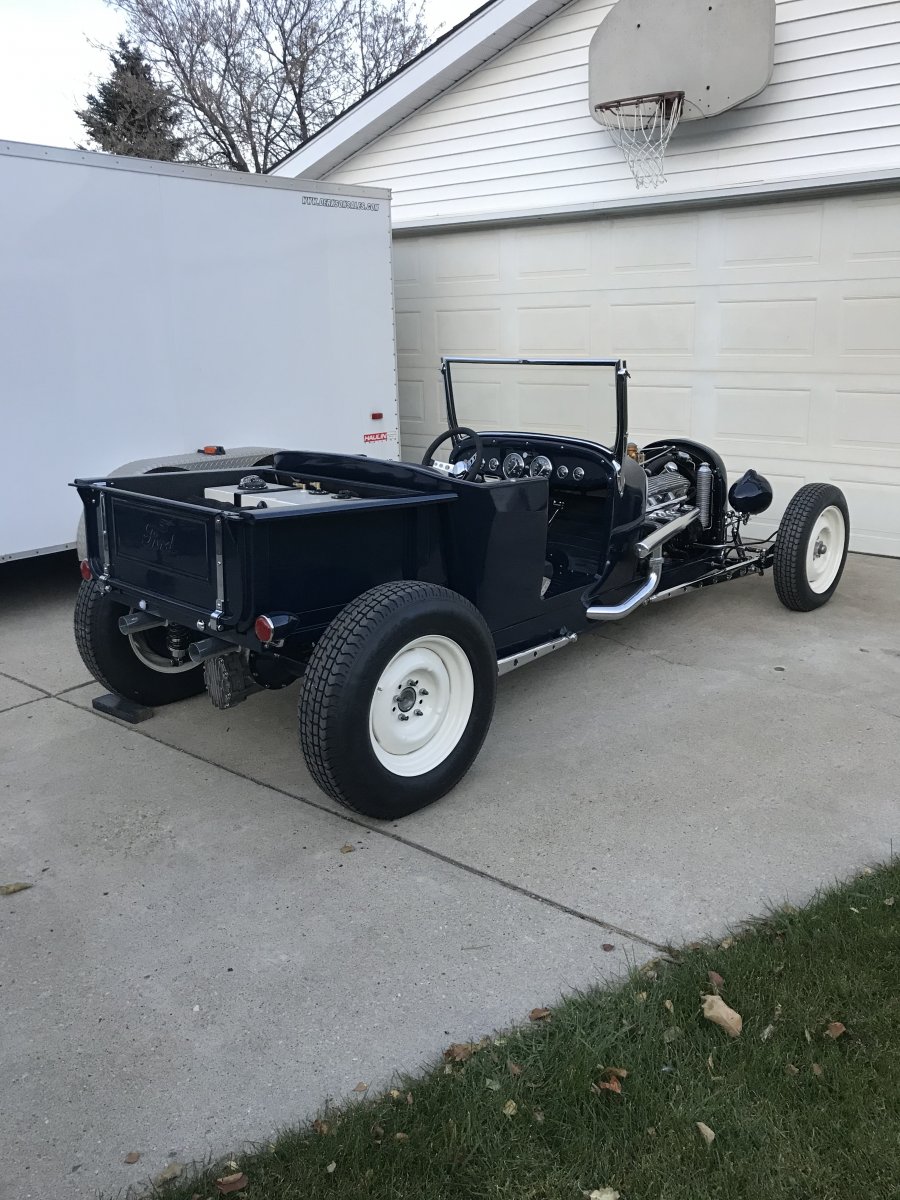

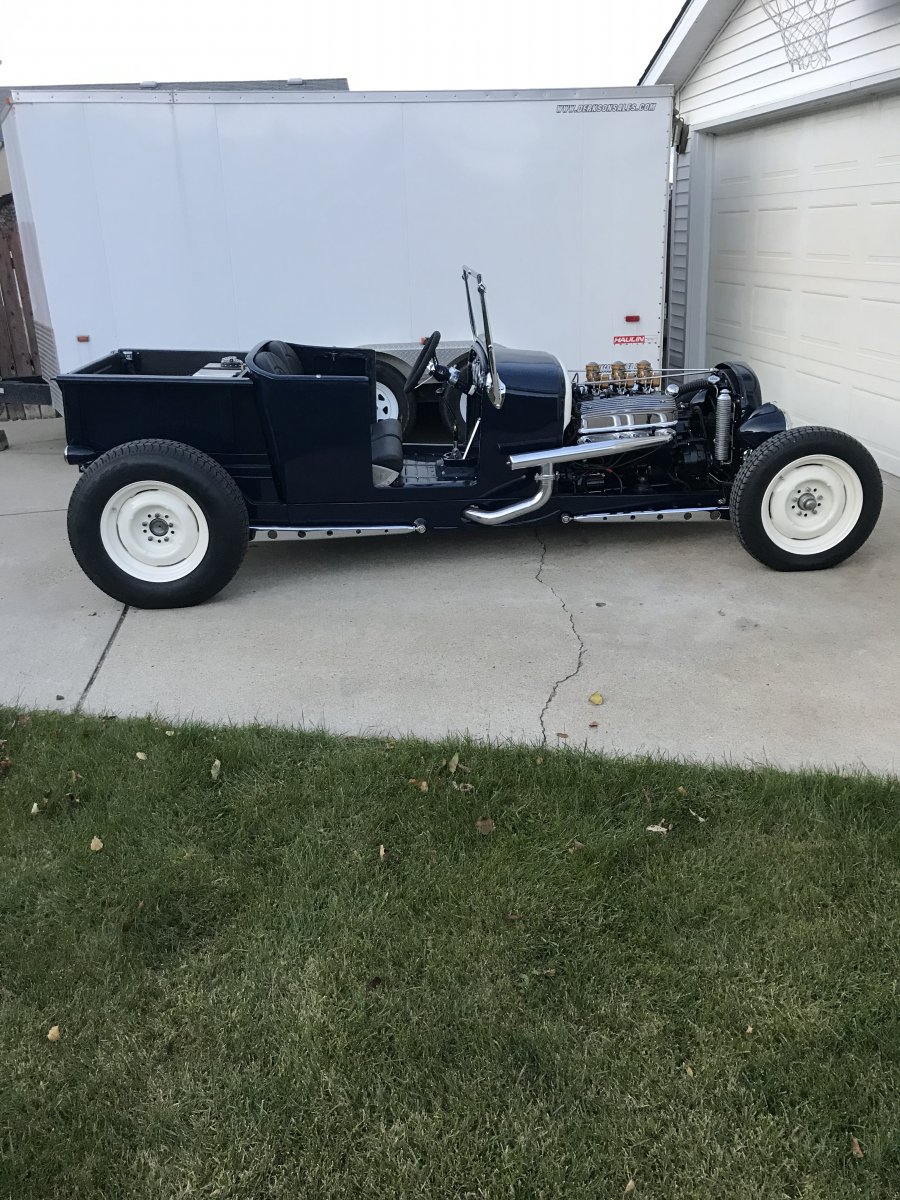

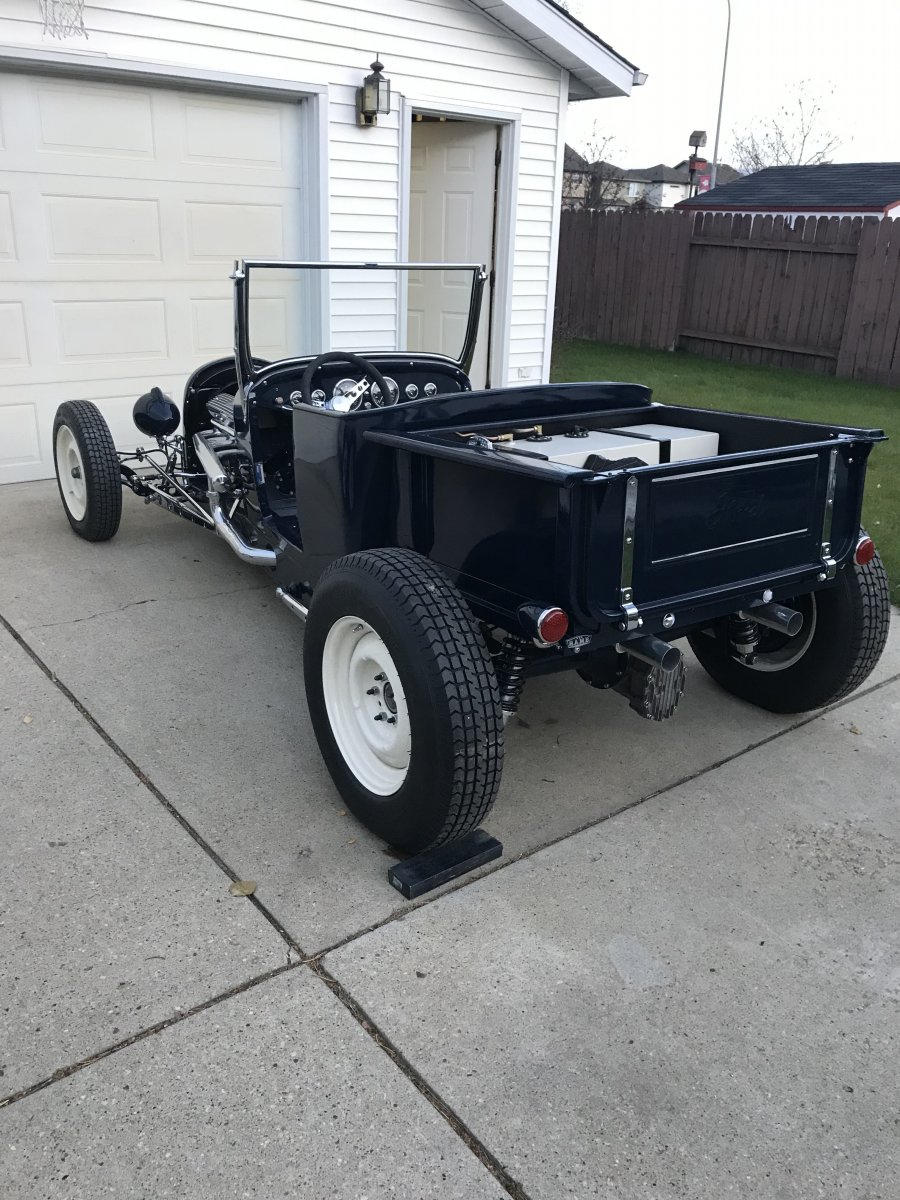

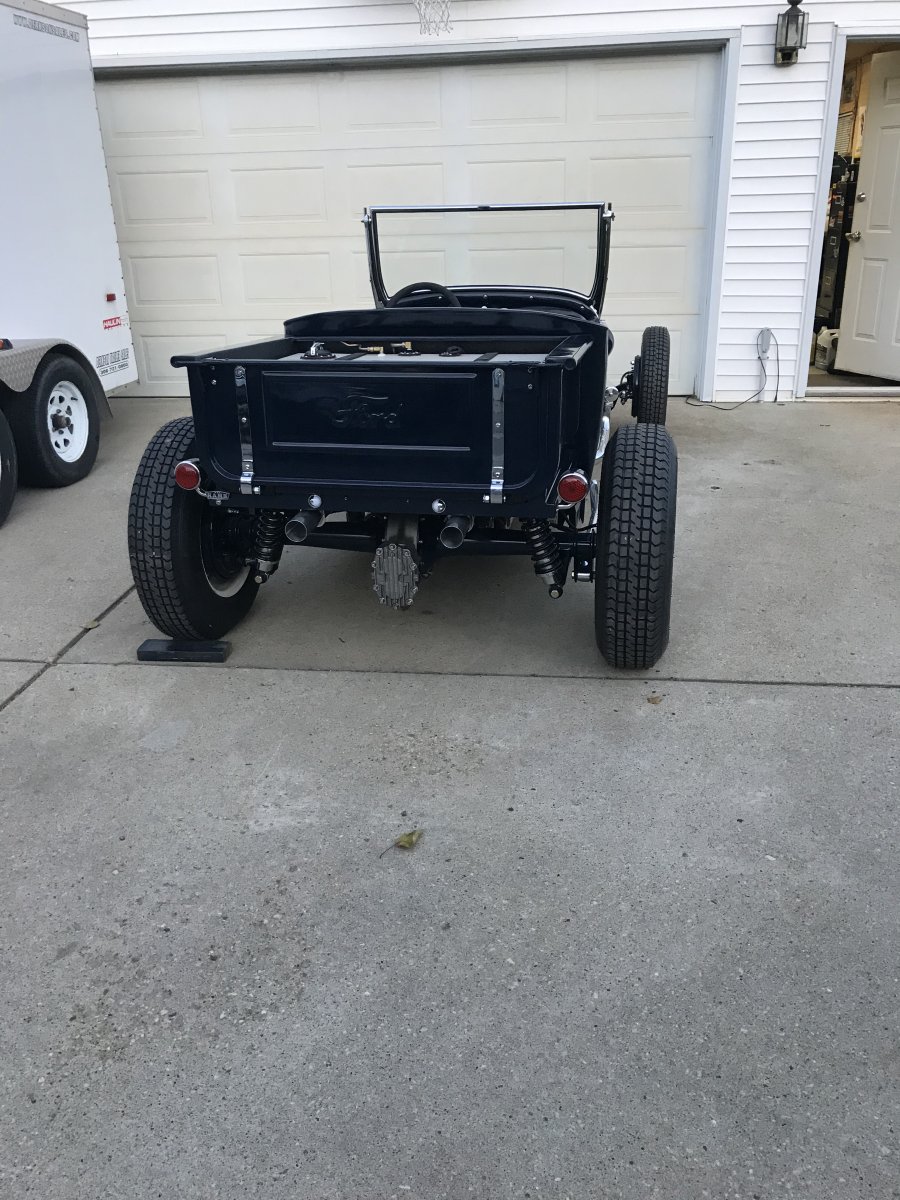

    I had my wife help me with rolling it outside to turn around and I couldn’t help but take a few pictures while we were at it. :D:cool:

    2066C41F-290D-4A37-A75D-1CD1B986A602.jpeg F75C6E5C-768D-4760-919E-A6536E881626.jpeg 7DF783C1-E86B-4ADD-BEE1-AB10EF3E3CB3.jpeg F4FF4732-C800-41FD-A863-BFA936DF1813.jpeg 2FE56E7D-3A3E-48EB-9B43-75D06E161B55.jpeg 03700F41-B4F3-417B-9D03-C63DB9788F3A.jpeg

  25. Tim
    Joined: Mar 2, 2001
    Posts: 9,901

    Tim
    Member
    from Raytown Mo

    Man they are so much cooler on the ground and in the driveway.

    It’s literally the only thing that’s keeping me fighting with mine the last few months. It’s been two years since I’ve even been able to push it outside and I want to before it’s snowing this year. Feels like borrowed time for sure.

    Rpu looks great :)

    loudbang, brad2v, OFT and 2 others like this.
  26. loudbang
    Joined: Jul 23, 2013
    Posts: 23,033

    loudbang
    Member

    What an AWESOME build simply BEAUTIFUL

    Blue One and 26 T Ford RPU like this.
  27. Blue One
    Joined: Feb 6, 2010
    Posts: 9,813

    Blue One
    ALLIANCE MEMBER
    from Alberta

    So, this morning I went out intending to get to work. :D

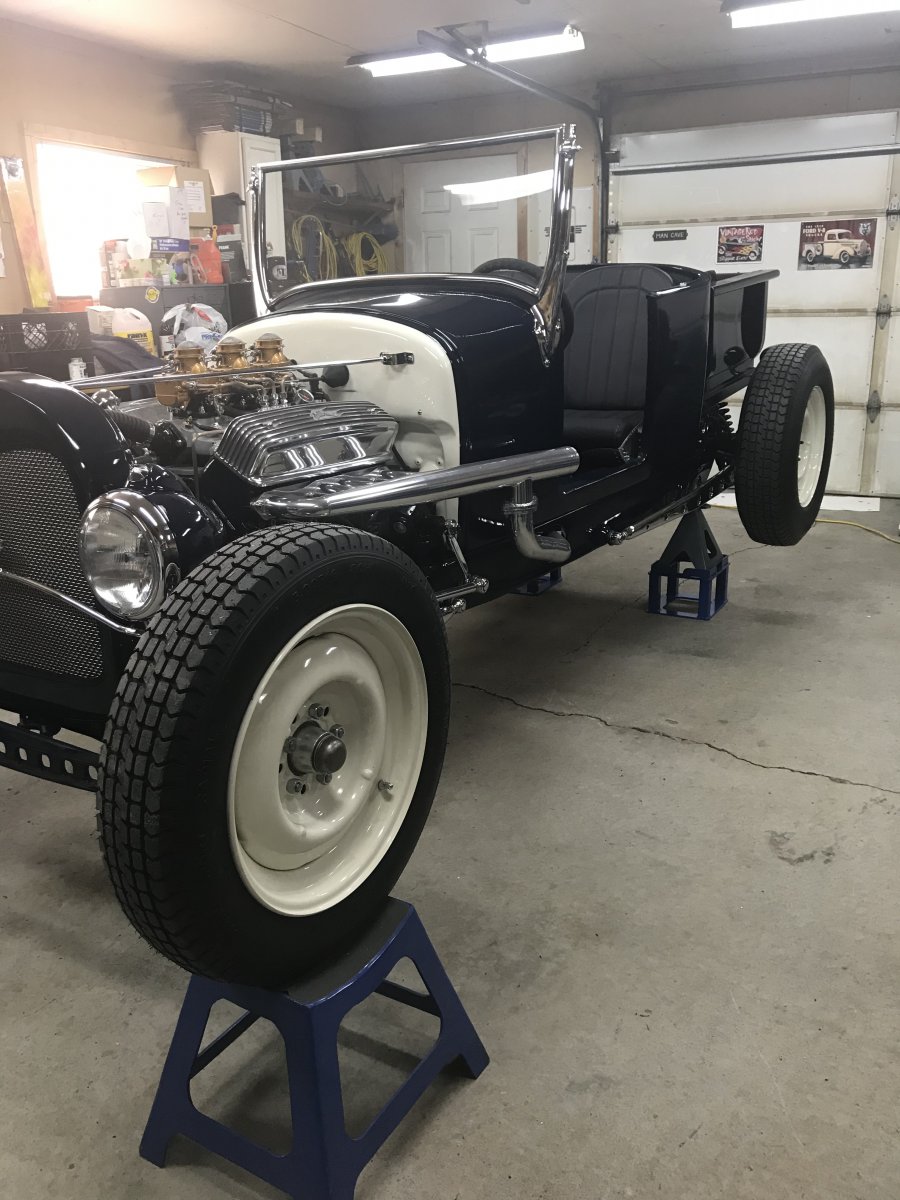

    Instead I ended up sitting in the driver seat for about a half hour before I set it back up on the stands.

    First I put rubber lining in the jack stand cradles and got it put up on the stands ready for the next step the rest of the fluids and then fire in the hole! :D

    I have to finish modifying my distributor wrench so I can get at the distributor hold down.

    I also changed my mind on the caps for my wheels and ordered a set of 42 Ford style caps from Summit.

    4F034C31-77CE-404F-9911-8544271C0B96.jpeg F8258B1A-0F31-4529-A73A-15BED548C34B.jpeg 403F97A7-9CBC-4D32-A9B3-E9AA09AA1B78.jpeg

    brEad, OFT, kidcampbell71 and 9 others like this.
  28. This whole build has been an exciting adventure, but its about to go up a notch.:cool::cool::cool::cool:JW

    loudbang and Blue One like this.
  29. bobbytnm
    Joined: Dec 16, 2008
    Posts: 1,240

    bobbytnm
    Member

    Woohoo!
    I can't tell you how much time I've spent behind the wheel of mine. Well, that's a lie, I don't really have a wheel... ...or column... ...or...
    ..but that doesn't matter. I think I've put about 10,000 miles on the thing.

    You're getting close
    Bobby

    Sergeant82d, brEad, OFT and 3 others like this.
  30. Blue One
    Joined: Feb 6, 2010
    Posts: 9,813

    Blue One
    ALLIANCE MEMBER
    from Alberta

    Lying there thinking about what else I was planning to do it came to me.

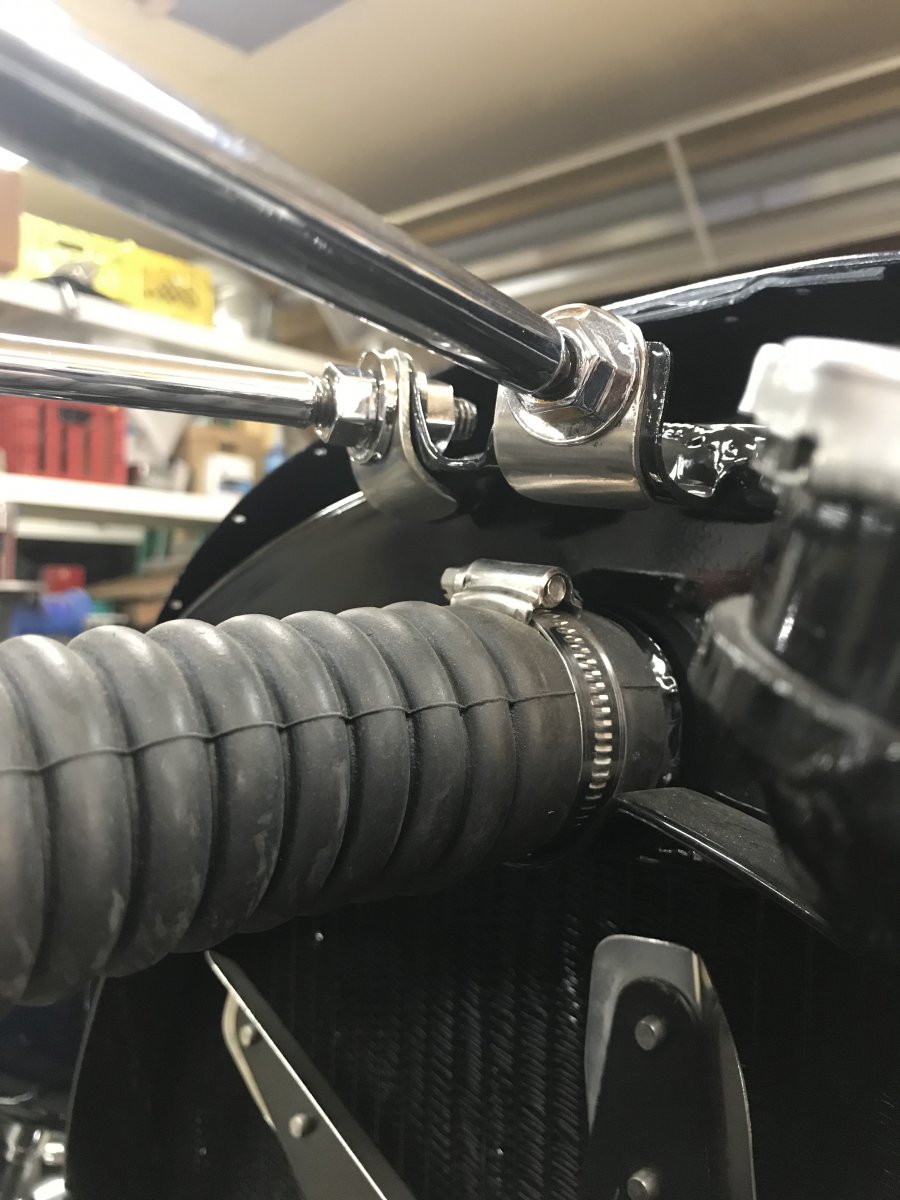

    The front radiator support rods are only held in to slotted holes and rely on the nuts and washers to stay in place.

    Not likely that they’d pop out of place however if they did the results would not be pretty.

    So I made a couple little stainless steel hook like washers to prevent that from happening :D:cool:

    7115D6FF-4C60-45A4-BA45-3171E74F7EC2.jpeg 9D76FE0F-5887-4DDF-97E0-4067F24536D6.jpeg
