  6. Blue One
    Joined: Feb 6, 2010
    Posts: 9,848

    Blue One
    ALLIANCE MEMBER
    from Alberta

    As it turns out due to space limitations I was only able to utilize a very small amount of material from those pretty cookie sheets.

    About a 1/2” or so in depth of the formed corners that along with the extra space I gained with the bent tie rod allowed the shroud to be spaced that small amount back from the radiator core and allow the needed air flow.

    The cookie sheets were about $7 each on sale and as nice as they are they were very challenging to weld with super low amperage Tig due to being thinner than I would have liked.
    In the end it will pay off.

    :D As long as they’re the best cookies (Peanut Butter ) I’m in :cool::D

    loudbang and Stogy like this.
  7. Blue One
    Joined: Feb 6, 2010
    Posts: 9,848

    Blue One
    ALLIANCE MEMBER
    from Alberta

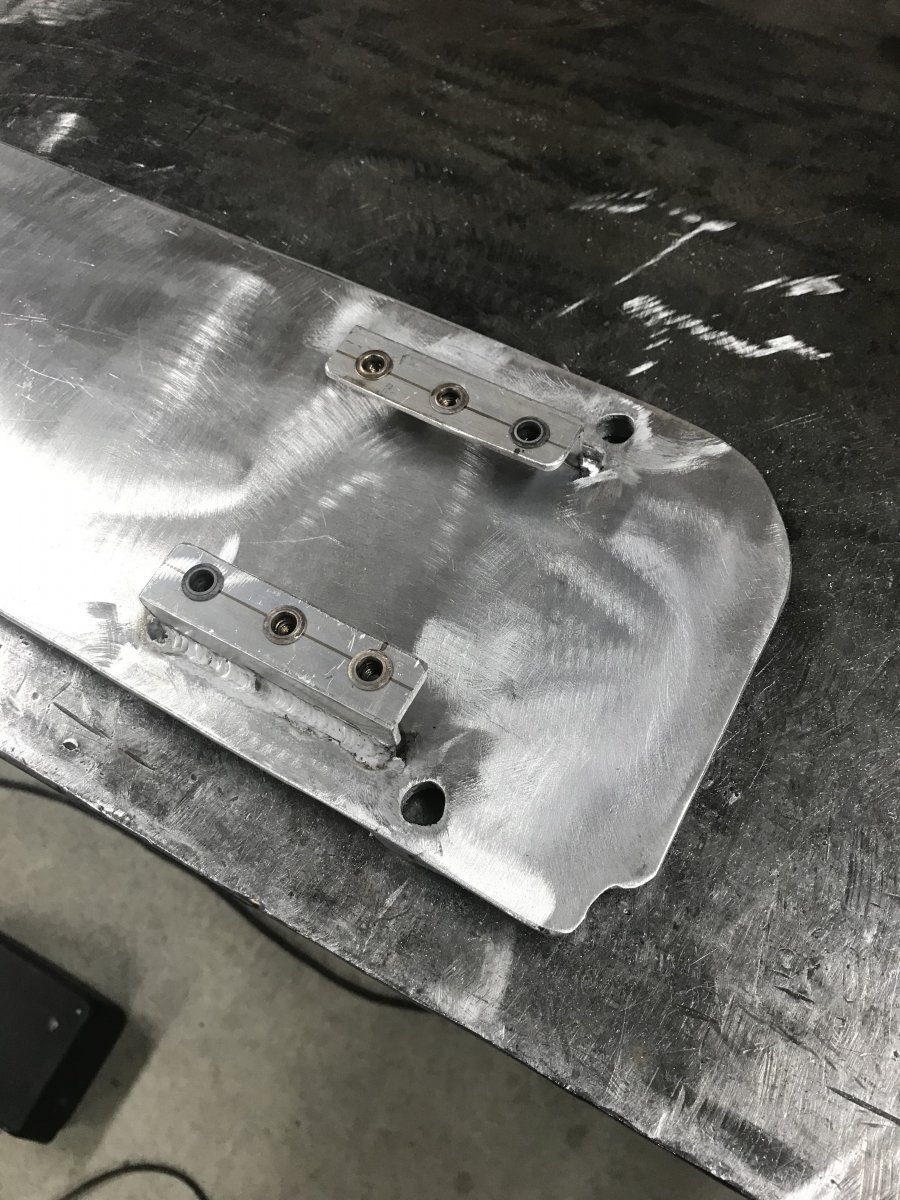

    So here it is all no stick coated and wavy from welding and bolted in place.
    3DE7137A-0011-4297-8C6A-28B567D11B16.jpeg 3CFFCD9B-D39C-4D8B-AE81-787D568DF2F2.jpeg
    After that I spent the better part of today blasting it and then metal working it with my shrinking disc and getting it nicely smoothed out so that I can drop it off tomorrow at the powder coating shop.

    RICH B, Tim_with_a_T, brEad and 12 others like this.
  8. brad2v
    Joined: Jun 29, 2009
    Posts: 1,617

    brad2v
    ALLIANCE MEMBER

    Nice job Larry. As expected at this point :D

    brEad, t-rod, loudbang and 1 other person like this.
  9. bobbytnm
    Joined: Dec 16, 2008
    Posts: 1,255

    bobbytnm
    Member

    I take it that is some sort of nut-sert on the flange where the two halves split? Good thinking

    Bobby

    loudbang and Blue One like this.
  10. As always it looks fantastic! Nice job!


    Sent from my iPhone using H.A.M.B.

    loudbang and Blue One like this.
  11. Six Ball
    Joined: Oct 8, 2007
    Posts: 2,728

    Six Ball
    Member
    from Nevada

    Very nice!

    loudbang and Blue One like this.
  12. The 39 guy
    Joined: Nov 5, 2010
    Posts: 2,666

    The 39 guy
    Member

    Great design and excellent execution as usual Blue One

    loudbang and Blue One like this.
  13. Stogy
    Joined: Feb 10, 2007
    Posts: 13,605

    Stogy
    ALLIANCE MEMBER

    Holy Betty Crockers got no Cookie Pans Batman...Stellar Wind Collector...@Blue One

    That steering link looks pretty awesome too...;)

    brEad, loudbang and Blue One like this.
  14. Blue One
    Joined: Feb 6, 2010
    Posts: 9,848

    Blue One
    ALLIANCE MEMBER
    from Alberta

    Thanks guys.
    Yes it’s a rivnut threaded insert. I’ve got them all over the car in all different sizes from 10-32” to 3/8”.

    The best ones are splined so they really bite well when you install them.

    The shroud mounts to the rad with 4 - 5/16” bolts into brackets with rivnuts I welded to the rad and the middle ones are 1/4”.

    I built the shroud in 2 pieces so it would be really easy to install and remove. :cool:
    That after experiencing the need to remove the radiator (or get out the cutting tools, which I ended up doing) to be able to remove the first shroud/electric fan mount :eek::oops:

    Last edited: Feb 26, 2019
    Stogy, brad2v, OFT and 4 others like this.
  15. bobbytnm
    Joined: Dec 16, 2008
    Posts: 1,255

    bobbytnm
    Member

    Excellent, thanks for the info.
    That really makes for a clean, serviceable installation.

    Bobby

    Blue One, loudbang and Stogy like this.
  16. t-rod
    Joined: Feb 7, 2009
    Posts: 423

    t-rod
    Member

    Two months? Ha! Seriously, I hope things are better for you. I must have missed the details, I was a little preoccupied myself.

    Bad decisions make good stories.

  17. RodStRace
    Joined: Dec 7, 2007
    Posts: 2,200

    RodStRace
    Member

    Sorry to hear of health issues, Fred. Hope that didn't drain the rod fund too. I am really hoping you are able to get yours moving along soon.

    Blue One, with the quality of workmanship in the rest of the build, the fan shroud is again up to the level of "Yep, great job!"
    Are you planning on an overflow tank (gasp, modern) for this? I could see a mount incorporated on the shroud. I know, more work suggestions from the peanut gallery, but better to mention now than after powder coat.
    Or even a custom shaped one that blends in? Example for shape only...
    https://puredieselpower.com/chevy-g...p-fabricated-coolant-overflow-tank-74610.html

    brEad and loudbang like this.
  18. Blue One
    Joined: Feb 6, 2010
    Posts: 9,848

    Blue One
    ALLIANCE MEMBER
    from Alberta

    Thanks, yes an overflow tank is on the radar, probably mount one vertically on the passenger side of the shroud probably using the shroud mounting bolts to hold it.
    I kind of like the round finned one that OTB makes as it kinda matches my other finned aluminum engine stuff.

    Last edited: Feb 27, 2019
    loudbang likes this.
  19. Six Ball
    Joined: Oct 8, 2007
    Posts: 2,728

    Six Ball
    Member
    from Nevada

    I wish I had known in the '60s that these and other speciality fasteners were available. I would still own a '51 Ford woody, one of the straightest ones I've ever seen with the exception of a few easily replaced wooden pieces. We've learned a lot about sourcing hardware from this build. Thanks!

    loudbang, 26 T Ford RPU and Blue One like this.
  20. Blue One
    Joined: Feb 6, 2010
    Posts: 9,848

    Blue One
    ALLIANCE MEMBER
    from Alberta

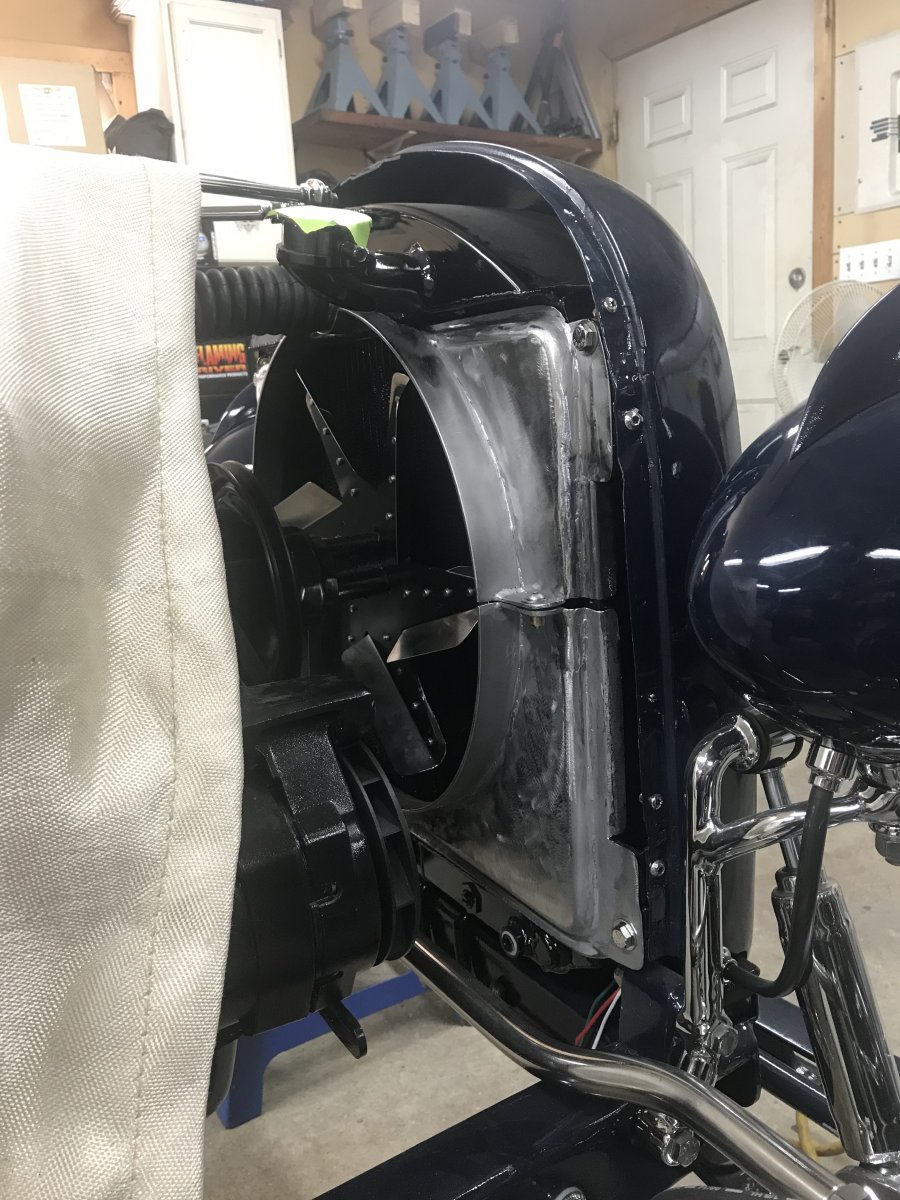

    Well the change over is complete. No more electric fan.:cool:

    The shroud is back from the powder coating shop and installed.

    502F40C3-37AF-4136-A269-09521890F803.jpeg D497B8C9-22D8-46A1-B257-F56631F6D9DF.jpeg 4A4CEEE7-6F51-4635-9B91-83BAD84AADBB.jpeg

    tomkelly88, AndersF, Stogy and 14 others like this.
  21. t-rod
    Joined: Feb 7, 2009
    Posts: 423

    t-rod
    Member

    Looks fantastic!

    Bad decisions make good stories.

    loudbang and Blue One like this.
  22. Stogy
    Joined: Feb 10, 2007
    Posts: 13,605

    Stogy
    ALLIANCE MEMBER

    :rolleyes:...Spiffy...;)

    Blue One and loudbang like this.
  23. Blue One
    Joined: Feb 6, 2010
    Posts: 9,848

    Blue One
    ALLIANCE MEMBER
    from Alberta

    Now I’ve gone and started something :eek::D
    I made the mounts for the electrical fuse panel and I’ll take it this week and get it the same color as the back of the dash.
    In the meantime I’ll work on the gauge harness.

    Stogy, loudbang, RodStRace and 5 others like this.
  24. Dick Stevens
    Joined: Aug 7, 2012
    Posts: 2,612

    Dick Stevens
    Member

    Looks really good Larry, you're going to get this going yet!

    loudbang and Blue One like this.
  25. Mr. Mac
    Joined: May 16, 2005
    Posts: 1,851

    Mr. Mac
    Member

    Quality work there Blue, I like it a lot.

    loudbang and Blue One like this.
  26. Blue One
    Joined: Feb 6, 2010
    Posts: 9,848

    Blue One
    ALLIANCE MEMBER
    from Alberta

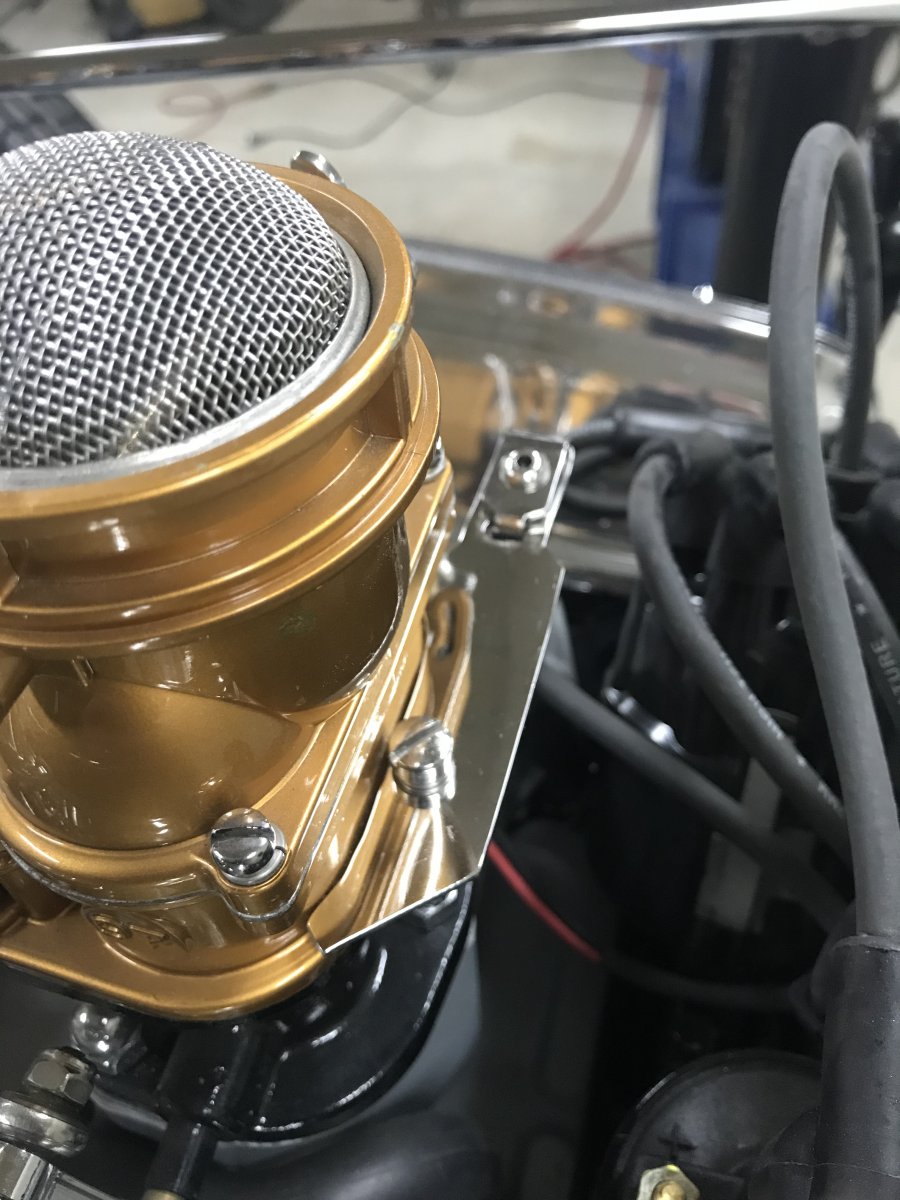

    My manual choke cable will go through the electrical panel and the firewall and I needed to make a bracket to hold the business end of it.

    So I took some stainless and fabricated the bracket that mounts to the rear carb.

    It might look flat in the pictures but it actually has 2 bends that raise the cable clamp about 3/8” higher than where it bolts to the carb.

    Then I polished it up.

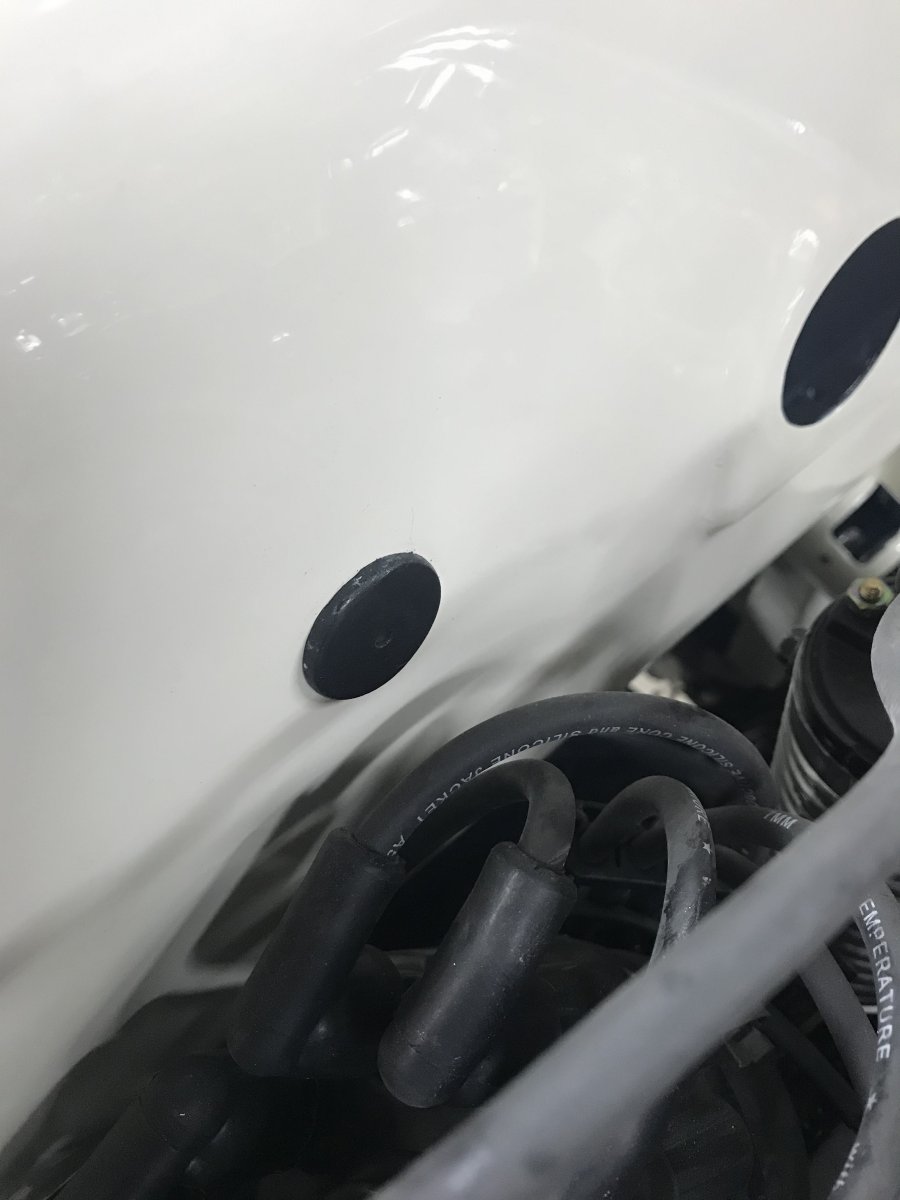

    I made a larger rubber grommet with a small hole for the cable and installed it in the firewall. :cool:

    3AECAD0F-2209-42BC-BEC9-9EDA7867A543.jpeg 308E997C-90FF-4806-957E-81891EAA495F.jpeg 9A8EE059-88E3-4B72-81AF-764FF6A6E14D.jpeg

    Last edited: Mar 11, 2019
    Stogy, loudbang, RodStRace and 9 others like this.
  27. Looks factory!!:D JW

    loudbang and Blue One like this.
  28. bobbytnm
    Joined: Dec 16, 2008
    Posts: 1,255

    bobbytnm
    Member

    Ah, the sign of a great customized part...
    ...no one will ever notice it

    Nicely done
    Bobby

  29. Blue One
    Joined: Feb 6, 2010
    Posts: 9,848

    Blue One
    ALLIANCE MEMBER
    from Alberta

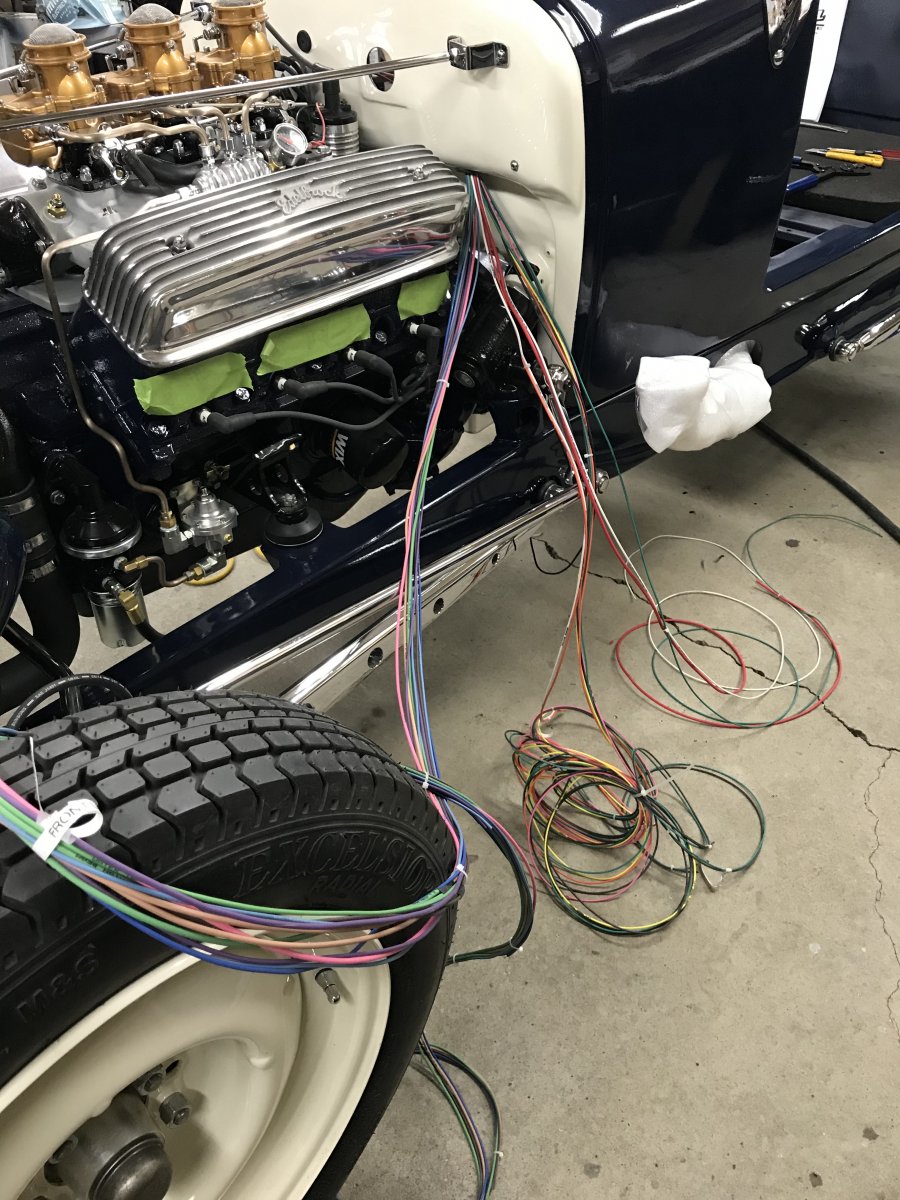

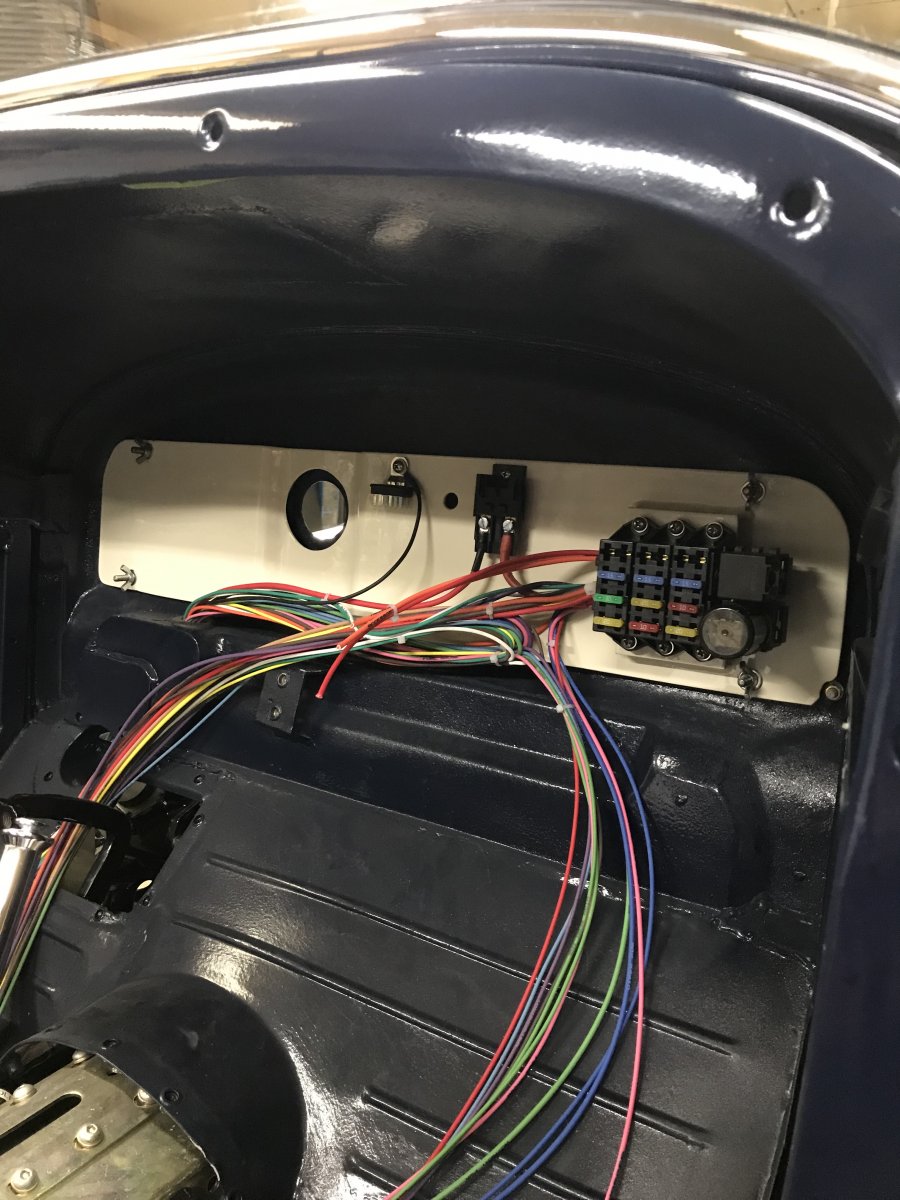

    The panel has been powder coated in the same Wimbledon white as the back of the dash and I installed it along with the mega fuse and the Rebel fuse panel.
    Then I put the grommet in the firewall and ran all the wires out through it for the engine and all the lights.

    A9FB52C1-4D80-49E9-B869-B59F6A212971.jpeg A2C0678F-FE9E-4E90-85A3-85161EDEEC2B.jpeg

    razoo lew, The 39 guy, brEad and 8 others like this.
  30. Tim
    Joined: Mar 2, 2001
    Posts: 9,990

    Tim
    Member
    from Raytown Mo

    Progress! :D

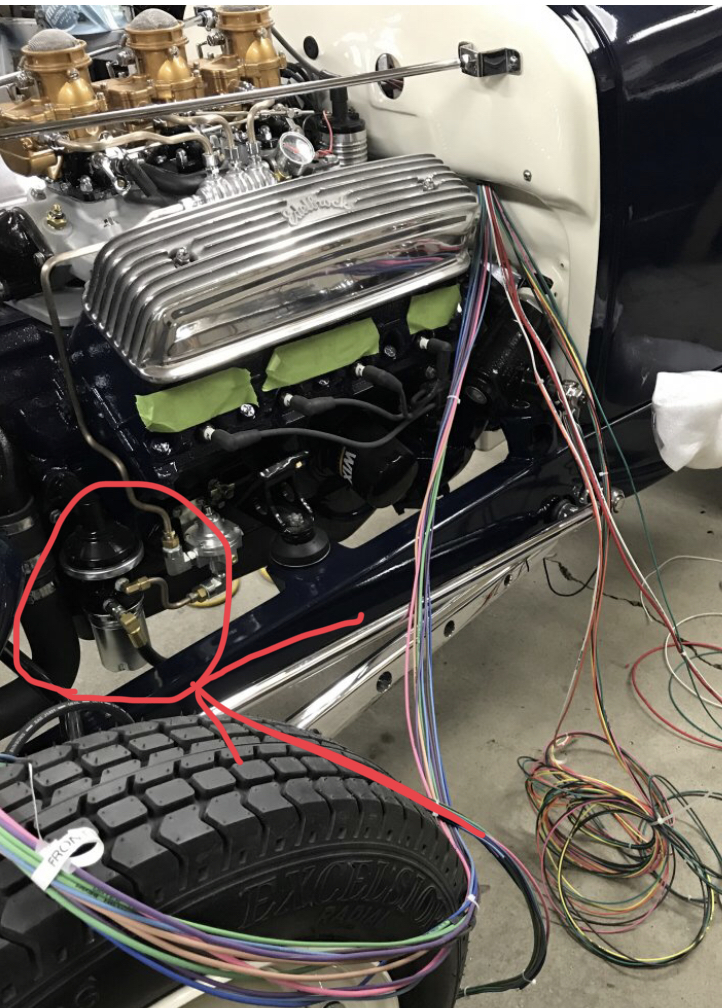

    491E56DF-00B2-4F23-B4CE-DAFEB2DC3067.jpeg Out of curiosity what is this? Fuel filter?
