Projects Timm builds a model A

Discussion in 'The Hokey Ass Message Board' started by Tim, Mar 8, 2016.

  1. OFT
    Joined: Jun 1, 2005
    Posts: 536

    OFT
    Member

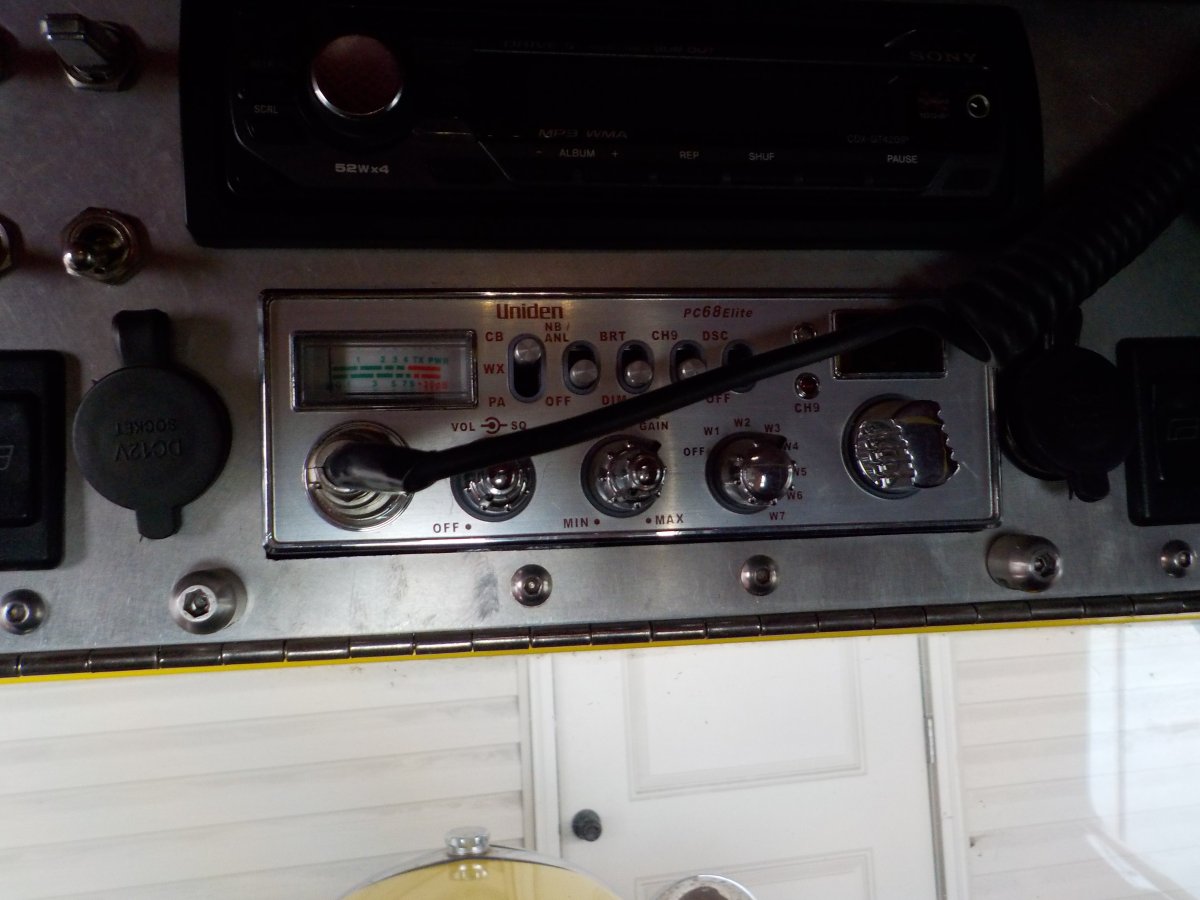

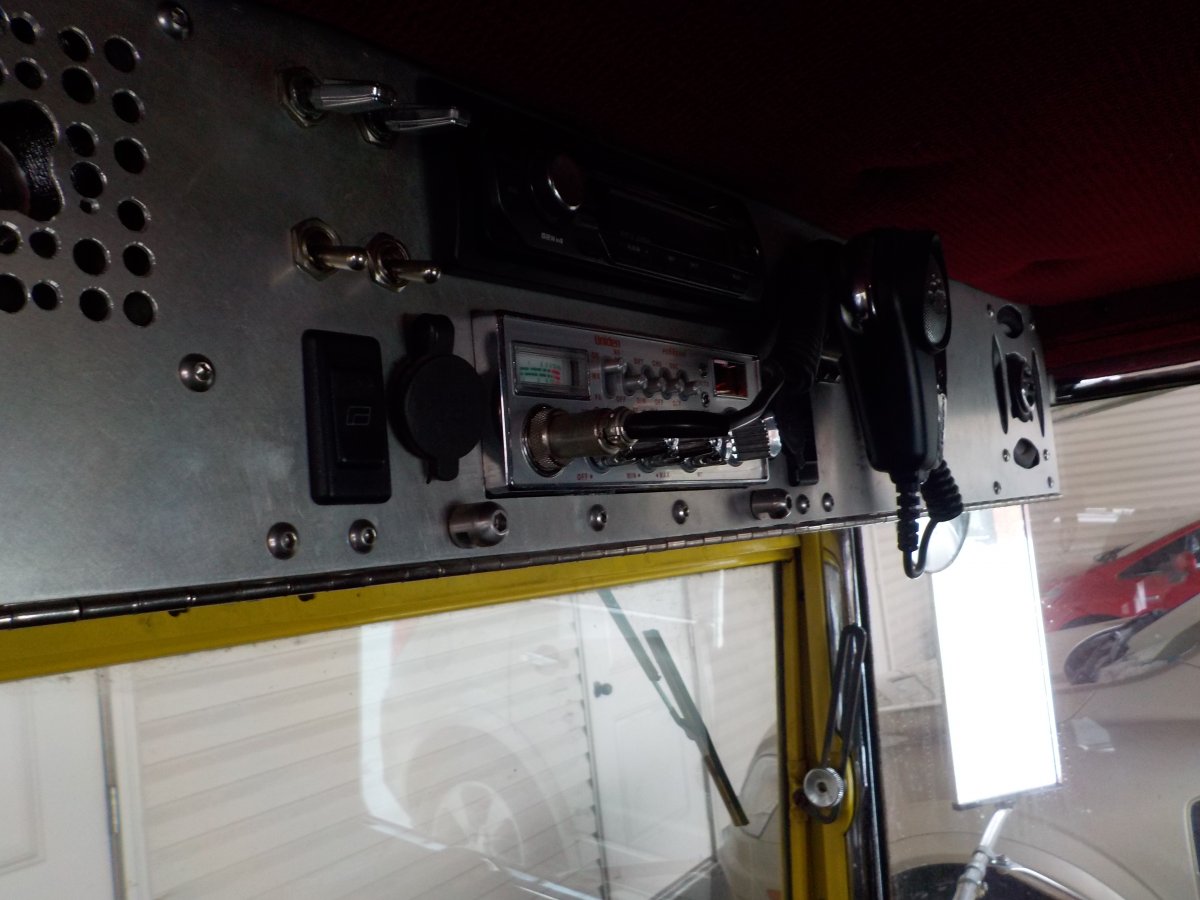

    Here ya go, I use them in the OFT more as interior light for putting key in. Use toggle switches in counsel. Ya know it's a old build with CB-lol DSCN6544.JPG DSCN6543.JPG DSCN6545.JPG

    Stogy, kidcampbell71, Tim and 3 others like this.
  2. Tim
    Joined: Mar 2, 2001
    Posts: 11,250

    Tim
    Member
    from Raytown Mo

    Didn’t see your post until today! Love the CB I guess there would be room enough there!

    looks like they are plenty bright based off the glare on your dash in the photo. Thank you for taking the pix @OFT

    OFT and loudbang like this.
  3. Tim
    Joined: Mar 2, 2001
    Posts: 11,250

    Tim
    Member
    from Raytown Mo

    Only hotrod progress I made the last week but I should have a thing or two the next couple days :) D7236154-C548-4A8B-A3CC-6D59720974CE.jpeg

  4. Tim
    Joined: Mar 2, 2001
    Posts: 11,250

    Tim
    Member
    from Raytown Mo

    Ok this is mainly engine notes to self.

    I’ve seen it mentioned that the boat cam for these engines is super close to an Isky grind. I eventually had to find a human who knew and they said the boat cam spec’d to 204 duration @ .50 lift and valve lift is 498.

    I looked for a comparable comp cams unit and didn’t really find anything though they offer a hand full of cams for the 153.

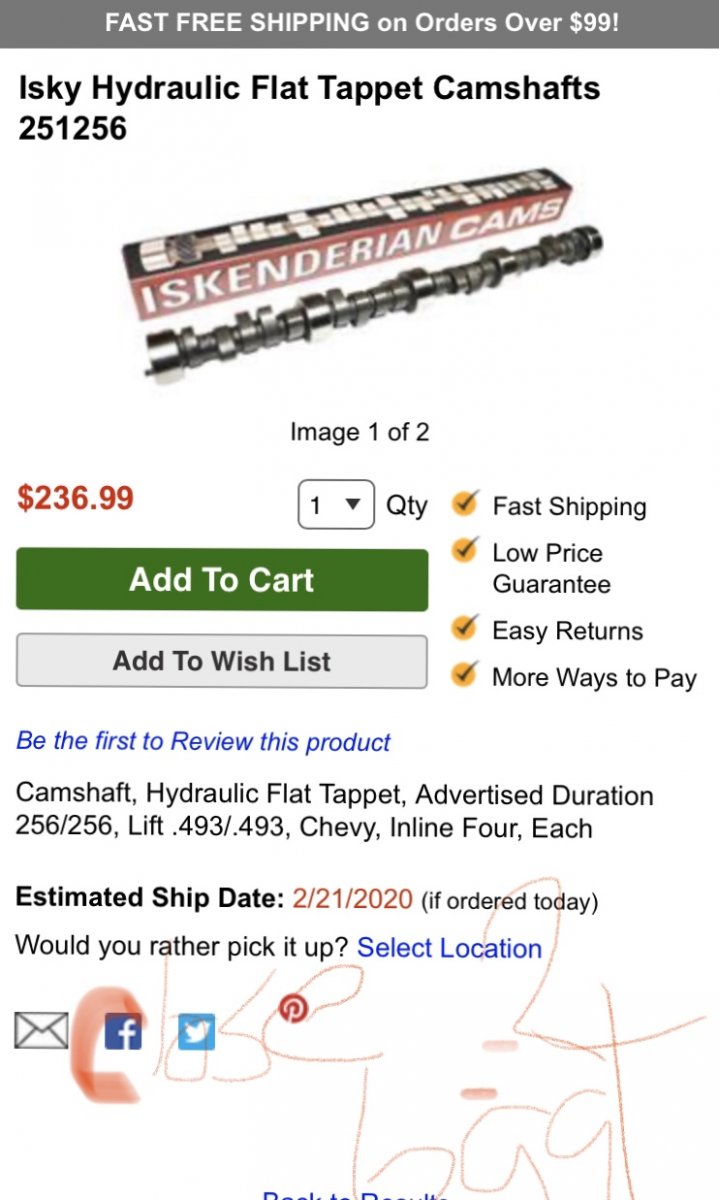

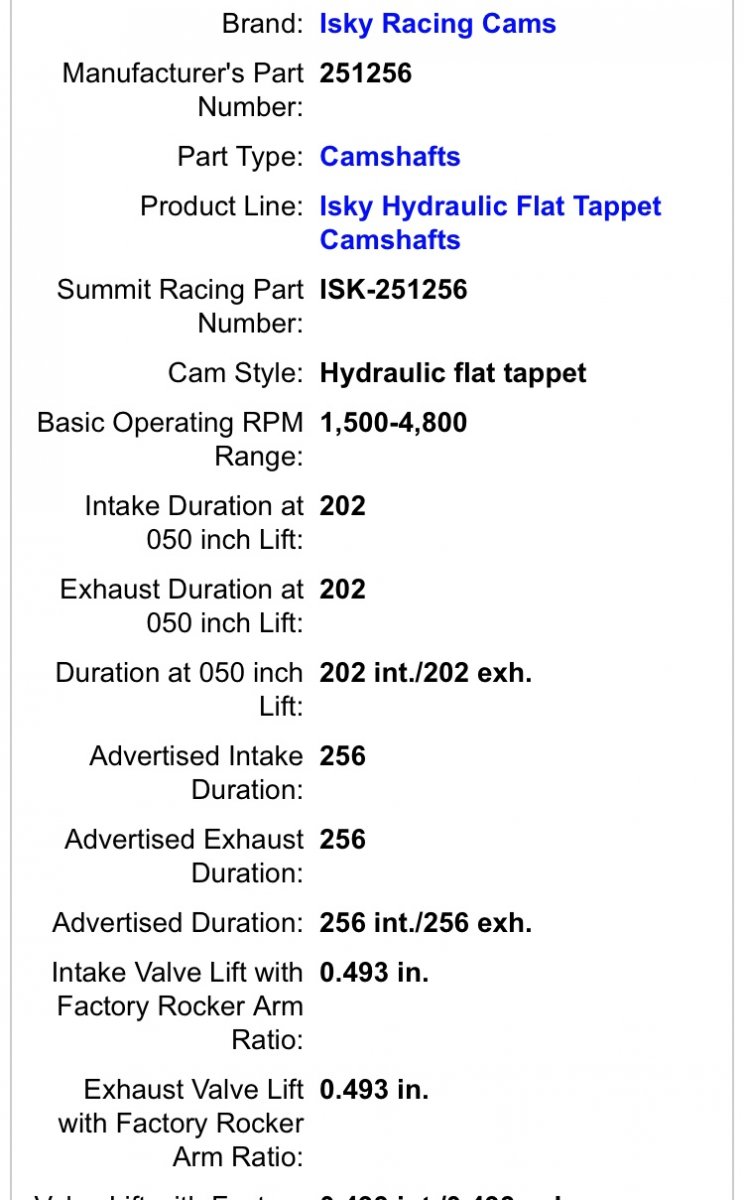

    anyhow here is the Isky cam B13F4AB3-07A9-49A7-A1FA-60EB8E74140A.jpeg 06439AA3-3292-48B8-A279-AFED946DF314.jpeg C744D23A-B58A-4D9A-AADC-3706E03954ED.jpeg

    Last edited: Feb 8, 2020
    Stogy, loudbang and OFT like this.
  5. Tim
    Joined: Mar 2, 2001
    Posts: 11,250

    Tim
    Member
    from Raytown Mo

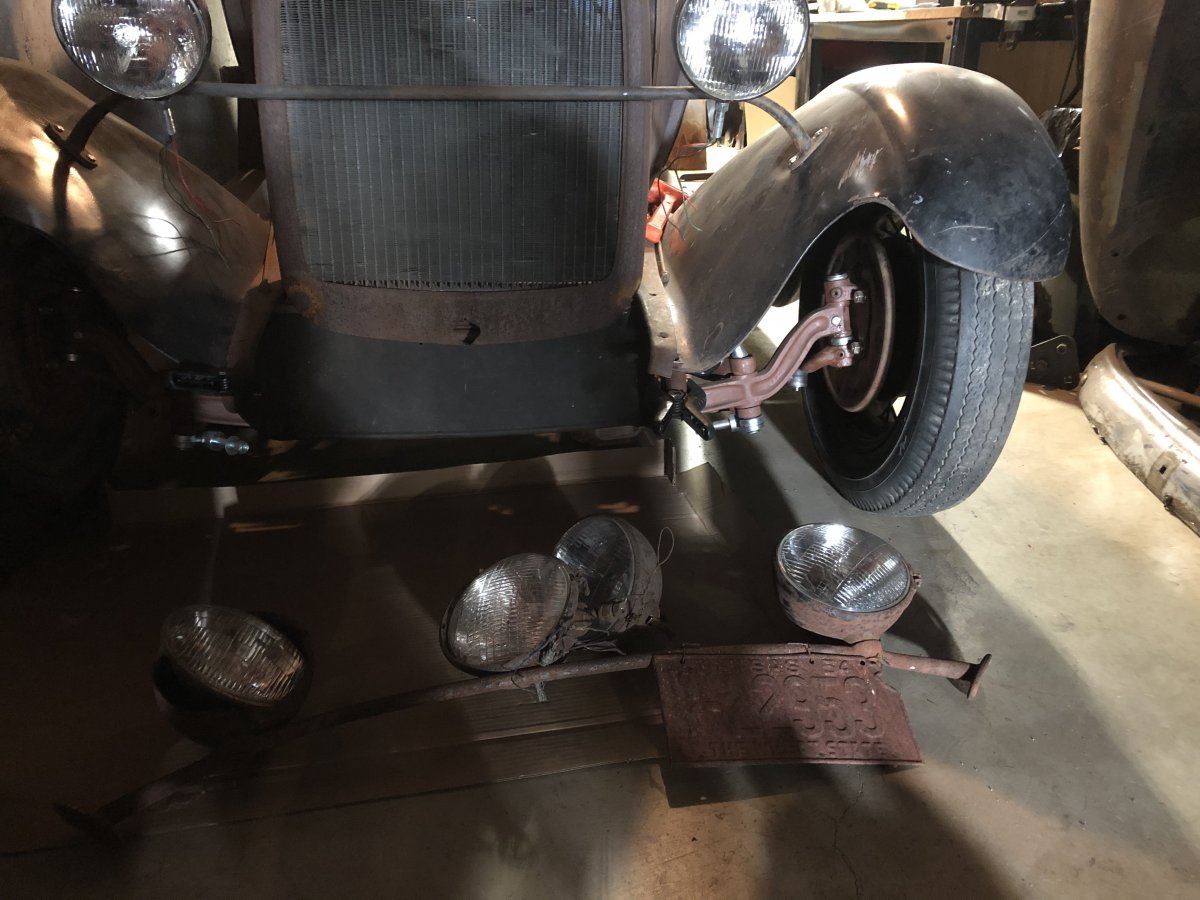

    Got a minute so I thought I’d share the new headlights / head light project :) 63DE658F-146D-43D2-94BE-18C04B9DC863.jpeg my good friend had these king bees and figured if I took them all apart there’s probably two good ones in there some where B60E9C5F-0376-4055-9878-2F432C1D2A5A.jpeg current mock up headlight with hand for scale B34FE217-975F-4B22-B185-A7BC6A548471.jpeg “new” lights with hand for scale.

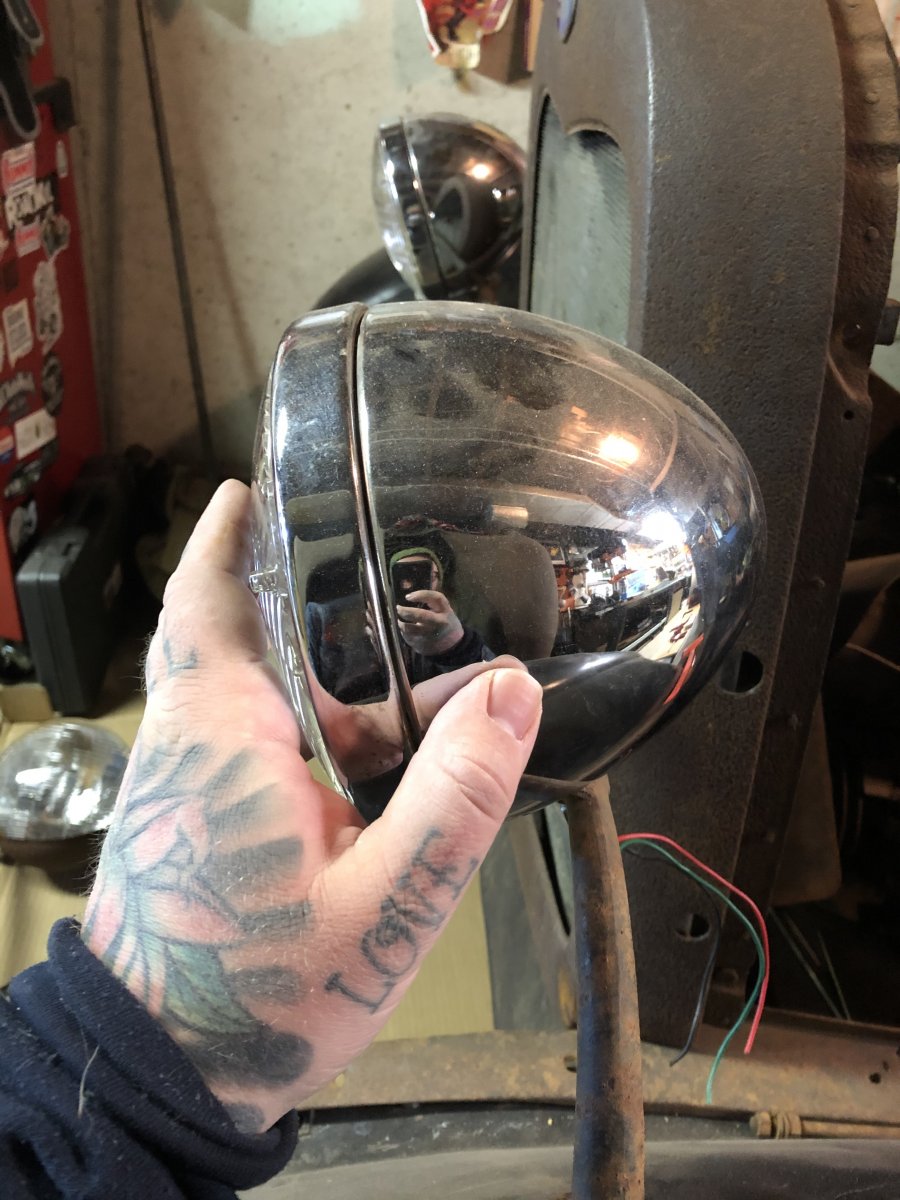

    The new to me lights have a much shallower bucket and more of a round shape. And the bezel is thinner and rounder. Love both of those things!

    I’m curious if these old lights will adjust straight where the new ones havnt been

    Last edited: Feb 8, 2020
    Stogy, scrap metal 48, drdave and 2 others like this.
  6. Tim
    Joined: Mar 2, 2001
    Posts: 11,250

    Tim
    Member
    from Raytown Mo

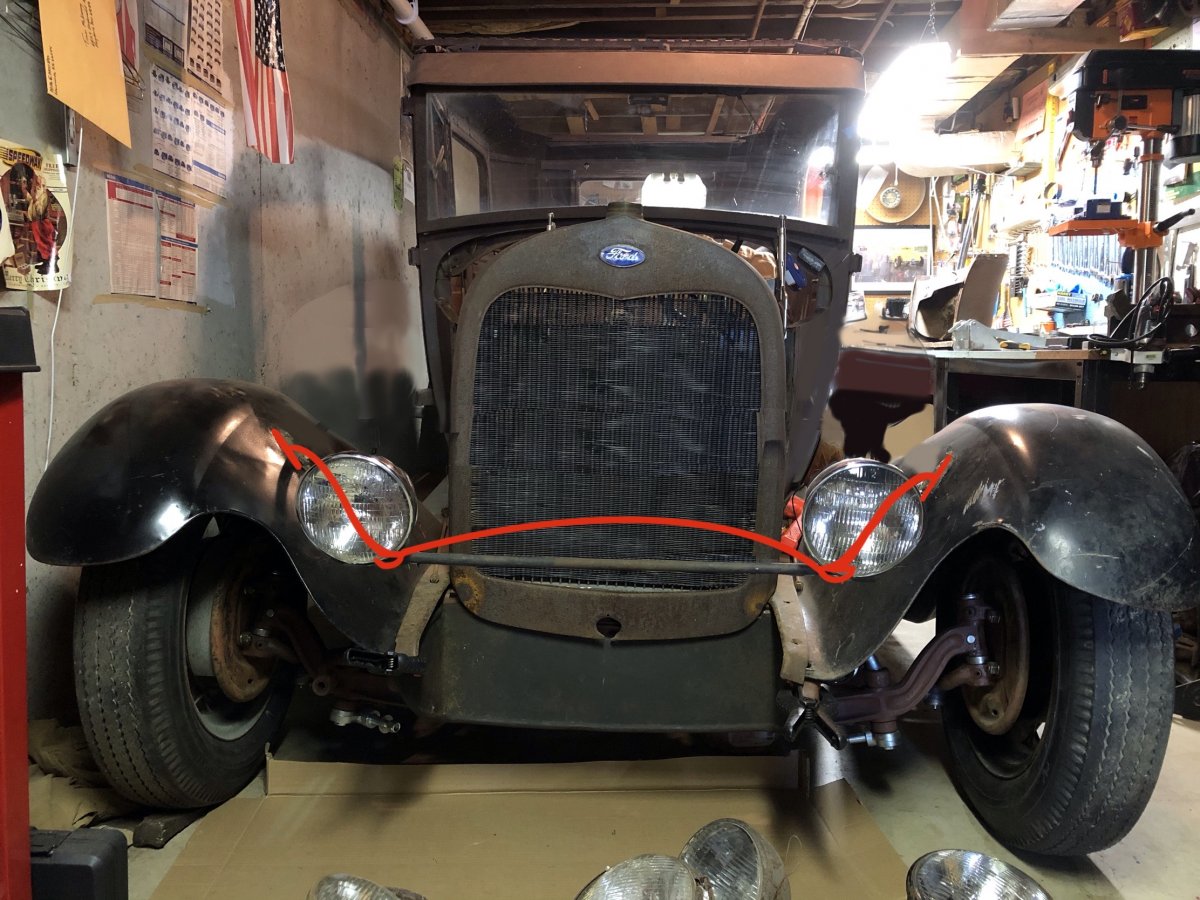

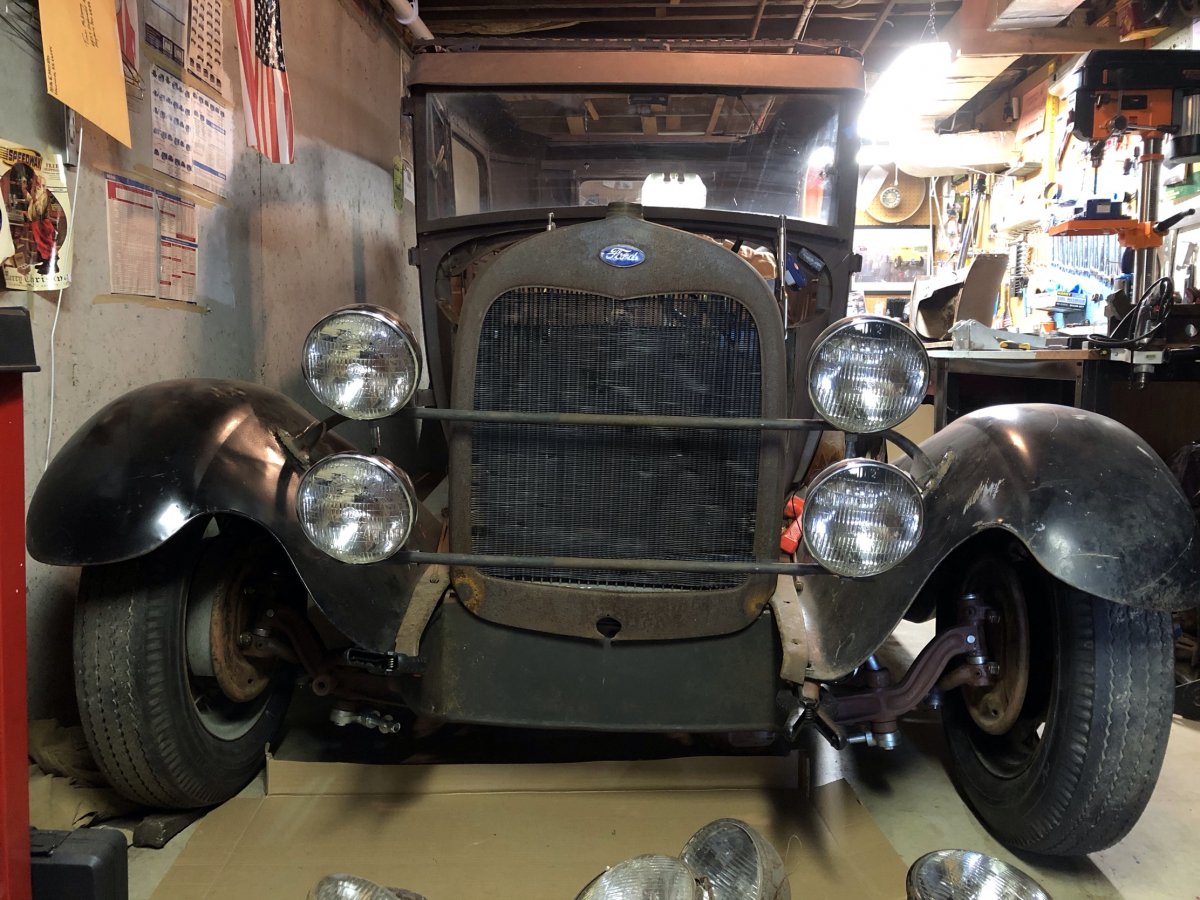

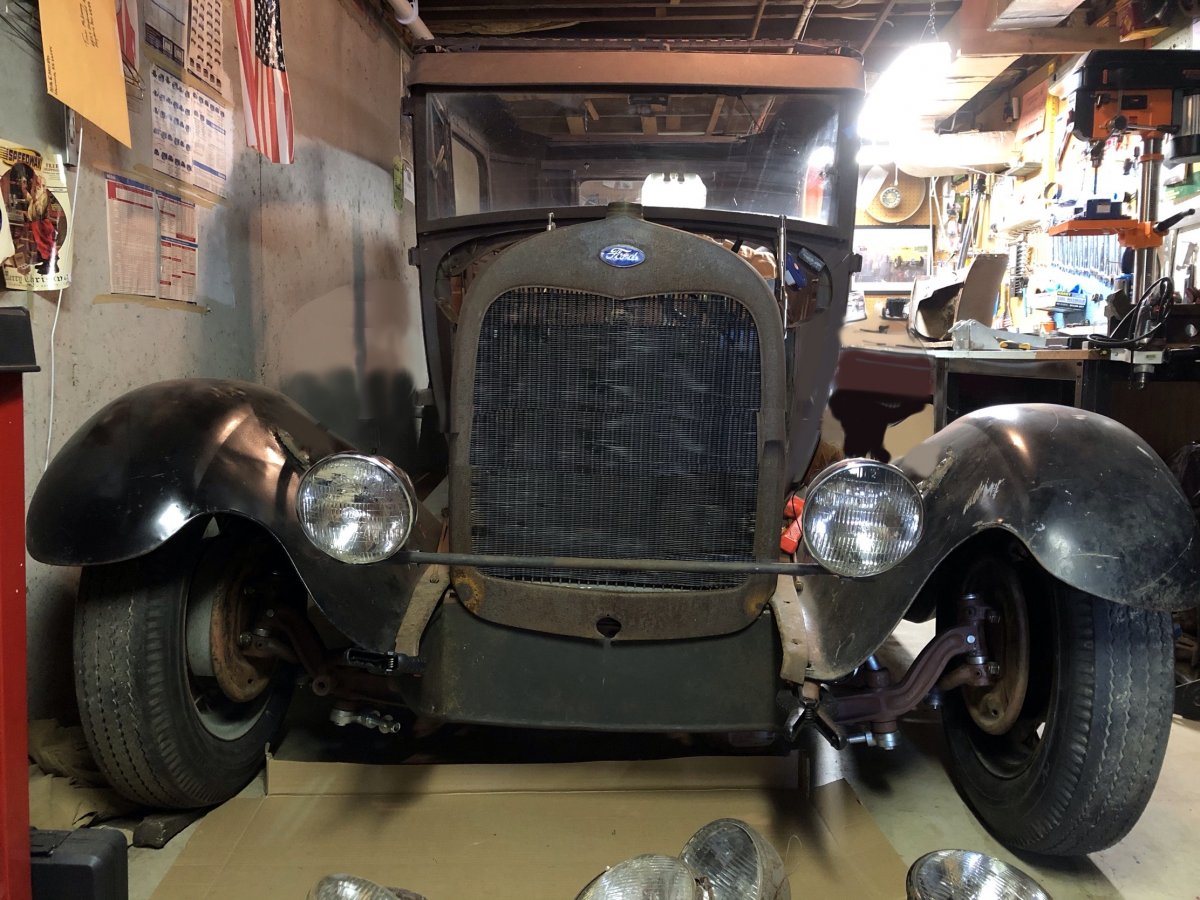

    And since I’ve always thought about building a second headlight bar that is either dropped and mounts on shortened fender braces, or mounts to the frame but has a tie bar between the two and ive got a 30/1 head light bar bolted to some of these lights I started playing around.
    wondered if anyone’s run a set up like brain bass’ red roadster has but with fenders?

    anyhow was fucking around and rendered these. It would have the arch in the middle because I’d be using a later headlight bar but you get the idea.

    probably cut the ends off and rotate them up, reposition the tab. Trying to keep a stretched S shaped to it all.

    anyhow less rambling more pictures 5FE8DE34-C331-499B-A142-0CF922A226D7.jpeg 877A1603-B0BB-4A99-8F63-31A2D3AAD16C.jpeg D022FA8F-B617-4C64-B039-4190829BE38C.jpeg
    After the fact I’m wondering if I could just make the arch that a 30/1 bar has go forward instead of up. It could read sorta like a nerf bar?

    shits so low it’s probably cleaner to just mount them to the frame rail threw the fender instead of make the ends have 25 inches of drop.

    either way I’d pull the fenders off and mock it all up to see what they look like for real. Just kinda like the idea of being able to run them with or with out the fenders.

    Thor1, brEad, scrap metal 48 and 2 others like this.
  7. Tim
    Joined: Mar 2, 2001
    Posts: 11,250

    Tim
    Member
    from Raytown Mo

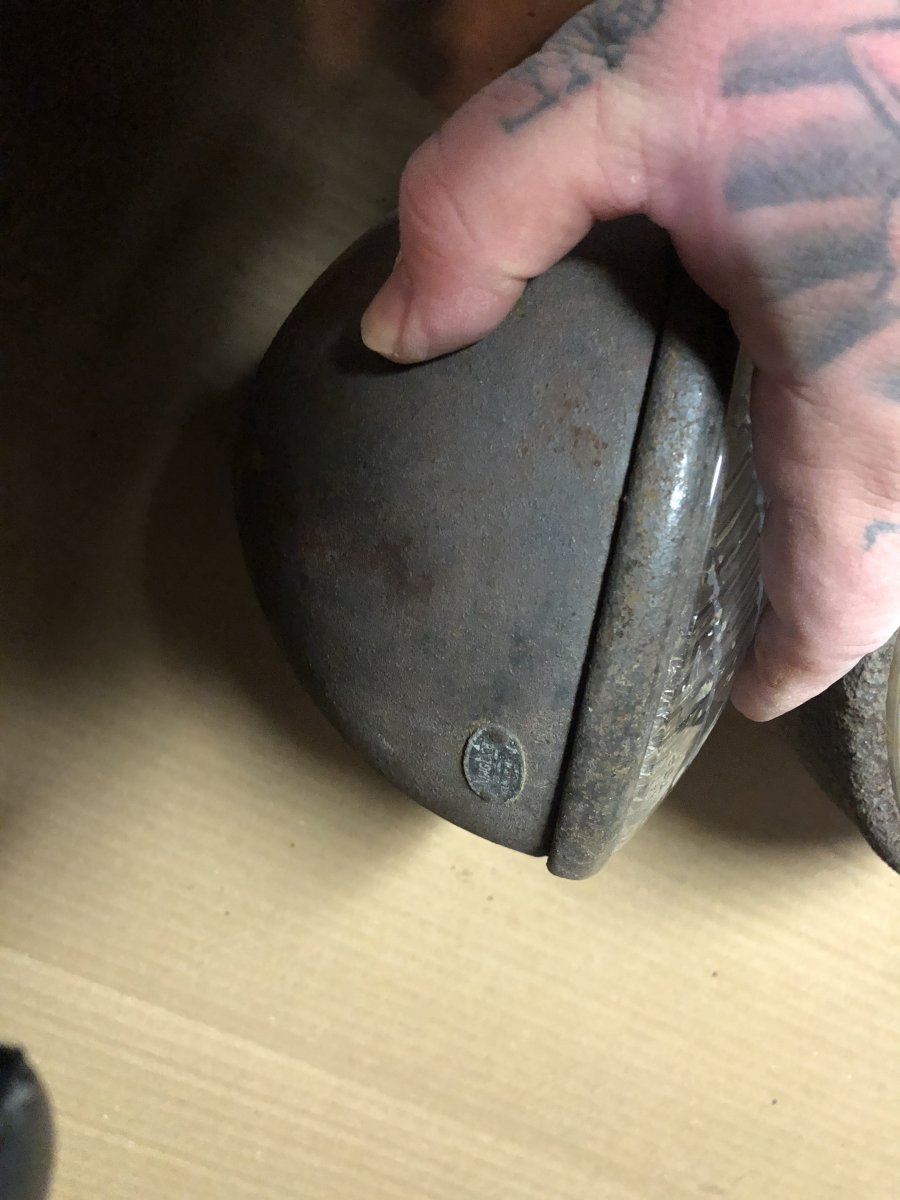

    Took some heat and a hammer but I got the two best lights free and mocked up on the headlight bar.

    One has a mounting stud that’s pretty rotted and the other had the threads beat to shit when it was forced threw the headlight bar to take it off.

    oh well. Either way some magnets and they are mocked up. They look more like what I had in mind and they do adjust all the way up to see the road 0304B404-48B1-40D8-B06D-22CA116E6766.jpeg B6F2B1AC-FB90-4A6D-A6F1-63E8091FD4F3.jpeg

    Stogy, Thor1, brEad and 5 others like this.
  8. Six Ball
    Joined: Oct 8, 2007
    Posts: 3,394

    Six Ball
    Member
    from Nevada

    Those look good.

    Stogy, loudbang and Tim like this.
  9. Tim
    Joined: Mar 2, 2001
    Posts: 11,250

    Tim
    Member
    from Raytown Mo

    I keep walking by it tonight doing loads of laundry and I’m surprised by how different it feels with these lights.

    looking forward to tearing them apart and making good lights out of them. Whenever that is.

    for now I just want to cut new threads and figure out how to keep them on the bar with out magnets haha

    Stogy, drdave and loudbang like this.
  10. Be a man! Do something totally different by running both bars and all 4 lights!

    Stogy, Tman, Shutter Speed and 5 others like this.
  11. Tim
    Joined: Mar 2, 2001
    Posts: 11,250

    Tim
    Member
    from Raytown Mo

    Haha @Rocky both @Tuck and @cactus1 saw the photo of all 4 lights and said to get out of the shop and find fresh air hahaha

  12. I do like the idea of the super dropped bar, but I think as far down as you have them might be a bit too low for using with fenders....might look too saggy with the fenders way up there for reference and the lights way down low. Maybe about half way between a "regular" drop bar and that far down?

  13. Six Ball
    Joined: Oct 8, 2007
    Posts: 3,394

    Six Ball
    Member
    from Nevada

    You could weld the lights to the bar and slot the bar mount holes on the fenders to adjust the lights.o_O

    loudbang and Tim like this.
  14. Tim
    Joined: Mar 2, 2001
    Posts: 11,250

    Tim
    Member
    from Raytown Mo

    The way drop or second look would be primarily for the fenderless outings. Just thought it would be cool if you could run it that way with the fenders as well.

    though for now I’m not gonna mess with it. Figured I’d mock it up for shits and grins since I was thinking about it and move on.

    gonna try to get the pedals in the brace this afternoon, it’s been hanging up in one tiny spot so I’ve been taking a file to it when I have a few odd minutes and it’s getting close.

    soon as the pedals fit I’ll test fit the cowl for clearance. That all clears I’ll build the attachments to the A pillars and then pull it out to drill all the new holes before bolting it to the car.

    in between I’m filing away at the gauge holes to fine tune the fit but it’s like hitting a damn drum echoing threw the cowl so it’s been slow going.

    Gauges in, pedals hung the next stop is the column support. I basicaly need a little wedge to fill the gap and 4 holes to bolt it all together. Still back and forth on if it has nuts welded to it and if it’ll even be made out of metal. Guess we’ll see.

    Stogy, brEad and drdave like this.
  15. Tim
    Joined: Mar 2, 2001
    Posts: 11,250

    Tim
    Member
    from Raytown Mo

    full perfect range of adjustment with these lights! I think part of it is these have a much smaller mounting stud so you have way more wiggle room to situate them

    Stogy likes this.
  16. scrap metal 48
    Joined: Sep 6, 2009
    Posts: 5,986

    scrap metal 48
    Member

    I did something similar to my 28.. I also made some stanchions for strength.. It shows better if you click the pic.... for sale pics II 009.JPG

  17. Tim
    Joined: Mar 2, 2001
    Posts: 11,250

    Tim
    Member
    from Raytown Mo

    Hey that’s cool!

  18. Inked Monkey
    Joined: Apr 19, 2011
    Posts: 1,792

    Inked Monkey
    Member

    I like those lights better

    loudbang and Tim like this.
  19. Dang!! That’s pretty great looking right there!

  20. Tim
    Joined: Mar 2, 2001
    Posts: 11,250

    Tim
    Member
    from Raytown Mo

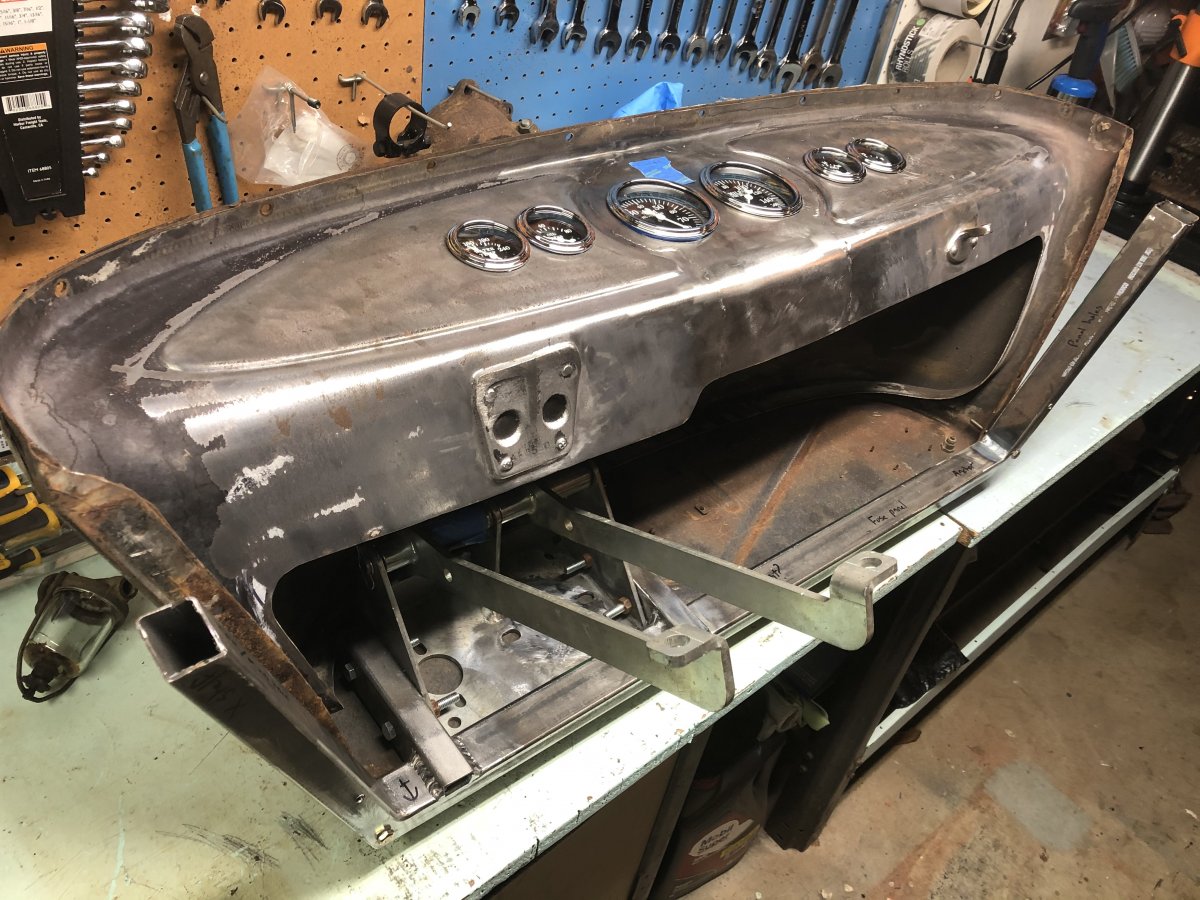

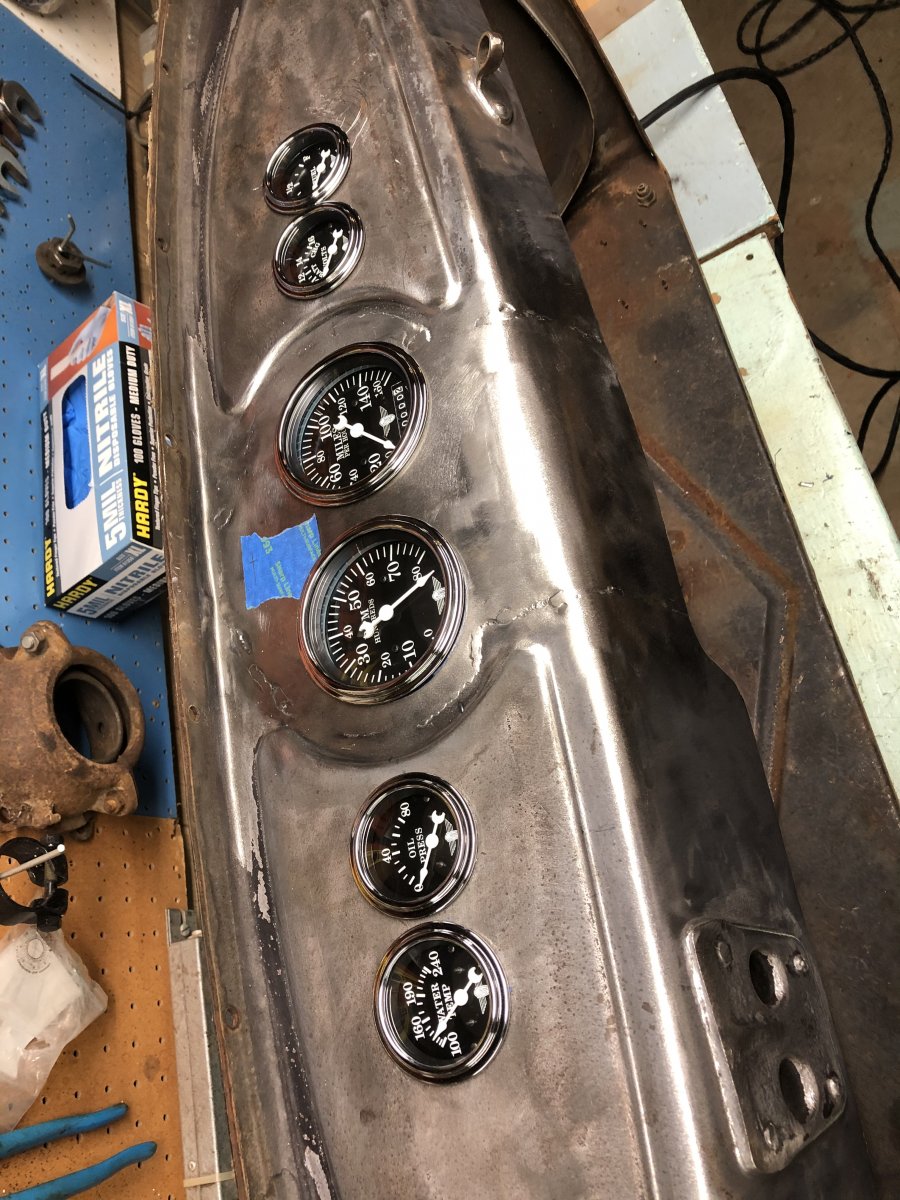

    A quick, very loud hand file and the dash is full!

    a quick pass with a flap disc on my wavy upright and a little extra time tappering the top corner and I tapped the pedal box in with a dead blow.

    it’s not an interference fit it’s just got tiny little tight spots here and there. In the top view of that upright you can see how waved the sides all are. I must have had that section squished in a vice or? At some point that it’s so waves but what ever. It’s super beefy and no one but you and me will ever see it ;) next step is transferring centers and drilling the pedal box.

    I need to also fit the cowl top to see if it clears the pedals but I think I’m going to have to bolt the brace to the car first as I’m not sure how to clamp it with out interfering with the top going on.


    Anyhow... pictures 2BB57E79-2130-4247-AD30-4134F42CAB3F.jpeg 3CA23196-61AD-4D1A-8279-9DB2267233AF.jpeg 88EB4877-BF01-4D6F-AFC5-CC8A45FF1B80.jpeg

  21. scrap metal 48
    Joined: Sep 6, 2009
    Posts: 5,986

    scrap metal 48
    Member

    Cool looking dash....

    Stogy, loudbang and Tim like this.
  22. Tim
    Joined: Mar 2, 2001
    Posts: 11,250

    Tim
    Member
    from Raytown Mo

    @scrap metal 48 thanks. I saw what @TexasSpeed did in his roadster and that started me down the path of tweaking a stock dash like this.

    I’ve seen it done a couple times online and really like it. I’m very tempted to rattle can it but I know I’ll have to strip it all back off to body work and paint it anyways so I’m hesitant

    Stogy and scrap metal 48 like this.
  23. Stogy, loudbang and Tim like this.
  24. I'm diggin the dash too. I wish I could remove [unbolt] my cowl top like a model A. I need to swap out my gauges. Good news is I can reach down through the cowl vent hole to do almost all of it.

  25. Tim
    Joined: Mar 2, 2001
    Posts: 11,250

    Tim
    Member
    from Raytown Mo

    Awesome I’ll check that out!
    I’d rather be elbow deep into the cowl vent than crammed under the dash with my feet on the roof lol. Looking forward to seeing how it looks with the new gauges!

    Stogy and kidcampbell71 like this.
  26. Tim
    Joined: Mar 2, 2001
    Posts: 11,250

    Tim
    Member
    from Raytown Mo

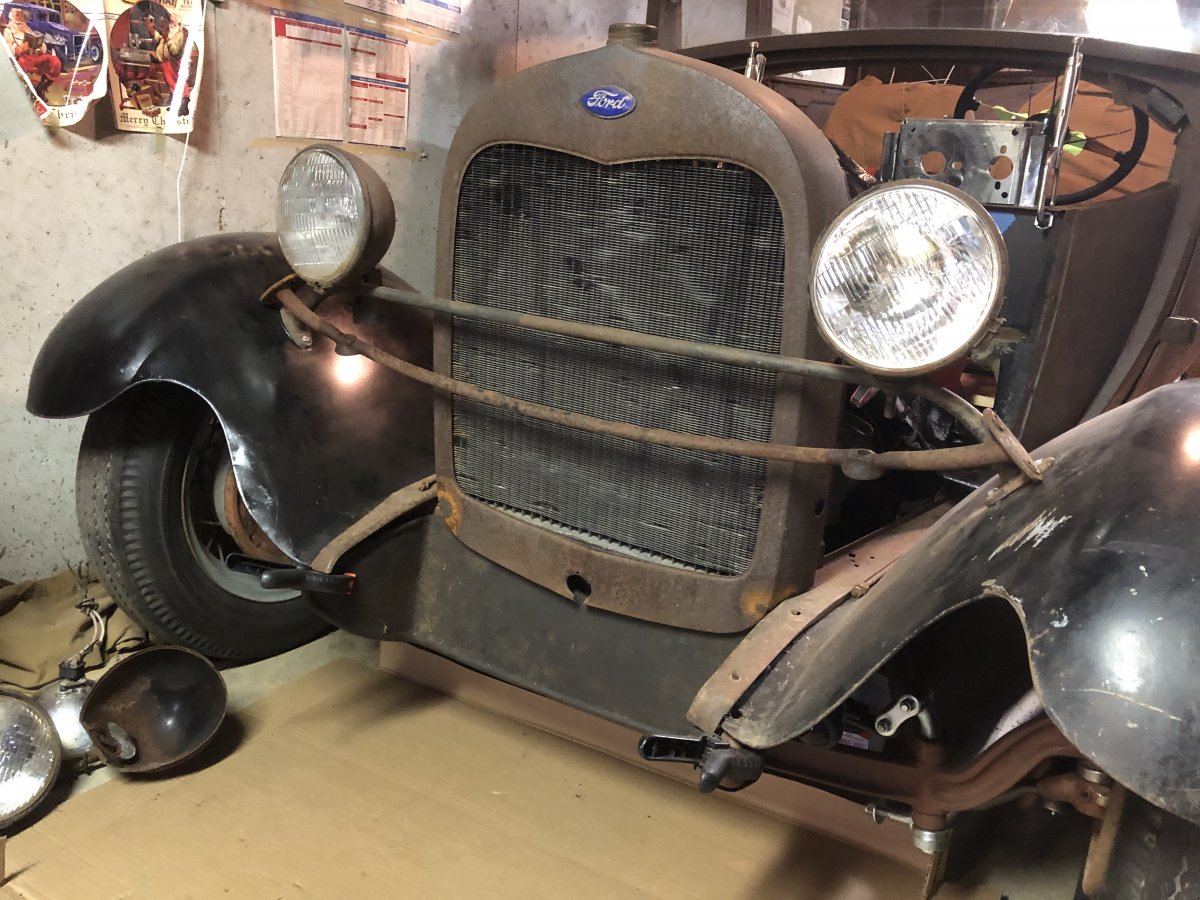

    These aren’t rifle drilled like those. The wires exit the bucket instead of threw the stud.
    47F634F8-B04D-421C-916F-AB725F4D6948.jpeg Smiling ford?

    Stogy, drdave and brEad like this.
  27. Six Ball
    Joined: Oct 8, 2007
    Posts: 3,394

    Six Ball
    Member
    from Nevada

    Right out of Radiator Springs!

    Stogy, kidcampbell71, drdave and 2 others like this.
  28. Tim
    Joined: Mar 2, 2001
    Posts: 11,250

    Tim
    Member
    from Raytown Mo

    exactly haha

  29. Tim
    Joined: Mar 2, 2001
    Posts: 11,250

    Tim
    Member
    from Raytown Mo

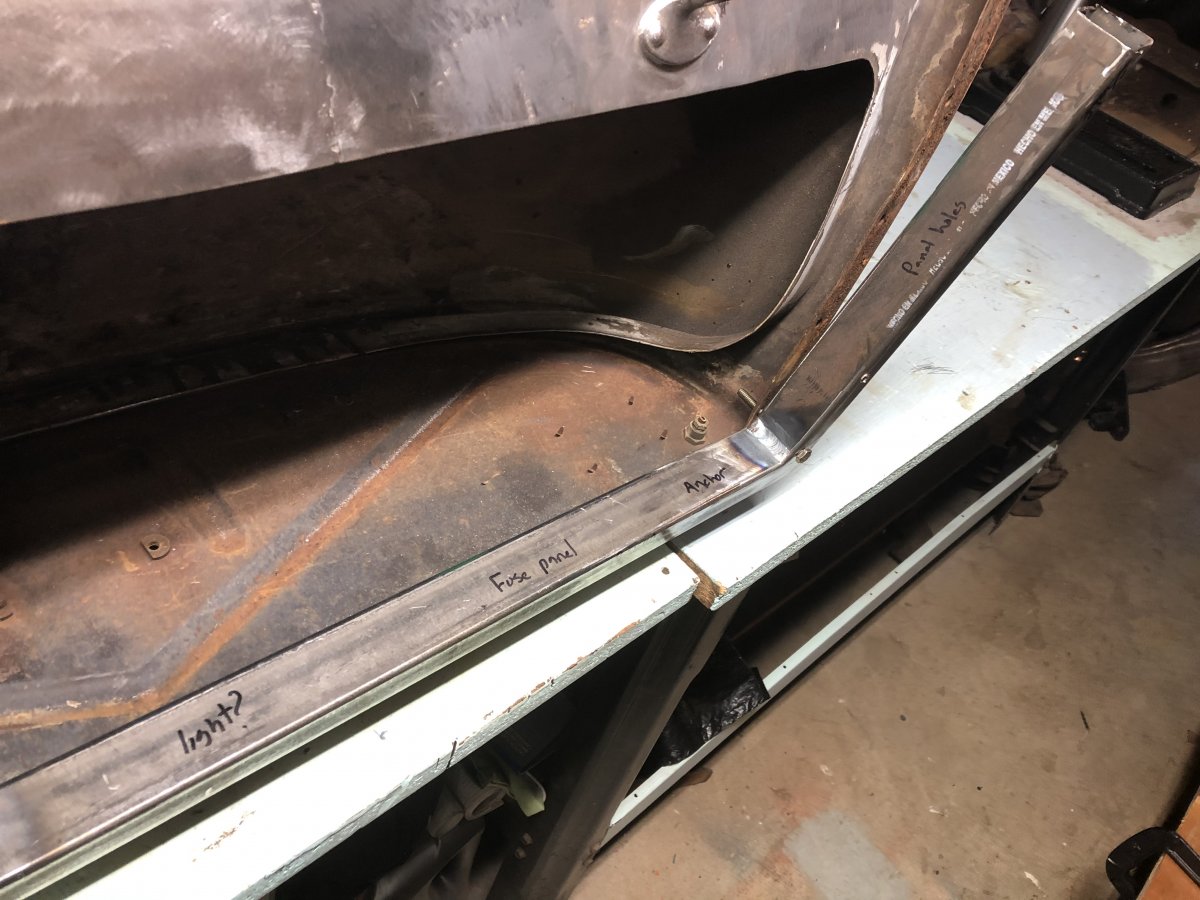

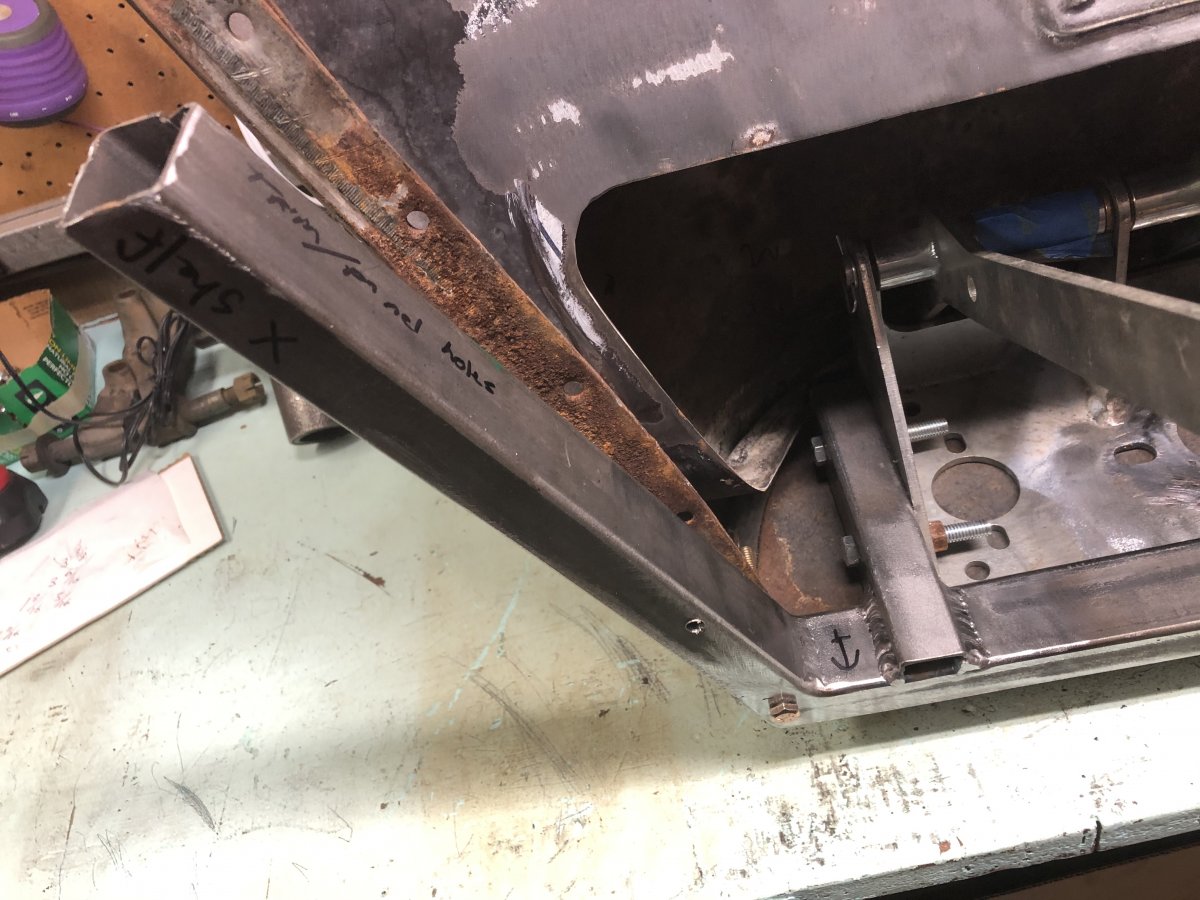

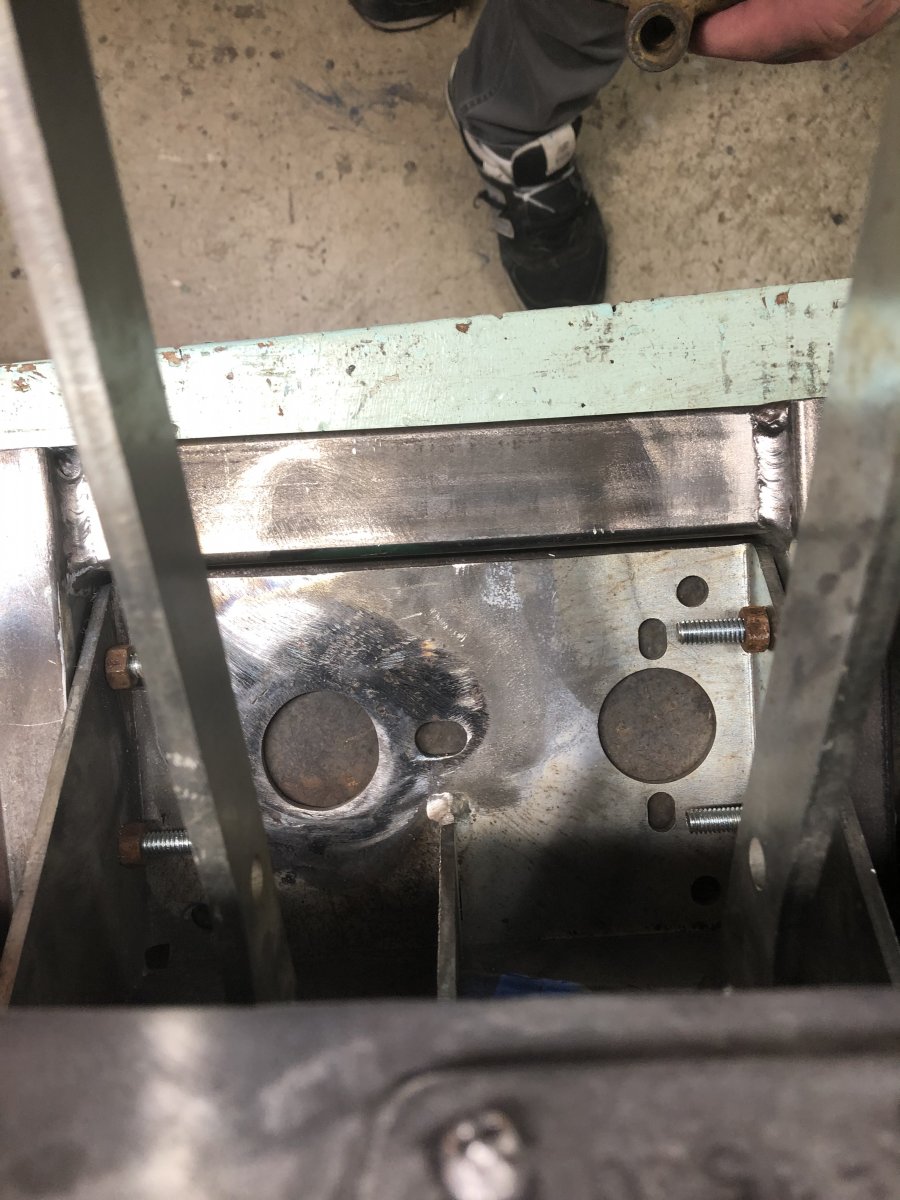

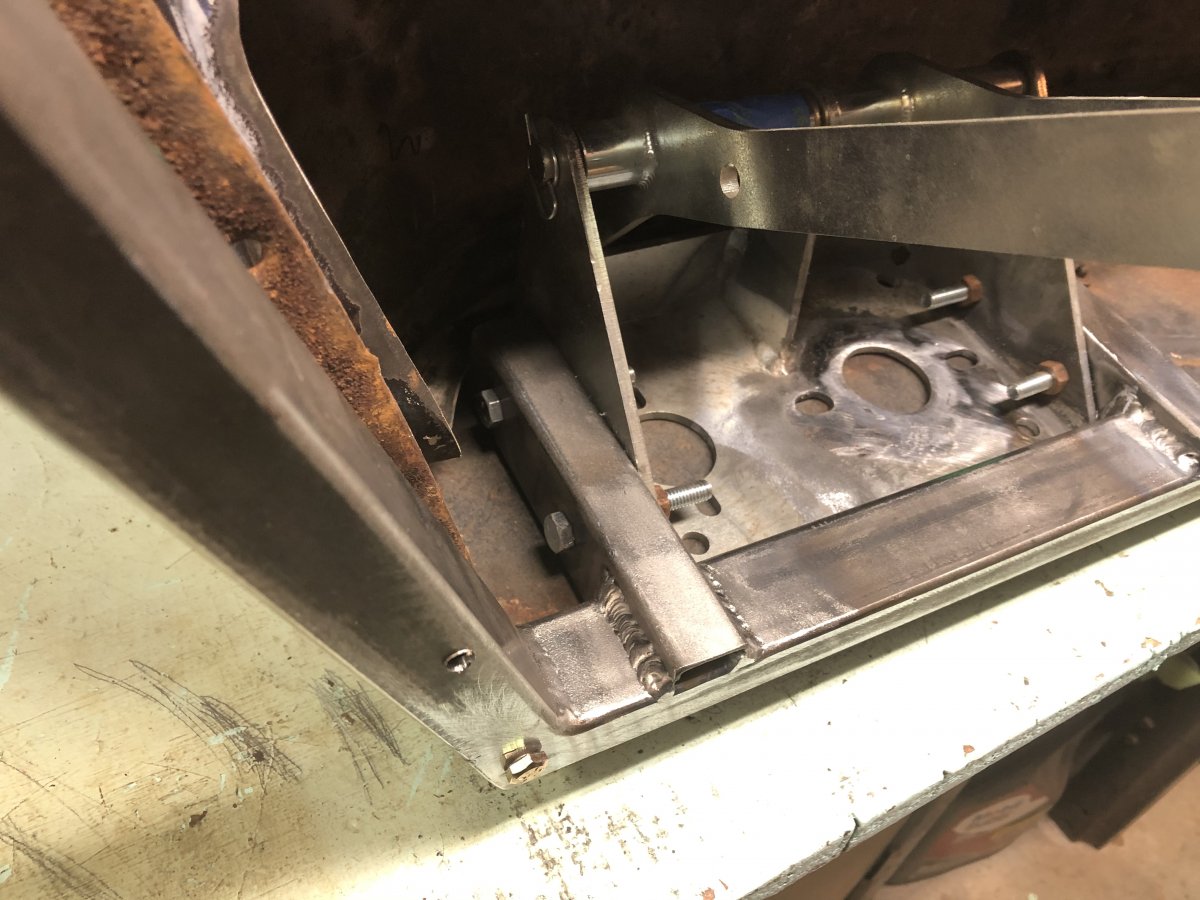

    Alright so quick update. Used my new transfer punch set and marked the 4 holes in the uprights for the brake pedal box and the four holes that line up with the cowl side/ top holes.

    pulled the brace out, which fits perfect but is so snug that you really gotta force it out, and drilled all the holes.

    Put the brace on the cowl sitting on the bench and put some bolts into the cowl to make sure it all clears.

    every thing looks good. Need to file one spot to give just a little more breathing room and it’s pretty much good to go on that end.

    was happy to find that neither of the masters seem to have landed on a bead in the firewall o I’m stoked on that.

    after realizing what a pain in the ass it is to get the brace in/out I decided to go ahead and drill all the additional “accessory” holes in the brace now while it’s out instead of pulling it back out a dozen times. I’m sure it’ll go in and out a few more times but I think I’d like to minimize how many times it really needs to be.

    I’m going to just load the photos all in a lump at the end but you’ll see that I sharpies the general area of the holes I need to add and what for.

    this includes, two or three bolts to hold the cross brace to the lower firewall. Bolts to hold a fuse panel board, bolts for grounds, bolt forgot a ground strap to the frame, threaded holes for kick panels to bolt on. I had the old fuel filter where I thought it might make a good light, That sort of thing.

    still trying to pick a good spot for a little cube heater.

    anyhow there we are. Got a small load of “new” parts to pick up in the next couples weeks so I’m excited to add to the pile as well and make progress on the actual car.

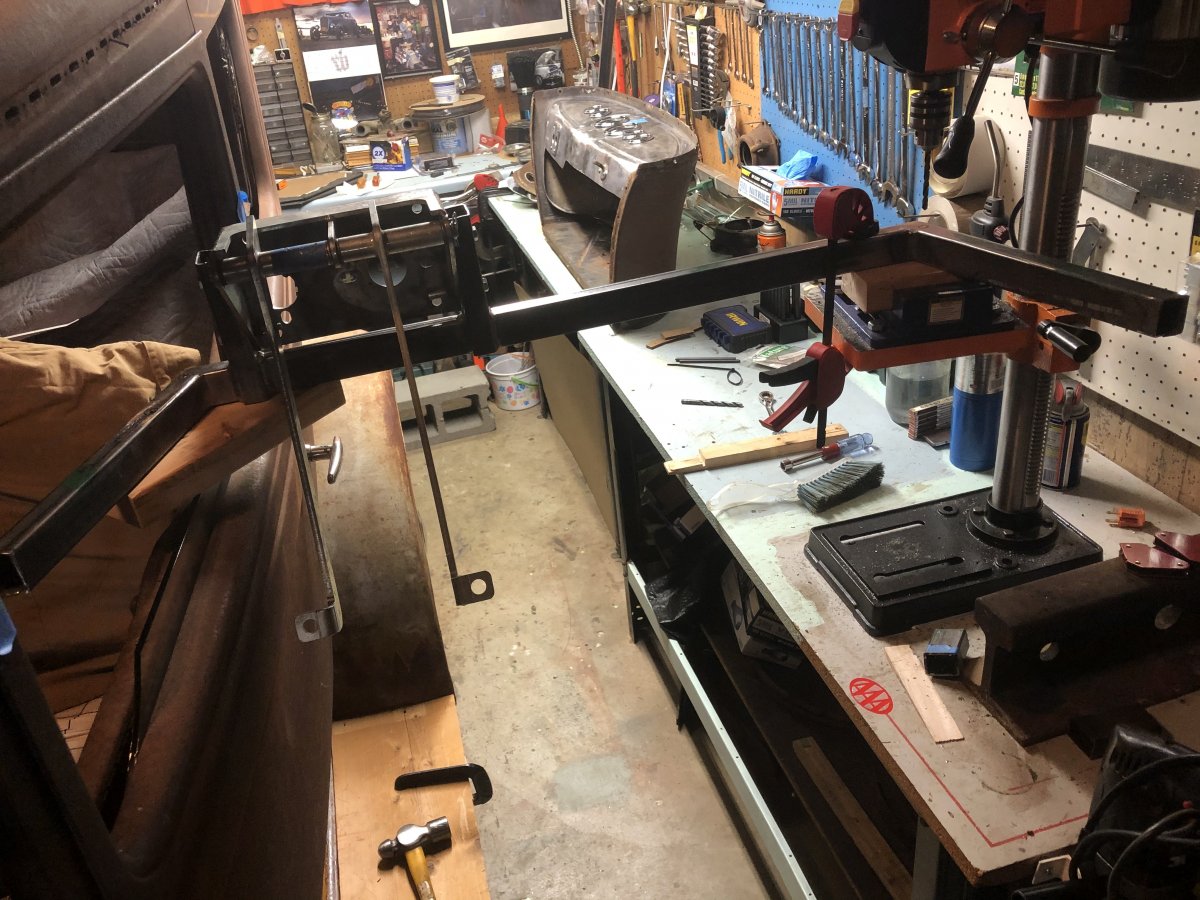

    6E0A66D2-B43A-4009-B434-8BF56A9F1BAD.jpeg I chuckle every time I do this and think of all the cars @Rocky has built in his little garage 062FF042-5BDD-45EC-8E90-E28AFEE7CD8D.jpeg 97AA3A4A-DEF7-4081-977F-3E0EE6B388DC.jpeg CDF49E47-A6BE-4802-A274-A2CE12F18894.jpeg 94A36FE3-8560-4CA7-8782-0FE4804F69FD.jpeg 881E29CC-3C20-4BAF-9D65-BF03073441DB.jpeg 8E81B9D4-05E0-41FD-AE5C-B4E421B272E0.jpeg
