Termites and Bowties- Early Chevy Group

Discussion in 'The Hokey Ass Message Board' started by 29bowtie, Jan 7, 2009.

  1. RoarsRods
    Joined: Nov 6, 2018
    Posts: 80

    RoarsRods
    Member

    Thanks for your info! Here is PRC Radiator that I had bought for my new 34 Chevy Standard Roadster build and maybe will help on your future Chevy builds! PRC builds radiators for all years of Chevy vehicles! Here is their link: http://prchotrod.com/

    Last edited: Apr 9, 2019
  2. mgtstumpy
    Joined: Jul 20, 2006
    Posts: 8,683

    mgtstumpy
    Member

    Ah, the good old days (1934)

    RoarsRods, Fern 54 and LOU WELLS like this.
  3. Flatmotor, glad to hear that you got that resolved. Things may be going slow, but they are now moving in the right direction. Remember the tortoise and the hare and who got to the finish line first. Slow and steady does it every time.:D

  4. flatmotor40
    Joined: Apr 14, 2010
    Posts: 552

    flatmotor40
    Member
    from georgia

    Bowtie it usually take 3-4yrs for me to do mine.That is the 40 Conv and the 71 Monte Carlo and the 29 Model A.But retired I don't care.Just something to clear my head and do.Been doing cars since 1965.My first was a 55 2dr Belair

    Bowtie Coupe likes this.
  5. mgtstumpy
    Joined: Jul 20, 2006
    Posts: 8,683

    mgtstumpy
    Member

    Those engine and frame serials are for GMH produced built cars. Here is what I could located for US built models.

    1934 U.S. CHEVROLET MOTOR SERIAL NUMBERS BY MONTHS

    Prefixes:
    • 'M' FOR "STANDARD";
    • 'MR' for RHD Standard although Canadian Walkerville assembled RHD Standard motors were evidently prefixed 'RM' which should be the case for Flint assembled units;
    • 'K' for Master Series COMMERCIAL;
    • 'T' for Truck;
    • 'R' for RHD Master Series;
    • 'RT' for RHD trucks. Trucks used Master series motors although export vehicles may have used either series; and
    • 'RK' for RHD Commercial.

    RoarsRods and Bowtie Coupe like this.
  6. GasserTodd
    Joined: May 15, 2009
    Posts: 410

    GasserTodd
    Member

    Rear Door.jpg

    Building the door. The bar in the middle of the door is temporary to hold everything in shape and will be replaced with some different framing which will hold the electric window mechanism in place

    Last edited: Apr 11, 2019
  7. GasserTodd
    Joined: May 15, 2009
    Posts: 410

    GasserTodd
    Member

    Rear Door 2.jpg
    Rear Door hinged now (hinges on RHS as we drive on other side of the road to you guys) Theres still lots of work to do to get the door gaps right and theres still an eyebrow to go over the top of the door - will match the ones over the side doors.
    Body lines are spot on.

    RoarsRods, Fern 54, LOU WELLS and 3 others like this.
  8. GasserTodd
    Joined: May 15, 2009
    Posts: 410

    GasserTodd
    Member

    Rear Door 4.jpg
    And another pikky to show how clever the guy is.

    Being clumsy and fortunate not to trip over my own feet on a regular basis, Im just in awe at how good some folk are at metalwork, and how they make it look so easy.

  9. fastest32
    Joined: Jul 25, 2013
    Posts: 41

    fastest32
    Member
    from austin

    [​IMG]

    Took it around the neighborhood for the first time in a long time. Felt good.


    Sent from my iPhone using H.A.M.B.

  10. fastest32
    Joined: Jul 25, 2013
    Posts: 41

    fastest32
    Member
    from austin

    [​IMG]


    Sent from my iPhone using H.A.M.B.

  11. Fast Eddie 27
    Joined: Oct 30, 2018
    Posts: 122

    Fast Eddie 27
    Member

    Is it safe to assume there’s a thread regarding wood removal and the different ways these Chevys are braced up? I’m in the process and would LOVE to see some pics of this done


    Sent from my iPhone using H.A.M.B.

    Fern 54, Bowtie Coupe and 31chevymike like this.
  12. Fast Eddie 27
    Joined: Oct 30, 2018
    Posts: 122

    Fast Eddie 27
    Member

    Here’s where I am so far temporary bracing is in, channel about where I like. But where to go from here is anyone’s guess!




    [​IMG]


    Sent from my iPhone using H.A.M.B.

  13. mgtstumpy
    Joined: Jul 20, 2006
    Posts: 8,683

    mgtstumpy
    Member

  14. Fast Eddie 27
    Joined: Oct 30, 2018
    Posts: 122

    Fast Eddie 27
    Member

  15. 31chevymike
    Joined: Feb 9, 2008
    Posts: 1,168

    31chevymike
    Member

    Hey Eddie - Looks like you're moving along on your coupe! Just placed the body back down on mine temporarily and decided that we need to work on my A pillars big time so the doors will close as intended. Greg and I got some needed measurements to see where my hemi will need to be mounted, once we move the firewall back close to the cowl band. The supercharger will go back on eventually, so we're planning for this and allowing room for the blower pulleys. Man, you should see how tough the QC rear looks like in full view without the gas tank hiding it...

    20190412_095128.jpg 20190412_104025.jpg

    Last edited: Apr 15, 2019
    Tooth, RoarsRods, Fern 54 and 5 others like this.
  16. Looking good! have i missed all the info on your car?

    29bowtie and Bowtie Coupe like this.
  17. Here's an good one....waited 15 years for Dad to say 'yes I'll sell ya the coupe' . Only reason he sold it to me....he got his 32 roadster 2012-05-05_11-52-28_998.jpg when my coupe is done, I'm going to get his roadster built for him. At 74, he's slowing down on projects, and I wanna see both 32's cruising down the roda

    Tooth, 29bowtie, cactus1 and 13 others like this.
  18. GEBHARD
    Joined: Nov 10, 2007
    Posts: 1,160

    GEBHARD
    ALLIANCE MEMBER
    from TX...

    Those look sooooo nice..... i need some of those roadster doors baaaaaaad

    31chevymike and Fast Eddie 27 like this.
  19. paul55
    Joined: Dec 1, 2010
    Posts: 3,385

    paul55
    Member
    from michigan

    Here's some inspiration. 56902390_561740591016228_4482188807378042880_n.jpg 57382317_561740581016229_2255704385633910784_n.jpg

    Tooth, 29bowtie, Chuck Craig and 11 others like this.
  20. GEBHARD
    Joined: Nov 10, 2007
    Posts: 1,160

    GEBHARD
    ALLIANCE MEMBER
    from TX...

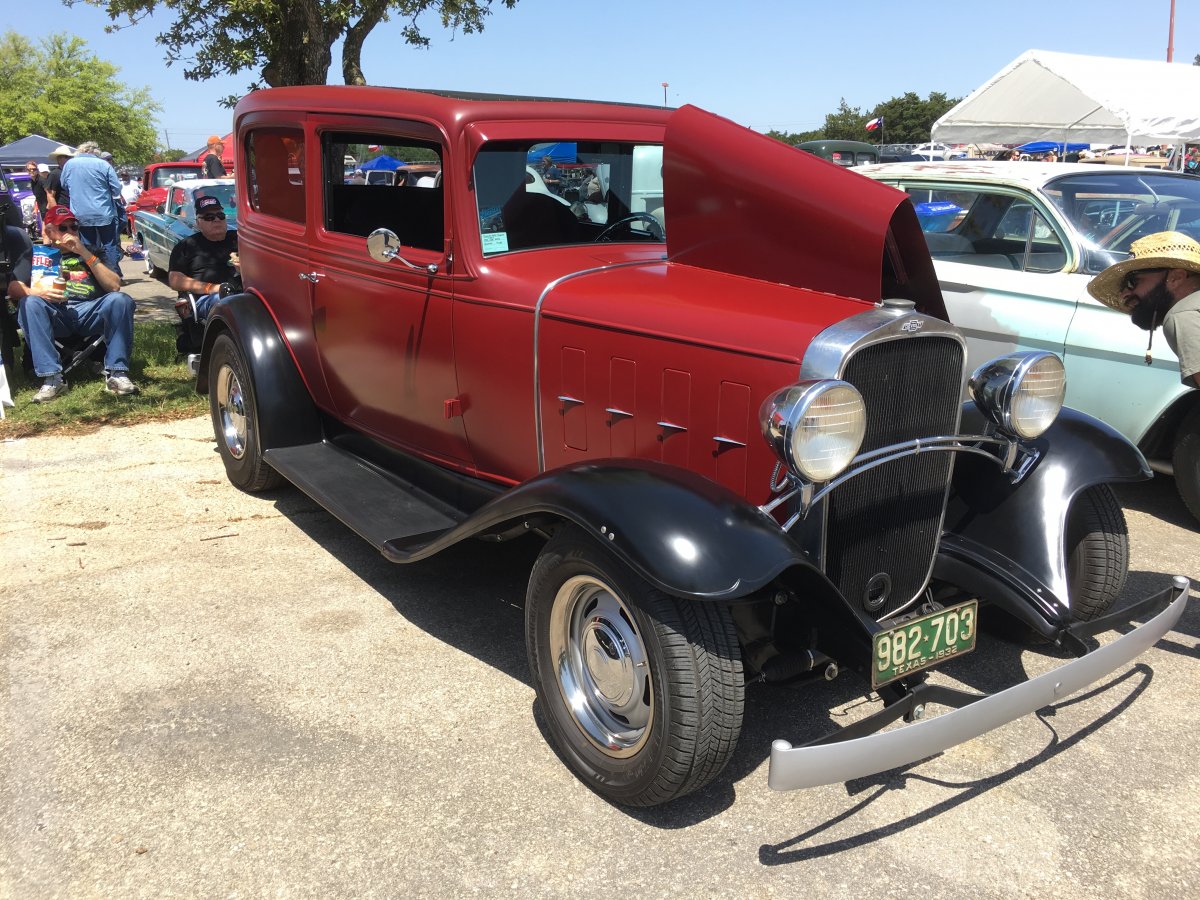

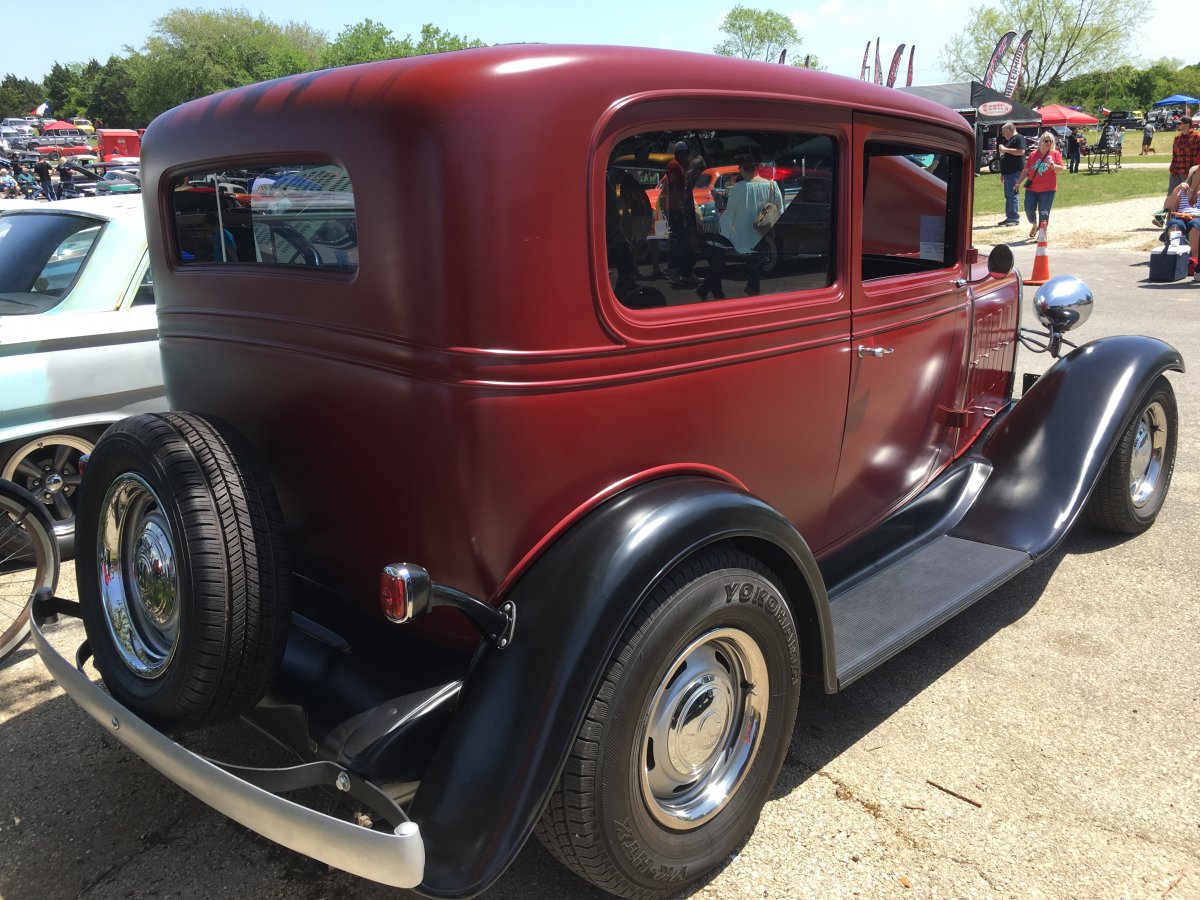

    FB068C42-E857-48E6-A747-87A2AC717953.jpeg 2634FCDB-A3C7-47B5-8F4B-A91FF7FF5A4E.jpeg This was at lsr
    Had an ugly rack sticking out under the grill tho

    Tooth, 29bowtie, fastest32 and 8 others like this.
  21. 6inarow
    Joined: Jan 24, 2007
    Posts: 2,292

    6inarow
    Member

  22. mgtstumpy
    Joined: Jul 20, 2006
    Posts: 8,683

    mgtstumpy
    Member

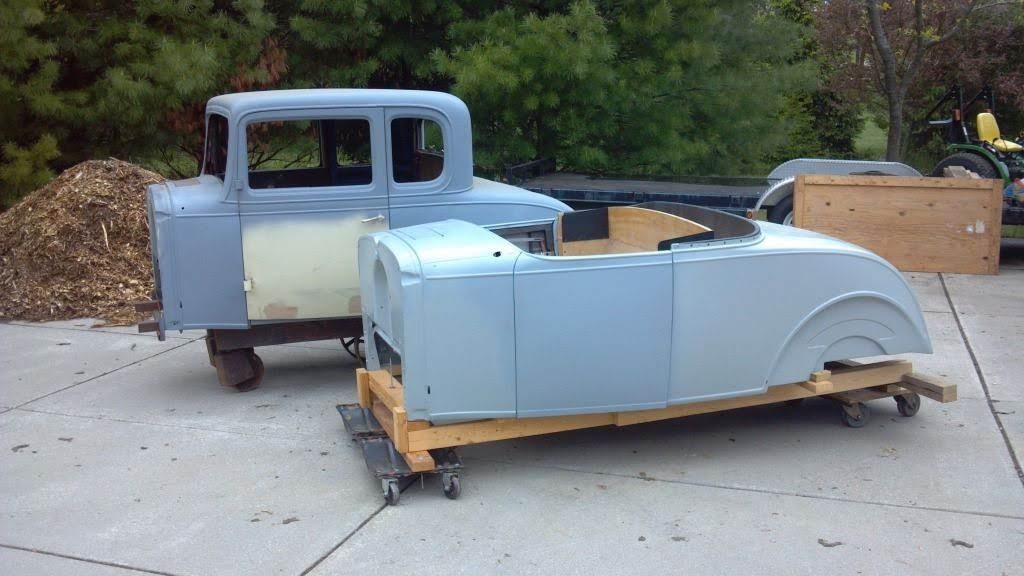

  23. That pic was about 8 years ago.....here she sits today IMG_20181123_161435125.jpg dad's is sitting on a Martz chassis, but basically untouched......for now

    Tooth, 29bowtie, cactus1 and 9 others like this.
  24. paul55
    Joined: Dec 1, 2010
    Posts: 3,385

    paul55
    Member
    from michigan

    Oh Yeah!!

    mgtstumpy likes this.
  25. mgtstumpy
    Joined: Jul 20, 2006
    Posts: 8,683

    mgtstumpy
    Member

    Local 4 door converted into a tudor. Fisher bodied tudors went to NZ however GMH here only produced more doors.

    [​IMG] [​IMG]

    Restorer friend's 35 Master coupe ute, lots of wood in this one! And a 36 below that[​IMG]

    [​IMG]

    1934 Ozzie GMH advertisment
    [​IMG]


    [​IMG]

    [​IMG]

    [​IMG]


    Last edited: Apr 17, 2019
    29bowtie, Fern 54, LOU WELLS and 5 others like this.

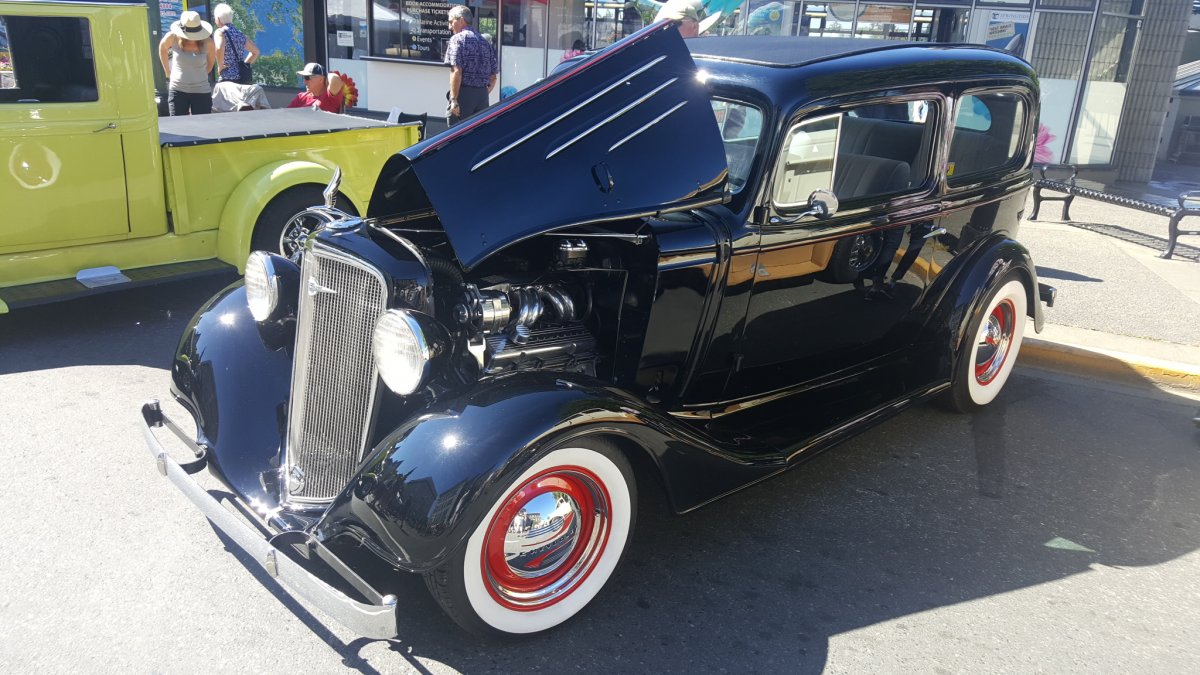

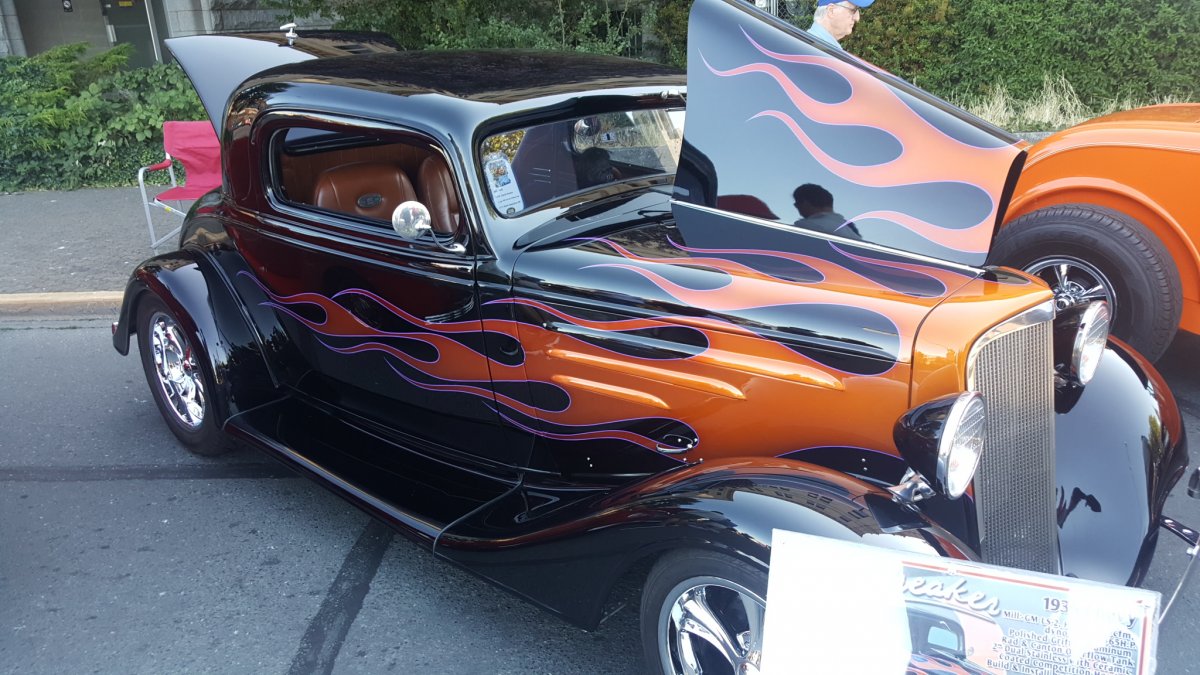

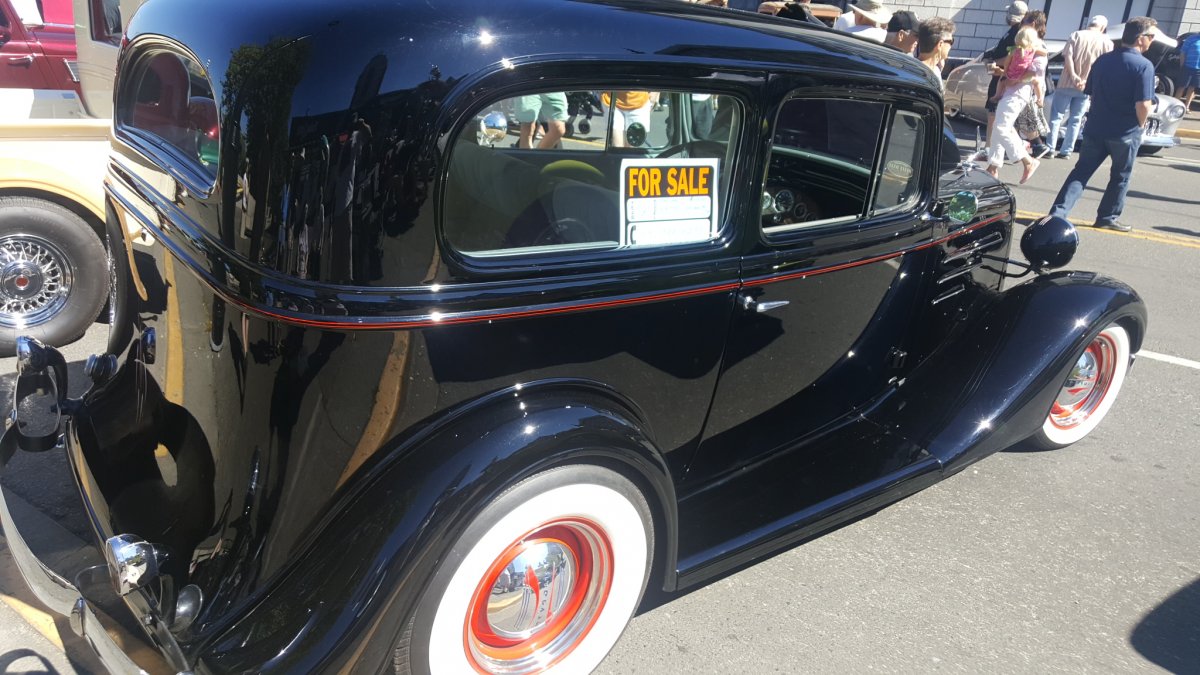

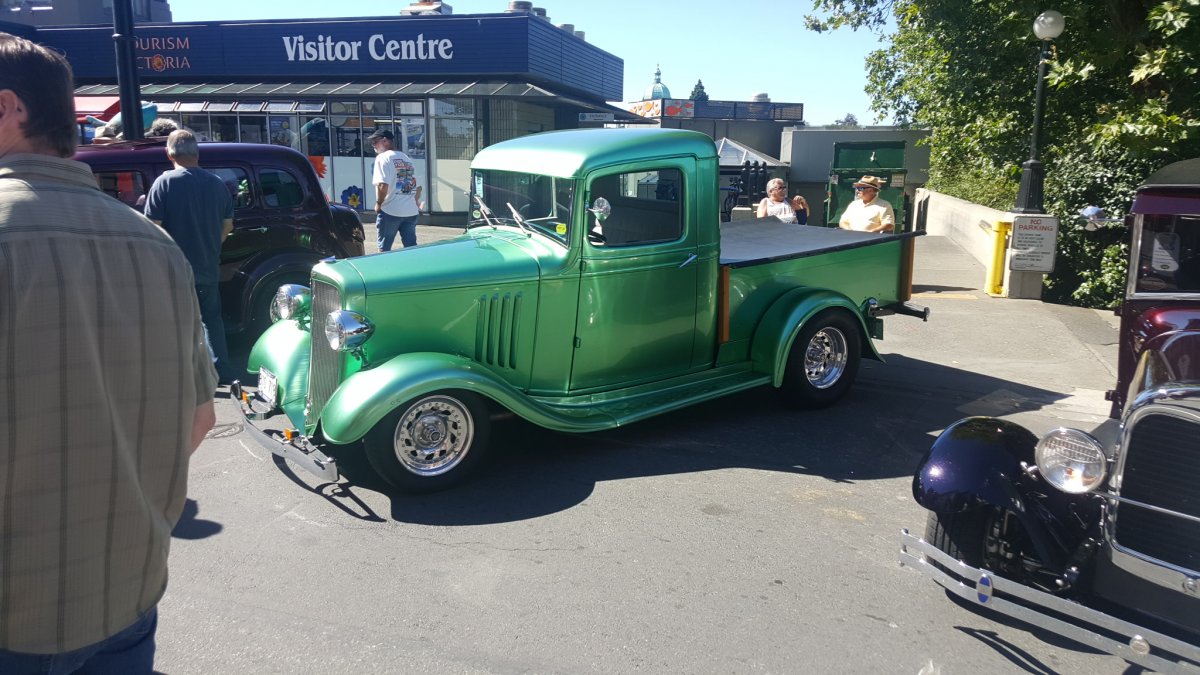

  26. Here are a few Chevrolets I've come across.

    Hot Rods and car show 100b.jpg
    April to August 2007 alSundre Show Sept 2 07l 023b.jpg
    April to August 2007 alSundre Show Sept 2 07l 024b.jpg
    Wetaskewin vintage auto meet 071b.jpg

    29bowtie, Fern 54, LOU WELLS and 7 others like this.
  27. fordflambe
    Joined: Apr 9, 2007
    Posts: 543

    fordflambe
    Member

    Don't be bashful...........Here is what mine looked like when it came apart in 73'. But it went back together just fine (with wood).

    31 chevy before1.JPG 31 Chevy in Houma, La.jpg

    29bowtie, Fern 54, GasserTodd and 7 others like this.
  28. RoarsRods
    Joined: Nov 6, 2018
    Posts: 80

    RoarsRods
    Member

    Mark I like those chrome headlights on that green Chevy UTE. Was thinking about changing my headlights for that style chromed!
    Would you have a contact for that chromed headlights and a new glass lenses contact to fit my 34 Chevy Stock headlights just in case I might keep them?
    Making progress on my 34 Chevy Holden Roadster build! Made some custom fab motor mounts for my 400 SBC motor and a new floor panels to fit over my 700R4 trans plus all installed steering column with a new banjo steering wheel. Notice that there is very little hump in my IMG_20190416_094850.jpg IMG_20190418_152805.jpg IMG_20190418_153442.jpg new floor panel mainly because I got the motor as far forward as possible in my build!
    Rory


    Attached Files:

    Tooth, 29bowtie, Fern 54 and 5 others like this.
  29. RoarsRods
    Joined: Nov 6, 2018
    Posts: 80

    RoarsRods
    Member

    Here is my new 700R4 custom fab Transmission mounting plate on my 34 Chevy Holden Roadster build!
    Easy to work on and very strong. I got two 1/4 inch tab plates welded to the x-member tubes. One on each side. The tabs are 1/4" and the mount is 3/8" thick.
    Ties in the x-member plus gives the maximum opening clearance to drop out the big 700R4 trans with ease!
    Rory


    Attached Files:

    Tooth, Fern 54, LOU WELLS and 5 others like this.
  30. fastest32
    Joined: Jul 25, 2013
    Posts: 41

    fastest32
    Member
    from austin

    Thanks. Haven’t really posted much. More of a lurker here.


    Sent from my iPhone using H.A.M.B.

    31chevymike likes this.
