Projects Install E-Brake in a '32 ford

Discussion in 'Traditional Hot Rods' started by terry k, Nov 23, 2019.

  1. terry k
    Joined: Jan 8, 2007
    Posts: 4,697

    terry k
    ALLIANCE MEMBER
    from toledo oh

    Could I see some photos of installing an emergency system in a '32 chassis. I have a flathead/'39 trans. and stock K member. Thanks

  2. Fortunateson
    Joined: Apr 30, 2012
    Posts: 3,952

    Fortunateson
    Member

    I waiting for this as well...

  3. Fordors
    Joined: Sep 22, 2016
    Posts: 3,460

    Fordors
    Member

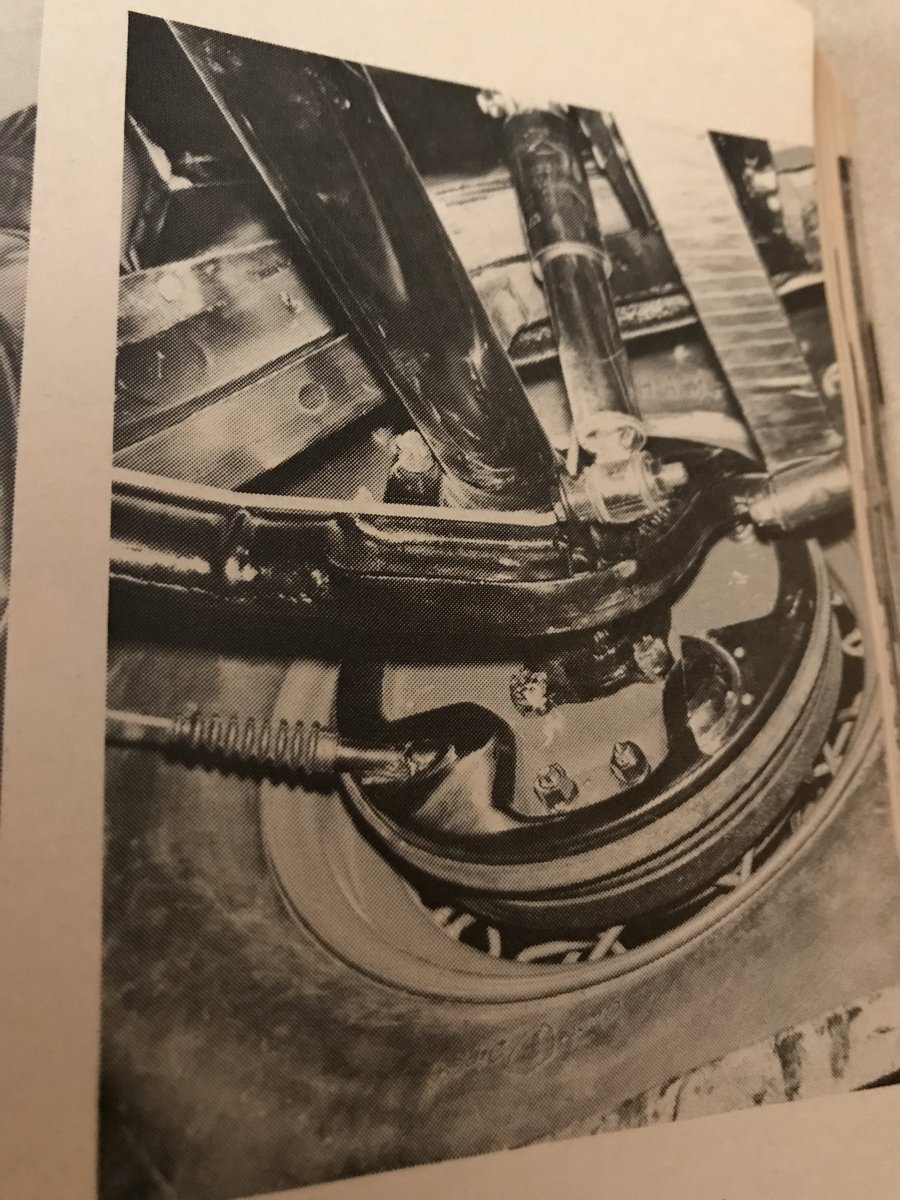

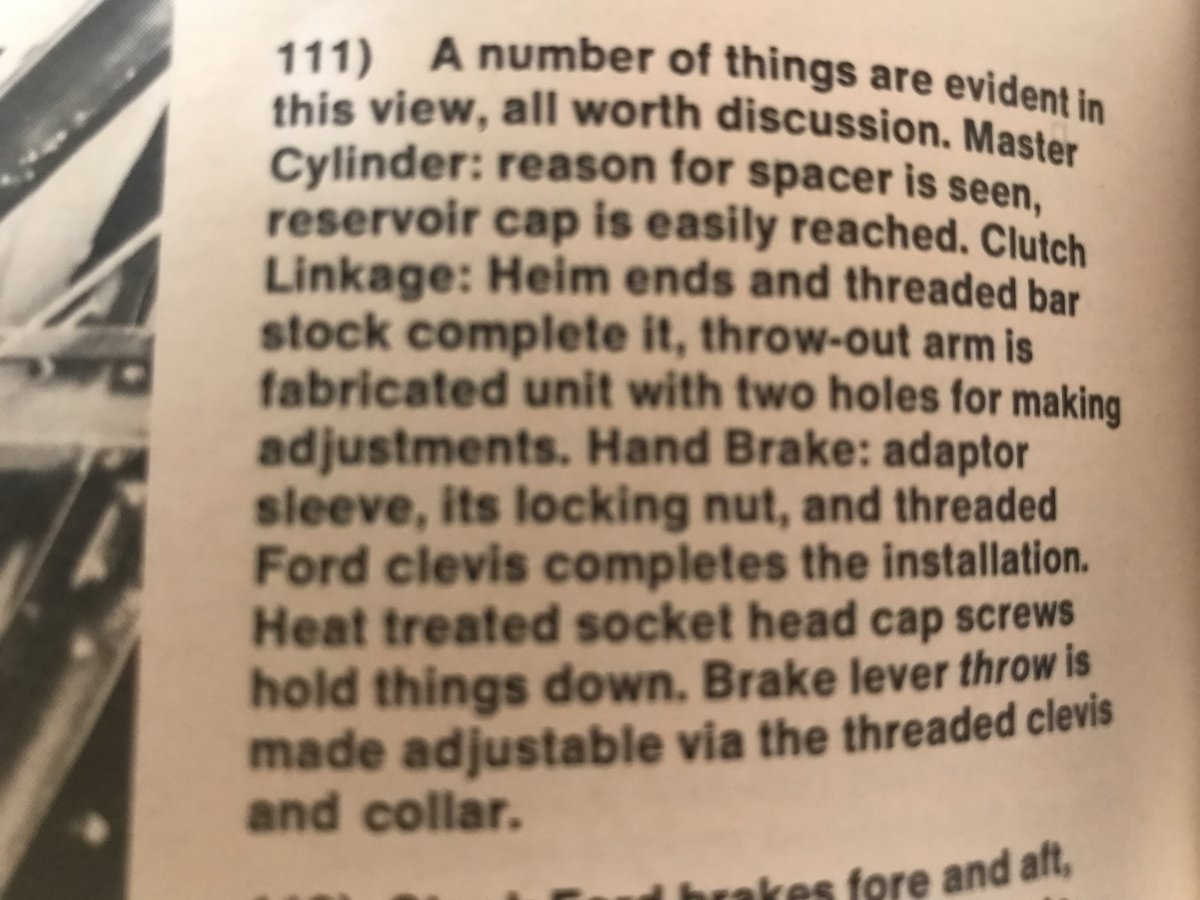

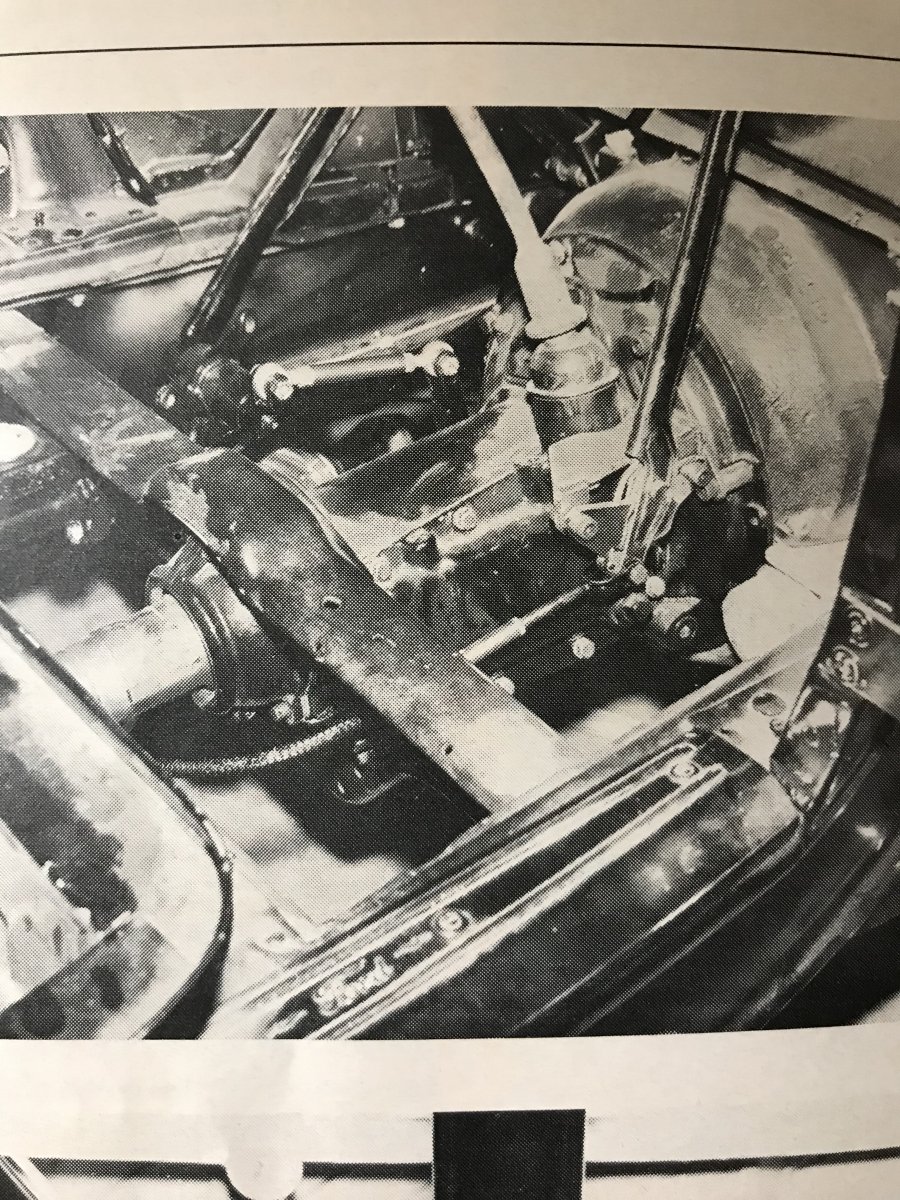

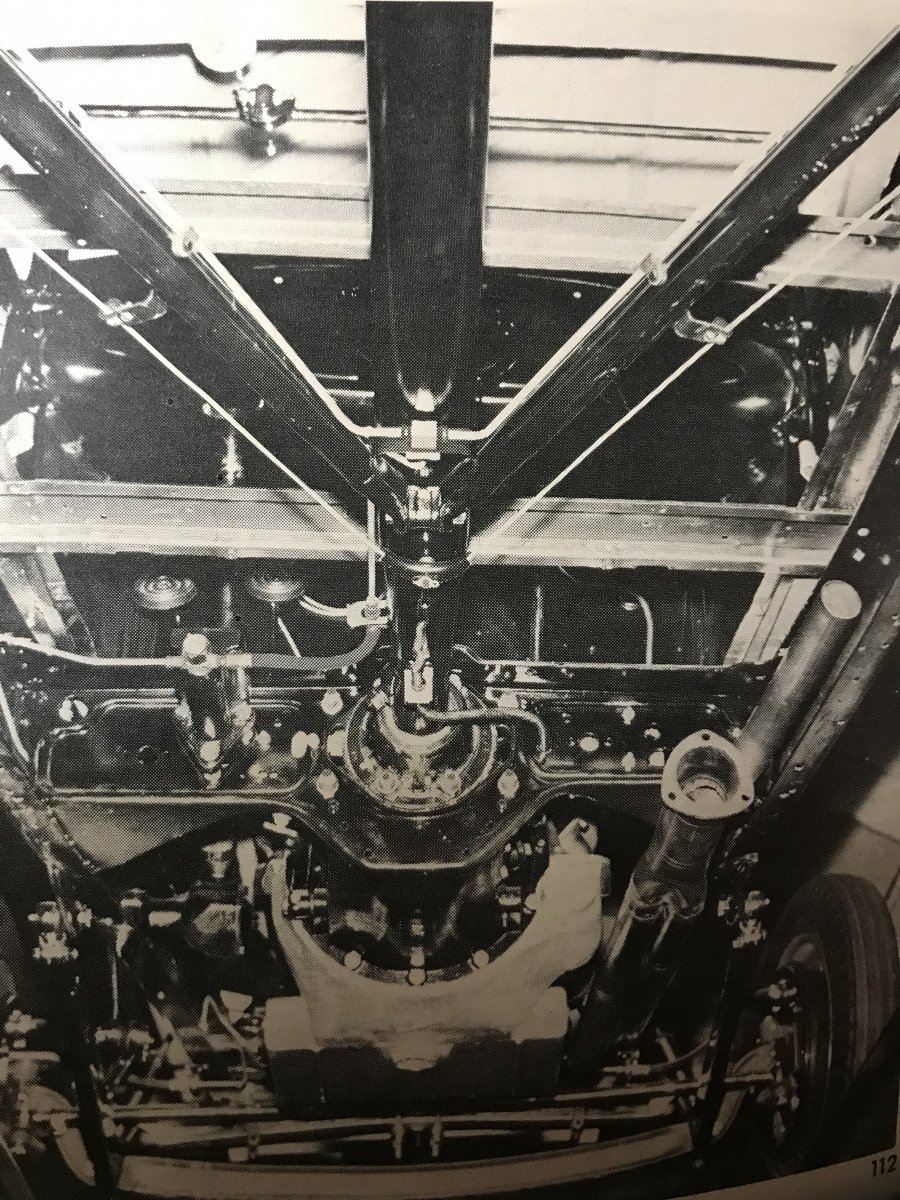

    F6B13BC7-7446-4A97-9D4F-1B52C6F06E4C.jpeg 2D30DA3D-12BC-4320-8120-99AB68765C12.jpeg 9BD9F30D-ED5A-439D-A326-3372D0218E3C.jpeg 5443D0DD-C026-4A96-B063-4AAC1E262890.jpeg 6FEC1B81-095A-4EC1-8E07-9FB5AE33D8B7.jpeg This may offer a few tips, photos are of Bud Bryan’s R&C Project ‘29. Not the best, it was the first thing that came to mind. Last photo is posted only to show rubber boot.
    BTW, the ‘32 trans cover was the only one the brake handle directly bolted to. Looks like Bud’s bracket is home brewed.

    fiftyv8 likes this.
  4. Deuce Bigalow
    Joined: Jun 23, 2018
    Posts: 10

    Deuce Bigalow

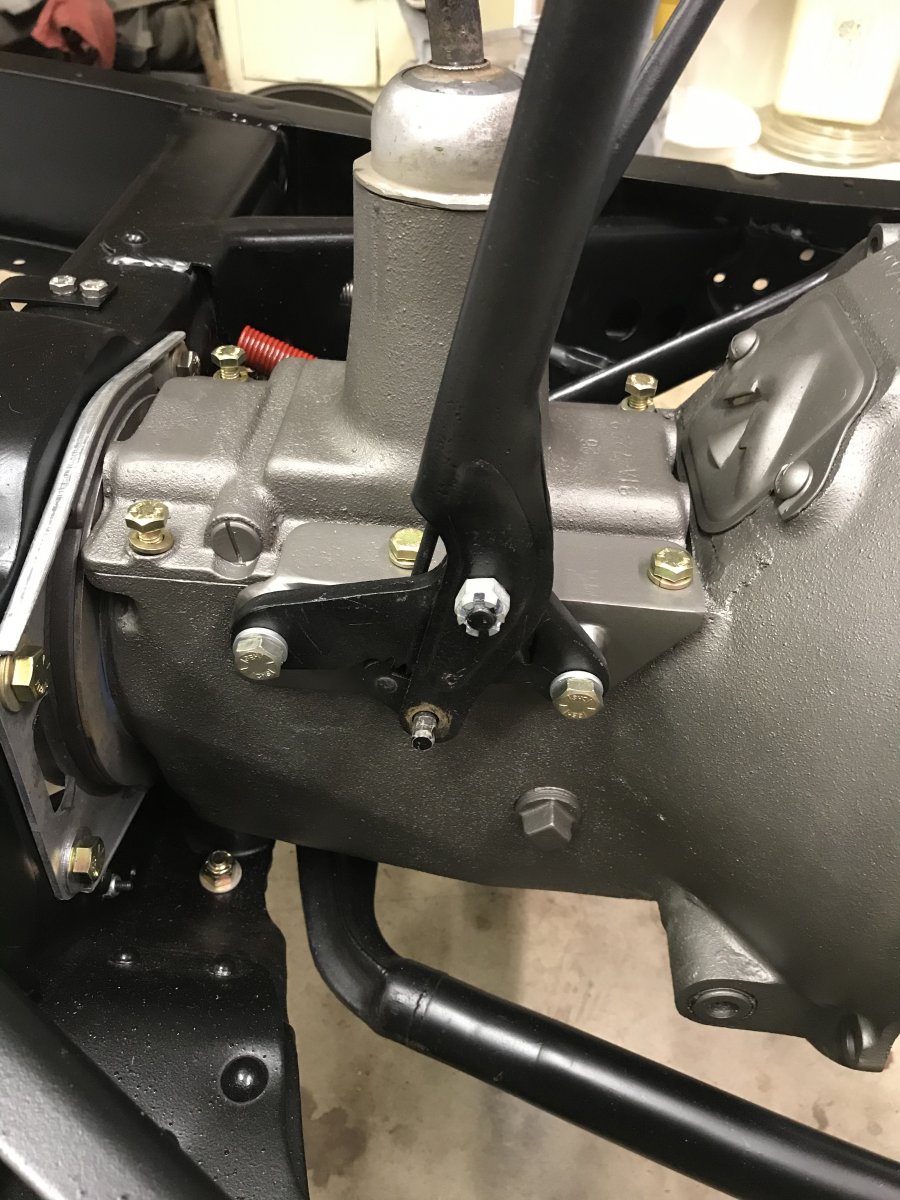

    Same here. 32 frame with original K-member and 39 tranny. I made this bracket to mount the E- brake lever. The bracket is mounted using a couple of the tranny top bolts. 4EF5745E-A271-4B40-A93B-4EC9E24D12F4.jpeg

    clem, HemiDeuce and stillrunners like this.

  5. Deuce Bigalow
    Joined: Jun 23, 2018
    Posts: 10

    Deuce Bigalow

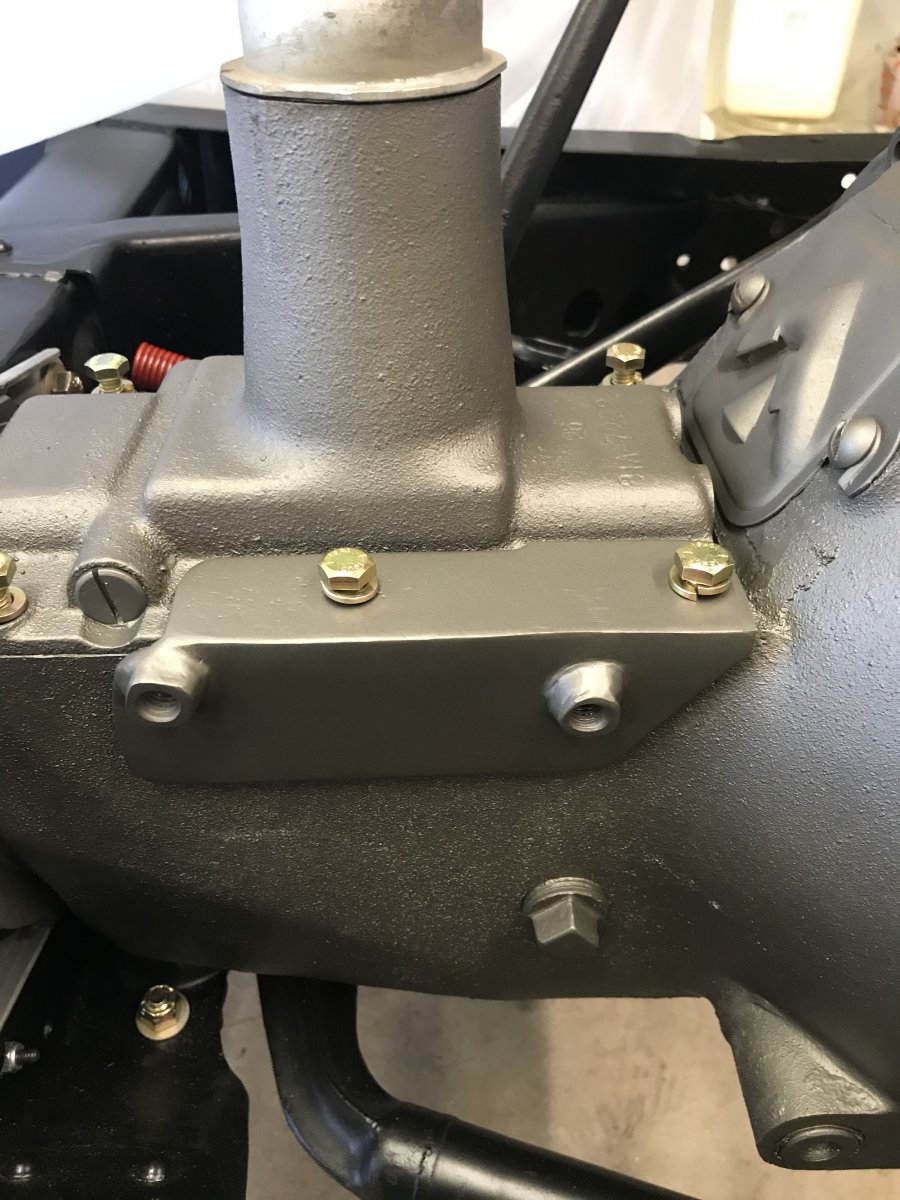

    Another pic. 46B7BAB7-D1EB-4C59-AAF4-1044123E3469.jpeg

    stillrunners likes this.
  6. terry k
    Joined: Jan 8, 2007
    Posts: 4,697

    terry k
    ALLIANCE MEMBER
    from toledo oh

    My brake handle is different at the bottom. I have 3 handles and none of the have the mounting bracket at the base like yours. Looks like it is made to bolt to the K member. Looks like the tricky part is the routing back to the driveshaft.

  7. terry k
    Joined: Jan 8, 2007
    Posts: 4,697

    terry k
    ALLIANCE MEMBER
    from toledo oh

    Is the tubing and cable available for purchase for later model cars?

  8. uncle buck
    Joined: Feb 13, 2007
    Posts: 1,635

    uncle buck
    Member

    Deuce Bigalow likes this.
  9. Deuce Bigalow
    Joined: Jun 23, 2018
    Posts: 10

    Deuce Bigalow

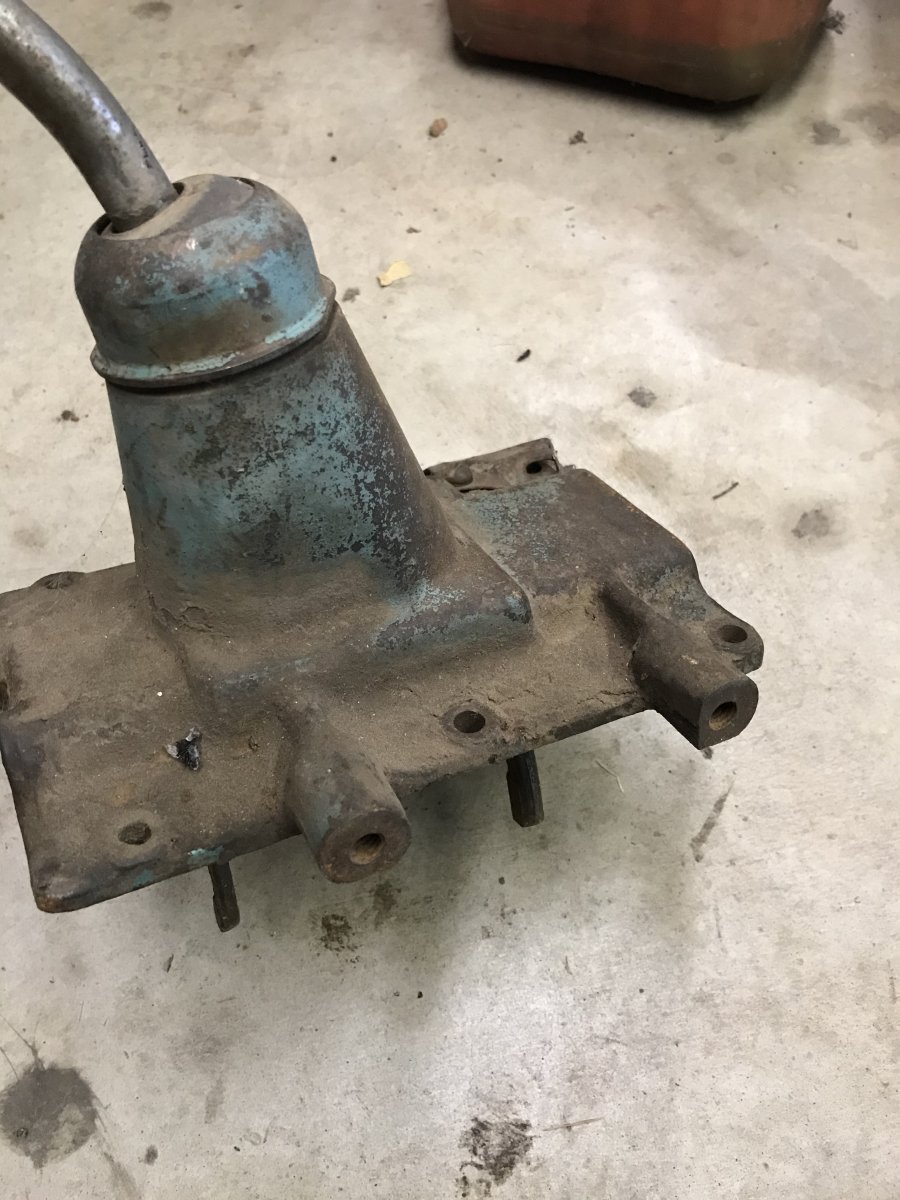

    Here’s a 32 tranny top. As you can see, it had mounting holes for the lever. 07704AFC-69E0-458F-BB64-33BAEBFF82D7.jpeg

    uncle buck likes this.
  10. thirtytwo
    Joined: Dec 19, 2003
    Posts: 2,640

    thirtytwo
    Member

    All it is is a solid Clevis rod about a foot long that goes through the slot in your trans mount and then hooks to the brake cable , the old magazine pictures above spear to be more complicated than needed you need a model a style ratchet for your brake leaver available repop for 12$ or so

    RICH B and Deuce Bigalow like this.
  11. Ralph Moore
    Joined: May 1, 2007
    Posts: 651

    Ralph Moore
    Member

  12. terry k
    Joined: Jan 8, 2007
    Posts: 4,697

    terry k
    ALLIANCE MEMBER
    from toledo oh

  13. 30yr32
    Joined: Mar 7, 2011
    Posts: 3

    30yr32
    Member
    from Michigan

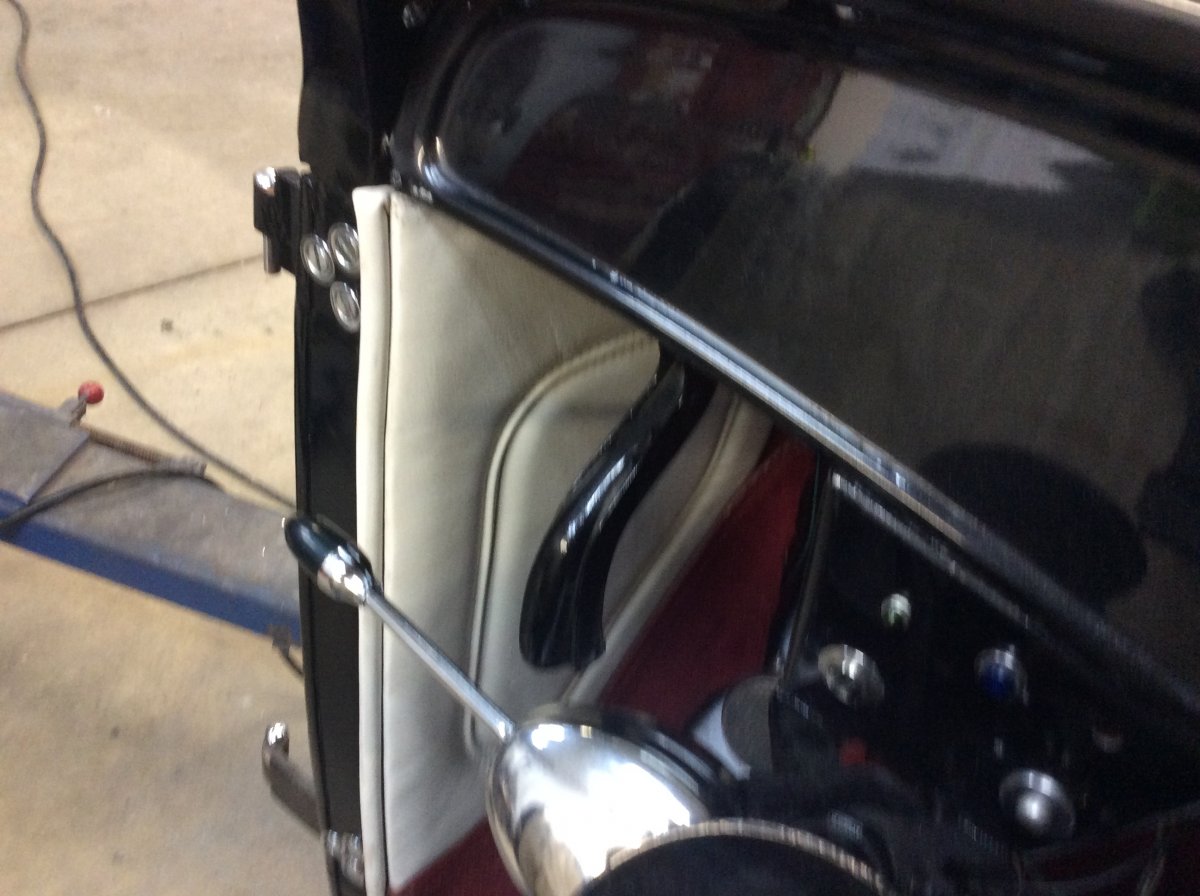

    I installed a 40 hand brake many years ago. More room for the passenger and much easier to use. FF85E7AA-73A8-4745-99C1-DD006E1CE1E5.jpeg FF85E7AA-73A8-4745-99C1-DD006E1CE1E5.jpeg

  14. How about a picture of your brake handle.

  15. Fordors
    Joined: Sep 22, 2016
    Posts: 3,460

    Fordors
    Member

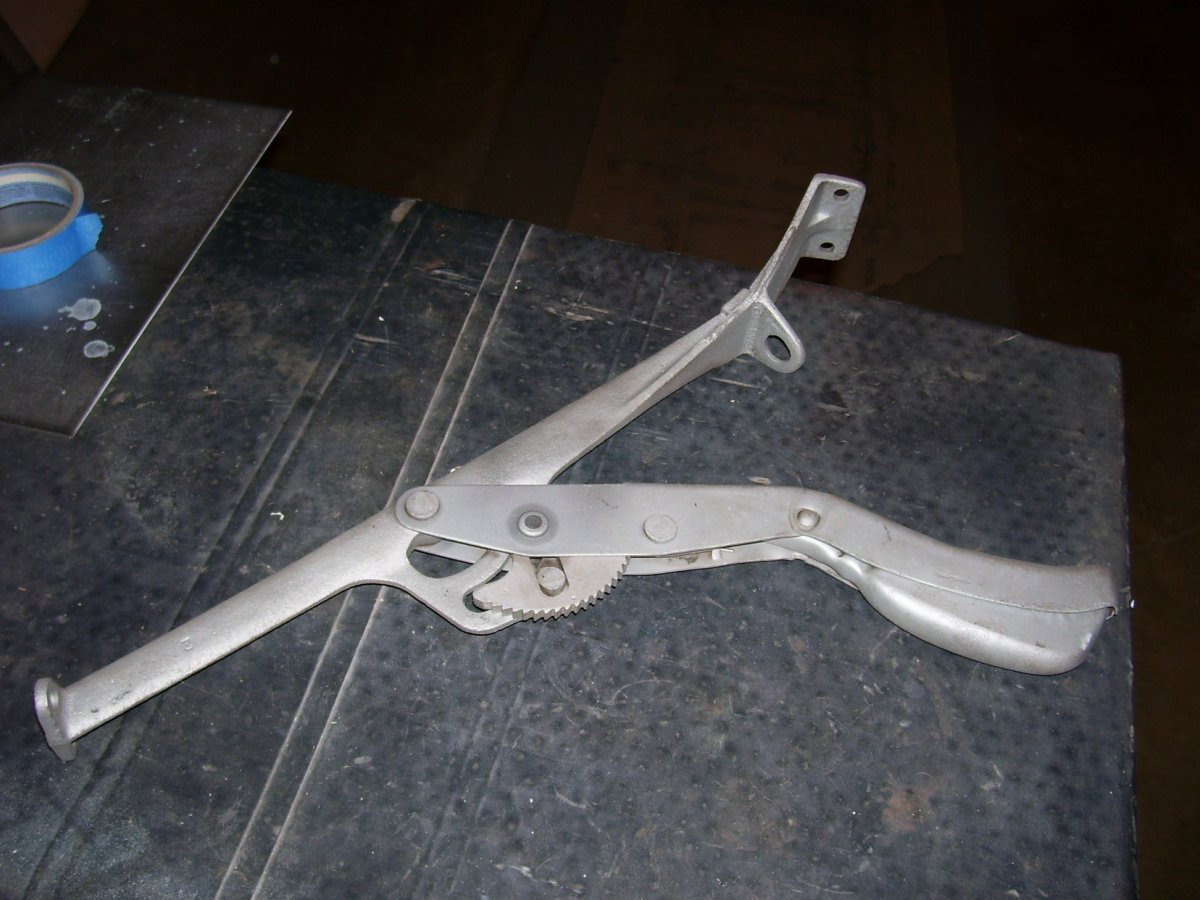

    Here’s what the above handle looks like. Squeezing it releases the ratchet and the cable is “armored “, it’s in a sheath that guides it without the need for pulleys.

  16. thunderbirdesq
    Joined: Feb 15, 2006
    Posts: 6,951

    thunderbirdesq
    Member

    32 bolts to the stock trans top, 33-34 mounts to the x member, 35-36 to the transmission mount. Whichever one you choose to adapt, the hydraulic brakes like a little more throw than the early handles provide. You can use the stock 32 brake pivot hub or make a similar functioning pivot lever to get a little more throw to the brakes.

  17. alchemy
    Joined: Sep 27, 2002
    Posts: 16,727

    alchemy
    ALLIANCE MEMBER

    Yes, when I installed my stock 32 arm on a 39 trans with my own bracket, it didn't have enough pull distance to fully operate the 40 parking brakes. I built an idler arm that pivots off the right side of the back of the K member. A solid rod runs from the bottom of the parking arm through the slot in the rear trans mount, to the idler. I used some old Ford clevises to make it adjustable. Then I used another short rod from the idler to the U clamp on the stock 40-style brake cable. Sorry I don't have any ratio info for the idler, my smarty-pants little brother figured it for me.

    thunderbirdesq likes this.
  18. thunderbirdesq
    Joined: Feb 15, 2006
    Posts: 6,951

    thunderbirdesq
    Member

    Around 3:1 seems to work well.

  19. glennpm
    Joined: Mar 29, 2015
    Posts: 39

    glennpm

    I trimmed a piece of angle iron and used two of the top 39 transmission bolts to hold it in place and then bolts and washers to mount the E-handle on the side. I hold the front of the actuating cable with a hole in my battery bracket. I used a 40 rear cable trimmed and bound with clamps using a Nico wrench. there are two lengths for a 40 cable, 122" for passenger and 107.5 for a pickup. I think I started with the longer but would check the shorter the next time.

    For the front cable< I shortened one by cutting one end off, drilled it out and then silver soldered the cut length in, resulting in 39.5" long cable.
    Glenn
    View attachment 4499144 View attachment 4499145 Front cable shortened to 39.5 long.jpg Shortened 40 rear cable 1.jpg


    Attached Files:

  20. Mine is a little different, My old Deuce has a automatic transmission and I used a aftermarket E-brake, I looked at the tall original style but since leg room is limited I opted to use the low mount E-brake to allow the passenger, ie Brenda room to move around. HRP

    [​IMG]

  21. spanglishkings
    Joined: Jan 18, 2012
    Posts: 100

    spanglishkings
    Member
    from Napa, CA

    Gene at MEC out of Ohio also sells a nice setup, using a 32 style e-brake with a 39 box.


    Sent from my iPhone using H.A.M.B.

  22. town sedan
    Joined: Aug 18, 2011
    Posts: 1,290

    town sedan
    Member

    With this later style hand brake lever does the firewall and dash need reinforcement?

    At the least I'd think the mounting ends of the brake handle would need some modification, correct?

    Anyone have any details on this type of installation?
    Thanks,
    -Dave

  23. alchemy
    Joined: Sep 27, 2002
    Posts: 16,727

    alchemy
    ALLIANCE MEMBER

    I think a 40 firewall is about as strong as a 32, but a 40 dash is probably way stronger than a 32. Definitely strengthen the dash mount end.

    town sedan likes this.
  24. terry k
    Joined: Jan 8, 2007
    Posts: 4,697

    terry k
    ALLIANCE MEMBER
    from toledo oh

    Glennpm that looks like a oem set-up you made there. Nice !

  25. IronFord
    Joined: Jul 13, 2007
    Posts: 341

    IronFord
    Member
    from NoDak

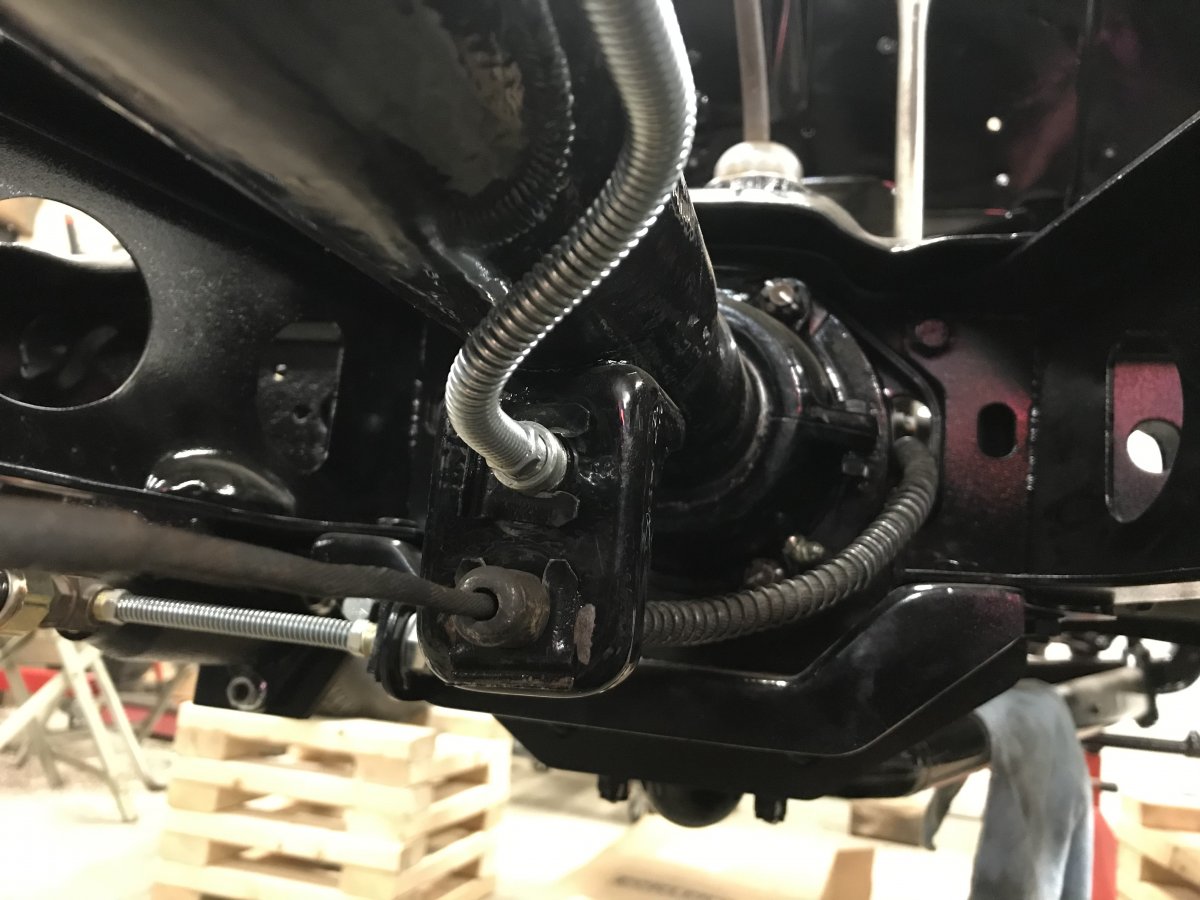

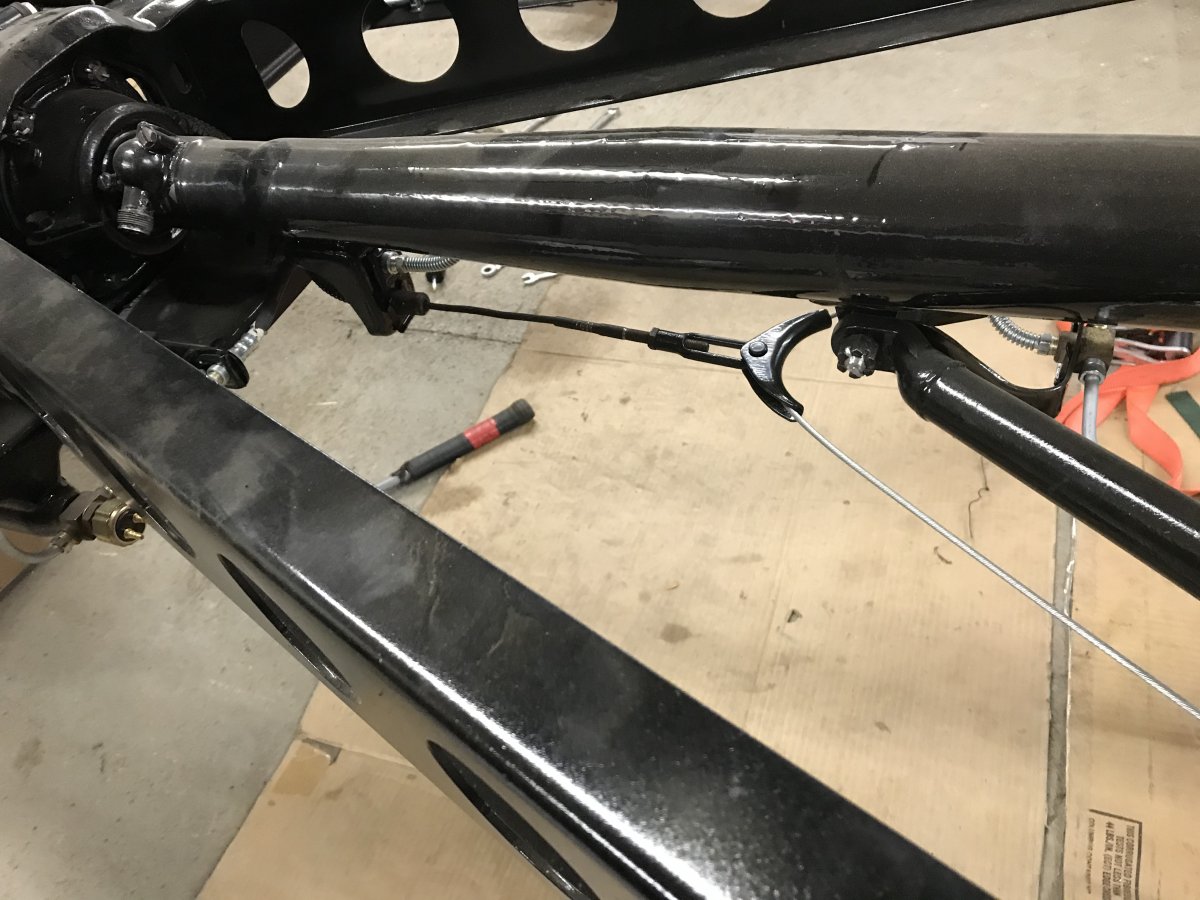

    This is how I made mine on my 32 sedan. 7460DD89-35CB-4645-9331-27C71431A0D2.jpeg 108B24EC-ACE9-47EB-9E76-72CD3CF94C66.jpeg EA61502A-05E0-490B-9C5D-0EBA1B7FEB9F.jpeg 709F93D3-FBA0-46EE-BF2A-379E7E158CD6.jpeg
