HD powered Reverse Trike

Discussion in 'The Antiquated' started by '52 F-3, Nov 19, 2019.

  1. '52 F-3
    Joined: Sep 30, 2007
    Posts: 904

    '52 F-3
    Member

    I think this build meet's Webster definition of "antiquated", BUT not sure if it's HAMB friendly or not. It'll have a lot of used Pre-60's parts and not look like an 80's Street Rod.

    Basically I started with an idea to use this 37-38 Willy axle and knuckles, and build a Ed Roth inspired trike using a Harley Davidson Panhead engine. Ended up with a great deal on a wreck with a good Twin-Cam and tranny.
    Body is being build from not matching 49 Desoto and 49'ish Chrysler front fenders,
    and hood and truck lid from a 50/51 Plymouth.
    bottom half of a 1920ish windshield
    Galaxy Tail Lights
    Galaxy tailights a.jpg
    also a 1934 chevy dash
    34 chevy dash.jpg
    using a 1959 edsel grille :)
    edsel 1.jpg
    1961 Chrysler Imperial headlights[​IMG]

    Engine/Trans etc... pulled from a wrecked Harley Davidson

    Last edited: May 14, 2020
    egads, flatheadpete and Okie Pete like this.
  2. '52 F-3
    Joined: Sep 30, 2007
    Posts: 904

    '52 F-3
    Member

    20190919_180646.jpg 20190923_050802.jpg 20191119_140549.jpg asdasdfase.jpg
    those are Falcon tail lights...

  3. Damaged1
    Joined: May 28, 2007
    Posts: 47

    Damaged1
    Member

    I love the vision of people on here. NEVER would have come up with a cool idea like this. The fenders look like they were MADE for this application.

    '52 F-3 likes this.
  4. '52 F-3
    Joined: Sep 30, 2007
    Posts: 904

    '52 F-3
    Member

    engine/trans as I got it... and after a couple weekends. 20190817_154133.jpg

    egads, Okie Pete and Speedys Garage like this.

  5. pumpman
    Joined: Dec 6, 2010
    Posts: 2,672

    pumpman
    ALLIANCE MEMBER

    Gonna watch this one for sure.

    '52 F-3 likes this.
  6. '52 F-3
    Joined: Sep 30, 2007
    Posts: 904

    '52 F-3
    Member

    so I couldn't decide between one seat or two, I thought a single seat would sit higher than looked "correct" with a steering wheel, so motorcycle handle bars would need to be used. But i really wanted to use this this steering column etc... from a Econoline.
    steering wheel.jpg
    also I converted (oblong holes) pattern from the willys 4 on 4"(101.6) to a metric wheel pattern of 4x100mm because. 3 reasons, I found some VW rotors and these wheels at a good deal.
    1 issue was they are too wide so remove 4" of back spacing. Other issue is they are billet, not sure what to do about that yet... the big ass weld bead helps some
    centerline wheels.jpg

    Last edited: Nov 20, 2019
    Ron Funkhouser, egads and Okie Pete like this.
  7. '52 F-3
    Joined: Sep 30, 2007
    Posts: 904

    '52 F-3
    Member

    was going to widen and extend Harley swingarm but couldn't find an affordable wide wheel. Ended up buying this Hayabusa swingarm and wheel.
    Widened it 2", welded in some 6" extenders and made a 3/4" spacer for the extra large sprocket to keep chain off the tire...

    Last edited: Jan 2, 2020
  8. '52 F-3
    Joined: Sep 30, 2007
    Posts: 904

    '52 F-3
    Member

    mounted the 16" truck tire and continue working on 1x2 frame.
    20190925_050731.jpg 20190929_085157.jpg

  9. pumpman
    Joined: Dec 6, 2010
    Posts: 2,672

    pumpman
    ALLIANCE MEMBER

    Out of my wheel house but really dig it.

    '52 F-3 likes this.
  10. '52 F-3
    Joined: Sep 30, 2007
    Posts: 904

    '52 F-3
    Member

    Frame structure done, reused Harley Davidson rear shocks/springs and upper mounts. Also front suspension with F-350 sway bar mostly complete.

    20191014_124747.jpg 20191023_123016.jpg

    Ron Funkhouser, Okie Pete and egads like this.
  11. '52 F-3
    Joined: Sep 30, 2007
    Posts: 904

    '52 F-3
    Member

    Used 38 dodge upper shock mounts, look similar to F-1's (not as tall) and decided to got with a rack n pinion from a 70/71 pinto.... after cleaning up the axle, leaf springs, control arms mount brackets I'm considering Nickle plating similar to some of my Pea Green parts.

    If anyone sees issues or possible problems (especially with from front suspension) please comment, i'm kind of making this one up as I go.

    1938 dodge pilot house shocks.jpg rackpinion.jpg

    Last edited: Nov 23, 2019
    Okie Pete and egads like this.
  12. '52 F-3
    Joined: Sep 30, 2007
    Posts: 904

    '52 F-3
    Member

    worked on rear a little this morning, still trying to figure out inner fender wheel area...

    20191118_075338.jpg 20191118_084031.jpg rearrrr.jpg rearrrrrrrr.jpg

    Last edited: Jan 5, 2020
  13. '52 F-3
    Joined: Sep 30, 2007
    Posts: 904

    '52 F-3
    Member

    Got some actual new sheet metal from a friend, thanks Mike. Was even pre-rolled with Rex's approval. Plan to use for tunnel, inner fenders etc...

    rolled sheet.jpg

    Ron Funkhouser and Okie Pete like this.
  14. SnakePlissken69
    Joined: Oct 24, 2019
    Posts: 56

    SnakePlissken69

    Man I wish I had your skill, imagination and money! That thing is coming together awesome. Def bookmarking this thread!

    '52 F-3 likes this.
  15. '52 F-3
    Joined: Sep 30, 2007
    Posts: 904

    '52 F-3
    Member

    my imagination in much better than my skills or money, but i'm getting better...

    inner 2.jpg inner 1.jpg inner 4.jpg
    next is behind seats and tunnel...

    inner 5.jpg

  16. pumpman
    Joined: Dec 6, 2010
    Posts: 2,672

    pumpman
    ALLIANCE MEMBER

    This is really turning out great!

    '52 F-3 likes this.
  17. Lloyd's paint & glass
    Joined: Nov 16, 2019
    Posts: 2,664

    Lloyd's paint & glass
    ALLIANCE MEMBER

    Man that thing is so awesome! :D

    '52 F-3 likes this.
  18. Cool. Subscribed.

    '52 F-3 likes this.
  19. Man you really have the creative vision. Still watching Pea Green....


    Walt
    Outsiders CC

    '52 F-3 likes this.
  20. '52 F-3
    Joined: Sep 30, 2007
    Posts: 904

    '52 F-3
    Member

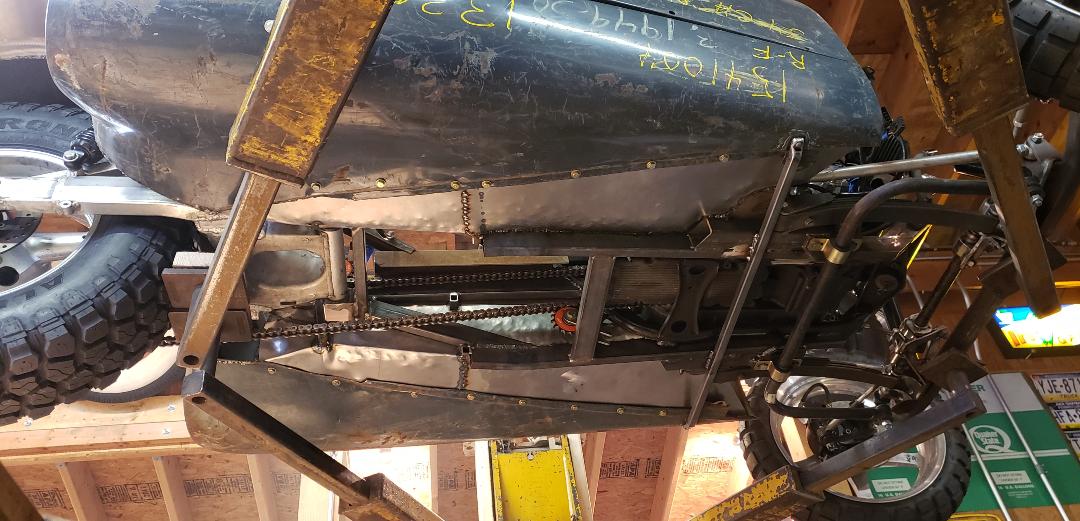

    Nothing exciting going on, using 16 gauge for the inner floors (pretty ugly, trying to use every inch, leg room is going to be minimal. Plan to mount the idler sprockets tomorrow and build a "chain guard/cover"...
    also using seats from a transit van.
    trike 4.jpg

    Last edited: Dec 6, 2019
  21. '52 F-3
    Joined: Sep 30, 2007
    Posts: 904

    '52 F-3
    Member

    thinking about exhaust... have 3 ideas, none
    are good :(

    bolts are so I can remove body to paint.....

    Ron Funkhouser and Okie Pete like this.
  22. dirt t
    Joined: Mar 20, 2007
    Posts: 4,667

    dirt t
    ALLIANCE MEMBER
    from Kingman,AZ
    1. HAMB Old Farts' Club

    I'm not a cycle guy, I love your vision.

  23. '52 F-3
    Joined: Sep 30, 2007
    Posts: 904

    '52 F-3
    Member

    Worked on the structure up front a little bit. the 3/4 x 3/4 square tube I'm using bends pretty nice if you go slow.

    1219a.jpg 1219b.jpg

  24. '52 F-3
    Joined: Sep 30, 2007
    Posts: 904

    '52 F-3
    Member

    1/2 the firewall done and thinking about grill/headlight ideas...

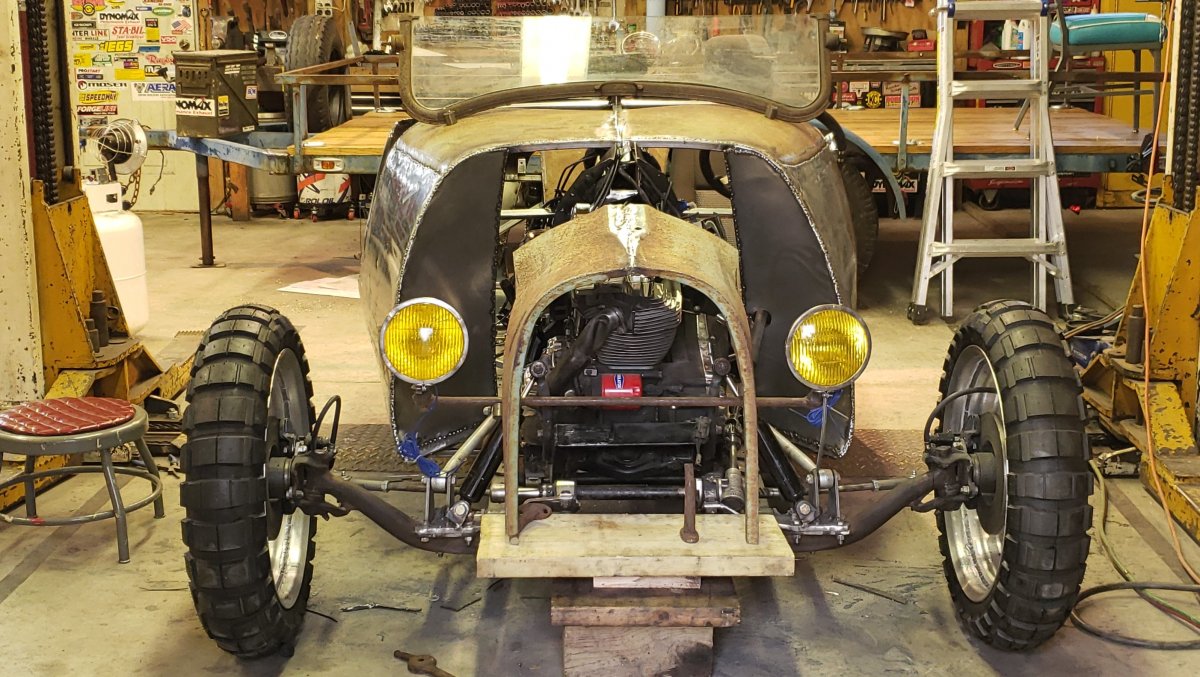

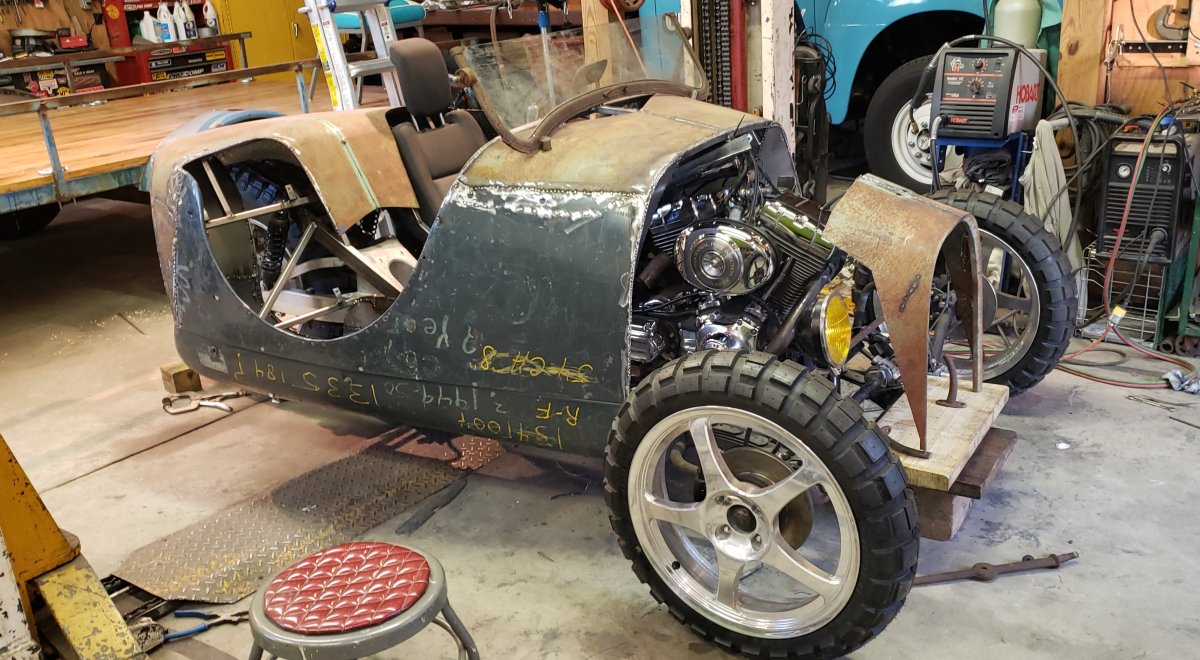

    firewall 2.jpg firewall 3.jpg firewall 4.jpg

  25. dirt t
    Joined: Mar 20, 2007
    Posts: 4,667

    dirt t
    ALLIANCE MEMBER
    from Kingman,AZ
    1. HAMB Old Farts' Club

    Thank's for sharing.

  26. woodbutcher
    Joined: Apr 25, 2012
    Posts: 3,199

    woodbutcher
    Member

    :D Looks like things are coming along just fine.I`ll saddle up and go along for the ride.
    Good luck.Have fun.Be safe.
    Leo

  27. '52 F-3
    Joined: Sep 30, 2007
    Posts: 904

    '52 F-3
    Member

    Made some mounts for unknown windshield frame and then redid cowl to match. still thinking about grill and shell, just not liking it....
    20191229_105904.jpg 20191229_111524.jpg 20191229_105853.jpg

    Last edited: Dec 29, 2019
    Ron Funkhouser and Okie Pete like this.
  28. '52 F-3
    Joined: Sep 30, 2007
    Posts: 904

    '52 F-3
    Member

    haven't been happy with grill progress, so started placement of gas tank and it won't fit were I planned even with major modifications. So set it all aside and decided to try to make some front fenders.

    have been saving the left and right side of trunk lid for this, rolled some 1/4" round rod and made a wooden "die" to assist forming. Might end up a hot mess, but "I have a plan".....

    fenders 1.jpg

    Okie Pete and S10_Man like this.
  29. Cliff Ramsdell
    Joined: Dec 27, 2004
    Posts: 1,237

    Cliff Ramsdell
    Member

    Drag pipes straight up? Maybe a slip in baffle for good measure? ;)

    Cliff Ramsdell

  30. Cliff Ramsdell
    Joined: Dec 27, 2004
    Posts: 1,237

    Cliff Ramsdell
    Member

    How about an Edsel horse collar grill? Just a thought. I’m not a photoshop guy.

    Cliff Ramsdell

    Okie Pete and '52 F-3 like this.
