    Im interested to know if you guys have any more modifications. I modified my hoist because i hate the bending over and the constant removing of the bar from the jack to the release valve. I didnt find much on the search.



  2. I have a modification I am looking at, which is taking a pie cut out of the fold-down legs, so that they are not spread out as far. This lets you go further in when you are coming from the front, over the grille. In the stock configuration, the top of the extensions usually get caught under the lower control arms, and you have little (or none) sideways movement available.
    The control valve mod is a good one, the removal/insertion of the handle is a PITA.
    I also have made another extension to the lifting arm, which is a longer piece of 50X50mm(which fits down where the black one normaly goes). Of course the weight it can handle is a lot less, but can be handy if you have to replace a too-heavy for one bloke job (like a Buick straight 8 head into a car.)

  3. I wouldn't want the legs any closer in. Much prefer to just have the car up higher. They need that spread for stability. Especially for sudden movements, like rolling a big engine around and having one wheel suddenly get stuck.

    zzford, Hnstray, BigChief and 2 others like this.
  4. I put a knob on the cylinder valve,,,and replaced the wiggeley front casters with wheels from a pallet jack.
    I have also used a smaller tube to get more reach.

    alanp561 and Atwater Mike like this.

  5. 283john
    Joined: Nov 17, 2008
    Posts: 787

    283john
    Member

    frame off.jpg I have a wooden frame I made that fits on the end of mine that has made it a drywall jack for ceilings and has been put through the windows of a truck cab to lift it from the frame.

    Last edited: Jan 31, 2019
    alanp561, fauj, indyjps and 1 other person like this.
  6. SASROD
    Joined: Feb 7, 2007
    Posts: 121

    SASROD
    Member

    It is a pain opening and closing the valve, especially when your working alone, but make sure you don't accidently flip that lever while your shoving the hoist under the car, could get ugly.

  7. flatheadpete
    Joined: Oct 29, 2003
    Posts: 9,829

    flatheadpete
    Member
    from Burton, MI

    That valve lever is genius.

    bobss396 and Bandit Billy like this.
  8. I added the HF air assist ram to mine, when the ram that came with it was leaking like a sieve. Works great and you still have the pump handle for small adjustments.

  9. Fatbrosracing
    Joined: Jun 23, 2009
    Posts: 237

    Fatbrosracing
    Member
    from Australia

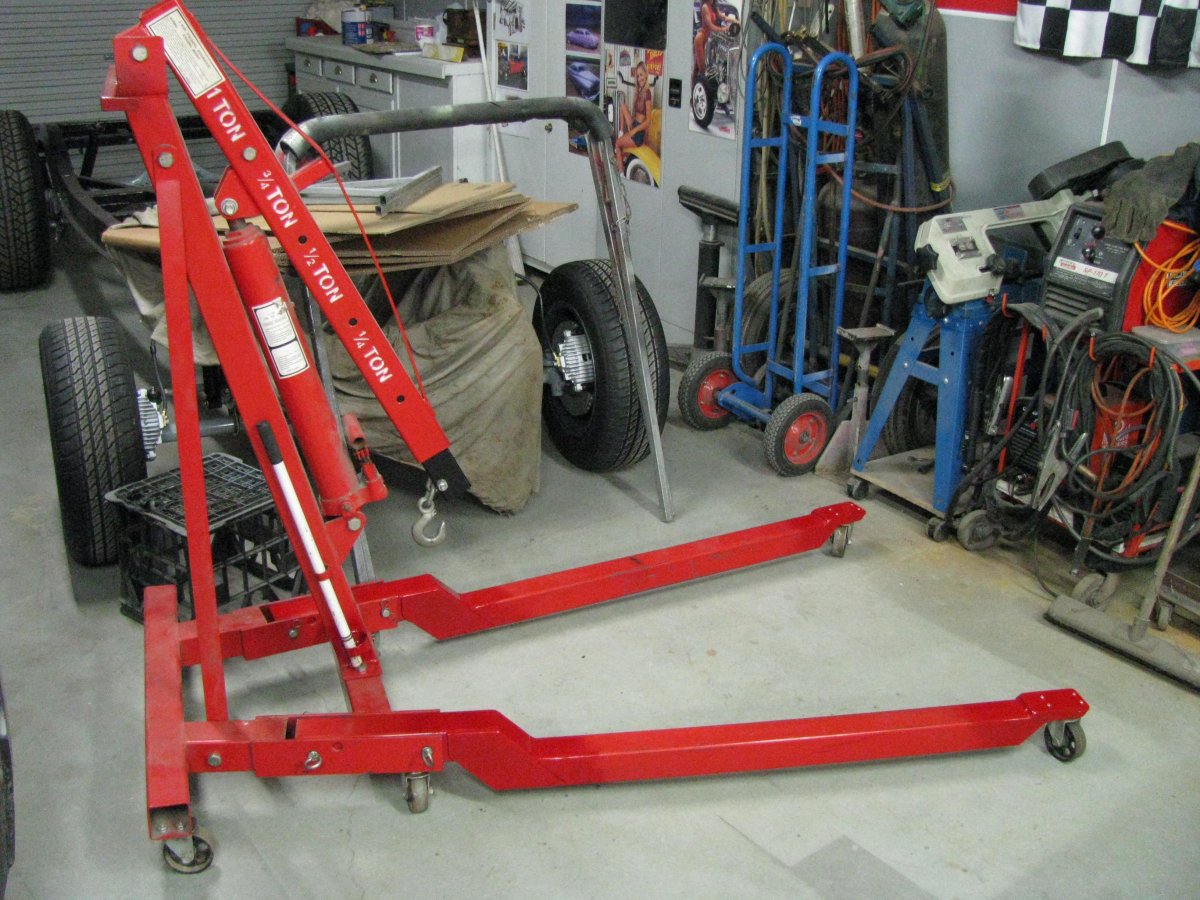

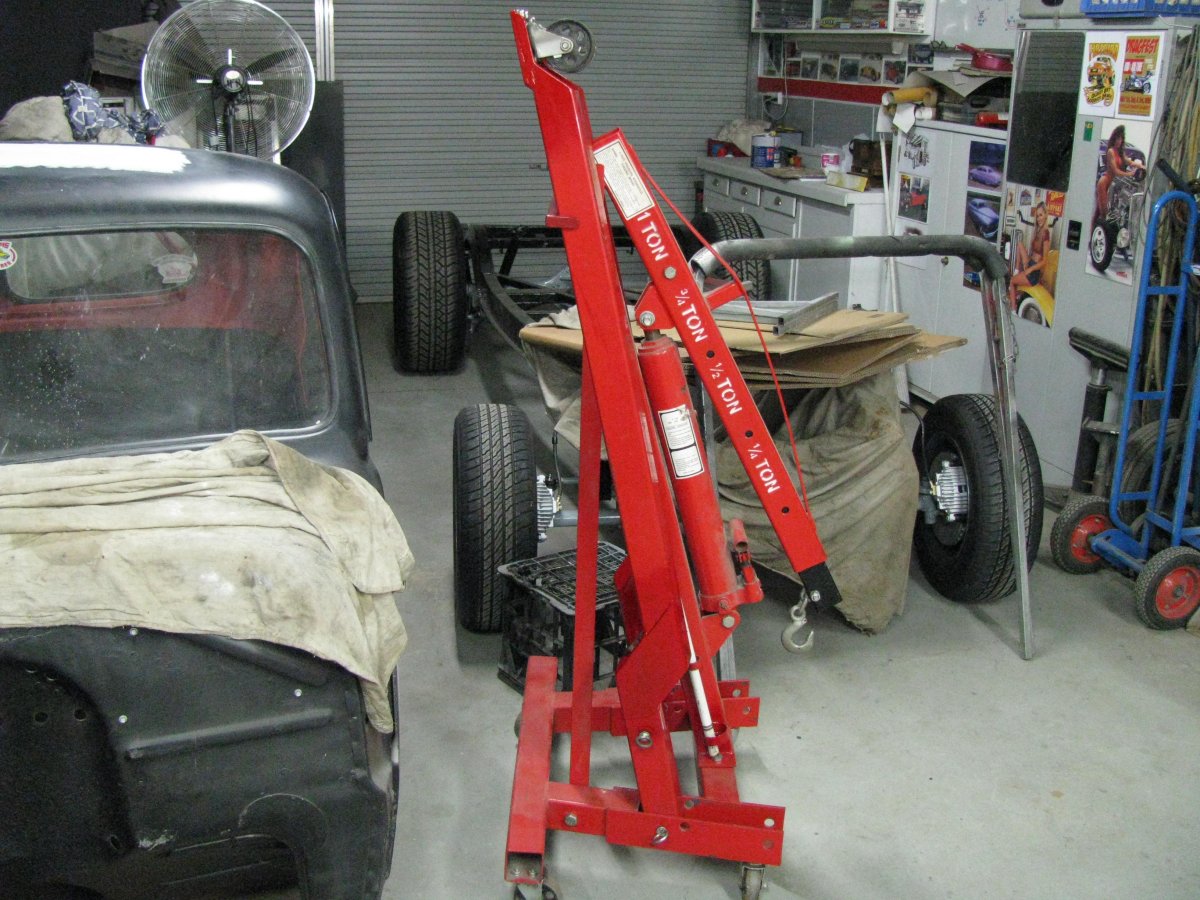

    I have a bar across at the top for the legs to rest against, doubles as a great way to steer when in use. The best " adjustment " I've done is the lowrider mod to the legs. IMG_6675.JPG IMG_6676.JPG

  10. GordonC
    Joined: Mar 6, 2006
    Posts: 2,045

    GordonC
    ALLIANCE MEMBER

    Having just dropped a 5.0 Ford motor from a good height because the hoist tipped over I wouldn't want the legs any closer together either! They aren't all that stable to start with and certainly not with an engine high enough to get it out of a car. Mine ran off the concrete on one side and one of the wheels sunk in the dirt and over it went! Nothing I could do. Motor landed on the oil mount boss cracked it and ruined the block.

    Fatbrosracing those lowrider legs are awesome! I might have to steal that idea!

    zzford likes this.
  11. saltflats
    Joined: Aug 14, 2007
    Posts: 10,239

    saltflats
    Member
    from Missouri

    All I have done is put one or two junk big block head on the jack end for ballast.

    48fordnut likes this.
  12. Mr48chev
    Joined: Dec 28, 2007
    Posts: 27,352

    Mr48chev
    ALLIANCE MEMBER

    I've been wanting to put a crossbar/handle on mine to catch the legs and aid in moving it around every time I use it or move it. I'd agree on not wanting the legs closer. they get wobbly enough.
    I'm another guy who uses his engine hoist in place of straining the back I have even pulled a broken fence post out of the ground with mine.

    48fordnut and 49ratfink like this.
  13. Yep, I'm stealing that idea too.... Brilliant!

    kbgreen likes this.
  14. 49ratfink
    Joined: Feb 8, 2004
    Posts: 17,803

    49ratfink
    Member
    from California

    X 2 on the crossbar / handle for moving it around. put one on mine, I don't know why they do not come with one. the lowrider legs are a great idea.

    63galaxie406, seb fontana and fauj like this.
  15. flatheadpete
    Joined: Oct 29, 2003
    Posts: 9,829

    flatheadpete
    Member
    from Burton, MI

    Wonder how many guys are gonna cut up their engine hoists this weekend...I know I am!!

    Morrisman likes this.
  16. I'd flip that lever the other way, so pulling the lever into the open releases it.
    But that's pretty good set up.

    The low rider legs is great.

    Hnstray, wraymen and bustadrodz like this.
  17. My old hoist had straight wheels up front, non caster style.
    It was way better. Way way better the the swivelly kill you things

    This would also work with the low rider legs.

  18. I got sick of fighting with those, and built one of these. It breaks down for storage.
    32 Hemi Instalation 025.jpg

    BigChief, alanp561, Deuces and 2 others like this.
  19. 340HilbornDuster
    Joined: Nov 14, 2011
    Posts: 1,911

    340HilbornDuster
    ALLIANCE MEMBER

    Fat Bros...
    I Like the Low Rider Mod...(Did you weld the extensions to the base legs?..don't see any holes.)
    &...the Top Bar (Mo bettah than bungee cords!)..
    May have to steal those ideas...

    seb fontana likes this.
  20. statesblue
    Joined: Mar 5, 2008
    Posts: 262

    statesblue
    Member
    from Luzerne Pa

    I LIKE IT. Now I know what my next project will be.

    seb fontana likes this.
  21. Morrisman
    Joined: Dec 9, 2003
    Posts: 1,600

    Morrisman
    Member
    from England

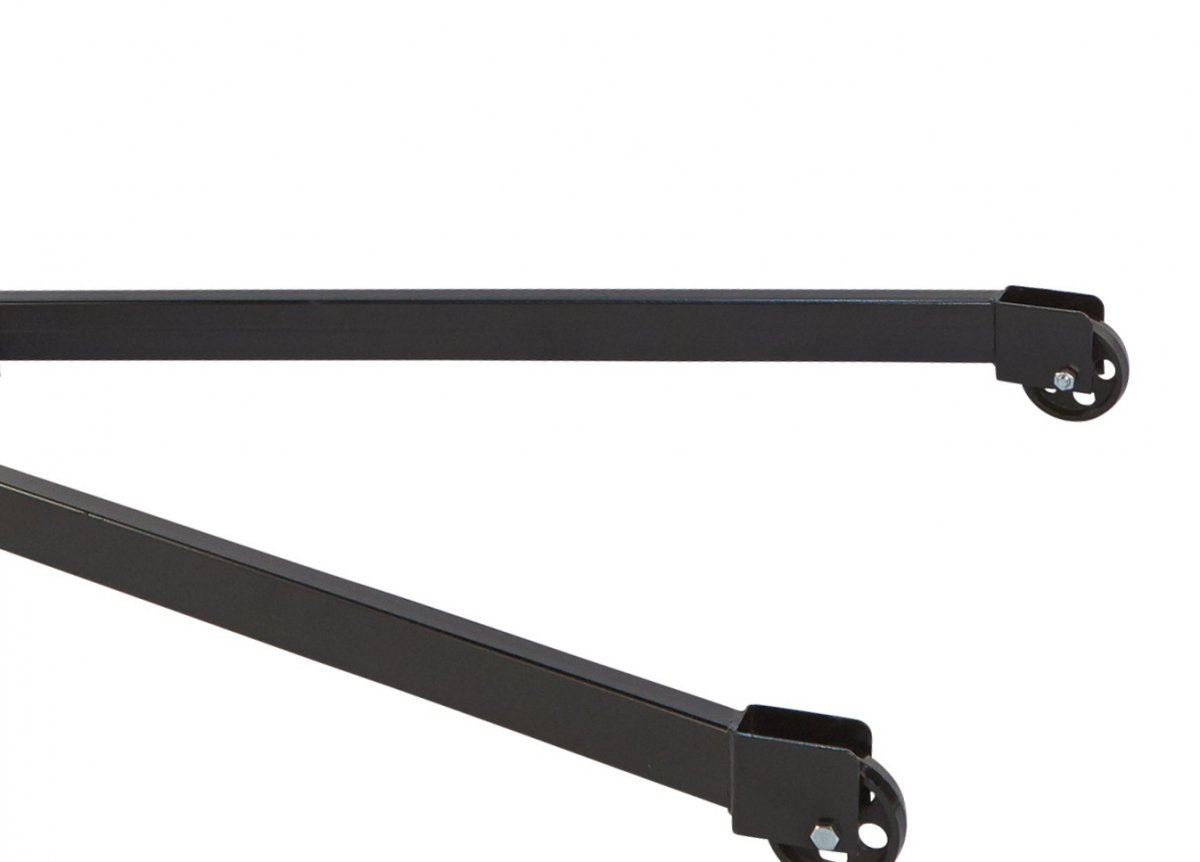

    My wheels look similar to this, but I re-drilled the spindle holes an inch and a half higher, so the arms were a lot lower to the floor, so it would fit under the car better. Lowrider. :cool:

    Hnstray likes this.
  22. Kan Kustom
    Joined: Jul 20, 2009
    Posts: 2,620

    Kan Kustom
    Member

    I have never thought about anything but using mine as is. Some cool ideas you guys have came up with here..

  23. JOECOOL
    Joined: Jan 13, 2004
    Posts: 2,757

    JOECOOL
    Member

    I welded a pipe on the upright on mine ,used it for an engine stand then . I did it to save shop space , used it once , sold it then,

  24. BamaMav
    Joined: Jun 19, 2011
    Posts: 4,342

    BamaMav
    Member
    from Berry, AL

    Mine came with a cross handle on the upright, makes it easy to move around. I have added a piece of 4"x4" box tubing on mine right now for a boom extension, the Lincoln engine bay is so long I can't sit my engine back where it needs to go with the factory boom. I sit the engine in the car with the factory boom and let it rest on the cross member, then I put the square tubing extension on and pick up the engine and sit it back the rest of the way. Can't get very high with it because the extension is out past the legs, just high enough to clear the mounts.

  25. bobbytnm
    Joined: Dec 16, 2008
    Posts: 1,367

    bobbytnm
    Member

    Mine came with the upper crossbar. It helps a lot for steering the thing around.
    My next chore with mine is to partially disassemble it. I want to unbolt the boom assy from the base and hang the whole mess on the wall. It would sure safe some precious floor space.

  26. flatheadpete
    Joined: Oct 29, 2003
    Posts: 9,829

    flatheadpete
    Member
    from Burton, MI

    Any more mods you guys are doing?

  27. Fatbrosracing
    Joined: Jun 23, 2009
    Posts: 237

    Fatbrosracing
    Member
    from Australia

    I cut and welded the original legs, any shortening was offset by the front wheel mounts. Feel free to use the ideas, that's what this is all about isn't it? IMG_2785.jpg

  28. Third DodgeBrother
    Joined: Apr 18, 2009
    Posts: 187

    Third DodgeBrother
    Member

    I've still got one of these I built thirty years ago. Used 2 x 6 tube for the top, made it easier to build a trolley for a chainfall. My kids thought for years that it was their swingset!

    RICH B likes this.
  29. MrMike
    Joined: May 21, 2010
    Posts: 137

    MrMike
    ALLIANCE MEMBER

    I have not done it yet but plan to mount a small worm gear winch to the boom to allow lowering an engine even more than lowering the boom will allow before hitting the fenders, front sheet metal.

  30. winduptoy
    Joined: Feb 19, 2013
    Posts: 2,089

    winduptoy
    ALLIANCE MEMBER

    I'd have made my garage door taller
