Default **Tech: Build your own 32 frame rails**

This project started with a bunch of 30-31 coupe body parts that were pretty rough. I didnít want to spend any money on a frame of any kind because it was doubtful that the body could be assembled.
So since I have more time than money, I decided to fab my own 32 rails.
Back a quite a few years ago, you couldnít get stamped repop rails. Pro rod builders used to build them something like this and some still do. It gives you lots of options for body contour and rear cross member kick-up. These rails will follow the 30-31 Model A body contour.





I start with a print downloaded from Westcottís web site. Then I blew it up to full size in MS Publisher and printed it. I then taped all 16 pages together for a full size print. The lines were a little thick so I just flipped it over and refined them on the back side. I modified it a little to suit my needs. You need to subtract the thickness of the top and bottom frame pieces and also for your plasma tip. Transfer the contour onto some cheap luan underlayment and cut it for a plasma pattern.





To make the top profile, I drew a centerline on the garage floor and put the floor, cowl and front cross member in place using the dimensions on the print.



I then traced the contour onto luan underlayment and cut it. This pattern stops short of the rear axle. The frame is straight back there and it will be easier to add that section later.



Take both patterns and lay them together with the rear axle marks in line. Make a mark somewhere midway to help locate the top to the side when you tack it together.



I pieced together some .125 cold roll so cutting would be minimized. These short ends are scrapped where I work so I grabbed quite a few. The free steel was a big factor in starting this project.



I happened to have this long table left over from a canoe I built but any long platform will get you off the floor.



Leave a slight gap and chamfer both pieces on both sides.



FinallyÖready to fire up the plasma.



Youíll need to make 4 of these.



I put these cuts in to help align the top with the side and also to square the frame when the cross members are installed.



To make that purdy reveal, we need to cut the 2 pieces that will be the outside. Itís cut just ahead of the line on the print.







Make a cut about 3 inches up from the bottom at the rear of the reveal about an inch behind the line on the print.



I made a form to hammer the reveal line into the rail. Itís made out of 1 Ĺ inch square tubing .125 thick. The pattern is made from the print.



offline   Reply With Quote
Old 10-05-2008, 10:47 AM   #2
flthd31
Grenade Inspector

flthd31's Avatar

Join Date: Aug 2007
Location: NW Pennsylvania
Posts: 328
Default Re: **Tech: Build your own 32 frame rails**



Align the form with clamps and tack weld to keep it from moving.



I also bolted them together at the rear.





Clamp the whole thing to a work bench and start pounding the edge down using a template and straight edge as guides. IMPORTANT NOTE: Remember to make a right and left by bending the edge in opposite directions. Take your time and donít try to bend it all in one pass.









Align the rear cut, weld and finish grind.











Weld the pieces back together using the template as a guide.





Grind smooth.





I made mine a little oversize so I could trim off some of the hammer marks.



offline   Reply With Quote
Old 10-05-2008, 10:48 AM   #3
flthd31
Grenade Inspector

flthd31's Avatar

Join Date: Aug 2007
Location: NW Pennsylvania
Posts: 328
Default Re: **Tech: Build your own 32 frame rails**



Now for the top and bottom. Same as the sides.













Now letís put it together. I cut some scrap wood to help hold things a little. They donít have to be too perfect because itís the top and bottom pieces that give the frame its shape as you tack it together.



I tacked a piece of tubing on the front of the rail to keep it straight.



Tack both the top and bottom. The front will be too long and the back will be added later.



Next, I trimmed the top and bottom inside edge with the template clamped to it.





Square everything up.





Tack in the insides. I cut them into 2 pieces for easier alignment.





Donít force anything too much, It should fit pretty good.



Now I finished up the front. Just hammer it around while tacking.



offline   Reply With Quote
Sponsored Links (Register now to hide all advertisements)
Old 10-05-2008, 10:49 AM   #4
flthd31
Grenade Inspector

flthd31's Avatar

Join Date: Aug 2007
Location: NW Pennsylvania
Posts: 328
Default Re: **Tech: Build your own 32 frame rails**



Use up some of that scrap to finish up the bottom and top









Finish the top rear the same way





Weld everything up except where the xís are marked. Take your time and skip around a lot. Do a few welds on a side and rotate. I like to position the weld joint so the ĒVĒ is straight down (in the trough).





All done, now get out the grinder.







I tapered the horns on the inside edge using a scrap piece of metal as a guide to cut out a wedge.









There you have it. A pair of 32 rails pinched, kicked and boxed all in one. The main thing here is to end up with both rails the same.
I eventually got the cross members welded in.







The frame fits the body perfectly. It sits right up inside the body subrails to give it a slight channel.



Oh, and don't worry, that grill shell will get dropped a couple of inches.
offline   Reply With Quote
Old 10-05-2008, 10:57 AM   #5
flamedabone
Alliance Member

flamedabone's Avatar

Join Date: Aug 2001
Location: Drinkin' beer and building hot rods in S. Carolina.
Posts: 3,315
Default Re: **Tech: Build your own 32 frame rails**

Holy shit man. That is some fine fabricating.

-Abone.
__________________
Former two time HAMB Drags Yay-Hoo cup title holder.
offline   Reply With Quote
Old 10-05-2008, 10:57 AM   #6
-Brent-
Old School HAMBer

-Brent-'s Avatar

Join Date: Nov 2006
Location: Salt Lake City
Posts: 4,153
Default Re: **Tech: Build your own 32 frame rails**

Welcome to the H.A.M.B! Your fabrication and quality is astounding!
__________________
Pre-war 1920 Model T build Reassembly has begun!

WANTED:
- 1933/34 Drive Shaft and Torque Tube
online   Reply With Quote
Old 10-05-2008, 11:00 AM   #7
BCR
Senior Member

BCR's Avatar

Join Date: Dec 2005
Location: Riga, Kansas
Posts: 1,269
Default Re: **Tech: Build your own 32 frame rails**

Wow, very nice job.
offline   Reply With Quote
Old 10-05-2008, 11:03 AM   #8
NealinCA
Alliance Member

NealinCA's Avatar

Join Date: Dec 2001
Location: Atascadero, Calif., USA
Posts: 2,772
Default Re: **Tech: Build your own 32 frame rails**

Very nice work...and a great tech piece.

Neal
__________________
I like old Fords built with old Ford parts...

Project pics: http://instagram.com/nealinca
offline   Reply With Quote
Old 10-05-2008, 11:08 AM   #9
Chris Casny
Old School HAMBer

Chris Casny's Avatar

Join Date: Mar 2006
Location: Los Angeles/Austin
Posts: 4,588
Default Re: **Tech: Build your own 32 frame rails**

Wow, superhero, simply the best of the best right there.
__________________
Be humble and appreciate life

IMMORTALS CC
offline   Reply With Quote
Old 10-05-2008, 11:09 AM   #10
brady1929
Old School HAMBer

brady1929's Avatar

Join Date: Sep 2006
Location: Mesa, Az
Posts: 4,567
Default Re: **Tech: Build your own 32 frame rails**

that is amazing!
offline   Reply With Quote
Old 10-05-2008, 11:12 AM   #11
Duke
Member

Join Date: Mar 2001
Location: British Columbia, Canada
Posts: 413
Default Re: **Tech: Build your own 32 frame rails**

Thank you for posting that, excellent tech!!
offline   Reply With Quote
Old 10-05-2008, 11:13 AM   #12
solid
Senior Member

solid's Avatar

Join Date: May 2007
Location: OHIO, EAST OF THE NATTY.
Posts: 1,460
Default Re: **Tech: Build your own 32 frame rails**

Wow!!!
offline   Reply With Quote
Old 10-05-2008, 11:13 AM   #13
The37Kid
Old School HAMBer

The37Kid's Avatar

Join Date: Apr 2004
Location: Ridgefield, Ct.
Posts: 17,210
Default Re: **Tech: Build your own 32 frame rails**

WOW! That is one hell of an intro! Welcome to the HAMB!
offline   Reply With Quote
Old 10-05-2008, 11:15 AM   #14
charleyw
Alliance Member

charleyw's Avatar

Join Date: Aug 2006
Location: Broken Arrow, Ok.
Posts: 1,431
Default Re: **Tech: Build your own 32 frame rails**

Great work, You sir are a craftsman!
offline   Reply With Quote
Old 10-05-2008, 11:15 AM   #15
chaddilac
Old School HAMBer

chaddilac's Avatar

Join Date: Mar 2006
Location: Muskogee,OK
Posts: 14,242
Default Re: **Tech: Build your own 32 frame rails**

WOw! that is awesome!!!
__________________
Specializing in Custom Logos and Design

offline   Reply With Quote
Old 10-05-2008, 11:16 AM   #16
brigrat
Alliance Member

brigrat's Avatar

Join Date: Nov 2007
Location: Wa.St.
Posts: 3,299
Default Re: **Tech: Build your own 32 frame rails**

2 hands clapping! Bravo........................ take a bow, your the man!
offline   Reply With Quote
Old 10-05-2008, 11:18 AM   #17
Ron Mayes
Member

Ron Mayes's Avatar

Join Date: Mar 2006
Location: Bowling Green Ky
Posts: 684
Default Re: **Tech: Build your own 32 frame rails**

i hate you
__________________



Wynonna's got a big brown beaver



offline   Reply With Quote
Old 10-05-2008, 11:18 AM   #18
Harms Way
Old School HAMBer

Harms Way's Avatar

Join Date: Nov 2005
Location: Northern Mi.
Posts: 6,600
Default Re: **Tech: Build your own 32 frame rails**

Great post !,..... And exceptional work !
__________________
A sinner saved by Grace. (Eph. 2:8-9)

H.A.M.B. Chapel

offline   Reply With Quote
Old 10-05-2008, 11:19 AM   #19
paperdog
Alliance Member

paperdog's Avatar

Join Date: Mar 2006
Location: MINN. JUST NORTH OF TWIN CITIES
Posts: 5,117
Default Re: **Tech: Build your own 32 frame rails**

the idea of winning tech week tools has spawned the winner...
everyone raise yer hand tha t agrees ...

oops hope its not too late

total time for build?
__________________
Anything is possible if you don't know what you are talking about.....
offline   Reply With Quote
Old 10-05-2008, 11:28 AM   #20
cadillacoffin
Member

cadillacoffin's Avatar

Join Date: May 2007
Location: Maryville Missouri
Posts: 786
Default Re: **Tech: Build your own 32 frame rails**

holy shit batman,........cant wait to see what the rest of your car is like. top shelf stuff right there!


how many hours did that take?
offline   Reply With Quote
Old 10-05-2008, 11:43 AM   #21
flthd31
Grenade Inspector

flthd31's Avatar

Join Date: Aug 2007
Location: NW Pennsylvania
Posts: 328
Default Re: **Tech: Build your own 32 frame rails**

Everyone, Thanks for the positive replies. I lurk here every day and never get tired of reading other guys tech and seeing all the great rides. Hope somebody can use this post.
As far as time of buildÖ for meÖthe more time the better. I hate when a good project is over! Actual fabricating was less than a week. The planning and pattern making took a couple of weeks. Donít get caught up in trying making them perfectly identical to Henryís rails. Just try to make both the same. They will look great under your car.
offline   Reply With Quote
Old 10-05-2008, 11:49 AM   #22
Mart
Senior Member

Mart's Avatar

Join Date: Mar 2001
Location: Solihull, England.
Posts: 2,430
Default Re: **Tech: Build your own 32 frame rails**

Fantastic work.
Mart.
__________________
My build thread: 33 5W
Visit my website: www.martsrods.com
Try and diagnose my misfire: My Video
offline   Reply With Quote
Old 10-05-2008, 11:51 AM   #23
Nobodys Hero
Member

Nobodys Hero's Avatar

Join Date: Oct 2005
Location: New Jersey
Posts: 435
Default Re: **Tech: Build your own 32 frame rails**

Amazing...love it..
__________________
http://www.1945Castingco.com
OILERS cc
offline   Reply With Quote
Sponsored Links (Register now to hide all advertisements)
Old 10-05-2008, 12:00 PM   #24
fortynut
Grenade Inspector

Join Date: Jul 2008
Location: weston, alabama
Posts: 346
Default Re: **Tech: Build your own 32 frame rails**

I'm going down a similar road with '40 rails and it's inspiring to see your simplified technique. I'm using the Wescott blueprint myself, as a reference. (I'm using a really nice frame as a reference.) I hadn't thought of blowing it up, but will. And, I can see that 'wood is good'. The Welders book suggests using it, and being a metal oriented person I have a block against it, but seeing your use of it, I'm having second thoughts. Thank you for sharing.
offline   Reply With Quote
Old 10-05-2008, 12:03 PM   #25
Hackerbilt
Old School HAMBer

Hackerbilt's Avatar

Join Date: Aug 2001
Location: St.Johns,Nfld,Canada
Posts: 5,450
Default Re: **Tech: Build your own 32 frame rails**

Beautiful job...and a great writeup too!

What are you shaping your welds with, and how do you get that final finish on the metal after grinding? Looks almost too nice to be just a DA!
Handheld belt sander maybe????
__________________
Bill
offline   Reply With Quote
Old 10-05-2008, 12:03 PM   #26
8-Track
Grenade Inspector

8-Track's Avatar

Join Date: Jul 2008
Location: Plymouth, minnesota
Posts: 383
Default Re: **Tech: Build your own 32 frame rails**

this looks like a tech week winner!
Great job!
offline   Reply With Quote
Old 10-05-2008, 12:10 PM   #27
indawaitinroom
Member

indawaitinroom's Avatar

Join Date: Jun 2007
Location: the countryside of new york
Posts: 669
Default Re: **Tech: Build your own 32 frame rails**

this post is amazing!
offline   Reply With Quote
Old 10-05-2008, 12:14 PM   #28
irondoctor
Member

irondoctor's Avatar

Join Date: Jan 2007
Location: Newton, KS
Posts: 504
Default Re: **Tech: Build your own 32 frame rails**

Outstanding!!
Great finish work!
offline   Reply With Quote
Old 10-05-2008, 12:18 PM   #29
aussiesteve
BANNED

aussiesteve's Avatar

Join Date: Jan 2004
Location: somewhere else
Posts: 817
Default Re: **Tech: Build your own 32 frame rails**

Great post,great job and an insane amount of work.
offline   Reply With Quote
Old 10-05-2008, 12:19 PM   #30
Crazydaddyo
Alliance Member

Crazydaddyo's Avatar

Join Date: Apr 2008
Location: Orange, Ca.
Posts: 3,558
Default Re: **Tech: Build your own 32 frame rails**

You sir are talented!!!!!! Very nice

When you say it took a week to fab.... you meen you took a week off work to build it...right?
__________________
" I've tried nothing ...and I'm all out of ideas."

T-5 5 speed in a Torque Tube:
http://www.jalopyjournal.com/forum/s...d.php?t=256226

offline   Reply With Quote
Old 10-05-2008, 12:24 PM   #31
Church
Alliance Member

Church's Avatar

Join Date: Nov 2002
Location: South Bay
Posts: 2,422
Default Re: **Tech: Build your own 32 frame rails**

WOW!!!!!!!!!. Now that's how to do a tech piece.
offline   Reply With Quote
Old 10-05-2008, 12:28 PM   #32
Chad s
Senior Member

Chad s's Avatar

Join Date: Oct 2005
Location: Baltimore, MD
Posts: 1,720
Default Re: **Tech: Build your own 32 frame rails**

Definitely beautiful work. I think this deserves to prize!
offline   Reply With Quote
Old 10-05-2008, 12:41 PM   #33
Lucky77
Alliance Member

Lucky77's Avatar

Join Date: Mar 2006
Location: Bay City, Michigan
Posts: 2,311
Default Re: **Tech: Build your own 32 frame rails**

You sir are one talented mofo. Outstanding tech post!
__________________
Never argue with and idiot, people watching won't be able to tell the difference.

Scott Sheehan
Nightmares C.C.
offline   Reply With Quote
Old 10-05-2008, 12:42 PM   #34
scrape
Senior Member

scrape's Avatar

Join Date: Sep 2003
Location: sherman tx.
Posts: 1,142
Default Re: **Tech: Build your own 32 frame rails**

Nice work!!!!!!
__________________
"this is magic demon dust. He touch this, he die"

....WANTED....
goodyear double eagle tires
offline   Reply With Quote
Old 10-05-2008, 12:42 PM   #35
flthd31
Grenade Inspector

flthd31's Avatar

Join Date: Aug 2007
Location: NW Pennsylvania
Posts: 328
Default Re: **Tech: Build your own 32 frame rails**

Thanks again guys.

Hackerbilt: you guessed in, that finish is the result of a hand held belt on a 5 inch dia. string buff, adapted for use on a variable speed 4 inch <st1lace w:st="on"><st1:City w:st="on">Milwaukee</st1:City></st1lace> grinder. It has to be run pretty slowly but needs good power and variable speed is a must. Iíve done a lot of stainless steel finish grinding and this is what we used quite a bit. It does a nice job of smoothing those corner weld joints.

And Crazydaddyo: that was a week off work.
offline   Reply With Quote
Old 10-05-2008, 12:44 PM   #36
Jeem
Alliance Vendor

Jeem's Avatar

Join Date: Sep 2002
Location: ....in the Valley of the SUN.....
Posts: 5,869
Default Re: **Tech: Build your own 32 frame rails**

Yeah, how many hours are in your rails, and how much did it end up costing in materials (not your time, 'cause dang....)?

Fantastic rails, great work for sure!
__________________
Galleria de Smeeth
http://www.facebook.com/GalleriaDeSmeeth
offline   Reply With Quote
Old 10-05-2008, 12:48 PM   #37
Twisted Minis
Grenade Inspector

Twisted Minis's Avatar

Join Date: Jul 2006
Location: Santa Rosa, CA
Posts: 234
Default Re: **Tech: Build your own 32 frame rails**

I think you just won Tech Week.
__________________
If you can find it cheaper, I can fix it!
offline   Reply With Quote
Old 10-05-2008, 12:51 PM   #38
sloppyjoe
FNG

sloppyjoe's Avatar

Join Date: Jun 2008
Location: Location: Location
Posts: 14
Default Re: **Tech: Build your own 32 frame rails**

Jaysus..... Incredible.

I've got a trailer with a roadster body headed your way, I bet you can't do it again.
offline   Reply With Quote
Old 10-05-2008, 12:53 PM   #39
tub in da dirt
Senior Member

tub in da dirt's Avatar

Join Date: Oct 2005
Location: Lake villa Illinois
Posts: 2,470
Default Re: **Tech: Build your own 32 frame rails**

after seeing the fab work on the frame how could you be worried about putting that coupe body together
awsome work
tk
__________________
I work hard at getting better as a builder so one day Jim Sibley will tell me i did a good job. tk

follow me on instagram fabricator2
offline   Reply With Quote
Old 10-05-2008, 12:57 PM   #40
Mullda
Grenade Inspector

Mullda's Avatar

Join Date: Apr 2006
Location: Knoxville, TN
Posts: 306
Default Re: **Tech: Build your own 32 frame rails**

WOW has been said several times, but what else can you say! Fantastic work!!!
offline   Reply With Quote
Old 10-05-2008, 12:59 PM   #41
Dirk35
Senior Member

Dirk35's Avatar

Join Date: Mar 2001
Location: Stillwater, OK
Posts: 1,725
Default Re: **Tech: Build your own 32 frame rails**

Ill add to the "WOW" responses.

WOW!

Fantastic work.
__________________
Quote:
Originally Posted by STURGIS39 View Post
.....I wish you would have used the saying " THANK YOU IN ADVANCE". Now I will have to come back to this post to receive my thank you......
offline   Reply With Quote
Old 10-05-2008, 01:01 PM   #42
zibo
Senior Member

zibo's Avatar

Join Date: Mar 2002
Location: dago ca
Posts: 2,347
Default Re: **Tech: Build your own 32 frame rails**

You gotta make a couple sets of those while that jigs built!
That end result looks great.
TP
offline   Reply With Quote
Old 10-05-2008, 01:02 PM   #43
Flipper
Old School HAMBer

Flipper's Avatar

Join Date: May 2003
Location: Kentucky
Posts: 3,178
Default Re: **Tech: Build your own 32 frame rails**

Beautiful work ......I just hope this doesn't start a 80's hi-tech rod movement.
__________________
My boat-tail speedster build (Roofus) http://www.jalopyjournal.com/forum/s...d.php?t=339315
offline   Reply With Quote
Sponsored Links (Register now to hide all advertisements)
Old 10-05-2008, 01:10 PM   #44
Tman
Old School HAMBer

Tman's Avatar

Join Date: Mar 2001
Location: Beautifull Black Hills of South Dakota
Posts: 29,701
Default Re: **Tech: Build your own 32 frame rails**

Very nice work! This is the stuff we like to see on the board, NOT rusty crap!
__________________
www.compulsionrodandcustom.com New website up! Product listings updating weekly!
offline   Reply With Quote
Old 10-05-2008, 01:19 PM   #45
sy1356
Grenade Inspector

Join Date: Dec 2005
Location: WaKeeney, KS.
Posts: 102
Default Re: **Tech: Build your own 32 frame rails**

Impressive. I wish I was that talented. I would really like to put a 32 frame under my A coupe.
offline   Reply With Quote
Old 10-05-2008, 01:32 PM   #46
amsvette
Grenade Inspector

amsvette's Avatar

Join Date: Sep 2004
Location: Dearborn, Michigan
Posts: 174
Default Re: **Tech: Build your own 32 frame rails**

Simply amazing! I too would like to know what you have invested in materials. I thought about buying rails, but I like this because you can make your reveal fit the Model A body better (never cared for the reveal going farther than the cowl). Great work indeed.
offline   Reply With Quote
Old 10-05-2008, 01:34 PM   #47
KreaturesCCaustin
Senior Member

KreaturesCCaustin's Avatar

Join Date: Sep 2008
Location: Austin, TX
Posts: 1,259
Default Re: **Tech: Build your own 32 frame rails**

AAAAaahhhh, I could do that. All I would need would be tools, talent, skill, know-how, time and money. Nothin' to it! haha, Just tuggin' your chain.

Great job, man. Those rails look better than most of the after market stuff out there.
__________________
WANTED: '63 Econoline glove box door. PM me here or email me at dart@dartgraphics.com
offline   Reply With Quote
Old 10-05-2008, 01:52 PM   #48
T McG
Senior Member

T McG's Avatar

Join Date: Feb 2005
Location: Phoenix
Posts: 1,251
Default Re: **Tech: Build your own 32 frame rails**

Nice work. Just shows you Pennsylvania guys aren't all fishin'. What part of NW Pa?
__________________
If you can't weld good, weld a lot


www.vintageautorepair.net
offline   Reply With Quote
Old 10-05-2008, 02:02 PM   #49
HemiDeuce
Alliance Member

HemiDeuce's Avatar

Join Date: Aug 2004
Location: Just N. of Pt. Roberts, WA.
Posts: 951
Default Re: **Tech: Build your own 32 frame rails**

Incredible skill and execution, absolutely the best tech post I've ever seen.
You are the winner in my opinion.
HemiDeuce.
offline   Reply With Quote
Old 10-05-2008, 02:53 PM   #50
koolkemp
Old School HAMBer

koolkemp's Avatar

Join Date: May 2004
Location: Nova Scotia
Posts: 5,606
Default Re: **Tech: Build your own 32 frame rails**

Beautiful!!!!!!!
offline   Reply With Quote
Old 10-05-2008, 03:16 PM   #51
Deuce Daddy Don
Alliance Member

Deuce Daddy Don's Avatar

Join Date: Apr 2008
Location: Bend,Oregon
Posts: 3,413
Default Re: **Tech: Build your own 32 frame rails**

Very NICE!!!----Shows what a real craftsman you are!!---Good Pix!!----Reminds me of having to fabricate many items on my roadster in the early 60's when you couldn't just turn the pages of car mags. & practically build a car as you went thru the magazine!!-----Didn't have the hi tech plasma's then either--HA!!-----------Don
offline   Reply With Quote
Old 10-05-2008, 03:25 PM   #52
JRODHOTROD
Member

JRODHOTROD's Avatar

Join Date: Mar 2006
Location: Manor, TX
Posts: 442
Default Re: **Tech: Build your own 32 frame rails**

I bet you think highly of yourself. You should.
offline   Reply With Quote
Old 10-05-2008, 03:38 PM   #53
Salty
Senior Member

Salty's Avatar

Join Date: Jul 2006
Location: Florida
Posts: 2,212
Default Re: **Tech: Build your own 32 frame rails**

Wow.........




just Wow.......
__________________
Be professional, kind and courteous to everyone you meet while simutaneously formulating a plan in which to kill them.

See My "Chop Sewage" 1949 Chevy Truck Build Thread HERE
offline   Reply With Quote
Old 10-05-2008, 03:42 PM   #54
slepe67
Senior Member

slepe67's Avatar

Join Date: Jan 2008
Location: Navarre, FL
Posts: 1,159
Default Re: **Tech: Build your own 32 frame rails**

uh, maybe somebody should get rid of the FNG status to the bottom of his avatar..hahah
offline   Reply With Quote
Old 10-05-2008, 03:57 PM   #55
ed_v
Grenade Inspector

Join Date: Jun 2008
Location: sandwiched between Indiana and Tennessee
Posts: 236
Default Re: **Tech: Build your own 32 frame rails**

That is really impressive work. Nice Job !.

I've seen Troy Trepanier and the guys at Rad Rides build frames by boxing flat sheets together like that. I've always just wondered how strong the rails would be though. I really want to try something like this to do a Mustang II crossmember for my '50 Chevy AD pickup.

Thanks for the inspiration. Beautiful work.

Ed
offline   Reply With Quote
Old 10-05-2008, 03:57 PM   #56
metalshapes
Tech Editor

metalshapes's Avatar

Join Date: Nov 2002
Location: Tucson, AZ USA
Posts: 10,808
Default Re: **Tech: Build your own 32 frame rails**

Very cool...
__________________
I met a man who's name was time, he said "I must be going"
But just how long ago that was, I have no way of knowing.
offline   Reply With Quote
Old 10-05-2008, 03:58 PM   #57
captainjunk#2
Old School HAMBer

Join Date: Mar 2008
Location: massachusetts
Posts: 3,870
Default Re: **Tech: Build your own 32 frame rails**

outstanding , great job and i enjoyed your photos of the build
offline   Reply With Quote
Old 10-05-2008, 04:02 PM   #58
retroridesbyrich
Senior Member

retroridesbyrich's Avatar

Join Date: Dec 2004
Location: Central NC
Posts: 1,887
Default Re: **Tech: Build your own 32 frame rails**

Outstanding job ! Way to go.
__________________
www.retroridesbyrich.com Thimble Drome Special is for sale.
offline   Reply With Quote
Old 10-05-2008, 04:06 PM   #59
Hot Rod Ron
Old School HAMBer

Hot Rod Ron's Avatar

Join Date: Mar 2001
Location: Tucson/Phoenix AZ USA
Posts: 2,850
Default Re: **Tech: Build your own 32 frame rails**

Bad ass.. Keep us posted on the build on that coupe.
offline   Reply With Quote
Old 10-05-2008, 04:24 PM   #60
spiffy1937
Alliance Member

spiffy1937's Avatar

Join Date: Apr 2006
Location: U.S.A.
Posts: 665
Default Re: **Tech: Build your own 32 frame rails**

Great post!!! Fantastic workmanship! Your quite a craftsman!!! It wouldn't work for me, it would take me forever and probably never be close to being righton. Better for ME to buy rails!! Now I want to see your canoe. I probably should have used more exclamation marks, you deserve them!!!!!!!!!!
__________________
It's never too late to have a happy childhood!
http://www.dogsindanger.com/
http://www.petfinder.com/shelters.html
offline   Reply With Quote
Old 10-05-2008, 04:27 PM   #61
grouchy
Grenade Inspector

grouchy's Avatar

Join Date: Jul 2006
Location: West Central Ohio
Posts: 131
Default Re: **Tech: Build your own 32 frame rails**

Those are nice! WOW!
__________________
turd shiner.............
offline   Reply With Quote
Old 10-05-2008, 04:28 PM   #62
movingviolation
Senior Member

movingviolation's Avatar

Join Date: Feb 2005
Location: NEWFOUNDLAND
Posts: 1,127
Default Re: **Tech: Build your own 32 frame rails**

Droooooooooooooooooool

Ok so you have more skill in a finger than i do in my entire body.................

Kick ass tech tip
offline   Reply With Quote
Old 10-05-2008, 04:52 PM   #63
ratster
Old School HAMBer

ratster's Avatar

Join Date: Sep 2001
Location: louisville,tn and melbourne, fl usa
Posts: 3,594
Default Re: **Tech: Build your own 32 frame rails**

dude you win tech week.......
__________________
GREAZY HUBCAPZ CC EAST TN
offline   Reply With Quote
Sponsored Links (Register now to hide all advertisements)
Old 10-05-2008, 05:00 PM   #64
flthd31
Grenade Inspector

flthd31's Avatar

Join Date: Aug 2007
Location: NW Pennsylvania
Posts: 328
Default Re: **Tech: Build your own 32 frame rails**

Iíve had a few questions about the cost of materials. It really only cost me the price of MIG wire, Argon/co2 and 1 sheet of luan underlayment. The steel was free so I donít have a cost estimate. I can tell you how much steel I used.

8 pieces Ė 66 inches by 6 inches
8 pieces Ė 66 inches by 3 inches

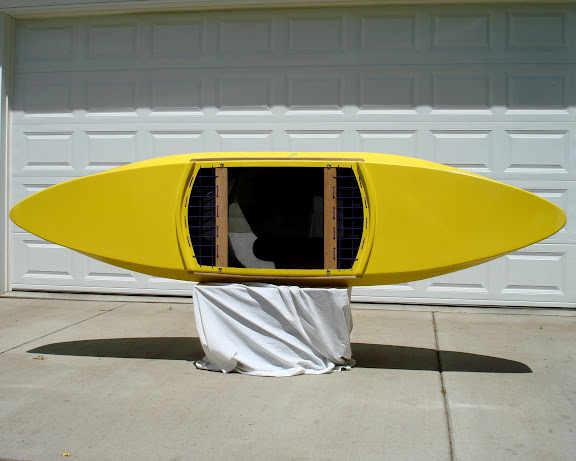

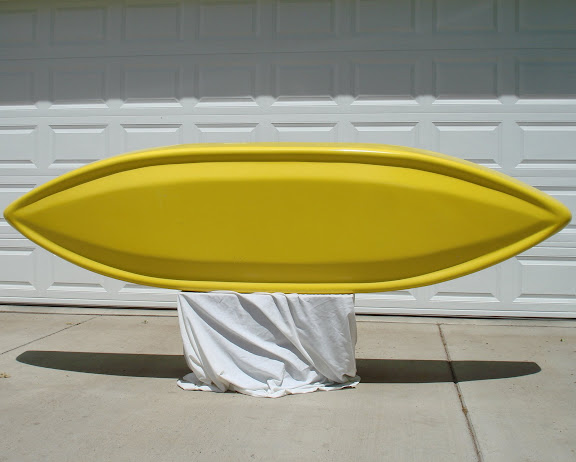

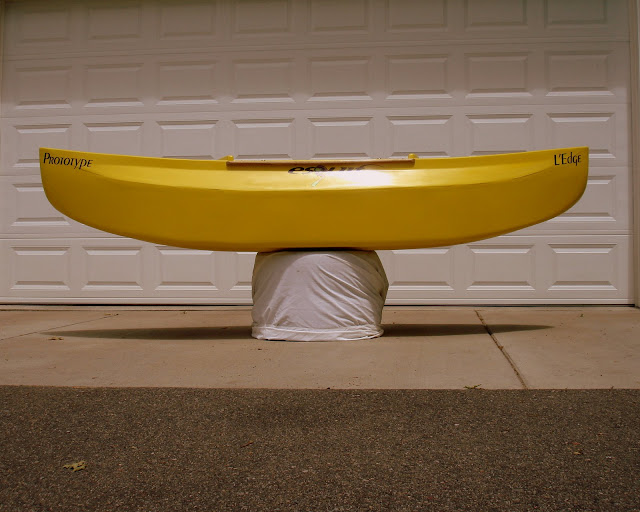

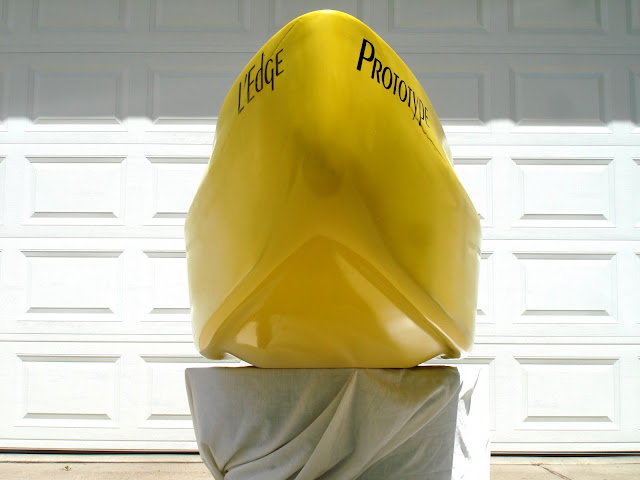

The table really was left over from a canoe I built. Hereís a pic for spiffy1937.
Attached Thumbnails
Click image for larger version

Name:	Canoe2.JPG
Views:	163
Size:	46.6 KB
ID:	1563771   Click image for larger version

Name:	Canoe.JPG
Views:	157
Size:	61.9 KB
ID:	1563772
offline   Reply With Quote
Old 10-05-2008, 05:03 PM   #65
Cshabang
Senior Member

Cshabang's Avatar

Join Date: Mar 2004
Location: Connecticut
Posts: 2,467
Default Re: **Tech: Build your own 32 frame rails**

sweet!
__________________
BANG ZOOM, ITS NOT ROCKET SURGERY..

Would I be bitching if i said i was sick of people BITCHING?
online   Reply With Quote
Old 10-05-2008, 05:08 PM   #66
Chris Casny
Old School HAMBer

Chris Casny's Avatar

Join Date: Mar 2006
Location: Los Angeles/Austin
Posts: 4,588
Default Re: **Tech: Build your own 32 frame rails**

Quote:
Originally Posted by flthd31 View Post
I’ve had a few questions about the cost of materials. It really only cost me the price of MIG wire, Argon/co2 and 1 sheet of luan underlayment. The steel was free so I don’t have a cost estimate. I can tell you how much steel I used.

8 pieces – 66 inches by 6 inches
8 pieces – 66 inches by 3 inches

The table really was left over from a canoe I built. Here’s a pic for spiffy1937.
Looking at this canoe, and the 32 frame, I have to say, you are probably one of the most talented guys here on the Hamb.
__________________
Be humble and appreciate life

IMMORTALS CC
offline   Reply With Quote
Old 10-05-2008, 05:23 PM   #67
tikidiablo
Member

tikidiablo's Avatar

Join Date: Nov 2004
Location: so cal
Posts: 875
Default Re: **Tech: Build your own 32 frame rails**

Quote:
Originally Posted by ratster View Post
dude you win tech week.......
That's what I'm sayin'.
__________________

offline   Reply With Quote
Old 10-05-2008, 05:28 PM   #68
buffaloracer
Member

Join Date: Aug 2004
Location: kansas
Posts: 461
Default Re: **Tech: Build your own 32 frame rails**

Amazing work. Thanks for the inspiration.
offline   Reply With Quote
Old 10-05-2008, 05:28 PM   #69
Pir8Darryl
Old School HAMBer

Pir8Darryl's Avatar

Join Date: Jan 2008
Location: Louisville Ky.
Posts: 2,512
Default Re: **Tech: Build your own 32 frame rails**

Wow! Now that's cool! If it was mine, I'd remove that crusty old ford body off of it so your art-work could be viewed by all! [just kidding ] I love how well it flows in the curves, and the clean weld joints using the belt sander is just icing on the cake

You got MAD skills dude! Just a shame your wasting them in your 9-5... You should be building rods fulltime.

I'm pretty sure we now have a tech-week winner....... Unless someone can show us how to construct a 500 horsepower 392 HEMI out of old beer cans for $30... Cuz that's what it's gonna take to top this one!
__________________
Popcorn
Pops at exactly 444 degreese
Expands to 44 times it's original size
Has a 4 year shelf life
offline   Reply With Quote
Old 10-05-2008, 05:29 PM   #70
Tony
Alliance Member

Tony's Avatar

Join Date: Dec 2002
Location: Rochester NY. USA.
Posts: 6,887
Default Re: **Tech: Build your own 32 frame rails**

VERY impressive!
__________________
WHO CARES!

"You are cordially invited to shit in your hat"
-Chili Phil-

Do you need a open 32 Ford registration for your display case?? I have a NY one perfect for framing! contact me.
offline   Reply With Quote
Old 10-05-2008, 05:33 PM   #71
SanDiegoJoe
Old School HAMBer

SanDiegoJoe's Avatar

Join Date: Apr 2004
Location: San Diego, CA
Posts: 3,546
Default Re: **Tech: Build your own 32 frame rails**

ruler.
__________________
SanDiegoJoe
The story of my '50 Shoebox:
Chapter 1
Chapter 2
Chapter 3
Chapter 4
Chapter 5
offline   Reply With Quote
Old 10-05-2008, 05:35 PM   #72
Cajun Kenny
Old School HAMBer

Cajun Kenny's Avatar

Join Date: Aug 2007
Location: Smart Ass White Boy In Mississippi..
Posts: 7,663
Default Re: **Tech: Build your own 32 frame rails**

wow! excellent tech post , thanks..
__________________
When The Shit hits The Fan It Will Not Be Evenly Distributed!
offline   Reply With Quote
Old 10-05-2008, 05:51 PM   #73
Circus Bear
Old School HAMBer

Circus Bear's Avatar

Join Date: Aug 2004
Location: Charleston, SC
Posts: 2,935
Default Re: **Tech: Build your own 32 frame rails**

HOLY CHIT!!! That is amazing. Gotta love this place!!b
__________________
SFCC....
We can do it ourselves.
offline   Reply With Quote
Old 10-05-2008, 06:02 PM   #74
fordcragar
Alliance Member

fordcragar's Avatar

Join Date: Dec 2005
Location: Rainy NW, Wa.
Posts: 3,056
Default Re: **Tech: Build your own 32 frame rails**

Very nice tech article, thanks!!
offline   Reply With Quote
Old 10-05-2008, 06:08 PM   #75
gas pumper
Old School HAMBer

gas pumper's Avatar

Join Date: Aug 2007
Location: Boonton, NJ
Posts: 2,772
Default Re: **Tech: Build your own 32 frame rails**

As a guy who modifies existing things to my use, seeing what youv'e done here is way beyond what I could ever dream to attempt.

Congratulations,

I do hope that in your work life you are using your skills and are appreciated and compensated for this by your company.

WOW
offline   Reply With Quote
Old 10-05-2008, 06:14 PM   #76
TexasHardcore
Old School HAMBer

TexasHardcore's Avatar

Join Date: May 2003
Location: Austin, Texas
Posts: 4,793
Default Re: **Tech: Build your own 32 frame rails**

Hah, that fuckin rules! MIG welded & home-built... fuck the naysayers.

Keep us posted on the progress of your build, as well as your great tech write ups.
__________________
Tune Up or Tune Out.
offline   Reply With Quote
Old 10-05-2008, 06:22 PM   #77
KernCountyKid
Grenade Inspector

KernCountyKid's Avatar

Join Date: Jul 2006
Location: Arkansas
Posts: 376
Default Re: **Tech: Build your own 32 frame rails**

you're a badass. do people catch on fire when you look at them?
__________________
49 Panel, money pit

http://www.hotrodders.com/forum/jour...age=5&reverse==
offline   Reply With Quote
Old 10-05-2008, 06:23 PM   #78
Squablow
Old School HAMBer

Squablow's Avatar

Join Date: Apr 2005
Location: Potter, Wis
Posts: 10,007
Default Re: **Tech: Build your own 32 frame rails**

Unreal talent and patience to build that all from scratch. My mind blew chunks through outer space into the milky way. One of the best techs since the guy who made a 32 shell out of a GMC truck grille surround.

This would have been great even if you bought the steel, but somehow it's made even sweeter by the fact that it's all built out of dumpster scraps. I'd really like to know what you do for a living.
offline   Reply With Quote
Old 10-05-2008, 06:26 PM   #79
Speedrome
Member

Speedrome's Avatar

Join Date: Mar 2007
Location: Irving, TX
Posts: 602
Default Re: **Tech: Build your own 32 frame rails**

True inspiration for us wanna-be fabricators!
__________________
Music is the sentiment of a manís soul.

www.RadiusNation.net
offline   Reply With Quote
Old 10-05-2008, 06:32 PM   #80
Flipper
Old School HAMBer

Flipper's Avatar

Join Date: May 2003
Location: Kentucky
Posts: 3,178
Default Re: **Tech: Build your own 32 frame rails**

That canoe qualifies as porn in some states.
__________________
My boat-tail speedster build (Roofus) http://www.jalopyjournal.com/forum/s...d.php?t=339315
offline   Reply With Quote
Old 10-05-2008, 06:33 PM   #81
Brewton
Member

Brewton's Avatar

Join Date: Jun 2005
Location: Ruston, LA (North LA)
Posts: 890
Default Re: **Tech: Build your own 32 frame rails**

Daaaaamn! You are THE man! Great work!
__________________
- If it burns fuel, makes noise, goes fast and scares children - it's cool!
offline   Reply With Quote
Old 10-05-2008, 06:39 PM   #82
carbon guy
Grenade Inspector

carbon guy's Avatar

Join Date: Dec 2007
Location: indy
Posts: 217
Default Re: **Tech: Build your own 32 frame rails**

I'll throw in another WOW, for ya. That is very nice work. Thank you so much for the time you put in making this tech thread for us. Now, when is your next one comming out?
offline   Reply With Quote
Old 10-05-2008, 06:48 PM   #83
47 jailbar
Alliance Member

Join Date: Jun 2007
Location: Mn
Posts: 104
Default Re: **Tech: Build your own 32 frame rails**

Awesome thread. I hope you show your car as you build it. I would like to know what you do for a living also. To scratch build frame rails and a canoe shows you have incredible talent with your hands and your mind. Thanks for sharing both...
offline   Reply With Quote
Sponsored Links (Register now to hide all advertisements)
Old 10-05-2008, 06:48 PM   #84
3dnsouth
Alliance Member

3dnsouth's Avatar

Join Date: Mar 2006
Location: North Ga
Posts: 617
Default Re: **Tech: Build your own 32 frame rails**

If ya don't mind, and have time, throw up pic of that grinder that you contoured the welds with. (unless, of course, it's secret weaponry!!)
Absolutely beautiful work. Thanks for takin' the time for us.
__________________
Iffis goot to ya, it's got ta be goot fo ya!!!.
offline   Reply With Quote
Old 10-05-2008, 07:00 PM   #85
dirtbag13
Old School HAMBer

dirtbag13's Avatar

Join Date: Jun 2008
Location: Marshalltown iowa
Posts: 2,557
Default Re: **Tech: Build your own 32 frame rails**

holy s#!t . you sir are one tallented s.o.b , i think tech week has a winner ! nice clean work !
__________________
One hand on the wheel and one on the bottle one foot in the grave the other the throttle !
offline   Reply With Quote
Old 10-05-2008, 07:06 PM   #86
kustombuilder
Old School HAMBer

kustombuilder's Avatar

Join Date: Sep 2002
Location: Grand Ledge, Charlotte, Milford.
Posts: 7,761
Default Re: **Tech: Build your own 32 frame rails**

you've got way too much time on your hands!! LOL... nice job!!
offline   Reply With Quote
Old 10-05-2008, 07:15 PM   #87
roosters hot rods
Senior Member

roosters hot rods's Avatar

Join Date: Oct 2006
Location: hudson florida
Posts: 1,774
Default Re: **Tech: Build your own 32 frame rails**

sweet looking rails..wow!!!
__________________
Swamp Kings c.c. Florida

Hot rods are built not bought
offline   Reply With Quote
Old 10-05-2008, 07:38 PM   #88
Richard D
Old School HAMBer

Richard D's Avatar

Join Date: Jul 2006
Location: Texas City, Texas Between Houston & Galveston
Posts: 12,229
Default Re: **Tech: Build your own 32 frame rails**

That's not fabrication, that's art. What a kick ass Tech week!

P.S. Please don't wait another year to post again.
offline   Reply With Quote
Old 10-05-2008, 07:39 PM   #89
brandonwillis
Grenade Inspector

brandonwillis's Avatar

Join Date: Aug 2008
Location: Tucson AZ
Posts: 289
Default Re: **Tech: Build your own 32 frame rails**

those are the prettiest frame rails ive ever seen. You put some serious time into those things. Extremely quality work man. What did you use to polish all your welds off in order if you dont mind me asking. grinding wheels, flap discs, and then scotch brites?
offline   Reply With Quote
Old 10-05-2008, 07:47 PM   #90
maccustom
Grenade Inspector

maccustom's Avatar

Join Date: Mar 2008
Location: Indianapolis, IN
Posts: 154
Default Re: **Tech: Build your own 32 frame rails**

I was just daydreaming today about maybe trying to make my own frame rails. Great photos of the process. Makes me feel like I could do it.
__________________
Smoke the Alligator!
offline   Reply With Quote
Old 10-05-2008, 07:47 PM   #91
spiffy1937
Alliance Member

spiffy1937's Avatar

Join Date: Apr 2006
Location: U.S.A.
Posts: 665
Default Re: **Tech: Build your own 32 frame rails**

Quote:
Originally Posted by flthd31 View Post
I’ve had a few questions about the cost of materials. It really only cost me the price of MIG wire, Argon/co2 and 1 sheet of luan underlayment. The steel was free so I don’t have a cost estimate. I can tell you how much steel I used.

8 pieces – 66 inches by 6 inches
8 pieces – 66 inches by 3 inches

The table really was left over from a canoe I built. Here’s a pic for spiffy1937.
Thanks for the pictures of the canoe. This canoe/kayak (paddler not builder) guy is really impressed! My Dad used to build boats but I never picked up on that and was more interested in cars. Again, you are one talented guy!
Equally amazing is the fact that even though you are working on these time consuming projects you must still have time to go fishing!! (Rods and reels on the wall)
__________________
It's never too late to have a happy childhood!
http://www.dogsindanger.com/
http://www.petfinder.com/shelters.html
offline   Reply With Quote
Old 10-05-2008, 07:57 PM   #92
Devin
Senior Member

Devin's Avatar

Join Date: Dec 2004
Location: Napa, CA
Posts: 1,312
Default Re: **Tech: Build your own 32 frame rails**

you are the fuckin' man!
__________________
"The future ain't what it used to be!"
- Yogi Berra
offline   Reply With Quote
Old 10-05-2008, 08:01 PM   #93
sliderule67
Grenade Inspector

Join Date: Nov 2005
Location: Houston
Posts: 366
Default Re: **Tech: Build your own 32 frame rails**

The man has nothing on me except talent.....amazing craftmanship.....slide
__________________
I've earned the right to be wrong....

Don't wind up in the Loser's Gumbo...............
offline   Reply With Quote
Old 10-05-2008, 08:14 PM   #94
cowboy1
Member

cowboy1's Avatar

Join Date: Feb 2008
Location: Austin TX
Posts: 919
Default Re: **Tech: Build your own 32 frame rails**

WoW!!!!! My jaw just hit the floor! That is some great work !
offline   Reply With Quote
Old 10-05-2008, 08:17 PM   #95
patman
Member

patman's Avatar

Join Date: Apr 2007
Location: Lake Winni, NH
Posts: 457
Default Re: **Tech: Build your own 32 frame rails**

Wow. Impressive...and no really bizarre tools or supplies either. You made it seem actually doable. Bravo!
offline   Reply With Quote
Old 10-05-2008, 08:17 PM   #96
Wyle E Coyote
Member

Wyle E Coyote's Avatar

Join Date: May 2006
Location: Spring Hill, Fl
Posts: 442
Default Re: **Tech: Build your own 32 frame rails**

Very nice work!!! Those are a thing of beauty!
__________________
2 things are infinite, the universe and human stupidity, I'm not sure about the universe
offline   Reply With Quote
Old 10-05-2008, 08:18 PM   #97
D-Russ
Senior Member

D-Russ's Avatar

Join Date: Mar 2006
Location: Richmond VA
Posts: 1,229
Default Re: **Tech: Build your own 32 frame rails**

Good gosh, man, that frame is awesome. You're a hell of a fabricator. How many hours do you have in it?
__________________

Click here to check out my Vicky build

Dave
offline   Reply With Quote
Old 10-05-2008, 08:35 PM   #98
racemad55
Senior Member

racemad55's Avatar

Join Date: Dec 2005
Location: adirondacks
Posts: 1,040
Default Re: **Tech: Build your own 32 frame rails**

You just raised the bar on this site for fabrication skills! Unbelievable! Now why not use the rusty body for a pattern and bang out a new one! Holy shit!
offline   Reply With Quote
Old 10-05-2008, 08:38 PM   #99
skwurl
Senior Member

skwurl's Avatar

Join Date: Aug 2008
Location: Jonesborough Tn
Posts: 1,629
Default Re: **Tech: Build your own 32 frame rails**

That's amazing. You do great work. Hope you win the tech week.
offline   Reply With Quote
Old 10-05-2008, 08:41 PM   #100
Racrdad
Senior Member

Racrdad's Avatar

Join Date: Jul 2007
Location: College Station TX
Posts: 1,292
Default Re: **Tech: Build your own 32 frame rails**

WOW! I always marvel at the skills of some of the people on this board but this is amazing. You are da man!!
offline   Reply With Quote
Old 10-05-2008, 08:45 PM   #101
Revhead
Old School HAMBer

Join Date: Mar 2001
Location: Dallas, TX
Posts: 3,033
Default Re: **Tech: Build your own 32 frame rails**

damn... that is incredible.. amazing work
offline   Reply With Quote
Old 10-05-2008, 08:45 PM   #102
32 Barn Car
Member

32 Barn Car's Avatar

Join Date: Jul 2008
Location: Out West
Posts: 601
Default Re: **Tech: Build your own 32 frame rails**

Its so good I've already looked at all the images at least 3 times.Curious,whats your real job?......Thanks for sharing........
__________________
.
"I didn't build it hoping for your approval ,
I built it because it meets mine"....
offline   Reply With Quote
Old 10-05-2008, 08:46 PM   #103
Matt Franklin
Alliance Member

Matt Franklin's Avatar

Join Date: Jan 2005
Location: Northern California (East Bay)
Posts: 1,080
Default Re: **Tech: Build your own 32 frame rails**

Wow! Shock and Awe!

#1 tech? I think so!
__________________
No car projects for now...
offline   Reply With Quote
Sponsored Links (Register now to hide all advertisements)
Old 10-05-2008, 08:51 PM   #104
Rusty
Old School HAMBer

Rusty's Avatar

Join Date: Mar 2004
Location: Combine, Texas
Posts: 9,167
Default Re: **Tech: Build your own 32 frame rails**

WOW!!!!! You must have some serious spare time

Very nice!!!!
__________________
Dirtys Speed Shop
214 537-7423

Texas Nostalgia Nationals
Yello Belly Dragstrip - Grand Prairie, TX
www.texasnostalgianationals.com
offline   Reply With Quote
Old 10-05-2008, 08:56 PM   #105
Mule Farmer
Alliance Member

Mule Farmer's Avatar

Join Date: Jun 2005
Location: Holland MI
Posts: 1,419
Default Re: **Tech: Build your own 32 frame rails**

You have mad skills. I have been wanting some 32 rails for model A pickup project, but didnt want to spend the coin. Thanks, hope you win tech week.
__________________
Bret
offline   Reply With Quote
Old 10-05-2008, 08:58 PM   #106
Uptown83
Alliance Member

Uptown83's Avatar

Join Date: Apr 2007
Location: Las Cruces, NM
Posts: 646
Default Re: **Tech: Build your own 32 frame rails**

WOW....what a awesome tech!
offline   Reply With Quote
Old 10-05-2008, 08:58 PM   #107
HOTTRODZZ
Grenade Inspector

HOTTRODZZ's Avatar

Join Date: Aug 2006
Location: 40 MILES WEST OF CHI TOWN
Posts: 336
Default Re: **Tech: Build your own 32 frame rails**

Excellent work

Creative set up

Fantastic results

Ausome job...!
__________________
Rich Pauza
PAUZASFD Inc
Fabrications - Restorations - Recreations &
HOT RODS with RACE CAR DNA
offline   Reply With Quote
Old 10-05-2008, 09:08 PM   #108
Toast
Alliance Member

Toast's Avatar

Join Date: Jan 2007
Location: Jenks, OK
Posts: 3,876
Default Re: **Tech: Build your own 32 frame rails**

Wow!! Holy Crap, I will never post my worthless crap on here again, I am not worthy! That is amazing, you have incredible fab talent!
offline   Reply With Quote
Old 10-05-2008, 09:18 PM   #109
dehudso
Alliance Member

dehudso's Avatar

Join Date: Sep 2003
Location: Memphis, TN
Posts: 544
Default Re: **Tech: Build your own 32 frame rails**

You are the man!
__________________
Hudson + Hemi = Fun
Quote:
Originally Posted by el Scotto
It's good to be a hot rodder.
offline   Reply With Quote
Old 10-05-2008, 09:26 PM   #110
Jethro
Alliance Member

Jethro's Avatar

Join Date: Mar 2001
Location: Kamloops,BC,Canada
Posts: 961
Default Re: **Tech: Build your own 32 frame rails**

Excellent well written and photographed tech piece. Nice Traditional canoe also!
Good work!
offline   Reply With Quote
Old 10-05-2008, 09:35 PM   #111
Stevie Nash
Alliance Member

Stevie Nash's Avatar

Join Date: Oct 2007
Location: Farm Country
Posts: 2,885
Default Re: **Tech: Build your own 32 frame rails**

Wow, that looks pretty easy... Awesome post tho, really.
__________________


Outsiders C.C.

Wanted: 1937 Nash Coupe
offline   Reply With Quote
Old 10-05-2008, 09:37 PM   #112
pan-dragger
Old School HAMBer

pan-dragger's Avatar

Join Date: Sep 2006
Location: milE HIGH City
Posts: 3,243
Default Re: **Tech: Build your own 32 frame rails**

great tech, amazing.
__________________
r.i.p. pops
wanted- 671 blower
offline   Reply With Quote
Old 10-05-2008, 09:58 PM   #113
brewsir
Old School HAMBer

Join Date: Mar 2001
Location: Benicia Ca. USA
Posts: 3,290
Default Re: **Tech: Build your own 32 frame rails**

Thank you. I love it when people show what can be accomplished without spending huge piles of worthless american money....and investing some sweat and labor!
offline   Reply With Quote
Old 10-05-2008, 11:05 PM   #114
AnimalAin
Old School HAMBer

AnimalAin's Avatar

Join Date: Jul 2002
Location: Las Vegas, NV USA
Posts: 3,367
Default Re: **Tech: Build your own 32 frame rails**

Bitch'n. That is some great work. Thanks for showing us how you did it.
offline   Reply With Quote
Old 10-06-2008, 12:56 AM   #115
Zombie Hot Rod
Senior Member

Zombie Hot Rod's Avatar

Join Date: Oct 2006
Location: Bronx, NY
Posts: 2,411
Default Re: **Tech: Build your own 32 frame rails**

Those look god but....

Ha, no but's... Awesome post.
__________________
- brian

www.AtomicHotRods.com <----- "Psssst, Hot Rod Documentaries and T-Shirts over here."
offline   Reply With Quote
Old 10-06-2008, 02:01 AM   #116
Minewithnoshine
Member

Minewithnoshine's Avatar

Join Date: May 2007
Location: Cincinnati OH
Posts: 945
Default Re: **Tech: Build your own 32 frame rails**

Amazing work! Just gave me the inspiration I needed to get back to working on my '32, THANKS!
__________________
Queen City Hot Rods
http://www.facebook.com/pages/Queen-...4908188?ref=ts
offline   Reply With Quote
Old 10-06-2008, 04:53 AM   #117
EHBoy
Newbie

EHBoy's Avatar

Join Date: Nov 2006
Location: Brisbane, Australia
Posts: 66
Default Re: **Tech: Build your own 32 frame rails**

easyly the best tech i've seen amazing skill and quality workmanship i bow in awe you are truely a master craftsman.
offline   Reply With Quote
Old 10-06-2008, 05:59 AM   #118
Littleman
Alliance Member

Littleman's Avatar

Join Date: Aug 2004
Location: OHIO, USA
Posts: 2,514
Default Re: **Tech: Build your own 32 frame rails**

KILLER................... More proof that the backyard garage is King.!!!!....Thanks for taking the time to post.....Littleman
__________________
http://www.littlemansspeedandfabrication.com/

...............'' Are we adults.......or just tall children? ''......
offline   Reply With Quote
Old 10-06-2008, 06:15 AM   #119
flnudistcpl
Alliance Member

flnudistcpl's Avatar

Join Date: Jul 2008
Location: Tampa Florida
Posts: 112
Default Re: **Tech: Build your own 32 frame rails**

Now if you could do that with a 34 frame and send it to me We'd both be happy.

You for building such a nice peice of work and
Me for having such a nice peice of work.

Very good job done there
__________________
NAKED IS AS NAKED DOES


Any 1933 1934 ford parts wanted.
offline   Reply With Quote
Old 10-06-2008, 06:36 AM   #120
martin
Grenade Inspector

martin's Avatar

Join Date: Jul 2005
Location: melbourne australia
Posts: 194
Default Re: **Tech: Build your own 32 frame rails**

I always say theirs nothing wrong with making one. But my lord, this bloke
is taking the piss,,, Rock-on . never seen workmanship like it.
__________________
there`s nothing wrong with making one !
offline   Reply With Quote
Old 10-06-2008, 07:36 AM   #121
Taildraggin
Member

Taildraggin's Avatar

Join Date: Nov 2002
Location: Forest of Dean, England
Posts: 929
Default Re: **Tech: Build your own 32 frame rails**

Great bit of Tech
Thanks for making the effort to post it up for us
offline   Reply With Quote
Old 10-06-2008, 07:50 AM   #122
Bert
Grenade Inspector

Join Date: Feb 2005
Location: Melbourne Australia
Posts: 396
Default Re: **Tech: Build your own 32 frame rails**

great post, great metalwork...........nice finish and attention to detail. Cheers, Bert
offline   Reply With Quote
Old 10-06-2008, 08:26 AM   #123
flthd31
Grenade Inspector

flthd31's Avatar

Join Date: Aug 2007
Location: NW Pennsylvania
Posts: 328
Default Re: **Tech: Build your own 32 frame rails**

Ive had a few questions on grinding tools and time involved.
The air powered stuff is for the big shops but for home I use electric. This Milwaukee variable speed 4 1/2 inch angle grinder is literally unstoppable. With that hard rubber Spiralcool back up pad and those 7 inch Norton 50 grit disc that whole rail can be ground pretty smooth in 20-30 minutes with only 2-3 discs. Another 15 minutes with a 120 grit belt on the string buff and done.

The 80 gritt square pad in the other pic is something I use for inside joints like the reveal area. Its an old school thing that seems to baffle alot of guys. Very effective but needs a little practice to master.

This grinder wasn't designed to do any of this stuff. This and most other angle grinders will turn at 11,000 RPMs which is way too fast for these things. BUT with the variable speed control it all works great.

Lastly, if your gonna try any of this stuff, put on a face shield and respirator. When this shit flies apart in your face, its gonna leave a mark!
Attached Thumbnails
Click image for larger version

Name:	grinder.JPG
Views:	282
Size:	53.3 KB
ID:	1563773   Click image for larger version

Name:	square pad.JPG
Views:	302
Size:	30.3 KB
ID:	1563774
offline   Reply With Quote
Sponsored Links (Register now to hide all advertisements)
Old 10-06-2008, 08:27 AM   #124
Dirty2
Old School HAMBer

Dirty2's Avatar

Join Date: Jun 2004
Location: Zip City, Texas 75180
Posts: 9,057
Default Re: **Tech: Build your own 32 frame rails**

WOW !!!! Thats all I can say ! WOW !! Over the top .
__________________
If it dont have 3 pedals it aint no HOT ROD !

If you didnt build it " Shut Up "

" I'm to old to get what I want and to young to give up trying "
me "


www.texasnostalgianationals.com
offline   Reply With Quote
Old 10-06-2008, 08:36 AM   #125
thunderbirdesq
Old School HAMBer

thunderbirdesq's Avatar

Join Date: Feb 2006
Location: Tonawanda, NY
Posts: 6,626
Default Re: **Tech: Build your own 32 frame rails**

Good Lawd! Great work, unbelievable.
offline   Reply With Quote
Old 10-06-2008, 09:06 AM   #126
bct
Senior Member

bct's Avatar

Join Date: Apr 2005
Location: b.c.
Posts: 1,369
Default Re: **Tech: Build your own 32 frame rails**

hats off to you....i can tell by your jigs construction that you are a woodworker....?
__________________
a time to weld , a time to grind.
offline   Reply With Quote
Old 10-06-2008, 09:20 AM   #127
HomemadeHardtop57
Old School HAMBer

HomemadeHardtop57's Avatar

Join Date: Nov 2007
Location: Robesonia,Pa
Posts: 3,693
Default Re: **Tech: Build your own 32 frame rails**

hardcore
offline   Reply With Quote
Old 10-06-2008, 09:46 AM   #128
brpowel4
Grenade Inspector

Join Date: Jul 2006
Location: Christiansburg, VA
Posts: 107
Default Re: **Tech: Build your own 32 frame rails**

unbelieveable!!! you are awesome!
offline   Reply With Quote
Old 10-06-2008, 09:58 AM   #129
lost39
Grenade Inspector

lost39's Avatar

Join Date: Apr 2008
Location: Austria
Posts: 114
Default Re: **Tech: Build your own 32 frame rails**

You made my day with your craftsmanship.
Keep on the good work and postings!!!!!
__________________
"Dream about it and one day it`s real"
offline   Reply With Quote
Old 10-06-2008, 10:16 AM   #130
Sparkswillfly
Senior Member

Sparkswillfly's Avatar

Join Date: Oct 2006
Location: Colorado
Posts: 1,030
Default Re: **Tech: Build your own 32 frame rails**

Way cool!
Great work!
__________________
My Lifestyle Determines My Deathstyle.......
offline   Reply With Quote
Old 10-06-2008, 10:24 AM   #131
Gambino_Kustoms
Alliance Vendor

Gambino_Kustoms's Avatar

Join Date: Oct 2005
Location: koolsville U.S.A.
Posts: 6,540
Default Re: **Tech: Build your own 32 frame rails**

thats crazy bad f$^%%n ass great fab skills
__________________
ALIANCE VENDER FOR:
ALL YOUR HOT ROD & KUSTOM CAR NEEDS
GAMBINO KUSTOMS NOTCHS
& TAIL DRAGERS KITS FOR ALL
40'S & 50'S CARS call: 408-561-5744
made a million dollars off my first record deal
offline   Reply With Quote
Old 10-06-2008, 10:34 AM   #132
Gigantor
Old School HAMBer

Gigantor's Avatar

Join Date: Jul 2006
Location: Hudson, Maine
Posts: 3,841
Default Re: **Tech: Build your own 32 frame rails**

Imagine a long, low whistle right now ... cuz that's all I can say. Nice work. Nice.
__________________
Hot Rod Son
offline   Reply With Quote
Old 10-06-2008, 10:47 AM   #133
KATFISH
Member

KATFISH's Avatar

Join Date: Aug 2004
Location: Republic of Texas
Posts: 660
Default Re: **Tech: Build your own 32 frame rails**

FNG in name only...

Too bad your'e in PA.

Beautiful work.
__________________
Professional vintage license plate restoration
www.vintageplaterestoration.com
(817) 727-9185
offline   Reply With Quote
Old 10-06-2008, 10:56 AM   #134
myke
Senior Member

myke's Avatar

Join Date: Dec 2004
Location: Oregon
Posts: 2,143
Default Re: **Tech: Build your own 32 frame rails**

WOw. That's awesome!
__________________
Who cares what people think!

offline   Reply With Quote
Old 10-06-2008, 11:01 AM   #135
captain scarlet
Senior Member

captain scarlet's Avatar

Join Date: Jun 2008
Location: Detroit
Posts: 1,889
Default Re: **Tech: Build your own 32 frame rails**

just to add to the ego stroking.....

Great job awesome set of rails. Keep the pictures coming. The car should be awesome if you carry on that way.

Again Great work!!!
offline   Reply With Quote
Old 10-06-2008, 12:17 PM   #136
oldrelics
Senior Member

oldrelics's Avatar

Join Date: Apr 2008
Location: Calgary
Posts: 1,225
Default Re: **Tech: Build your own 32 frame rails**

I guess I'll have to save my tech for the next one....

~~~~~~~~white flag~~~~~~~~~~~
offline   Reply With Quote
Old 10-06-2008, 01:04 PM   #137
Spedley
Grenade Inspector

Join Date: Mar 2004
Location: Moose Jaw SK Canada
Posts: 391
Default Re: **Tech: Build your own 32 frame rails**

WOW! What else can be said? Just goes to show that with some time, tools, some scraps and ingenuity, damn near anything is possible. I wont believe for a second that this is all you have in that brain of yours.... Post more, we crave it... Fantastic tech... Thanks.
__________________
Regular tastes kinda sour, supreme is kinda tangy and diesel tastes pretty good.
offline   Reply With Quote
Old 10-06-2008, 01:22 PM   #138
The Brudwich
Member

The Brudwich's Avatar

Join Date: Oct 2005
Location: Los Angeles, CA
Posts: 806
Default Re: **Tech: Build your own 32 frame rails**

Wow!! Absolutely the coolest/best tech I've seen in years. I can't wait to see the rest of your build. Please keep us updated on your build.
offline   Reply With Quote
Old 10-06-2008, 09:54 PM   #139
willysguy
Senior Member

willysguy's Avatar

Join Date: Oct 2007
Location: Canada
Posts: 1,032
Default Re: **Tech: Build your own 32 frame rails**

Wow! That is some nice work.
offline   Reply With Quote
Old 10-06-2008, 10:04 PM   #140
tomcantdoit
Senior Member

tomcantdoit's Avatar

Join Date: Dec 2006
Location: alburquerque, new mexico
Posts: 1,277
Default Re: **Tech: Build your own 32 frame rails**

i think this guy won tech week!! man that is some awesome work!!!
__________________
my 31 ford tudor V

http://www.jalopyjournal.com/forum/s...d.php?t=369296

COME ON 49ers!!!!
offline   Reply With Quote
Old 10-06-2008, 10:20 PM   #141
X38
Old School HAMBer

X38's Avatar

Join Date: Feb 2005
Location: Brisbane, Australia
Posts: 3,364
Default Re: **Tech: Build your own 32 frame rails**

Fantastic tech! What is it with you woodworker guys? (eg Dreadman too) You sure make nice metal.
offline   Reply With Quote
Old 10-06-2008, 10:21 PM   #142
pfzilla
Alliance Member

pfzilla's Avatar

Join Date: Nov 2007
Location: Hanford, CA
Posts: 7
Default Re: **Tech: Build your own 32 frame rails**

I wanna job that throws away that much metal.
__________________
In the words of the Irish Poet...
"Yo're Fooked!!"

www.pontiac-59.com
offline   Reply With Quote
Old 10-06-2008, 10:29 PM   #143
Roadsir
Senior Member

Roadsir's Avatar

Join Date: Jun 2006
Location: Home of Schells, Grainbelt, Hauenstein Beer!
Posts: 1,925
Default Re: **Tech: Build your own 32 frame rails**

Yep..You Win.
Nice Tech, your fabrication skills are astounding!
offline   Reply With Quote
Sponsored Links (Register now to hide all advertisements)
Old 10-06-2008, 10:35 PM   #144
Roadsir
Senior Member

Roadsir's Avatar

Join Date: Jun 2006
Location: Home of Schells, Grainbelt, Hauenstein Beer!
Posts: 1,925
Default Re: **Tech: Build your own 32 frame rails**

When I was a kid I had a neighbor that was a retired bodyman. From him I learned to take round discs and cut them into hexagons or octagons. I assume you are achieving the same thing with a square disc?

Youre right...When one of those flats catches on something the shit hits the fan in a hurry.


The 80 gritt square pad in the other pic is something I use for inside joints like the reveal area. Its an old school thing that seems to baffle alot of guys. Very effective but needs a little practice to master.
offline   Reply With Quote
Old 10-06-2008, 10:44 PM   #145
woodbox
Member

woodbox's Avatar

Join Date: Jul 2005
Location: Whangarei New Zealand
Posts: 867
Default Re: **Tech: Build your own 32 frame rails**

...AND ON THE SEVENTH DAY HE DID REST!

Awesome work!

But on the matter of all those tools.....if you can do all that with just a welder, some clamps and a big hammer, why would you want to clutter up your shop with a bunch of fancy machines?

I'll tell you what.....I can do you a great deal on some storage until you find some one that needs to buy them!!

I will be watching this thread with great interest.
__________________



There is only one sure thing in this life.....and that's doubt.....I think!
offline   Reply With Quote
Old 10-07-2008, 01:39 AM   #146
skunx1964
Alliance Member

skunx1964's Avatar

Join Date: Aug 2008
Location: jacksonville fl
Posts: 1,456
Default Re: **Tech: Build your own 32 frame rails**

holy crap
__________________
- micah
Savages Car Club
Jax, FL
myspace.com/skunx1964
myspace.com/savagescarclub
offline   Reply With Quote
Old 10-07-2008, 07:00 AM   #147
flynbrian48
Old School HAMBer

flynbrian48's Avatar

Join Date: Mar 2008
Location: Kalamazoo, MI
Posts: 4,495
Default Re: **Tech: Build your own 32 frame rails**

Damn. Absolutely amazing. You should be proud of that job.

Brian
offline   Reply With Quote
Old 10-09-2008, 09:08 AM   #148
flthd31
Grenade Inspector

flthd31's Avatar

Join Date: Aug 2007
Location: NW Pennsylvania
Posts: 328
Default Re: **Tech: Build your own 32 frame rails**

Quote:
Originally Posted by NUROADSIR View Post
When I was a kid I had a neighbor that was a retired bodyman. From him I learned to take round discs and cut them into hexagons or octagons. I assume you are achieving the same thing with a square disc?

Youre right...When one of those flats catches on something the shit hits the fan in a hurry.


The 80 gritt square pad in the other pic is something I use for inside joints like the reveal area. Its an old school thing that seems to baffle alot of guys. Very effective but needs a little practice to master.
Sorry I didn't post this earlier...had a camera problem. Anyway, the square pads I was referring to are made by Norton. They are abrasive belt material folded over with a threaded (1/4-20) rivet in the center. They are pretty tough and stay together pretty good but they really create alot of dust and dirt.
Attached Thumbnails
Click image for larger version

Name:	square pad.JPG
Views:	139
Size:	26.5 KB
ID:	1563775
offline   Reply With Quote
Old 10-09-2008, 09:11 AM   #149
continentaljohn
Old School HAMBer

continentaljohn's Avatar

Join Date: Jul 2002
Location: chicagoland
Posts: 3,304
Default Re: **Tech: Build your own 32 frame rails**

WINNER WINNER chicken dinner great tech that's how the Roadster Shop and a few other make them for big $$$$$$ ....
__________________
Wanted 1932 Ford Roadster Parts doors cowl anything Please parts
offline   Reply With Quote
Old 10-09-2008, 10:03 PM   #150
toddc
Member

toddc's Avatar

Join Date: Nov 2007
Location: Sydney Australia
Posts: 987
Default Re: **Tech: Build your own 32 frame rails**

Quote:
Originally Posted by NUROADSIR View Post
When I was a kid I had a neighbor that was a retired bodyman. From him I learned to take round discs and cut them into hexagons or octagons.

What was the reason for cutting them into hexagons?
__________________
Quote:
Originally Posted by Hnstray View Post
There is a not so polite suggestion that can and should be made to such people.
offline   Reply With Quote
Old 10-09-2008, 10:29 PM   #151
mattcrp1
Member

mattcrp1's Avatar

Join Date: Aug 2007
Location: mountain house/tracy, ca
Posts: 411
Default Re: **Tech: Build your own 32 frame rails**

holy sh*t, that is beautiful!
offline   Reply With Quote
Old 10-09-2008, 11:20 PM   #152
gnarlytyler
Senior Member

gnarlytyler's Avatar

Join Date: Feb 2007
Location: Southern California
Posts: 1,024
Default Re: **Tech: Build your own 32 frame rails**

soooo... can I be the first to place an order
__________________
..Timing..Is Everything..
offline   Reply With Quote
Old 10-10-2008, 07:25 AM   #153
striper
Old School HAMBer

striper's Avatar

Join Date: Mar 2005
Location: Central Vic, Australia
Posts: 4,404
Default Re: **Tech: Build your own 32 frame rails**

Quote:
Originally Posted by TexasHardcore View Post
Hah, that fuckin rules! MIG welded & home-built... fuck the naysayers.
No. Those rails won't be any good. You can't do good work with a MIG. If you don't use a TIG you're just a hack and your welds will definitely break
__________________
VULTURES
Australia

http://www.readersdigest.com.au/most-trusted-professions-2013
offline   Reply With Quote
Old 10-10-2008, 07:49 AM   #154
wlspdshop
Alliance Member

wlspdshop's Avatar

Join Date: Jun 2005
Location: North Dakota
Posts: 1,562
Default Re: **Tech: Build your own 32 frame rails**

...Holy crap is that cool!
offline   Reply With Quote
Old 10-10-2008, 01:03 PM   #155
Artiki
Senior Member

Artiki's Avatar

Join Date: Feb 2004
Location: Brum...
Posts: 1,962
Default Re: **Tech: Build your own 32 frame rails**

Simply incredible. My hat is off, Sir.....
__________________
www.flatheadmeltdown.com - Home of the world's quickest street flatheads and four-bangers.
offline   Reply With Quote
Old 10-10-2008, 05:17 PM   #156
sodas38
Senior Member

sodas38's Avatar

Join Date: Sep 2004
Location: Wichita, Kansas
Posts: 2,163
Default Re: **Tech: Build your own 32 frame rails**

This is a tech that has been asked for by many of us. Lots of talent and lots of time in these. I know some may think after all that you may be ahead by just getting some american stamping rails but you'd still have to box those and you didn't sink any money into your metal. Take out your labor and you've got a free frame worth a ton in the end. Hell of a job!!
__________________
I am a displaced Minnesotan that is happy to have a real spring and a real fall, rather than just one long winter.
offline   Reply With Quote
Old 10-10-2008, 06:00 PM   #157
stealthcruiser
Old School HAMBer

stealthcruiser's Avatar

Join Date: Dec 2002
Location: hampton,ga.
Posts: 3,014
Default Re: **Tech: Build your own 32 frame rails**

Sniff....Sniff....Whats that smell?

Tech week winner,gotta' be!

Awsome craftsmanship and forming skills.

Lemme' see that forearm,young man!
__________________
Chuck
offline   Reply With Quote
Old 10-10-2008, 06:56 PM   #158
DirtyThirty
Senior Member

Join Date: Mar 2007
Location: nowhere...
Posts: 2,415
Default Re: **Tech: Build your own 32 frame rails**

Damn...thats amazing.
Looking at the raw, but smoothed/finished rails, after all those pix actually made me want to cry...
Mostly because I can't do it, but also because they are so beautiful.
Incredible...things like this remind me of how far there really is to go...how far you can take your skills/learning.
Incredible, and inspiring...I've always been kind of preoccupied with the drivetrain of the vehicle, but lately metal work has been fascinating me!
I need lots more practice at both...
Those are unbelievable....
__________________

offline   Reply With Quote
Old 10-10-2008, 08:01 PM   #159
matt 3083
Grenade Inspector

Join Date: Sep 2005
Location: Tucson, Az
Posts: 134
Default Re: **Tech: Build your own 32 frame rails**

Real craftsmanship here. Reminds me of the stuff Bugatti and
Harry Miller built. You really should be proud of your work, I know
that I am.
offline   Reply With Quote
Old 10-10-2008, 08:04 PM   #160
Sellers Equipped
BANNED

Join Date: Oct 2006
Location: San Jose
Posts: 610
Default Re: **Tech: Build your own 32 frame rails**

Perfection at its Finest! Hands down to you Sir!
offline   Reply With Quote
Old 10-10-2008, 09:25 PM   #161
Roadsir
Senior Member

Roadsir's Avatar

Join Date: Jun 2006
Location: Home of Schells, Grainbelt, Hauenstein Beer!
Posts: 1,925
Default Re: **Tech: Build your own 32 frame rails**

It Keeps from making an arc shaped disc mark in the material you are grinding. The longer flats cut more gradually into the surface.

You can also use this technique to trim back the disc into an area less worn.


Quote:
Originally Posted by toddc View Post
What was the reason for cutting them into hexagons?
offline   Reply With Quote
Old 10-11-2008, 10:17 PM   #162
moefuzz
Old School HAMBer

moefuzz's Avatar

Join Date: Jul 2005
Location: Under A Clean V8
Posts: 4,896
Default Re: **Tech: Build your own 32 frame rails**

Great Tech Article!



Approximately how many hours were involved?

I'd suspect 60 hours or more?




.
__________________
.. Wise men talk about ideas, ordinary men talk about things, fools talk about each other
offline   Reply With Quote
Old 10-11-2008, 10:49 PM   #163
FINKSTR
Grenade Inspector

FINKSTR's Avatar

Join Date: Oct 2006
Location: Freeport, IL
Posts: 294
Default Re: **Tech: Build your own 32 frame rails**

That's great tech or should I say art. Please post updates on the project. If the rest of the project is anything like the rails it will be perfect. Tech like this inspires me now if I just had the talent or patience. Thanks!
offline   Reply With Quote
Sponsored Links (Register now to hide all advertisements)
Old 10-13-2008, 12:23 PM   #164
blackmopar
Member

blackmopar's Avatar

Join Date: Nov 2006
Location: fallbrook
Posts: 483
Default Re: **Tech: Build your own 32 frame rails**

wow - that is truly fine work
offline   Reply With Quote
Old 10-13-2008, 02:54 PM   #165
BAILEIGH INC
Alliance Vendor

BAILEIGH INC's Avatar

Join Date: Aug 2008
Location: Manitowoc, WI
Posts: 3,332
Default Re: **Tech: Build your own 32 frame rails**

Great tech! Thank you.
__________________
Shane Henderson
Baileigh Industrial
shenderson@baileighindustrial.com
www.baileighindustrial.com
920-482-3220

Metal Shaping Heaven www.baileighindustrial.com

Click Here For Serious Metal Fabrication Equipment
offline   Reply With Quote
Old 10-13-2008, 03:00 PM   #166
KIRK!
Old School HAMBer

KIRK!'s Avatar

Join Date: Feb 2002
Location: At your mom's house naked!
Posts: 12,149
Default Re: **Tech: Build your own 32 frame rails**

Amazing work! Your labor must be cheap. That's WAY more work than I'd do to save $600. More power to ya!
__________________
-COOL stuff HERE -See stupid shit HERE! -Pics of your mom naked at killKIRK
offline   Reply With Quote
Old 10-13-2008, 05:11 PM   #167
Steves32
Senior Member

Steves32's Avatar

Join Date: Aug 2007
Location: So Cal
Posts: 2,126
Default Re: **Tech: Build your own 32 frame rails**

Holy shit! Simply amazing.

So what do you do for an encore? Hammer out a roadster from a sheet of flat stock?
offline   Reply With Quote
Old 10-13-2008, 05:30 PM   #168
bustingear
Senior Member

bustingear's Avatar

Join Date: Oct 2002
Location: Columbus, Ohio
Posts: 1,214
Default Re: **Tech: Build your own 32 frame rails**

Great work. When does production start???
__________________
"Look out boys! I gotta license to fly!"
offline   Reply With Quote
Old 10-14-2008, 07:59 AM   #169
BAILEIGH INC
Alliance Vendor

BAILEIGH INC's Avatar

Join Date: Aug 2008
Location: Manitowoc, WI
Posts: 3,332
Default Re: **Tech: Build your own 32 frame rails**

Quote:
Originally Posted by Steves32 View Post
Holy shit! Simply amazing.

So what do you do for an encore? Hammer out a roadster from a sheet of flat stock?
Ha ha
__________________
Shane Henderson
Baileigh Industrial
shenderson@baileighindustrial.com
www.baileighindustrial.com
920-482-3220

Metal Shaping Heaven www.baileighindustrial.com

Click Here For Serious Metal Fabrication Equipment
offline   Reply With Quote
Old 10-14-2008, 08:47 AM   #170
LUX BLUE
Old School HAMBer

LUX BLUE's Avatar

Join Date: May 2005
Location: AUSTIN,TX
Posts: 4,413
Default Re: **Tech: Build your own 32 frame rails**

Admit it. this is actually "Norm" from the "New Yankee Workshop" Isn't it?
__________________
"My name is Good Cat...You can call me MISTER Good Cat."

WWW.CRUSHPROOF.NET
offline   Reply With Quote
Old 10-14-2008, 10:56 AM   #171
flthd31
Grenade Inspector

flthd31's Avatar

Join Date: Aug 2007
Location: NW Pennsylvania
Posts: 328
Default Re: **Tech: Build your own 32 frame rails**

Quote:
Originally Posted by BAILEIGH INC View Post
Great tech! Thank you.
And thank you for the sponsorship. It definitely brought this tech week to a new level.
offline   Reply With Quote
Old 10-14-2008, 01:06 PM   #172
mtlcutter
Grenade Inspector

mtlcutter's Avatar

Join Date: Oct 2007
Location: Albuquerque, NM
Posts: 357
Default Re: **Tech: Build your own 32 frame rails**

That is some F*#$ing beautiful work. Welcome to the community. Great tech thread!!!!!
__________________
Fly Low !! Crash Hard !! Live Fast !!
offline   Reply With Quote
Old 10-15-2008, 06:46 PM   #173
Doctor Destructo
Member

Doctor Destructo's Avatar

Join Date: Feb 2007
Location: San Diego, CA
Posts: 418
Default Re: **Tech: Build your own 32 frame rails**

Fantastic step-by-step text-book style tech article. Thank you.
offline   Reply With Quote
Old 10-15-2008, 09:52 PM   #174
jj mack
Member

jj mack's Avatar

Join Date: Mar 2007
Location: Plano Texas
Posts: 739
Default Re: **Tech: Build your own 32 frame rails**

Why don't you show us how to build a nuclear powered submarine while your at it!!!!!

Great work and thanks for the tips and inspiration.


Jimmy
offline   Reply With Quote
Old 10-15-2008, 10:10 PM   #175
kustomizingkid
Grenade Inspector

Join Date: Sep 2008
Location: North Branch
Posts: 227
Default Re: **Tech: Build your own 32 frame rails**

Awesome work man!

Waht do you do when you want to bolt something to the frame though?
offline   Reply With Quote
Old 10-16-2008, 12:09 AM   #176
Clutched
Grenade Inspector

Join Date: Oct 2008
Location: Northern IL
Posts: 247
Default Re: **Tech: Build your own 32 frame rails**

Bravo! unreal fine job!
__________________
THEM!
offline   Reply With Quote
Old 10-16-2008, 08:30 AM   #177
flthd31
Grenade Inspector

flthd31's Avatar

Join Date: Aug 2007
Location: NW Pennsylvania
Posts: 328
Default Re: **Tech: Build your own 32 frame rails**

Quote:
Originally Posted by kustomizingkid View Post

Waht do you do when you want to bolt something to the frame though?
There are a couple of options for body mounts. Hereís what I did. I have a bag full of these threaded bushings. They're ĺ inch outside dia. by Ĺ inch thick with a 3/8-16 thread inside.

I drill a starter hole, and then plasma cut a 1 inch dia hole with my luan pattern.





Next, chamfer for welding.





Screw something into the bushing to hang on to and hold it in the hole a little below flush and tack weld it in one spot. Plumb it up square and tack again directly across from the first tack. Plumb it again and then put two more tacks between the first two. Now weld it up. I leave the stud in the bushing till Iím done welding to keep spatter out.



The frame can be drilled and tapped for small stuff like brake line hold downs. For other things like fuel pumps etc. your best bet is to make a bracket with the holes you need and weld it to the frame.

...Or you can do like Rolf did and put some holes thru the inside boxing plates and work thru them. Hereís a link to his excellent build:

http://www.jalopyjournal.com/forum/showthread.php?t=104922&highlight=rolf[/FONT]

offline   Reply With Quote
Old 10-16-2008, 02:20 PM   #178
Brickster
Senior Member

Brickster's Avatar

Join Date: Nov 2003
Location: Las Vegas, NV
Posts: 1,135
Default Re: **Tech: Build your own 32 frame rails**

good job. It's posts like this that make the HAMB what it is.

Brick
__________________
Smokin' HAMBer deal on energy suspension bump stops $11 shipped. See my listing in the classifieds.

http://www.jalopyjournal.com/forum/s...02#post2288002
offline   Reply With Quote
Old 10-17-2008, 09:09 AM   #179
wicked willys
Newbie

Join Date: May 2007
Location: ne ohio
Posts: 79
Default Re: **Tech: Build your own 32 frame rails**

Great tech. Very good pics and captions. The talent here just amazes me.
offline   Reply With Quote
Old 10-17-2008, 09:55 AM   #180
Big A
Alliance Member

Big A's Avatar

Join Date: May 2001
Location: Niagara Canada. The deep south of the far north
Posts: 4,343
Default Re: **Tech: Build your own 32 frame rails**

Quote:
Originally Posted by KIRK! View Post
Amazing work! Your labor must be cheap. That's WAY more work than I'd do to save $600. More power to ya!
There's something to be said for doing it yourself, it doesn't have to be about money.



This is beautiful workmanship, and thanks for the excellent pictures and commentary too. Inspiring.
__________________
SFCC... we can do it ourselves.
(Canadians use thicker socks)

My shoebox build... http://www.jalopyjournal.com/forum/showthread.php?t=626123
offline   Reply With Quote
Old 10-17-2008, 10:05 AM   #181
Larry Pearsall
Senior Member

Larry Pearsall's Avatar

Join Date: Apr 2007
Location: Brookville, Pa.
Posts: 1,516
Default Re: **Tech: Build your own 32 frame rails**

If you could build another how much? I'd consider 1 ... Thanks Larry
offline   Reply With Quote
Old 10-17-2008, 10:11 AM   #182
BAILEIGH INC
Alliance Vendor

BAILEIGH INC's Avatar

Join Date: Aug 2008
Location: Manitowoc, WI
Posts: 3,332
Default Re: **Tech: Build your own 32 frame rails**

Congratulations flthd31!

Very nice work. You have won your choice of the prize machines. What machine are you going to pick? Let us all know! Give me a call and let's get your machine shipped out to you right away! 920-482-3220

Thank you Ryan for all of the help.....and a BIG thanks to all for contributing to the Baileigh Tech Week. I think everyone learned plenty from it.

Please visit our website www.bii1.com for all of your metal fabrication needs!
__________________
Shane Henderson
Baileigh Industrial
shenderson@baileighindustrial.com
www.baileighindustrial.com
920-482-3220

Metal Shaping Heaven www.baileighindustrial.com

Click Here For Serious Metal Fabrication Equipment
offline   Reply With Quote
Old 10-17-2008, 12:28 PM   #183
VanHook
Grenade Inspector

Join Date: May 2005
Location: Lebanon, Ohio
Posts: 230
Default Re: **Tech: Build your own 32 frame rails**

Wow! Inspiring work man, keep it up!!!
offline   Reply With Quote
Sponsored Links (Register now to hide all advertisements)
Old 10-17-2008, 01:09 PM   #184
Pir8Darryl
Old School HAMBer

Pir8Darryl's Avatar

Join Date: Jan 2008
Location: Louisville Ky.
Posts: 2,512
Default Re: **Tech: Build your own 32 frame rails**

Quote:
Originally Posted by Larry Pearsall View Post
If you could build another how much? I'd consider 1 ... Thanks Larry
Only one? You dont want the pair?

Congrats!!! You got my vote, and I'm damn glad 'ya won the big enchelada!
__________________
Popcorn
Pops at exactly 444 degreese
Expands to 44 times it's original size
Has a 4 year shelf life
offline   Reply With Quote
Old 10-17-2008, 01:11 PM   #185
Crazydaddyo
Alliance Member

Crazydaddyo's Avatar

Join Date: Apr 2008
Location: Orange, Ca.
Posts: 3,558
Default Re: **Tech: Build your own 32 frame rails**

Congrats!!!!!!! Well deserved
__________________
" I've tried nothing ...and I'm all out of ideas."

T-5 5 speed in a Torque Tube:
http://www.jalopyjournal.com/forum/s...d.php?t=256226

offline   Reply With Quote
Old 10-17-2008, 01:19 PM   #186
farm boy
Grenade Inspector

Join Date: Oct 2006
Location: reedley
Posts: 179
Default Re: **Tech: Build your own 32 frame rails**

Amazing, WOW, This is one reason I love the HAMB!!!!
OLY

The cancer car lives
Give to cancer research
offline   Reply With Quote
Old 10-17-2008, 01:40 PM   #187
KIRK!
Old School HAMBer

KIRK!'s Avatar

Join Date: Feb 2002
Location: At your mom's house naked!
Posts: 12,149
Default Re: **Tech: Build your own 32 frame rails**

Quote:
Originally Posted by Big A View Post
There's something to be said for doing it yourself, it doesn't have to be about money.



This is beautiful workmanship, and thanks for the excellent pictures and commentary too. Inspiring.
I agree, but my time is so limited that I'd spend those many hours on other parts of the car.

The work is art!
__________________
-COOL stuff HERE -See stupid shit HERE! -Pics of your mom naked at killKIRK
offline   Reply With Quote
Old 10-17-2008, 01:59 PM   #188
BAILEIGH INC
Alliance Vendor

BAILEIGH INC's Avatar

Join Date: Aug 2008
Location: Manitowoc, WI
Posts: 3,332
Default Re: **Tech: Build your own 32 frame rails**

COOL!

I just spent some time on the phone with John (the winner). Could not ask for a nicer guy, very humble and very appreciative. It's nice to see people like him win our contests.

Thanks again John and let's see some pictures of the new brake in your shop!
__________________
Shane Henderson
Baileigh Industrial
shenderson@baileighindustrial.com
www.baileighindustrial.com
920-482-3220

Metal Shaping Heaven www.baileighindustrial.com

Click Here For Serious Metal Fabrication Equipment
offline   Reply With Quote
Old 10-17-2008, 02:08 PM   #189
eye bone
Member

eye bone's Avatar

Join Date: Jul 2005
Location: Dagger Brush, CA
Posts: 651
Default Re: **Tech: Build your own 32 frame rails**

This is why I love the H.A.M.B.!!! Thank you very much for sharring this valuable info & with such skill! Way Cool!!!
__________________
"Ain't got no spare, ain't got no jack, don't give a shit I ain't commin' back!" Tom Waits

http://www.eyebone.com
offline   Reply With Quote
Old 10-17-2008, 02:18 PM   #190
flthd31
Grenade Inspector

flthd31's Avatar

Join Date: Aug 2007
Location: NW Pennsylvania
Posts: 328
Default Re: **Tech: Build your own 32 frame rails**

Quote:
Originally Posted by BAILEIGH INC View Post
COOL!

I just spent some time on the phone with John (the winner). Could not ask for a nicer guy, very humble and very appreciative. It's nice to see people like him win our contests.

Thanks again John and let's see some pictures of the new brake in your shop!
Wow, I'm a happy fabricator!... just want to say thanks again to everyone that voted for me. All the positive comments mean a great deal. H.A.M.B. is a tremendous resource with so many skilled members I feel a bit lucky especially being a new guy on the block.

I also would like to extend a grateful thank you to Shane Henderson and Baileigh Industrial for sponsoring tech week.

Pictures of the brake will be comming soon!
offline   Reply With Quote
Old 10-17-2008, 02:36 PM   #191
kookee
Member

kookee's Avatar

Join Date: Jan 2008
Location: Rochester Hills, Michigan
Posts: 527
Default Re: **Tech: Build your own 32 frame rails**

Read it twice.. Still amazed. That is some skill and craftsmanship!
offline   Reply With Quote
Old 10-17-2008, 02:57 PM   #192
MIKE47
Member

MIKE47's Avatar

Join Date: Aug 2005
Location: new jersey
Posts: 989
Default Re: **Tech: Build your own 32 frame rails**

Congrats John. This is an awesome thread. I've made my share of A rails, But these are just awesome. I know a shit-ton of hours went into them. Nice work and a well deserved win!
__________________
47 Industries-Custom Bikes and Hotrods
www.47fab.com

Rumblers CC. NJ Chapter.
offline   Reply With Quote
Old 10-17-2008, 03:07 PM   #193
wild32hotrod
Grenade Inspector

wild32hotrod's Avatar

Join Date: Nov 2001
Location: Maryville Tn.
Posts: 161
Default Re: **Tech: Build your own 32 frame rails**

that is some awesome fab work and even in a home garage great work
offline   Reply With Quote
Old 10-17-2008, 03:24 PM   #194
Cymro
Member

Cymro's Avatar

Join Date: Jul 2008
Location: Anglesey, Wales,UK
Posts: 634
Default Re: **Tech: Build your own 32 frame rails**

Nice work Congrats , great post!!!!!!!
offline   Reply With Quote
Old 10-17-2008, 04:46 PM   #195
ProEnfo
Senior Member

ProEnfo's Avatar

Join Date: Sep 2005
Location: Motown
Posts: 1,496
Default Re: **Tech: Build your own 32 frame rails**

Quote:
Originally Posted by MIKE47 View Post
Nice work and a well deserved win!
Yep !

CC
__________________
I hope you understand now that you don't need to understand. - - Bill Stinson
offline   Reply With Quote
Old 10-17-2008, 04:58 PM   #196
Rude Dude
Grenade Inspector

Rude Dude's Avatar

Join Date: Dec 2003
Location: Glendale Arizona USA
Posts: 384
Default Re: **Tech: Build your own 32 frame rails**

This is one of the best informative tech that I seen so far great job and thanks for posting!!
offline   Reply With Quote
Old 10-17-2008, 05:46 PM   #197
mcload
Member

mcload's Avatar

Join Date: Apr 2007
Location: Houston, Texas
Posts: 522
Default Re: **Tech: Build your own 32 frame rails**

Wanted to add my kudos...great craftsmanship and write up!!
I'll never complain about one of my own custom pieces taking too long to make! Thanks for sharing that.
offline   Reply With Quote
Old 10-17-2008, 07:02 PM   #198
bobx
Senior Member

bobx's Avatar

Join Date: Apr 2004
Location: Indiana
Posts: 1,061
Default Re: **Tech: Build your own 32 frame rails**

nice job.
hopefully there'll be more like that as you go..

thanks.
offline   Reply With Quote
Old 10-17-2008, 07:08 PM   #199
2Hep
Member

2Hep's Avatar

Join Date: Mar 2005
Location: Chicago
Posts: 484
Default Re: **Tech: Build your own 32 frame rails**

wow...so much for picking up the catalog and ordering some repops...
amazing! and very nice craftsmanship!
offline   Reply With Quote
Old 10-17-2008, 07:54 PM   #200
Stuffengineer
FNG

Join Date: Oct 2008
Location: Camb. ON
Posts: 5
Default Re: **Tech: Build your own 32 frame rails**

How could I add something that has not already been said. An amazing piece of work. Congrats!
offline   Reply With Quote
Old 10-17-2008, 08:01 PM   #201
stealthcruiser
Old School HAMBer

stealthcruiser's Avatar

Join Date: Dec 2002
Location: hampton,ga.
Posts: 3,014
Default Re: **Tech: Build your own 32 frame rails**

Quote:
Originally Posted by stealthcruiser View Post
Sniff....Sniff....Whats that smell?

Tech week winner,gotta' be!

Awsome craftsmanship and forming skills.

Lemme' see that forearm,young man!
Can I pick em',or what!
__________________
Chuck
offline   Reply With Quote
Old 10-18-2008, 06:34 AM   #202
loc8tor
Member

loc8tor's Avatar

Join Date: Mar 2007
Location: Camp Hill PA 17011
Posts: 961
Default Re: **Tech: Build your own 32 frame rails**

D A H M !!!!!! those are some SWWWEEEEEETTTTTT rails.......
offline   Reply With Quote
Old 10-18-2008, 09:14 AM   #203
Dan Hay
Alliance Member

Dan Hay's Avatar

Join Date: Mar 2007
Location: Fort Worth TEXAS
Posts: 2,533
Default Re: **Tech: Build your own 32 frame rails**

Amazing, I just read and studied all that, and I'm sure I still couldn't do that, even if I studied it a hundred more times..
offline   Reply With Quote
Sponsored Links (Register now to hide all advertisements)
Old 10-19-2008, 05:44 AM   #204
Old Roadster
Member

Old Roadster's Avatar

Join Date: Jul 2006
Location: South East Pa.
Posts: 624
Default Re: **Tech: Build your own 32 frame rails**

speechless.....................
offline   Reply With Quote
Old 10-19-2008, 11:08 AM   #205
55 dude
Old School HAMBer

55 dude's Avatar

Join Date: Jun 2006
Location: Wa. "The Wet Side"!
Posts: 7,703
Default Re: **Tech: Build your own 32 frame rails**

not only does he have great tech skills he also has talent in the camera department! heres food for thought: the hamb needs to find a sponser that would pony up a really nice digital camera also (nothing against the current sponser at all) to keep the tech rolling with even better pic's. read through the post 3 times and....
offline   Reply With Quote
Old 10-19-2008, 11:29 AM   #206
deuceguy
Member

deuceguy's Avatar

Join Date: Nov 2002
Location: North Bay, ON
Posts: 432
Default Re: **Tech: Build your own 32 frame rails**

Great fab work man!!
__________________

offline   Reply With Quote
Old 10-20-2008, 09:44 AM   #207
mosimpson
Grenade Inspector

mosimpson's Avatar

Join Date: May 2006
Location: Sebastopol, CA
Posts: 274
Default Re: **Tech: Build your own 32 frame rails**

Quote:
Originally Posted by flthd31 View Post
Ive had a few questions on grinding tools and time involved.
Another 15 minutes with a 120 grit belt on the string buff and done.
Can you elaborate on what a "string buff" is? I'd love to learn how to finish metal like that.
offline   Reply With Quote
Old 10-20-2008, 08:28 PM   #208
flthd31
Grenade Inspector

flthd31's Avatar

Join Date: Aug 2007
Location: NW Pennsylvania
Posts: 328
Default Re: **Tech: Build your own 32 frame rails**

Quote:
Originally Posted by mosimpson View Post
Can you elaborate on what a "string buff" is? I'd love to learn how to finish metal like that.
The string buff with the belt on it is something that I kind of invented on my own. The belts are normally used on a pneumatic rubber tire but I never cared for the finish (streaky looking). The string buff is normally used by itself with a greaseless abrasive on it to help finish odd shaped stainless steel pieces. When you put a belt on it the strings hold the belt with centrifugal force. The belt is very unstable when doing this and will easily fly off. It takes a bit of practice to master it but it gives a very nice finish. I guess Iíve had too many years finishing stainless steelÖthatís why these rails kind of look like stainless.
offline   Reply With Quote
Old 10-20-2008, 09:51 PM   #209
Dubbzilla
Member

Join Date: Jun 2007
Location: Cape Breton Island, Canada
Posts: 817
Default Re: **Tech: Build your own 32 frame rails**

Impressive enough for your first set of homemade deuce rails....but next time I'll expect to see stainless or aluminum...I mean cmon....you call yourself a Tech Winner?!?!?!

lol

j/k...but it would be really cool to see them built to last till jesus comes back.

-Dubbzilla
offline   Reply With Quote
Old 10-23-2008, 12:48 PM   #210
ewallac1
FNG

Join Date: Jun 2008
Location: Allen Park, Mi.
Posts: 2
Default Re: **Tech: Build your own 32 frame rails**

:dfoose who ???
offline   Reply With Quote
Old 10-26-2008, 04:41 PM   #211
M.D.
Grenade Inspector

M.D.'s Avatar

Join Date: Jun 2008
Location: Prescott Valley, AZ
Posts: 101
Default Re: **Tech: Build your own 32 frame rails**

Amazing!
offline   Reply With Quote
Old 11-05-2008, 12:13 AM   #212
Dznuts
Newbie

Dznuts's Avatar

Join Date: Dec 2007
Location: ATL jo ja
Posts: 65
Default Re: **Tech: Build your own 32 frame rails**

well in case you didnt get the hint from the last 1000 replies......... great work man! you put more work into your rails than most of us put into our entire cars!!! amazing tech article man.... ill be looking for more from you so please keep em coming! my moto in life has always been spend more time than money and you have nailed that one!
__________________
Spend more time than money!
offline   Reply With Quote
Old 12-31-2008, 10:37 AM   #213
gmgrunt
Grenade Inspector

gmgrunt's Avatar

Join Date: Feb 2005
Location: dimondale,michigan
Posts: 273
Default Re: **Tech: Build your own 32 frame rails**

Verrrrrrry impressive work!!!!!!!!!!!!!!
offline   Reply With Quote
Old 05-28-2009, 11:12 AM   #214
seesko
Old School HAMBer

seesko's Avatar

Join Date: Feb 2009
Location: Western Twin Cities area. Minn
Posts: 2,893
Default Re: **Tech: Build your own 32 frame rails**

Oh. I was stunned at your metal wizardry. Amazing.
Better than sex.
__________________
Ya gotta nip it! Nip it in the bud!!
offline   Reply With Quote
Old 10-07-2009, 09:01 AM   #215
bct
Senior Member

bct's Avatar

Join Date: Apr 2005
Location: b.c.
Posts: 1,369
Default Re: **Tech: Build your own 32 frame rails**

any updates? on the coupe?
__________________
a time to weld , a time to grind.
offline   Reply With Quote
Old 10-07-2009, 09:20 AM   #216
scootermcrad
Alliance Member

scootermcrad's Avatar

Join Date: Sep 2005
Location: Concord, NC
Posts: 13,068
Default Re: **Tech: Build your own 32 frame rails**

I almost forgot about this thread. Totally a superhero in my book! Bravo!!
__________________
Like early Hemis? Click the banner below...

My blog:
scootermcrad.blogspot.com
offline   Reply With Quote
Old 10-07-2009, 09:27 AM   #217
retroridesbyrich
Senior Member

retroridesbyrich's Avatar

Join Date: Dec 2004
Location: Central NC
Posts: 1,887
Default Re: **Tech: Build your own 32 frame rails**

Great job!
__________________
www.retroridesbyrich.com Thimble Drome Special is for sale.
offline   Reply With Quote
Old 10-07-2009, 11:44 AM   #218
decker
Senior Member

decker's Avatar

Join Date: Aug 2007
Location: WaUSAu Wisconsin USA North America Earth
Posts: 1,068
Default Re: **Tech: Build your own 32 frame rails**

From one "Canoe Guy" to another... WHOLLY CRAP MAN... you built a flippin' Deuce frame at home... in your garage... how totally cool is that!!!!! I don't have the time or space in my garage right now to try this and I'm buying some pre-fabbed 32 rails for my "A" soon... but wowsers... what a great and well deserved Tech-Week buffet you served up. Incredible! Congratulations!!!!!






Here's my design... stage I testing is completed... stage II tweaks and refinements and one more prototype over the winter and we should be ready to go into production by late spring. This one is for whitewater of course... fast water, steep gradient and big drops feed my soul.
__________________
Spelling, grammar, punctuation, sentence structure and more right here on the HAMB
offline   Reply With Quote
Old 10-14-2009, 07:58 PM   #219
flthd31
Grenade Inspector

flthd31's Avatar

Join Date: Aug 2007
Location: NW Pennsylvania
Posts: 328
Default Re: **Tech: Build your own 32 frame rails**

I was searching the forum for info (like I do every night) and this thread happened to come up. I noticed that it had been resurrected a week ago and I missed it. So here are a couple of pics of where Iím at now.



This is my winter project so progress seems slow, but I did get all the body work done which seemed endless. The drivers side in the pic was put together from pieces of 6 different cars plus the patch panels. Plus all the door hinges had to drilled out, removed, and repaired and reinstalled. The top was chopped 4 inched. The cowl was channeled about 1 Ĺ inches in front so I tapered the bottom cowl patch up on the front to compliment the reveal line in the frame. The rear wheel wells bottoms were contoured for axle and spring clearance.
Iím bucking the HAMB trend and installing cross steer. Itís gonna be tight but the 59AB Flatty should fit with the stock heads as planned. The mount had to be embedded in the frame rail to get engine head clearance. The box is a 40 with a 35-36 column tube and wheel. I also went with the 35-36 dash and mounted it at a slight angle so it penetrates the cab space a bit. Original gauges will go back in.



Tranny will be a T-5 on a hogs head mated to a Dwight Bond adapter.
Rear will be a 40 on a model T spring with a NOS Halibrand Quickie I have squirreled away.
offline   Reply With Quote
Old 10-14-2009, 09:08 PM   #220
kiwicowboy
Alliance Member

kiwicowboy's Avatar

Join Date: Nov 2008
Location: linwood nc
Posts: 359
Default Re: **Tech: Build your own 32 frame rails**

grate work,this is the tread I was looking for about a week ago. Thanks for the re post
offline   Reply With Quote
